MA70L-BLMVF (1986)

Toyota Supra

Production Jan 1986 - Aug 1988
Engine 7MGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8601- )

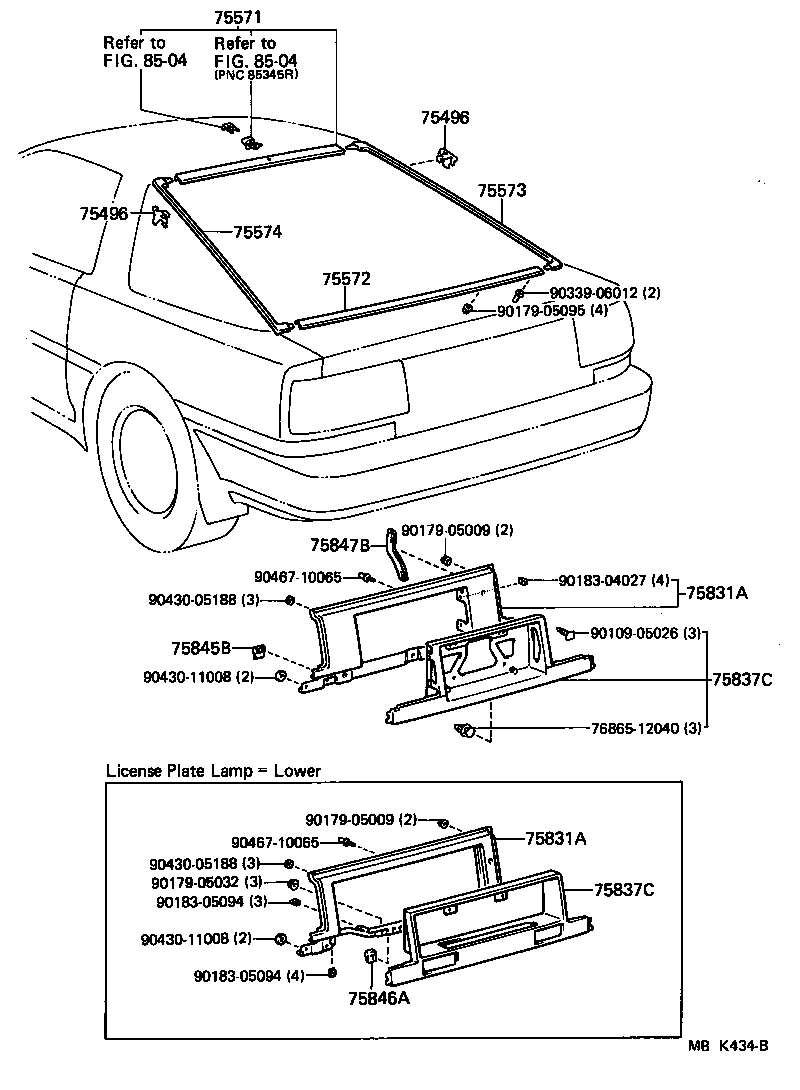

Click highlighted areas on diagram

diagram 75496 75496 75571 75572 75573 75574 75831A 75831A 75837C 75837C 75845B 75846A 75847B 7686512040 8504 8504 9010905026 9017905009 9017905009 9017905032 9017905095 9018304027 9018305094 9018305094 9033906012 9043005188 9043005188 9043011008 9043011008 9046710065 9046710065
Part # Description Qty Price
75496 - CLIP, BACK WINDOW OUTSIDE MOULDING, NO.1
75496-14010

MA70

 2
75496 - CLIP, BACK WINDOW OUTSIDE MOULDING, NO.1
75496-14010

MA70

 2
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-14200

MA70..LHD

W/O *RW

 1
75571-14190

MA70

W/*RW

 1
75572 - MOULDING, BACK WINDOW, LOWER
75575-14170

MA70

 1
75573 - MOULDING, BACK WINDOW SIDE, RH
75573-14202

MA70

 1
75573-14200

MA70

 1
75573-14201

MA70

 1
75574 - MOULDING, BACK WINDOW SIDE, LH
75574-14170

MA70

 1
75574-14171

MA70

 1
75574-14172

MA70

 1
75831A - PANEL, LOWER BACK FINISH, CENTER
75831-14280

MA70..SDZ;MA70..ARL,GCC,GEN

*LPL=SIDE

 1
75831-14270

MA70..EUR,GEN,SA

*LPL=LOWER

 1
75831A - PANEL, LOWER BACK FINISH, CENTER
75831-14280

MA70..SDZ;MA70..ARL,GCC,GEN

*LPL=SIDE

 1
75831-14270

MA70..EUR,GEN,SA

*LPL=LOWER

 1
75837C - COVER, LOWER BACK FINISH PANEL HOLE
75837-1406004

MA70..SDZ;MA70..ARL,GCC,GEN

*LPL=SIDE,BLUE-M,BLUE METALLIC

 1
75837-1407003

MA70..GEN,SA

*LPL=LOWER,GRAY-M,GRAY METALLIC,TRIM1#

 1
75837-1407004

MA70..GEN,SA

*LPL=LOWER,BLUE-M,BLUE METALLIC,TRIM8#

 1
75837-1406002

MA70..SDZ;MA70..ARL,GCC,GEN

*LPL=SIDE,MAROON-M,MAROON METALLIC

 1
75837-1406003

MA70..SDZ;MA70..ARL,GCC,GEN

*LPL=SIDE,GRAY-M,GRAY METALLIC

 1
75837-1407002

MA70..GEN,SA

*LPL=LOWER,MAROON-M,MAROON METALLIC,TRIM3#

 1
75837C - COVER, LOWER BACK FINISH PANEL HOLE
75837-1406004

MA70..SDZ;MA70..ARL,GCC,GEN

*LPL=SIDE,BLUE-M,BLUE METALLIC

 1
75837-1407003

MA70..GEN,SA

*LPL=LOWER,GRAY-M,GRAY METALLIC,TRIM1#

 1
75837-1407004

MA70..GEN,SA

*LPL=LOWER,BLUE-M,BLUE METALLIC,TRIM8#

 1
75837-1406002

MA70..SDZ;MA70..ARL,GCC,GEN

*LPL=SIDE,MAROON-M,MAROON METALLIC

 1
75837-1406003

MA70..SDZ;MA70..ARL,GCC,GEN

*LPL=SIDE,GRAY-M,GRAY METALLIC

 1
75837-1407002

MA70..GEN,SA

*LPL=LOWER,MAROON-M,MAROON METALLIC,TRIM3#

 1
75845B - PAD, LOWER BACK FINISH PANEL
75845-14160

MA70..SDZ;MA70..ARL,GCC,GEN

*LPL=SIDE

 2
75846A - PAD, LOWER BACK PANEL MOULDING, LOWER
75846-14010

MA70..EUR,GEN,SA

 2
75847B - PAD, LOWER BACK PANEL MOULDING
75847-14040

MA70..SDZ;MA70..ARL,GCC,GEN

*LPL=SIDE

 1
Common parts
76865-12040
90109-05026
90179-05009
90179-05032
90179-05095
90183-04027
90183-05094
90339-06012
90430-05188
90430-11008
90467-10065
Linked diagrams
8504

(8601- )

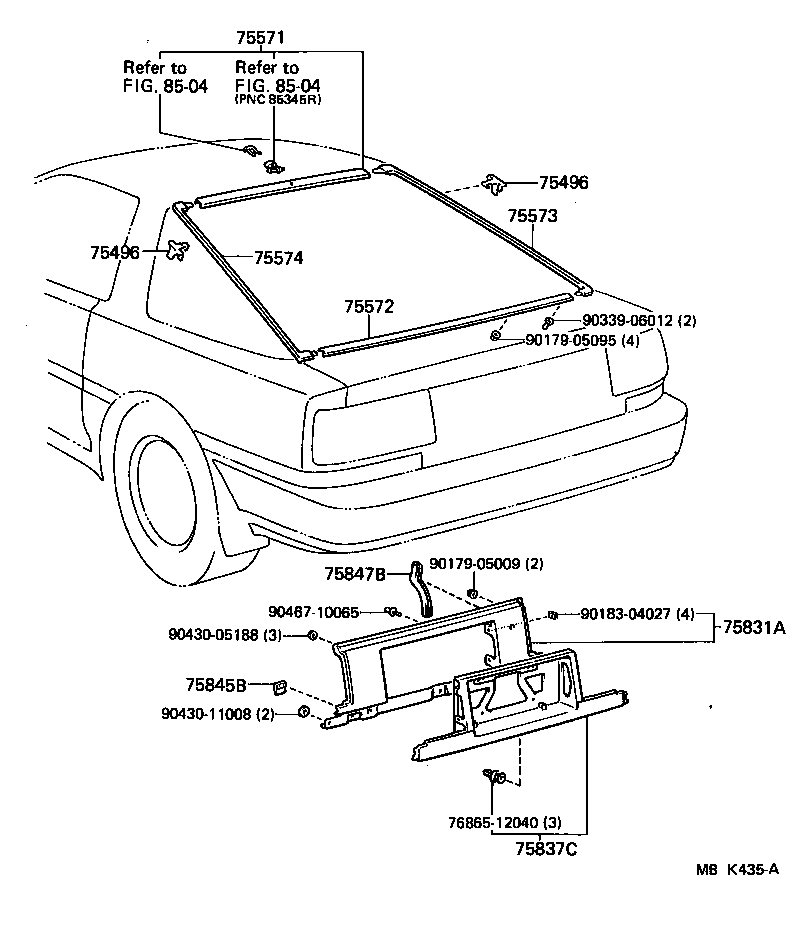

Click highlighted areas on diagram

diagram 75496 75496 75571 75572 75573 75574 75831A 75837C 75845B 75847B 7686512040 8504 8504 9017905009 9017905095 9018304027 9033906012 9043005188 9043011008 9046710065
Part # Description Qty Price
Common parts
76865-12040
90179-05009
90179-05095
90183-04027
90339-06012
90430-05188
90430-11008
90467-10065
Linked diagrams
8504
