MA70L-BJPVZK (1986)
Toyota Supra
Production
Aug 1986
-
Aug 1988
Engine
7MGTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )7MGTE

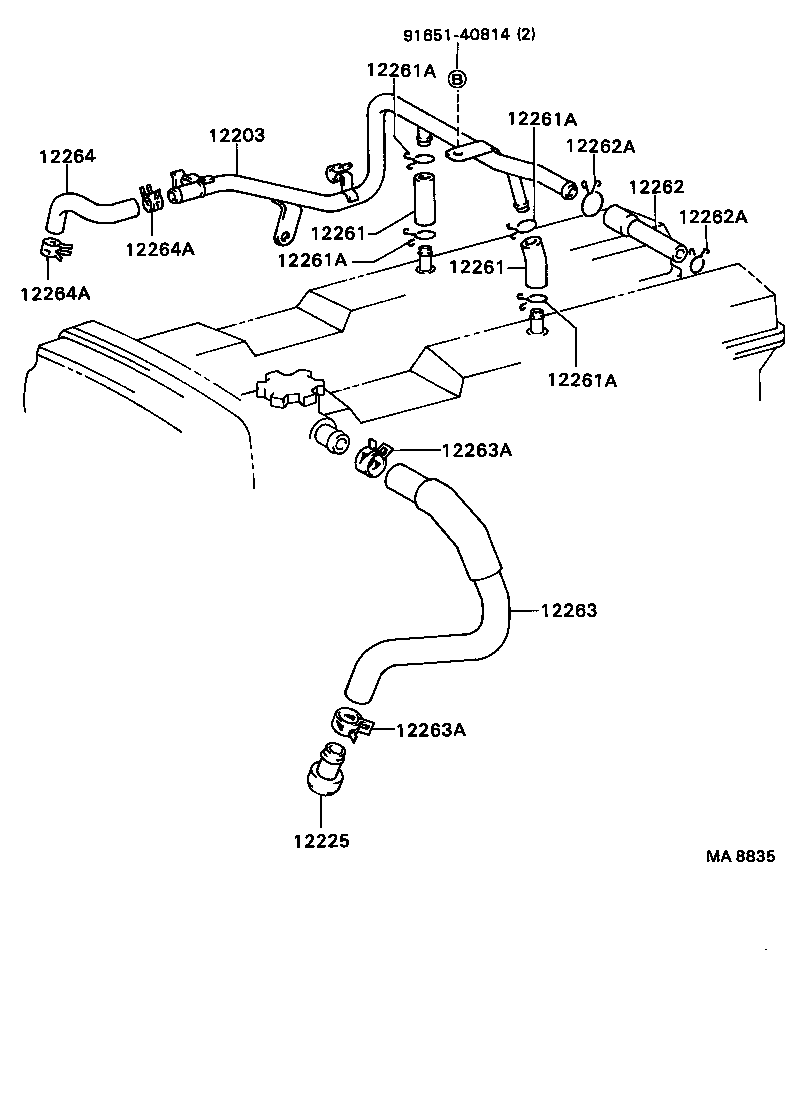

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12203 - PIPE SUB-ASSY, VENTILATION | ||||
| 12203-42010 |
7MGTE..MA70 |
1 | ||
| 12225 - FLANGE, VENTILATION | ||||
| 12225-42010 |
7MG#..MA70 |
1 | ||
| 12261 - HOSE, VENTILATION | ||||
| 12261-42010 |
7MG#..MA70 |
2 | ||
| 12261 - HOSE, VENTILATION | ||||
| 12261-42010 |
7MG#..MA70 |
2 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-16035 |
7MG#..MA70 |
4 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-16035 |
7MG#..MA70 |
4 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-16035 |
7MG#..MA70 |
4 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-16035 |
7MG#..MA70 |
4 | ||
| 12262 - HOSE, VENTILATION, NO.2 | ||||
| 12262-42010 |
7MGTE..MA70 |
1 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-21152 |
7MGTE..MA70 ID=21 |
1 | ||
| 90467-16035 |
7MGTE..MA70 ID=16 |
1 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-21152 |
7MGTE..MA70 ID=21 |
1 | ||
| 90467-16035 |
7MGTE..MA70 ID=16 |
1 | ||
| 12263 - HOSE, VENTILATION, NO.3 | ||||
| 12263-42010 |
7MG#..MA70 |
1 | ||
| 12263A - CLIP(FOR VENTILATION HOSE) | ||||
| 90467-26002 |
7MG#..MA70 |
2 | ||
| 12263A - CLIP(FOR VENTILATION HOSE) | ||||
| 90467-26002 |
7MG#..MA70 |
2 | ||
| 12264 - HOSE, VENTILATION, NO.4 | ||||
| 12264-42010 |
7MGTE..MA70 |
1 | ||
| 12264A - CLIP(FOR VENTILATION HOSE) | ||||
| 90467-23003 |
7MGTE..MA70 |
2 | ||
| 12264A - CLIP(FOR VENTILATION HOSE) | ||||
| 90467-23003 |
7MGTE..MA70 |
2 | ||
| Common parts | ||||
| 91651-40814 | ||||
(8608- )7MGTE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12203 - PIPE SUB-ASSY, VENTILATION | ||||
| 12203-42010 |
7MGTE..MA70 |
1 | ||
| 12225 - FLANGE, VENTILATION | ||||
| 12225-42010 |
7MG#..MA70 |
1 | ||
| 12261 - HOSE, VENTILATION | ||||
| 12261-42010 |
7MG#..MA70 |
2 | ||
| 12261 - HOSE, VENTILATION | ||||
| 12261-42010 |
7MG#..MA70 |
2 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-16035 |
7MG#..MA70 |
4 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-16035 |
7MG#..MA70 |
4 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-16035 |
7MG#..MA70 |
4 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-16035 |
7MG#..MA70 |
4 | ||
| 12262 - HOSE, VENTILATION, NO.2 | ||||
| 12262-42010 |
7MGTE..MA70 |
1 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-21152 |
7MGTE..MA70 ID=21 |
1 | ||
| 90467-16035 |
7MGTE..MA70 ID=16 |
1 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-21152 |
7MGTE..MA70 ID=21 |
1 | ||
| 90467-16035 |
7MGTE..MA70 ID=16 |
1 | ||
| 12263 - HOSE, VENTILATION, NO.3 | ||||
| 12263-42010 |
7MG#..MA70 |
1 | ||
| 12263A - CLIP(FOR VENTILATION HOSE) | ||||
| 90467-26002 |
7MG#..MA70 |
2 | ||
| 12263A - CLIP(FOR VENTILATION HOSE) | ||||
| 90467-26002 |
7MG#..MA70 |
2 | ||
| 12264 - HOSE, VENTILATION, NO.4 | ||||
| 12264-42010 |
7MGTE..MA70 |
1 | ||
| 12264A - CLIP(FOR VENTILATION HOSE) | ||||
| 90467-23003 |
7MGTE..MA70 |
2 | ||
| 12264A - CLIP(FOR VENTILATION HOSE) | ||||
| 90467-23003 |
7MGTE..MA70 |
2 | ||
| Common parts | ||||
| 91651-40814 | ||||
