MA70L-BJPVZC (1988)

Toyota Supra

Production Aug 1988 - May 1993
Engine 7MGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

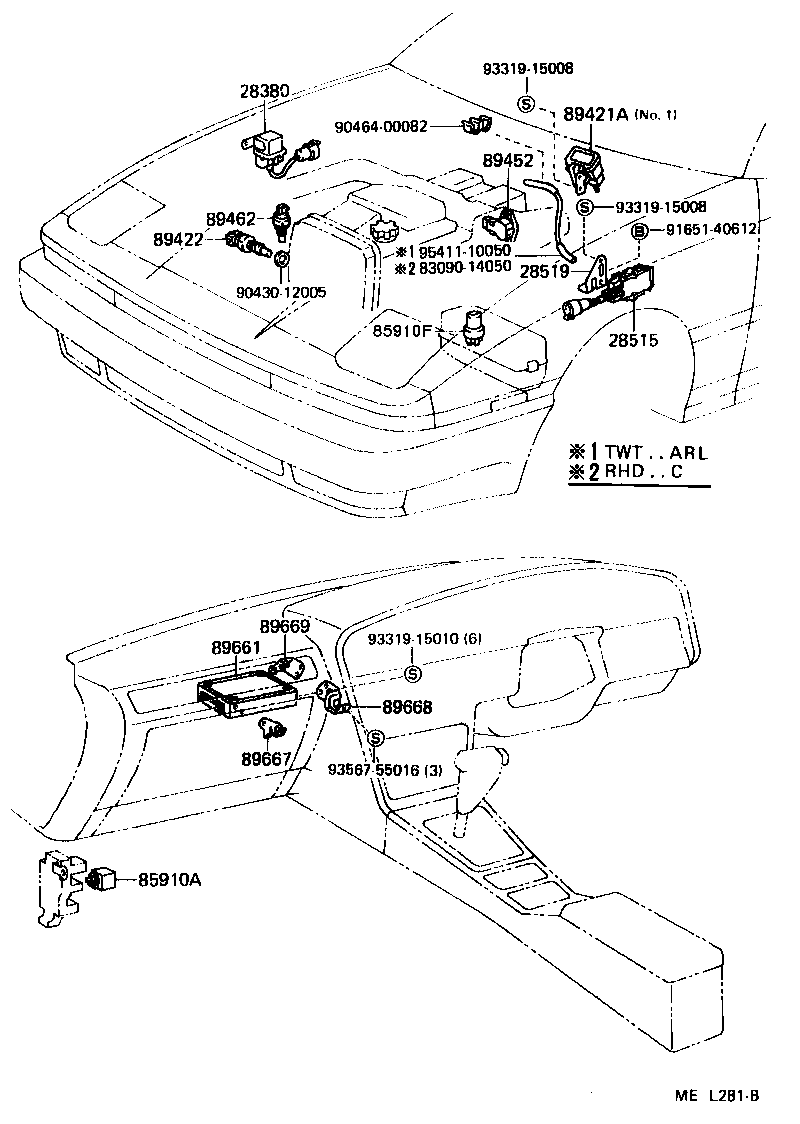

Click highlighted areas on diagram

diagram 28380 28515 28519 8309014050 85910A 85910F 89421A 89422 89452 89462 89661 89667 89668 89669 9043012005 9046400082 9165140612 9331915008 9331915008 9331915010 9356755016 9541110050
Part # Description Qty Price
28380 - RELAY ASSY, FUEL PUMP
28380-43010

7MG#..MA70

 1
28515 - RESISTOR, SOLENOID
28515-43040

7MGTE..MA70

 1
28519 - BRACKET, SOLENOID RESISTOR
28519-70020

7MGTE..MA70

 1
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910-30050

MA70

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02004

MA70

 1
89421A - SENSOR, TURBO PRESSURE
89420-14020

MA70..TWT

NO.1

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-20010

MA70

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-14050

MA70

 1
89452-28030

MA70..TWT

 1
89462 - SWITCH, START INJECTOR TIME
89462-20030

MA70..EUR,GEN,V

 1
89462-20020

MA70..ARL,C

 1
89661 - COMPUTER, ENGINE CONTROL
89661-14290

MA70..4FC..C

 1
89661-14350

MA70..4FC..(EUR,GEN,V)

 1
89661-14351

MA70..4FC..(GEN,V)

 1
89661-14400

MA70..4FC..TWT..C

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-14070

MA70..LHD

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-14020

MA70..LHD

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-14020

MA70..LHD

 1
Common parts
83090-14050
90430-12005
90464-00082
91651-40612
93319-15008
93319-15010
93567-55016
95411-10050

(8808- )

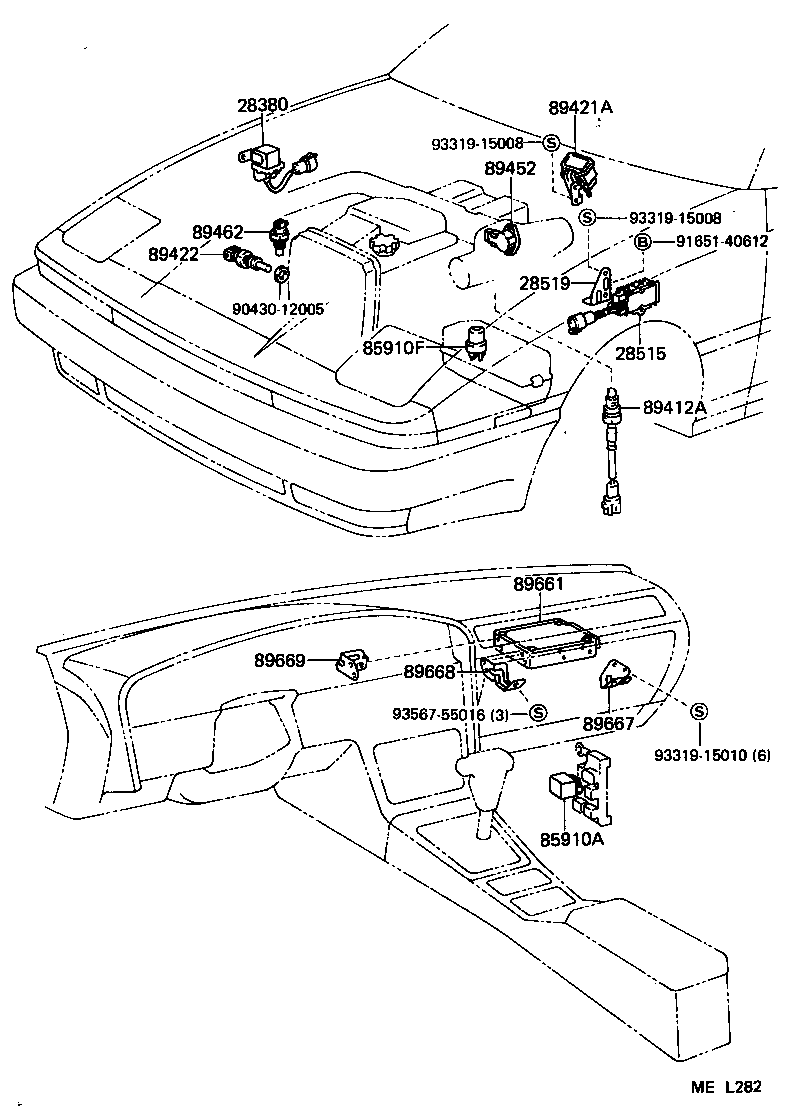

Click highlighted areas on diagram

diagram 28380 28515 28519 85910A 85910F 89412A 89421A 89422 89452 89462 89661 89667 89668 89669 9043012005 9165140612 9331915008 9331915008 9331915010 9356755016
Part # Description Qty Price
Common parts
90430-12005
91651-40612
93319-15008
93319-15010
93567-55016
