MA70L-BJPVZC (1988)
Toyota Supra

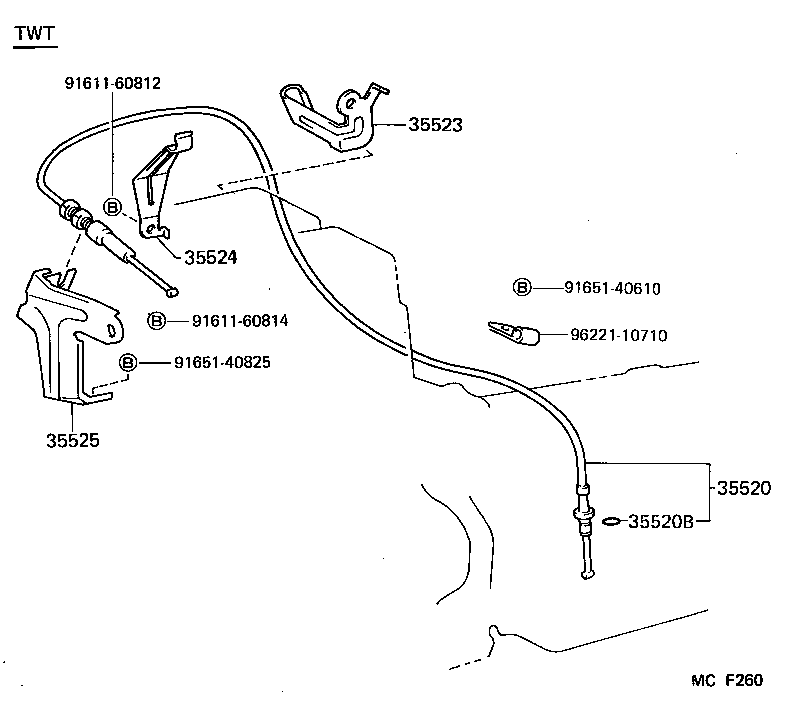

ILLUST NO. 2 OF 2(8808- )4FC..TWT
A340E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-14080 |
MA70..4FC..TWT |
1 | ||
| 35520B - RING, O(FOR THROTTLE CABLE) | ||||
| 90301-09012 |
MA70..4FC..C |
1 | ||
| 90301-09004 |
MA70..SPR..4FC..V |
1 | ||
| 90301-09012 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) |
1 | ||
| 90301-09004 |
MA70..4FC..(ARL,GEN,V) |
1 | ||
| 90301-09004 |
MA70..4FC |
1 | ||
| 35523 - CLAMP, THROTTLE CABLE | ||||
| 35523-30090 |
MA70..4FC |
1 | ||
| 35524 - CLAMP, THROTTLE CABLE, NO.2 | ||||
| 35524-14020 |
MA70..LHD..4FC..C |
1 | ||
| 35525 - BRACKET, THROTTLE CABLE | ||||
| 35525-14070 |
MA70..LHD..4FC..C |
1 | ||
| Common parts | ||||
| 91611-60812 | ||||
| 91611-60814 | ||||
| 91651-40610 | ||||
| 91651-40825 | ||||
| 96221-10710 | ||||

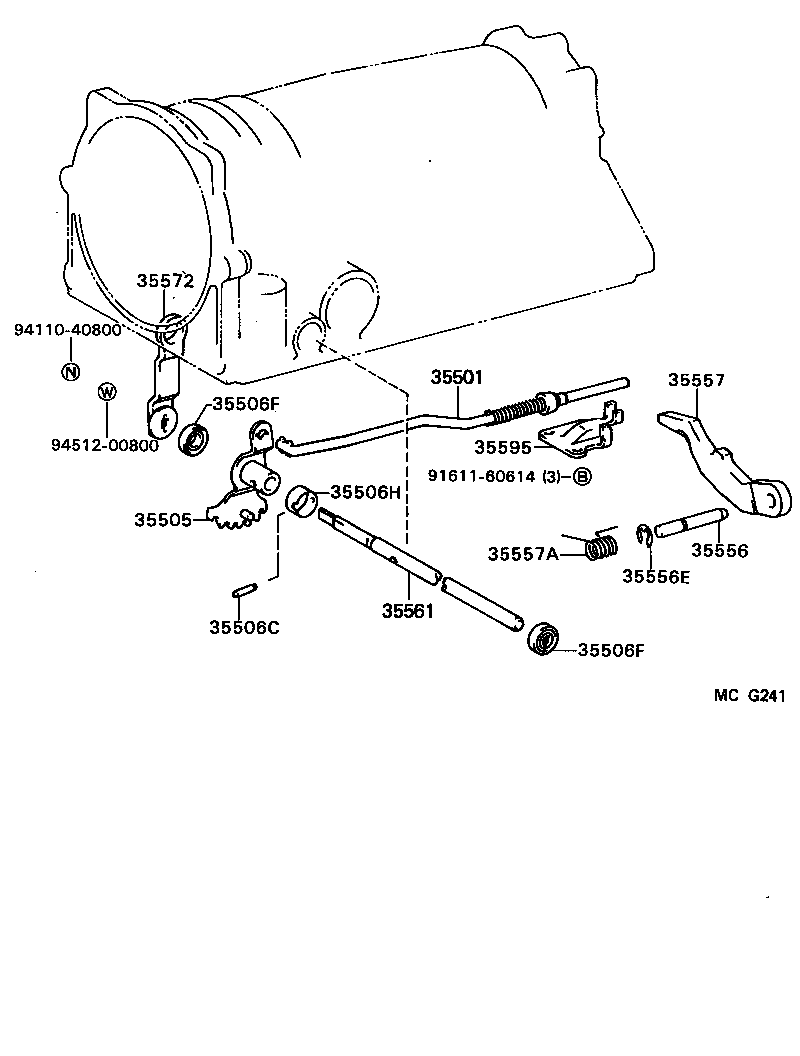

ILLUST NO. 1 OF 2(8808- )4FC
A340E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35501 - ROD SUB-ASSY, PARKING LOCK | ||||
| 35501-30010 |
MA70..4FC |
1 | ||
| 35501-30010 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) |
1 | ||
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-30020 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) |
1 | ||
| 35505-30020 |
MA70..4FC |
1 | ||
| 35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90254-04011 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) |
1 | ||
| 90254-04011 |
MA70..4FC |
1 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-12002 |
MA70..4FC |
2 | ||
| 90311-12002 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) |
2 | ||
| 90311-12002 |
MA70..4FC |
2 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-12002 |
MA70..4FC |
2 | ||
| 90311-12002 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) |
2 | ||
| 90311-12002 |
MA70..4FC |
2 | ||
| 35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90560-20006 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) |
1 | ||
| 90560-20006 |
MA70..4FC |
1 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-30020 |
MA70..4FC |
1 | ||
| 35556-30020 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) |
1 | ||
| 35556E - RING, E (FOR PARKING LOCK PAWL SHAFT) | ||||
| 90523-08021 |
MA70..4FC |
1 | ||
| 90523-08021 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-30020 |
MA70..4FC |
1 | ||
| 35557-30020 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90508-21002 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) |
1 | ||
| 90508-21002 |
MA70..4FC |
1 | ||
| 35561 - SHAFT, MANUAL VALVE LEVER | ||||
| 35561-30070 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) |
1 | ||
| 35561-30070 |
MA70..4FC |
1 | ||
| 35572 - LEVER, TRANSMISSION CONTROL SHAFT, RH | ||||
| 35572-24010 |
MA70..4FC |
1 | ||
| 35572-24010 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) |
1 | ||
| 35595 - BRACKET, PARKING LOCK PAWL | ||||
| 35595-30010 |
MA70..4FC |
1 | ||
| 35595-30010 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) |
1 | ||
| Common parts | ||||
| 91611-60614 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||

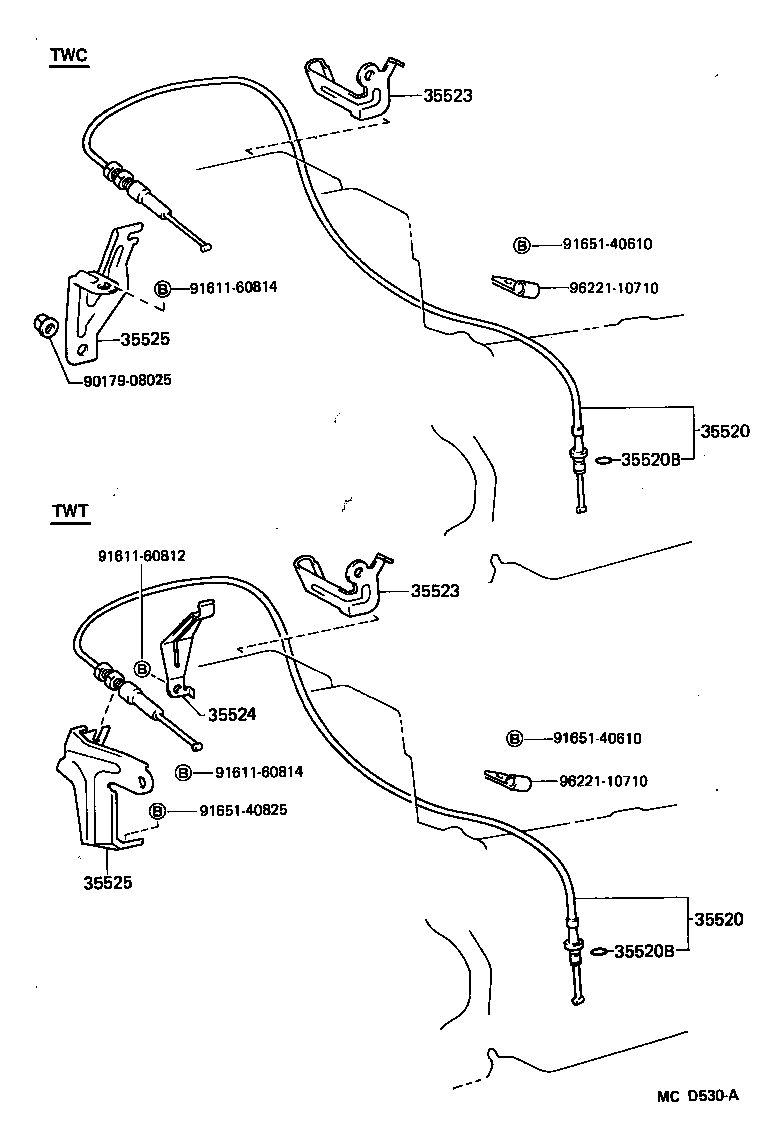

ILLUST NO. 2 OF 2(8808- )4FC
A340E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-08025 | ||||
| 91611-60812 | ||||
| 91611-60814 | ||||
| 91651-40610 | ||||
| 91651-40825 | ||||
| 96221-10710 | ||||
ILLUST NO. 1 OF 2(8808- )4FC
A340E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35501 - ROD SUB-ASSY, PARKING LOCK | ||||
| 35501-30010 |
MA70..4FC |
1 | ||
| 35501-30010 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) |
1 | ||
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-30020 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) |
1 | ||
| 35505-30020 |
MA70..4FC |
1 | ||
| 35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90254-04011 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) |
1 | ||
| 90254-04011 |
MA70..4FC |
1 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-12002 |
MA70..4FC |
2 | ||
| 90311-12002 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) |
2 | ||
| 90311-12002 |
MA70..4FC |
2 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-12002 |
MA70..4FC |
2 | ||
| 90311-12002 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) |
2 | ||
| 90311-12002 |
MA70..4FC |
2 | ||
| 35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90560-20006 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) |
1 | ||
| 90560-20006 |
MA70..4FC |
1 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-30020 |
MA70..4FC |
1 | ||
| 35556-30020 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) |
1 | ||
| 35556E - RING, E (FOR PARKING LOCK PAWL SHAFT) | ||||
| 90523-08021 |
MA70..4FC |
1 | ||
| 90523-08021 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-30020 |
MA70..4FC |
1 | ||
| 35557-30020 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90508-21002 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) |
1 | ||
| 90508-21002 |
MA70..4FC |
1 | ||
| 35561 - SHAFT, MANUAL VALVE LEVER | ||||
| 35561-30070 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) |
1 | ||
| 35561-30070 |
MA70..4FC |
1 | ||
| 35572 - LEVER, TRANSMISSION CONTROL SHAFT, RH | ||||
| 35572-24010 |
MA70..4FC |
1 | ||
| 35572-24010 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) |
1 | ||
| 35595 - BRACKET, PARKING LOCK PAWL | ||||
| 35595-30010 |
MA70..4FC |
1 | ||
| 35595-30010 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) |
1 | ||
| Common parts | ||||
| 91611-60614 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
