MA70L-BJPVFV (1988)
Toyota Supra
(8808- )

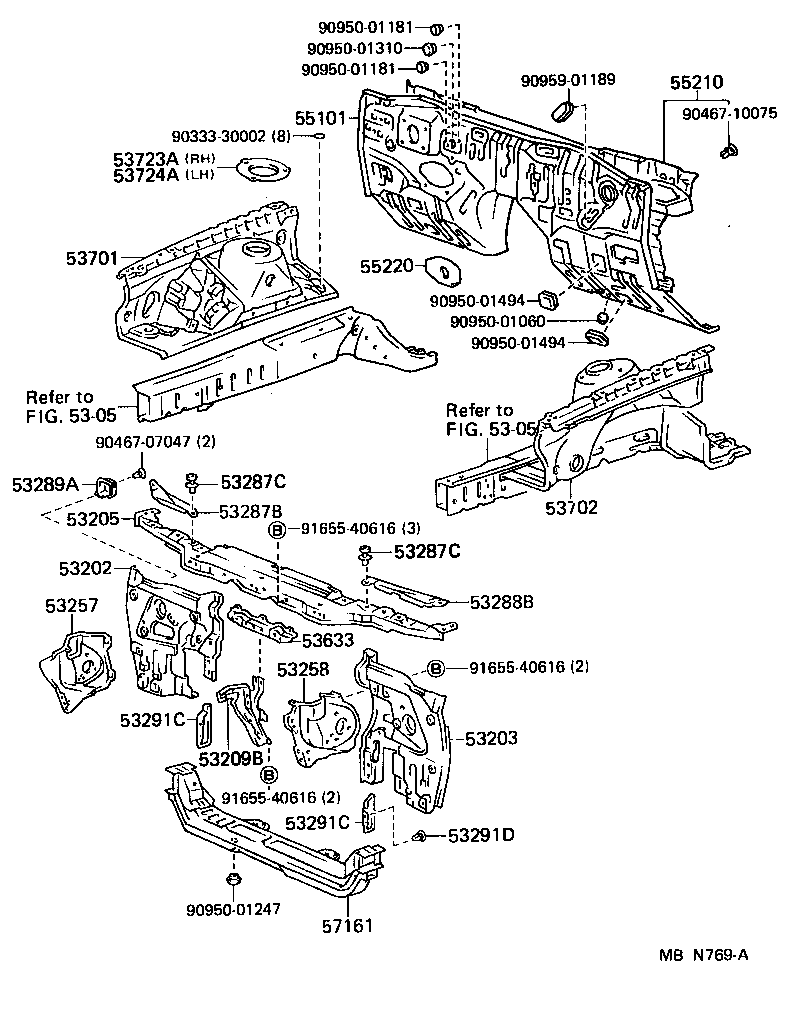

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53211-14220 |
MA70..LHD..C;MA70..ARL,GEN,V |
1 | ||
| 53211-14221 |
MA70..LHD..C;MA70..ARL,GEN,V |
1 | ||
| 53211-14220 |
MA70 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53212-14200 |
MA70..LHD..C;MA70..ARL,GEN,V |
1 | ||
| 53212-14200 |
MA70 |
1 | ||
| 53212-14201 |
MA70..LHD..C;MA70..ARL,GEN,V |
1 | ||
| 53212-14211 |
MA70..LHD..C *FRG |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-14100 |
MA70 |
1 | ||
| 53209B - BRACE SUB-ASSY, HOOD LOCK SUPPORT | ||||
| 53209-14091 |
MA70 |
1 | ||
| 53257 - BRACKET, FRONT END PANEL MOUNTING, RH | ||||
| 53035-14030 |
MA70 |
1 | ||
| 53258 - BRACKET, FRONT END PANEL MOUNTING, LH | ||||
| 53036-14030 |
MA70 |
1 | ||
| 53287B - EXTENSION, RADIATOR SUPPORT, RH | ||||
| 53287-14050 |
MA70 |
1 | ||
| 53287C - CLIP(FOR RADIATOR SOPPORT EXTENSION) | ||||
| 90467-0703001 |
MA70..V BLACK,TRIM1#,3#,8# |
4 | ||
| 90467-0703001 |
MA70..LHD..C BLACK,TRIM1#,4#,8# |
4 | ||
| 90467-0703001 |
MA70..C,EUR BLACK,TRIM1#,4#,8# |
4 | ||
| 90467-0703001 |
MA70..C BLACK,TRIM1#,8# |
4 | ||
| 90467-0703001 |
MA70..ARL,GEN,V BLACK,TRIM1#,3#,8# |
4 | ||
| 53287C - CLIP(FOR RADIATOR SOPPORT EXTENSION) | ||||
| 90467-0703001 |
MA70..V BLACK,TRIM1#,3#,8# |
4 | ||
| 90467-0703001 |
MA70..LHD..C BLACK,TRIM1#,4#,8# |
4 | ||
| 90467-0703001 |
MA70..C,EUR BLACK,TRIM1#,4#,8# |
4 | ||
| 90467-0703001 |
MA70..C BLACK,TRIM1#,8# |
4 | ||
| 90467-0703001 |
MA70..ARL,GEN,V BLACK,TRIM1#,3#,8# |
4 | ||
| 53288B - EXTENSION, RADIATOR SUPPORT, LH | ||||
| 53288-14060 |
MA70 |
1 | ||
| 53291C - SEAL, RADIATOR SUPPORT TO FRAME | ||||
| 53291-14040 |
MA70 RH |
1 | ||
| 53292-14020 |
MA70 LH |
1 | ||
| 53292-14010 |
MA70 LH |
1 | ||
| 53291C - SEAL, RADIATOR SUPPORT TO FRAME | ||||
| 53291-14040 |
MA70 RH |
1 | ||
| 53292-14020 |
MA70 LH |
1 | ||
| 53292-14010 |
MA70 LH |
1 | ||
| 53291D - CLIP, RADIATOR SUPPORT TO FRAME | ||||
| 90467-0601711 |
MA70..V BLACK,TRIM1#,3#,8#,UPPER |
2 | ||
| 90467-0601711 |
MA70..C,EUR BLACK,TRIM1#,4#,8#,UPPER |
2 | ||
| 90467-0601711 |
MA70..C BLACK,TRIM1#,4#,8#,UPPER |
2 | ||
| 90467-0601711 |
MA70..ARL,GEN,V BLACK,TRIM1#,3#,4#,8#,UPPER |
2 | ||
| 90467-08099 |
MA70 LOWER |
2 | ||
| 90467-0601701 |
MA70..LHD..C BLACK,TRIM1#,4#,8#,UPPER |
2 | ||
| 90467-0601701 |
MA70..ARL,GEN,V BLACK,TRIM1#,3#,8#,UPPER |
2 | ||
| 90467-0601701 |
MA70..C BLACK,TRIM1#,8#,UPPER |
2 | ||
| 53633 - SHIELD, HOOD LOCK CONTROL CABLE | ||||
| 53633-22030 |
MA70 |
1 | ||
| 53633-14050 |
MA70 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-14932 |
MA70 |
1 | ||
| 53701-14935 |
MA70 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-14938 |
MA70..V |
1 | ||
| 53702-14934 |
MA70..V |
1 | ||
| 53702-14936 |
MA70..ARL,C,EUR,GEN |
1 | ||
| 53702-14937 |
MA70..ARL,C,GEN |
1 | ||
| 53723A - REINFORCEMENT, FRONT SPRING SUPPORT, RH | ||||
| 53723-14060 |
MA70 |
1 | ||
| 53724A - REINFORCEMENT, FRONT SPRING SUPPORT, LH | ||||
| 53723-14060 |
MA70 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-14500 |
MA70..LHD |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-14380 |
MA70..LHD |
1 | ||
| 55220 - INSULATOR ASSY, DASH PANEL, NO.2 | ||||
| 55220-14060 |
MA70..LHD |
1 | ||
| 57161 - CROSSMEMBER, FRONT | ||||
| 57104-14120 |
MA70 |
1 | ||
| Common parts | ||||
| 90333-30002 | ||||
| 90467-07047 | ||||
| 90467-10075 | ||||
| 90950-01060 | ||||
| 90950-01181 | ||||
| 90950-01247 | ||||
| 90950-01310 | ||||
| 90950-01494 | ||||
| 90959-01189 | ||||
| 91655-40616 | ||||
| Linked diagrams | ||||
| 5305 | ||||
(8808- )

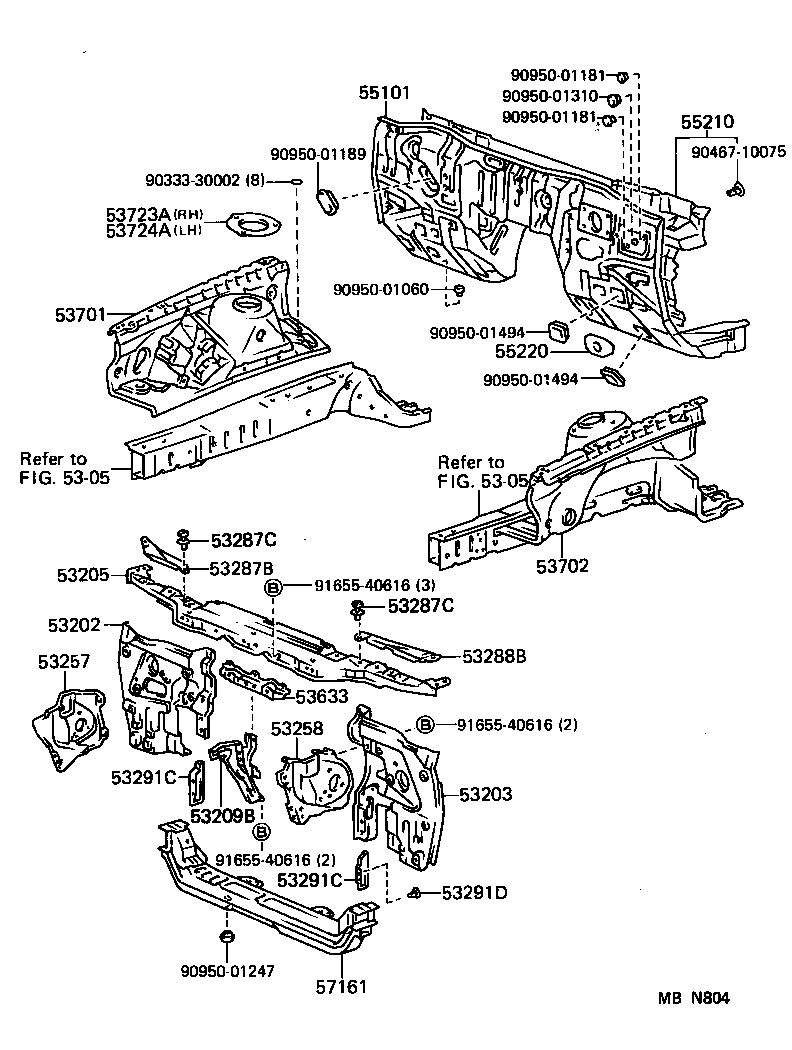

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90333-30002 | ||||
| 90467-10075 | ||||
| 90950-01060 | ||||
| 90950-01181 | ||||
| 90950-01189 | ||||
| 90950-01247 | ||||
| 90950-01310 | ||||
| 90950-01494 | ||||
| 91655-40616 | ||||
| Linked diagrams | ||||
| 5305 | ||||
