MA70L-BJMVZK (1988)

Toyota Supra

Production Aug 1988 - May 1993
Engine 7MGTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

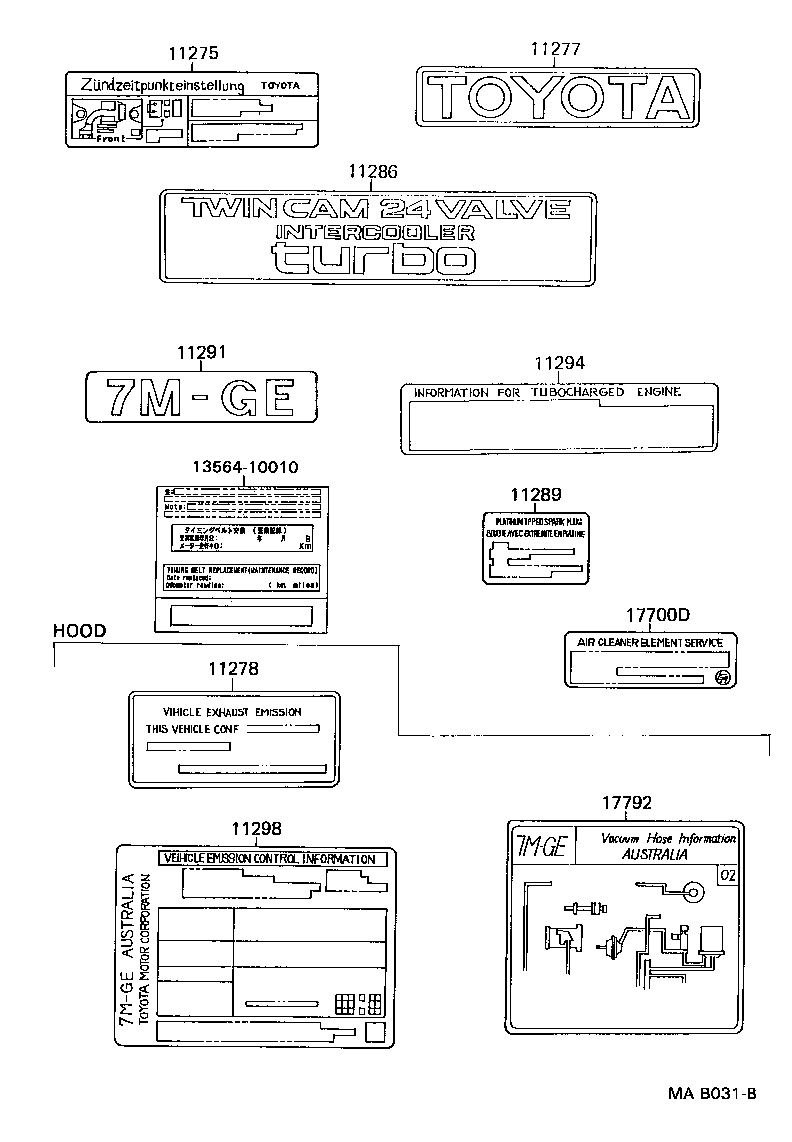

Click highlighted areas on diagram

diagram 11275 11277 11278 11286 11289 11291 11294 11298 1356410010 17700D 17792
Part # Description Qty Price
Common parts
13564-10010

(8808- )

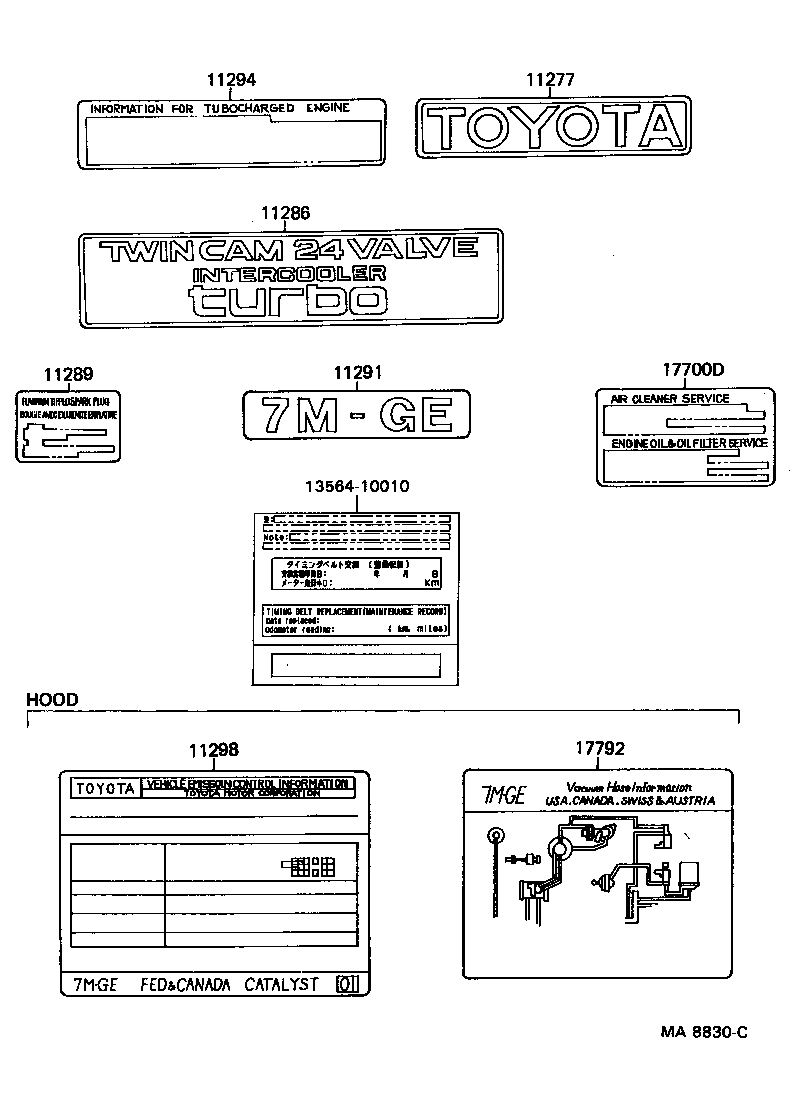

Click highlighted areas on diagram

diagram 11277 11286 11289 11291 11294 11298 1356410010 17700D 17792
Part # Description Qty Price
11277 - PLATE, ENGINE SPECIFICATION, NO.2
11277-42010

7MGTE..MA70

 1
11277-42010

7MGTE..MA70

 1
11277-42010

7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA

 1
11286 - PLATE, ENGINE SPECIFICATION
11286-42010

7MGTE..MA70

 1
11286-42010

7MGTE..MA70

 1
11286-42010

7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA

 1
11289 - PLATE, SPARK PLUG CAUTION
11289-73020

7MG#..MA70

 1
11289-73020

7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA

 1
11289-73020

7MG#..MA70

 1
11291 - PLATE, ENGINE NAME
11291-42020

7MGTE..MA70

 1
11291-42020

7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA

 1
11291-42020

7MGTE..MA70

 1
11294 - PLATE, ENGINE CAUTION, NO.2
11294-42020

7MGTE..MA70..CND

 1
11294-42020

7MGTE..MA70..SPR..CND

 1
11294-42020

7MGTE..MA70..CND

 1
11298 - PLATE, EMISSION CONTROL INFORMATION
11298-42130

7MGTE..MA70

 1
11298-42270

7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA

 1
11298-42290

7MGTE..MA70

 1
11298-42390

7MGTE..MA70

 1
17700D - PLATE, ENGINE CAUTION
17791-35010

7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA

 1
17791-35010

7MGTE..MA70

 1
17791-35010

7MGTE..MA70

 1
17792 - PLATE, ENGINE VACUUM HOSE INFORMATION
17792-42040

7MGTE..MA70

 1
17792-42040

7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA

 1
17792-42041

7MGTE..MA70

 1
Common parts
13564-10010
