MA70L-BJMVZC (1988)

Toyota Supra

Production Aug 1988 - May 1993
Engine 7MGTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

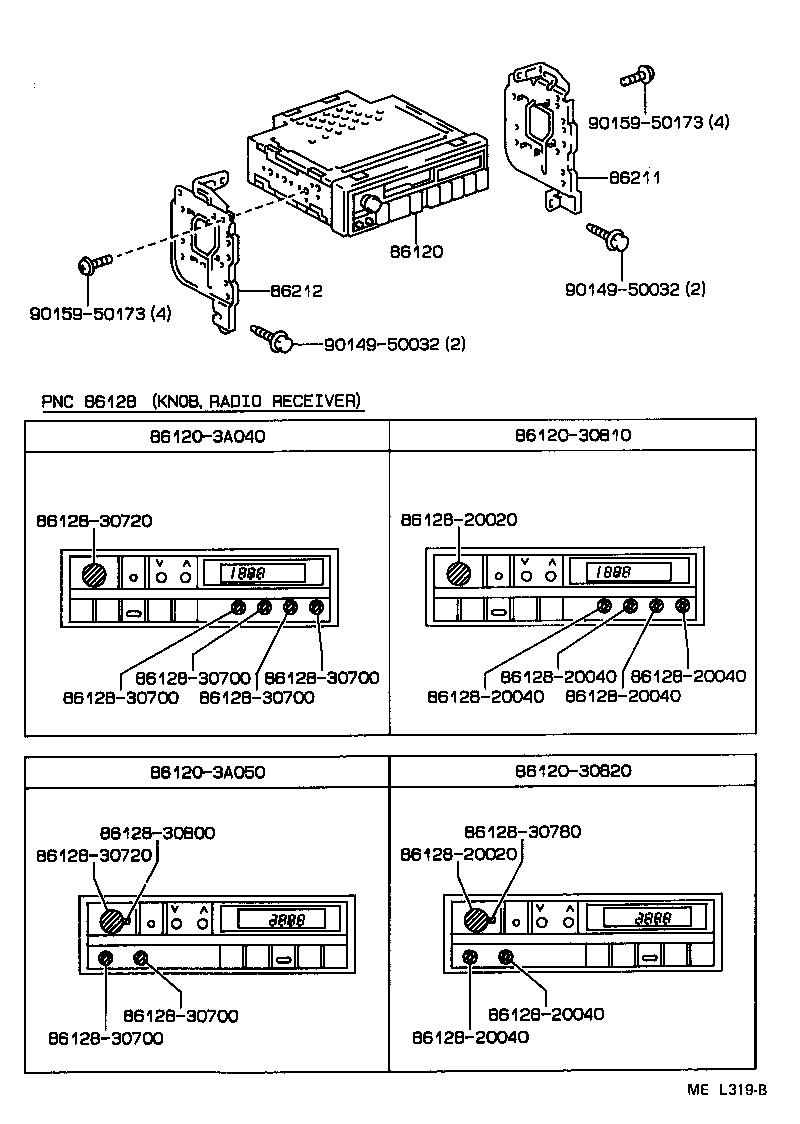

ILLUST NO. 1 OF 3(8808- )

Click highlighted areas on diagram

diagram 86120 86128 8612820020 8612820020 8612820040 8612820040 8612820040 8612820040 8612820040 8612820040 8612830700 8612830700 8612830700 8612830700 8612830700 8612830700 8612830720 8612830720 8612830780 8612830800 86211 86212 9014950032 9014950032 9015950173 9015950173
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-32261

MA70..C,EUR

 1
86120-2B080

MA70..LHD..C

LW/MW/UKW MPX ETR,*ACF

 1
86120-30820

MA70..V

 1
86120-2B110

MA70..LHD..C

 1
86120-14681

MA70..V

AM/FM MPX ETR,W/CASSETTE

 1
86120-3A050

MA70..V

FUJITSU TEN

 1
86120-2B080

MA70..LHD..C

LW/MW/UKW MPX ETR,*ACF

 1
86120-14681

MA70..V

AM/FM MPX ETR,W/CASSETTE

 1
86120-2B180

MA70..LHD..C

MATSUSHITA,LW/MW/UKW MPX ETR,1DIN

 1
86120-2B320

MA70..LHD..C

FUJITSU TEN,LW/MW/UKW MPX ETR,*ACF,1DIN

 1
86120-1A030

MA70..V

FUJITSU TEN,TEN

 1
86120-2A180

MA70..V

MATSUSHITA,ID=57403,AM/FM/SW1/SW2 MPX ETR

 1
86128 - KNOB, RADIO RECEIVER
86128-20040

MA70..V

BAL,FAD

 2
86128-32310

MA70..C,EUR

VOL,TRE

 2
86128-32330

MA70..C,EUR

FAD,BASS

 2
86128-30780

MA70..V

TONE

 1
86128-20020

MA70..V

PWR/VOL

 1
86128-20160

MA70..LHD..C

BASS/TRE,BAL/FADE

 2
86128-20140

MA70..LHD..C

PWR/VOL

 1
86128-12200

MA70..V

PWR/VOL

 1
86128-20140

MA70..LHD..C

PWR/VOL

 1
86128-30700

MA70..V

BAL,FAD

 2
86128-12200

MA70..V

PWR/VOL

 1
86128-30720

MA70..V

PWR/VOL

 1
86128-30800

MA70..V

TONE

 1
86128-14900

MA70..V

TRE/FAD,BASS/BAL

 2
86128-20160

MA70..LHD..C

BASS/TRE,BAL/FADE

 2
86128-14900

MA70..V

TRE/FAD,BASS/BAL

 2
86128-12360

MA70..V

PWR/VOL

 1
86128-17330

MA70..V

BAL/FADE,BASS/TREB

 2
86128-28160

MA70..V

BASS/TREB,BAL/FADE

 2
86128-17250

MA70..LHD..C

BAL/FAD,BASS/TRE

 2
86128-17310

MA70..V

VOL

 1
86128-17230

MA70..LHD..C

VOL

 1
86211 - BRACKET, RADIO, NO.1
86211-14221

MA70

 1
86211-14220

MA70

 1
86211-14220

MA70

 1
86212 - BRACKET, RADIO, NO.2
86212-14190

MA70

 1
86212-14190

MA70

 1
86212-14191

MA70

 1
Common parts
86128-20020
86128-20040
86128-30700
86128-30720
86128-30780
86128-30800
90149-50032
90159-50173

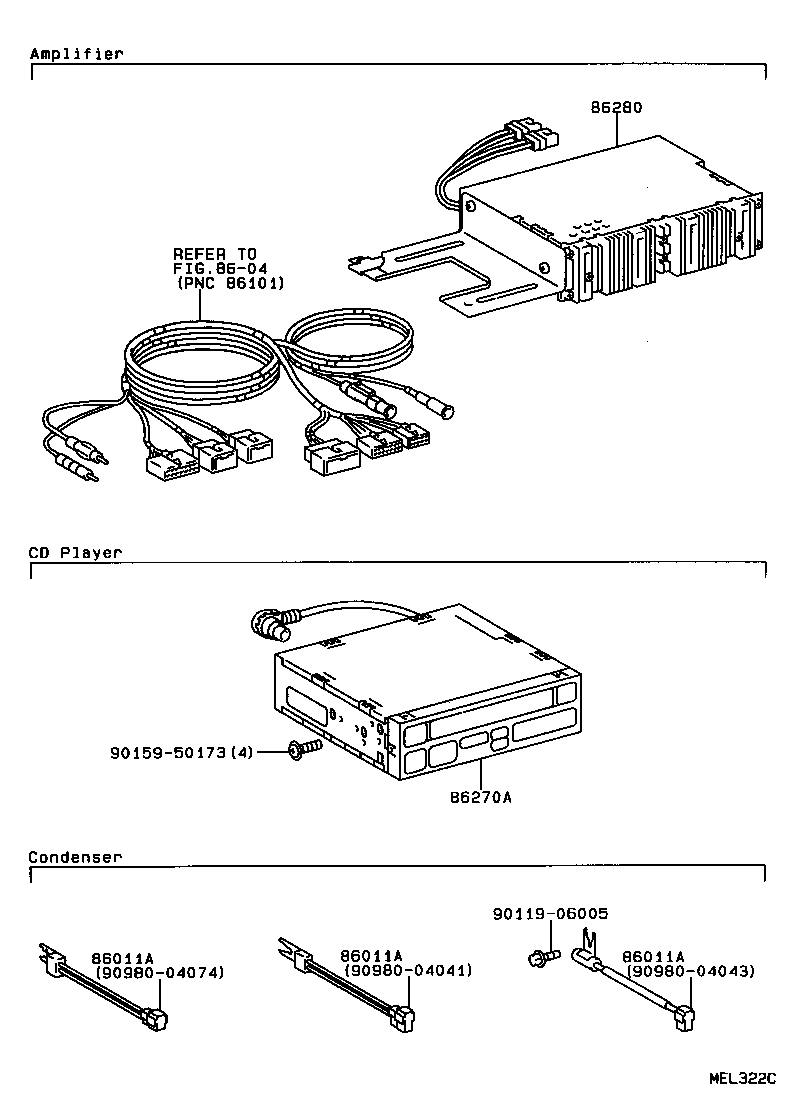

ILLUST NO. 3 OF 3(8808- )

Click highlighted areas on diagram

diagram 86011A 86011A 86011A 86011C 86203 86260 86280 9011906005 9011906005 9015950173 9098004041 9098004043 9098004074 9356055010
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04041

MA70

IGNITION COIL

 1
90980-04041

MA70

IGNITION COIL

 1
90980-04041

MA70

IGNITION COIL

 1
90980-04043

MA70

DEFOGGER

 1
90980-04074

MA70

IGNITION COIL

 1
90980-04043

MA70

DEFOGGER

 1
86011A - CONDENSER, RADIO SETTING
90980-04041

MA70

IGNITION COIL

 1
90980-04041

MA70

IGNITION COIL

 1
90980-04041

MA70

IGNITION COIL

 1
90980-04043

MA70

DEFOGGER

 1
90980-04074

MA70

IGNITION COIL

 1
90980-04043

MA70

DEFOGGER

 1
86011A - CONDENSER, RADIO SETTING
90980-04041

MA70

IGNITION COIL

 1
90980-04041

MA70

IGNITION COIL

 1
90980-04041

MA70

IGNITION COIL

 1
90980-04043

MA70

DEFOGGER

 1
90980-04074

MA70

IGNITION COIL

 1
90980-04043

MA70

DEFOGGER

 1
86260 - TAPE PLAYER ASSY
86260-30250

MA70..GEN,V

 1
86260-30310

MA70..GEN,V

 1
86260-30250

MA70..LHD..(GEN,V)

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-14240

MA70..LHD..C

 1
86280-14242

MA70..LHD..C

 1
86280-14191

MA70..GEN,V

 1
86280-14241

MA70..LHD..C

 1
Common parts
90119-06005
90159-50173
90980-04041
90980-04043
90980-04074
93560-55010

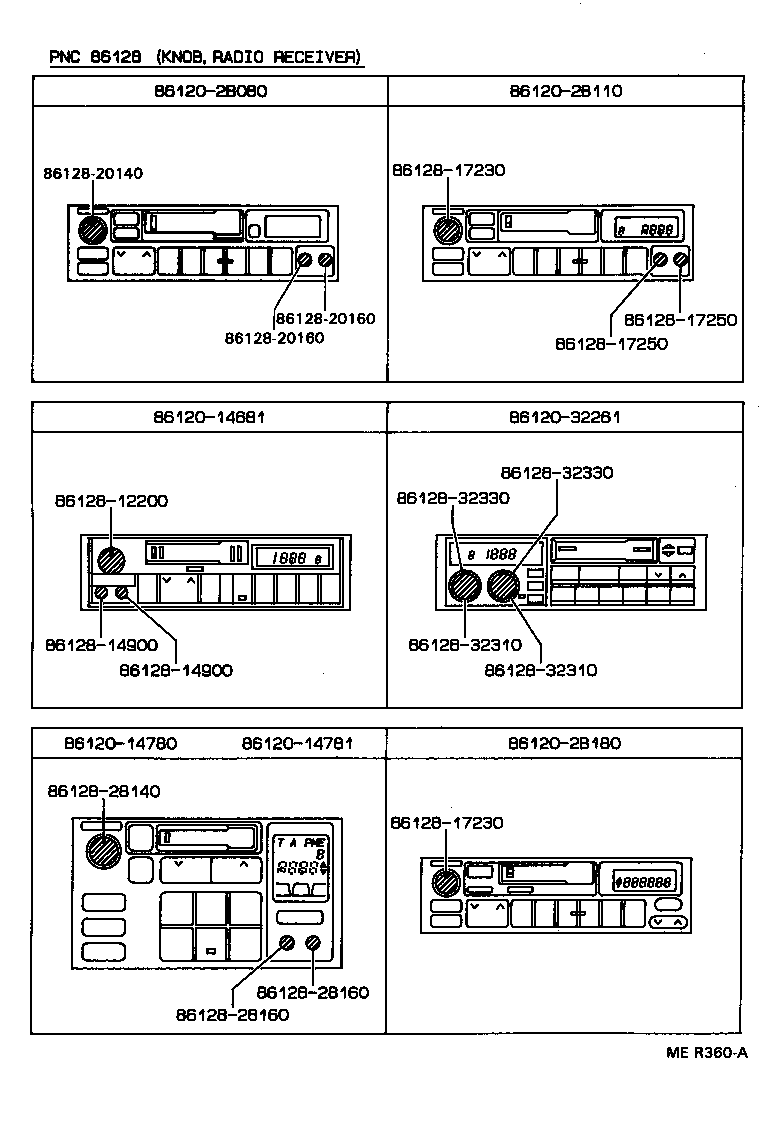

ILLUST NO. 2 OF 3(8808- )

Click highlighted areas on diagram

diagram 8612014681 8612014780 8612014781 861202B080 861202B110 861202B180 8612032261 8612812200 8612814900 8612814900 8612817230 8612817230 8612817250 8612817250 8612820140 8612820160 8612820160 8612828140 8612828160 8612828160 8612832310 8612832310 8612832330 8612832330
Part # Description Qty Price
Common parts
86120-14681
86120-14780
86120-14781
86120-2B080
86120-2B110
86120-2B180
86120-32261
86128-12200
86128-14900
86128-17230
86128-17250
86128-20140
86128-20160
86128-28140
86128-28160
86128-32310
86128-32330

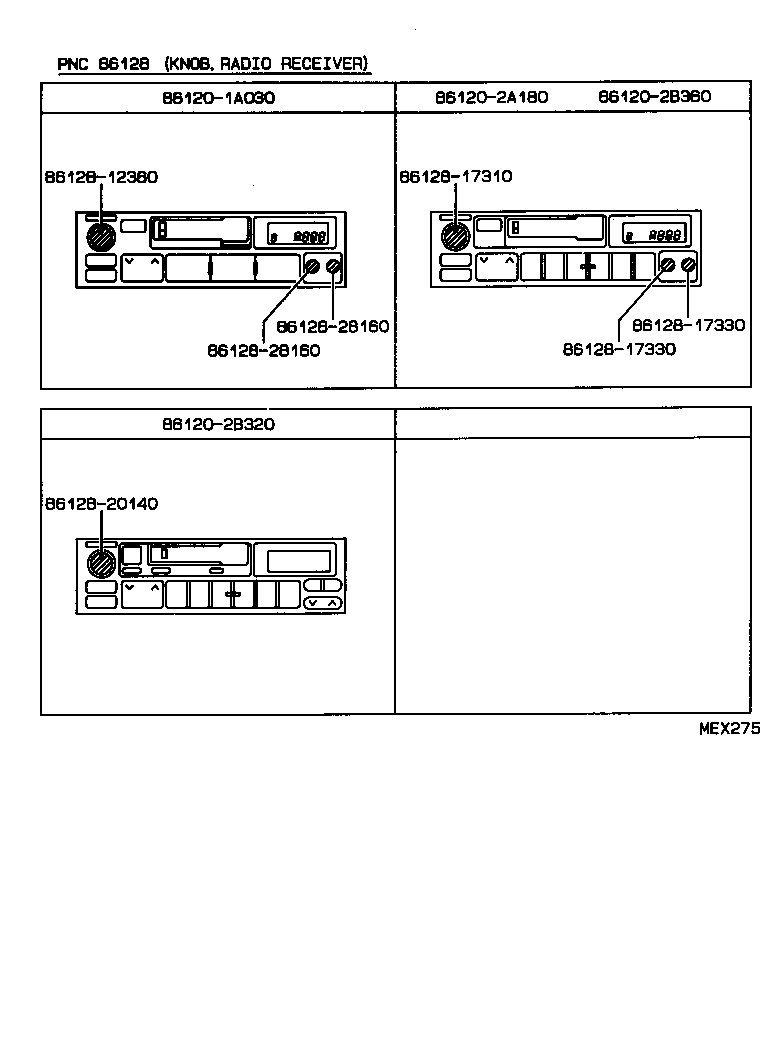

ILLUST NO. 2 OF 3(8808- )

Click highlighted areas on diagram

diagram 861201A030 861202A180 861202B320 861202B360 8612812360 8612817310 8612817330 8612817330 8612820140 8612828160 8612828160
Part # Description Qty Price
Common parts
86120-1A030
86120-2A180
86120-2B320
86120-2B360
86128-12360
86128-17310
86128-17330
86128-20140
86128-28160

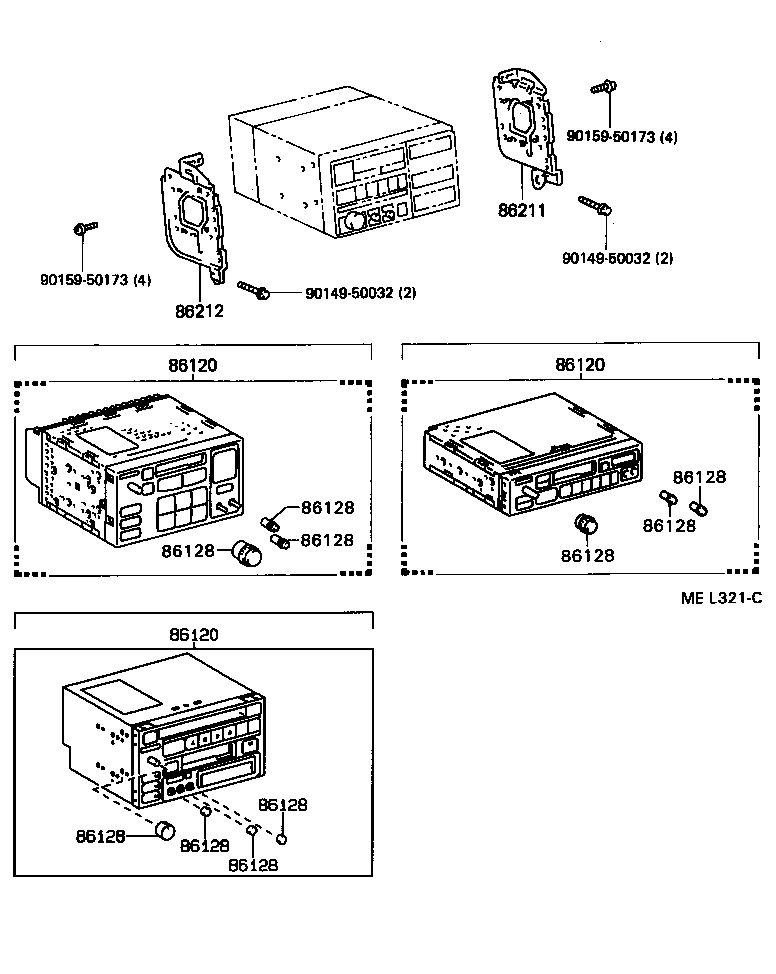

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

diagram 86120 86120 86120 86128 86128 86128 86128 86128 86128 86128 86128 86128 86128 86211 86212 9014950032 9014950032 9015950173 9015950173
Part # Description Qty Price
Common parts
90149-50032
90159-50173

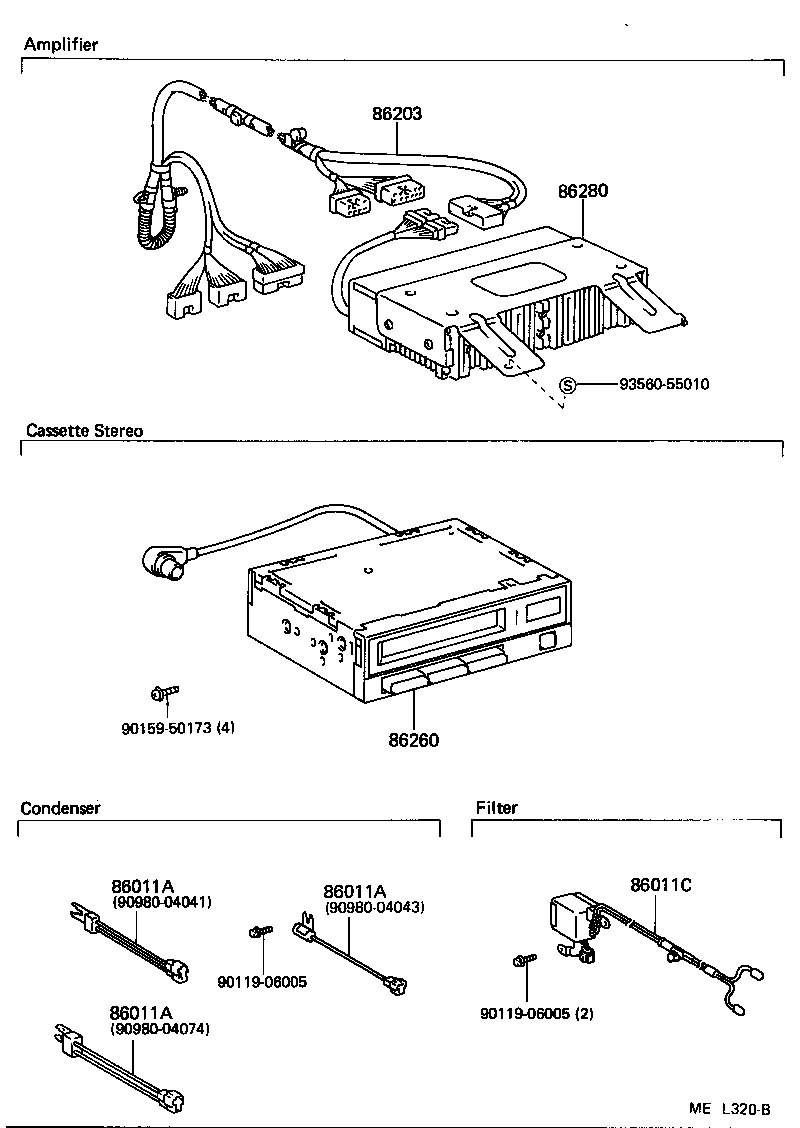

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

diagram 86011A 86011A 86011A 8604 86270A 86280 9011906005 9015950173 9098004041 9098004043 9098004074
Part # Description Qty Price
Common parts
90119-06005
90159-50173
90980-04041
90980-04043
90980-04074
Linked diagrams
8604
