MA70L-BJMVFV (1988)
Toyota Supra

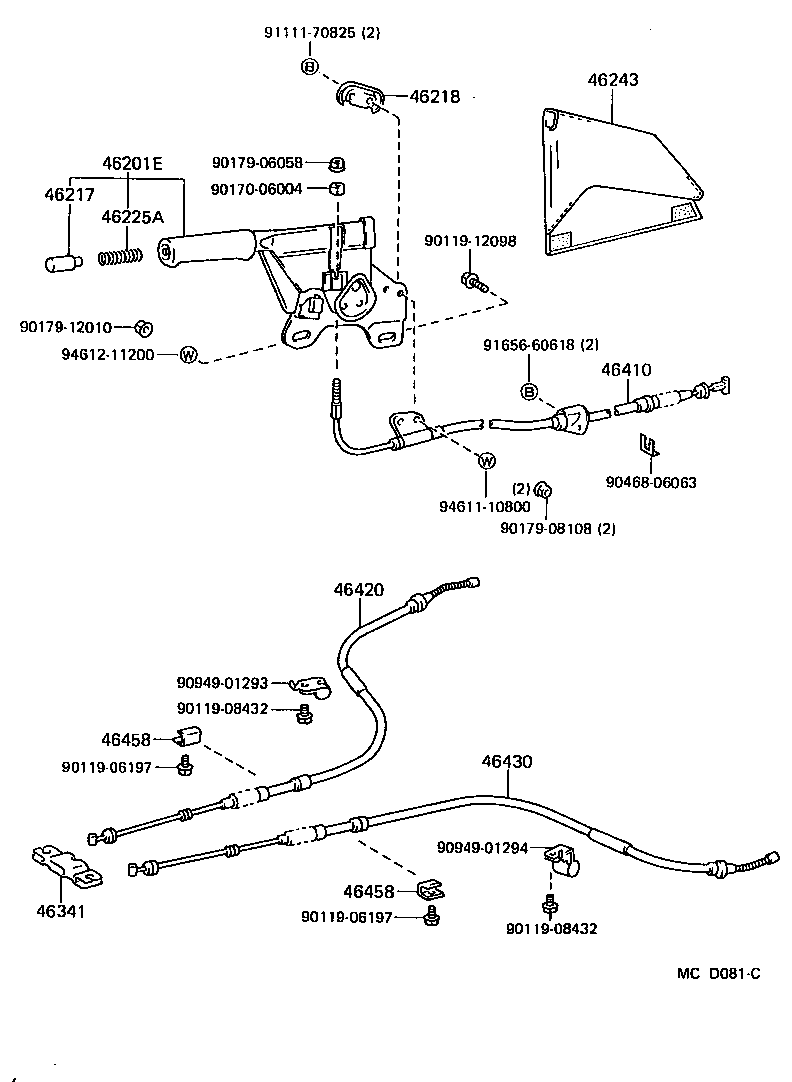

ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-1417101 |
MA70..V BLACK,TRIM1#,3#,8# |
1 | ||
| 46201-1418101 |
MA70..LHD..(C,EUR) BLACK,TRIM1#,4#,8# |
1 | ||
| 46201-1418101 |
MA70..LHD..C BLACK,TRIM8# |
1 | ||
| 46201-1417101 |
MA70..LHD..TWC BLACK,TRIM3#,8# |
1 | ||
| 46201-1417101 |
MA70..LHD..TWC BLACK,TRIM1#,3#,8# |
1 | ||
| 46201-1417101 |
MA70..LHD..(GEN,V) BLACK,TRIM1#,3#,4#,8# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-1202011 |
MA70..V BLACK,TRIM1#,3#,8# |
1 | ||
| 46217-3201001 |
MA70..C,EUR BLACK,TRIM1#,4#,8# |
1 | ||
| 46217-3201001 |
MA70..LHD..C BLACK,TRIM1#,4#,8# |
1 | ||
| 46217-3201001 |
MA70..C BLACK,TRIM1#,4#,8# |
1 | ||
| 46217-3201001 |
MA70..C BLACK,TRIM1#,8# |
1 | ||
| 46217-1202011 |
MA70..GEN,V BLACK,TRIM1#,3#,4#,8# |
1 | ||
| 46217-1202011 |
MA70..GEN,V BLACK,TRIM1#,3#,8# |
1 | ||
| 46217-1202011 |
MA70..GEN,V BLACK,TRIM3#,8# |
1 | ||
| 46218 - PROTECTOR, PARKING BRAKE LEVER EDGE | ||||
| 46218-14030 |
MA70..ARL,C,EUR |
1 | ||
| 46218-14030 |
MA70..ARL,C |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10069 |
MA70 |
1 | ||
| 90501-10069 |
MA70 |
1 | ||
| 46243 - COVER, PARKING BRAKE LEVER | ||||
| 46243-1410002 |
MA70..LHD..(GEN,V) MAROON,TRIM3# |
1 | ||
| 46243-1410006 |
MA70..LHD..(C,EUR,GEN) BROWN,TRIM4# |
1 | ||
| 46243-1410006 |
MA70..LHD BROWN,TRIM4# |
1 | ||
| 46243-1410006 |
MA70..LHD..C BROWN,TRIM4# |
1 | ||
| 46243-1410003 |
MA70..LHD MEDIUM GRAY,TRIM1# |
1 | ||
| 46243-1410012 |
MA70..LHD..TWC DEEP RED,TRIM3# |
1 | ||
| 46243-1410004 |
MA70..LHD DEEP BLUE,TRIM8# |
1 | ||
| 46243-1410013 |
MA70..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-12010 |
MA70 |
1 | ||
| 46341-12010 |
MA70 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-14090 |
MA70..LHD |
1 | ||
| 46410-14090 |
MA70..LHD |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-14290 |
MA70 |
1 | ||
| 46420-14290 |
MA70 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-14290 |
MA70 |
1 | ||
| 46430-14300 |
MA70 |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-50010 |
MA70 |
2 | ||
| 46458-20020 |
MA70 |
2 | ||
| 46458-50010 |
MA70 |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-50010 |
MA70 |
2 | ||
| 46458-20020 |
MA70 |
2 | ||
| 46458-50010 |
MA70 |
2 | ||
| Common parts | ||||
| 90119-06197 | ||||
| 90119-08432 | ||||
| 90119-12098 | ||||
| 90170-06004 | ||||
| 90179-06058 | ||||
| 90179-08108 | ||||
| 90179-12010 | ||||
| 90468-06063 | ||||
| 90949-01293 | ||||
| 90949-01294 | ||||
| 91111-70825 | ||||
| 91656-60618 | ||||
| 94611-10800 | ||||
| 94612-11200 | ||||
ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-14010 |
MA70 |
1 | ||
| 46503-14010 |
MA70 |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-14010 |
MA70 |
1 | ||
| 46504-14010 |
MA70 |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-14020 |
MA70..C,EUR,V |
1 | ||
| 46540-14020 |
MA70 |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-14020 |
MA70 |
1 | ||
| 46550-14020 |
MA70..C,EUR,V |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-20016 |
MA70 SECONDARY(BLACK) |
2 | ||
| 90507-16011 |
MA70 PRIMARY(GREEN) |
2 | ||
| 90507-20016 |
MA70 SECONDARY(BLACK) |
2 | ||
| 90507-16011 |
MA70 PRIMARY(GREEN) |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-20016 |
MA70 SECONDARY(BLACK) |
2 | ||
| 90507-16011 |
MA70 PRIMARY(GREEN) |
2 | ||
| 90507-20016 |
MA70 SECONDARY(BLACK) |
2 | ||
| 90507-16011 |
MA70 PRIMARY(GREEN) |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12051 |
MA70 |
2 | ||
| 90506-12051 |
MA70 |
2 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-14020 |
MA70..C,EUR,V |
1 | ||
| 46540-14020 |
MA70 |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46590-14020 |
MA70..C,EUR,V |
1 | ||
| 46590-14020 |
MA70 |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-30040 |
MA70 |
1 | ||
| 47405-30040 |
MA70 |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-30040 |
MA70 |
1 | ||
| 47406-30040 |
MA70 |
1 | ||
| 47447C - PIN, SHOE HOLD DOWN SPRING(FOR PARKING BRAKE) | ||||
| 47447-50010 |
MA70 SECONDARY |
2 | ||
| 47447-14020 |
MA70 PRIMARY |
2 | ||
| 47447-50010 |
MA70 SECONDARY |
2 | ||
| 47447-14010 |
MA70 SECONDARY |
2 | ||
| 47447-14020 |
MA70 PRIMARY |
2 | ||
| 47447C - PIN, SHOE HOLD DOWN SPRING(FOR PARKING BRAKE) | ||||
| 47447-50010 |
MA70 SECONDARY |
2 | ||
| 47447-14020 |
MA70 PRIMARY |
2 | ||
| 47447-50010 |
MA70 SECONDARY |
2 | ||
| 47447-14010 |
MA70 SECONDARY |
2 | ||
| 47447-14020 |
MA70 PRIMARY |
2 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-16053 |
MA70 SECONDARY |
2 | ||
| 90501-14049 |
MA70 PRIMARY |
2 | ||
| 90501-16053 |
MA70 SECONDARY |
2 | ||
| 90501-14049 |
MA70 PRIMARY |
2 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-16053 |
MA70 SECONDARY |
2 | ||
| 90501-14049 |
MA70 PRIMARY |
2 | ||
| 90501-16053 |
MA70 SECONDARY |
2 | ||
| 90501-14049 |
MA70 PRIMARY |
2 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
MA70 OUTER |
4 | ||
| 47449-22010 |
MA70 INNER |
4 | ||
| 47449-22010 |
MA70 INNER |
4 | ||
| 47449-40010 |
MA70 INNER |
4 | ||
| 47449-30030 |
MA70 OUTER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
MA70 OUTER |
4 | ||
| 47449-22010 |
MA70 INNER |
4 | ||
| 47449-22010 |
MA70 INNER |
4 | ||
| 47449-40010 |
MA70 INNER |
4 | ||
| 47449-30030 |
MA70 OUTER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
MA70 OUTER |
4 | ||
| 47449-22010 |
MA70 INNER |
4 | ||
| 47449-22010 |
MA70 INNER |
4 | ||
| 47449-40010 |
MA70 INNER |
4 | ||
| 47449-30030 |
MA70 OUTER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
MA70 OUTER |
4 | ||
| 47449-22010 |
MA70 INNER |
4 | ||
| 47449-22010 |
MA70 INNER |
4 | ||
| 47449-40010 |
MA70 INNER |
4 | ||
| 47449-30030 |
MA70 OUTER |
4 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-20030 |
MA70 |
2 | ||
| 47456-20030 |
MA70 |
2 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
MA70 |
2 | ||
| 47459-30010 |
MA70 |
2 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-14030 |
MA70 |
1 | ||
| 47611-14030 |
MA70 |
1 | ||
| 47611A - WASHER, TYPE C(FOR PARKING BRAKE SHOE LEVER) | ||||
| 90213-07018 |
MA70 |
2 | ||
| 90213-07018 |
MA70 |
2 | ||
| 47611B - SHIM(FOR PARKING BRAKE SHOE LEVER) | ||||
| 90564-09184 |
MA70 T=0.3 |
1 | ||
| 90564-09186 |
MA70 T=0.9 |
1 | ||
| 90564-09185 |
MA70 T=0.6 |
1 | ||
| 90564-09186 |
MA70 T=0.9 |
1 | ||
| 90564-09185 |
MA70 T=0.6 |
1 | ||
| 90564-09184 |
MA70 T=0.3 |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-14030 |
MA70 |
1 | ||
| 47612-14030 |
MA70 |
1 | ||
| 47613C - STRUT, PARKING BRAKE SHOE | ||||
| 47614-14040 |
MA70 LH |
1 | ||
| 47613-14040 |
MA70 RH |
1 | ||
| 47614-14040 |
MA70 LH |
1 | ||
| 47613-14040 |
MA70 RH |
1 | ||
| 47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-14002 |
MA70 |
2 | ||
| 90504-14002 |
MA70 |
2 | ||
| Common parts | ||||
| 90119-08570 | ||||
| 90179-10085 | ||||
