JZA80R-ALPVZW (1993)
Toyota Supra
Production
May 1993
-
Jan 1996
Engine
2JZGTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )

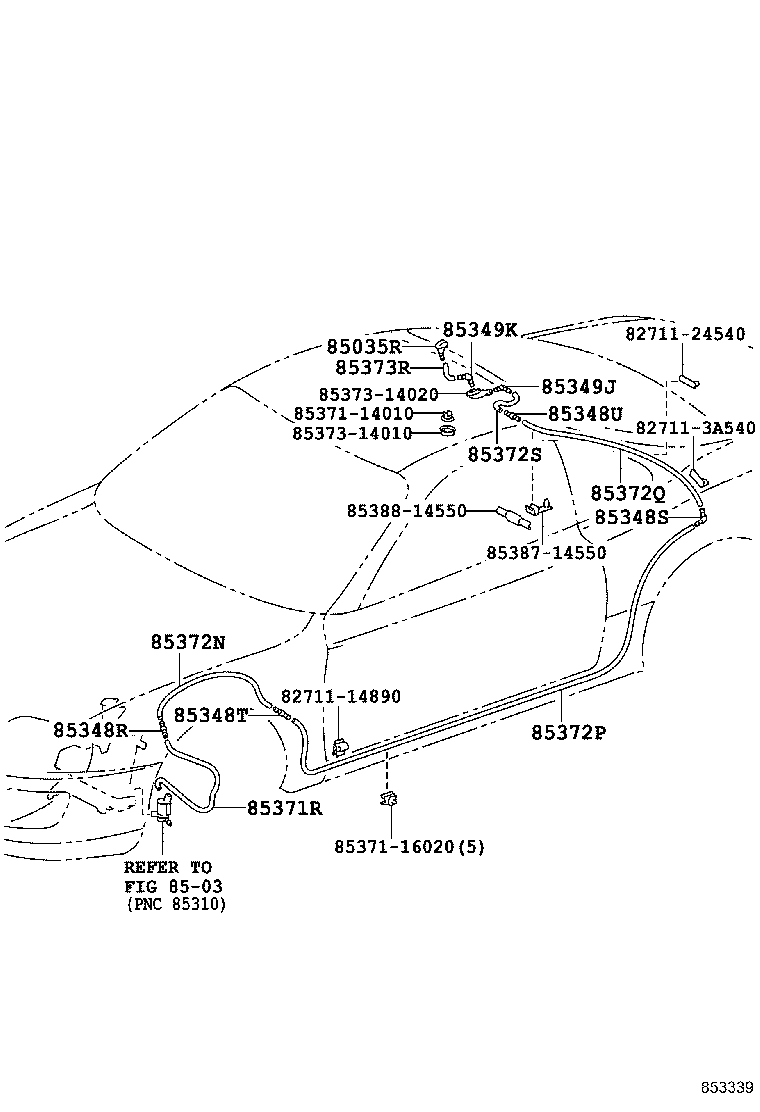

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035R - NOZZLE SUB-ASSY, REAR WASHER | ||||
| 85391-14010 |
JZA80 |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
JZA80 |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
JZA80 |
1 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-89122 |
JZA80 |
1 | ||
| 85348U - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85349-89122 |
JZA80 |
1 | ||
| 85349J - JOINT, REAR WASHER HOSE, NO.4 | ||||
| 85375-14560 |
JZA80 |
1 | ||
| 85349K - JOINT, REAR WASHER ELBOW, NO.2 | ||||
| 85355-20200 |
JZA80 |
1 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-07001 |
JZA80 |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33299 |
JZA80 L=1000 |
1 | ||
| 85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-59045 |
JZA80 *H,L=2200 |
1 | ||
| 85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90446-07001 |
JZA80 |
1 | ||
| 85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90099-33080 |
JZA80 L=1450 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33185 |
JZA80 L=120 |
1 | ||
| Common parts | ||||
| 82711-14890 | ||||
| 82711-24540 | ||||
| 82711-3A540 | ||||
| 85371-14010 | ||||
| 85371-16020 | ||||
| 85373-14010 | ||||
| 85373-14020 | ||||
| 85387-14550 | ||||
| 85388-14550 | ||||
| Linked diagrams | ||||
| 8503 | ||||
(9305- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035R - NOZZLE SUB-ASSY, REAR WASHER | ||||
| 85391-14010 |
JZA80 |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
JZA80 |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
JZA80 |
1 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-89122 |
JZA80 |
1 | ||
| 85348U - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85349-89122 |
JZA80 |
1 | ||
| 85349J - JOINT, REAR WASHER HOSE, NO.4 | ||||
| 85375-14560 |
JZA80 |
1 | ||
| 85349K - JOINT, REAR WASHER ELBOW, NO.2 | ||||
| 85355-20200 |
JZA80 |
1 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-07001 |
JZA80 |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33299 |
JZA80 L=1000 |
1 | ||
| 85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-59045 |
JZA80 *H,L=2200 |
1 | ||
| 85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90446-07001 |
JZA80 |
1 | ||
| 85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90099-33080 |
JZA80 L=1450 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33185 |
JZA80 L=120 |
1 | ||
| Common parts | ||||
| 82711-14890 | ||||
| 82711-24540 | ||||
| 82711-3A540 | ||||
| 85371-14010 | ||||
| 85371-16020 | ||||
| 85373-14010 | ||||
| 85373-14020 | ||||
| 85387-14550 | ||||
| 85388-14550 | ||||
| Linked diagrams | ||||
| 8503 | ||||
