JZA80R-ALPVZW (1993)
Toyota Supra

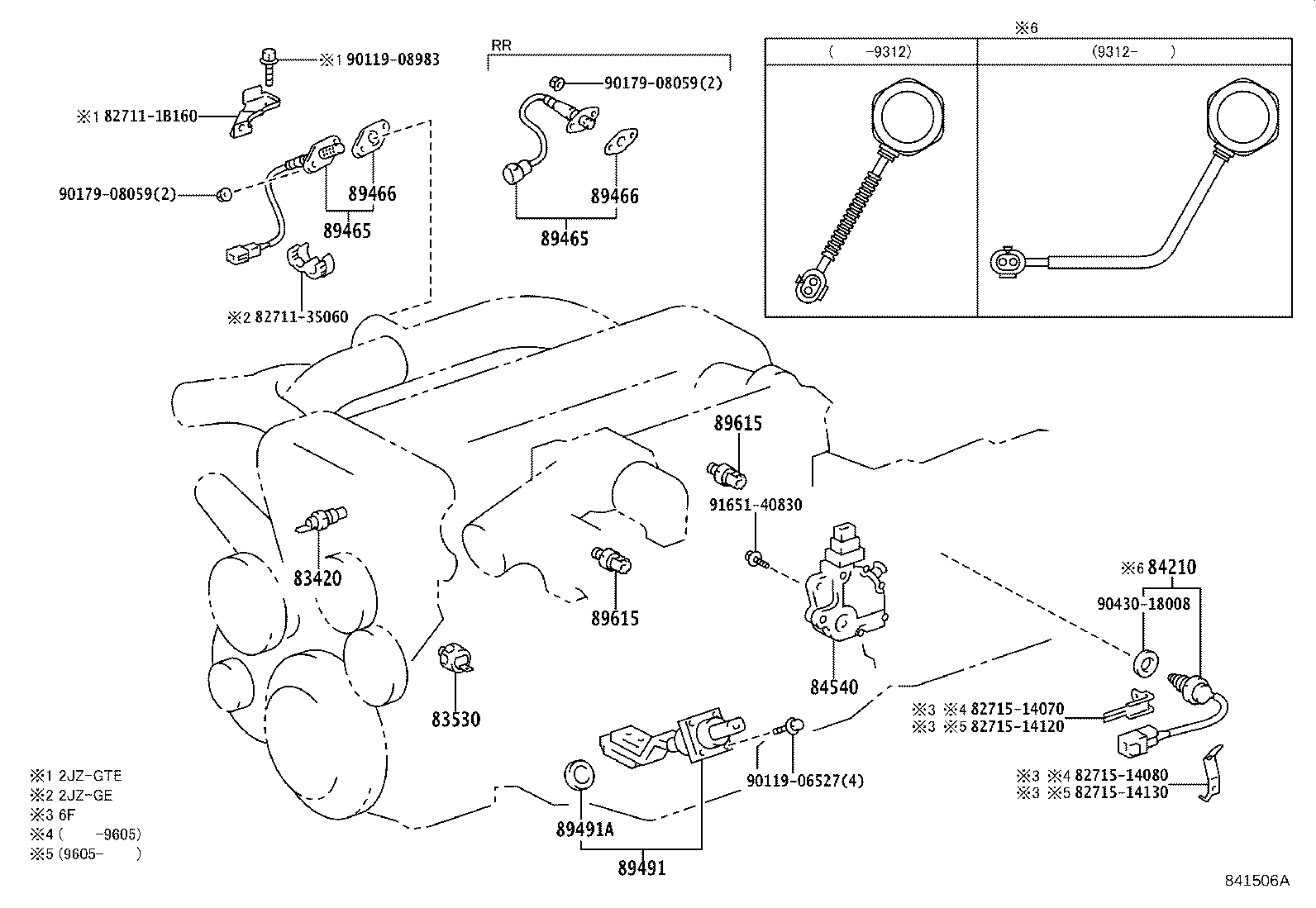

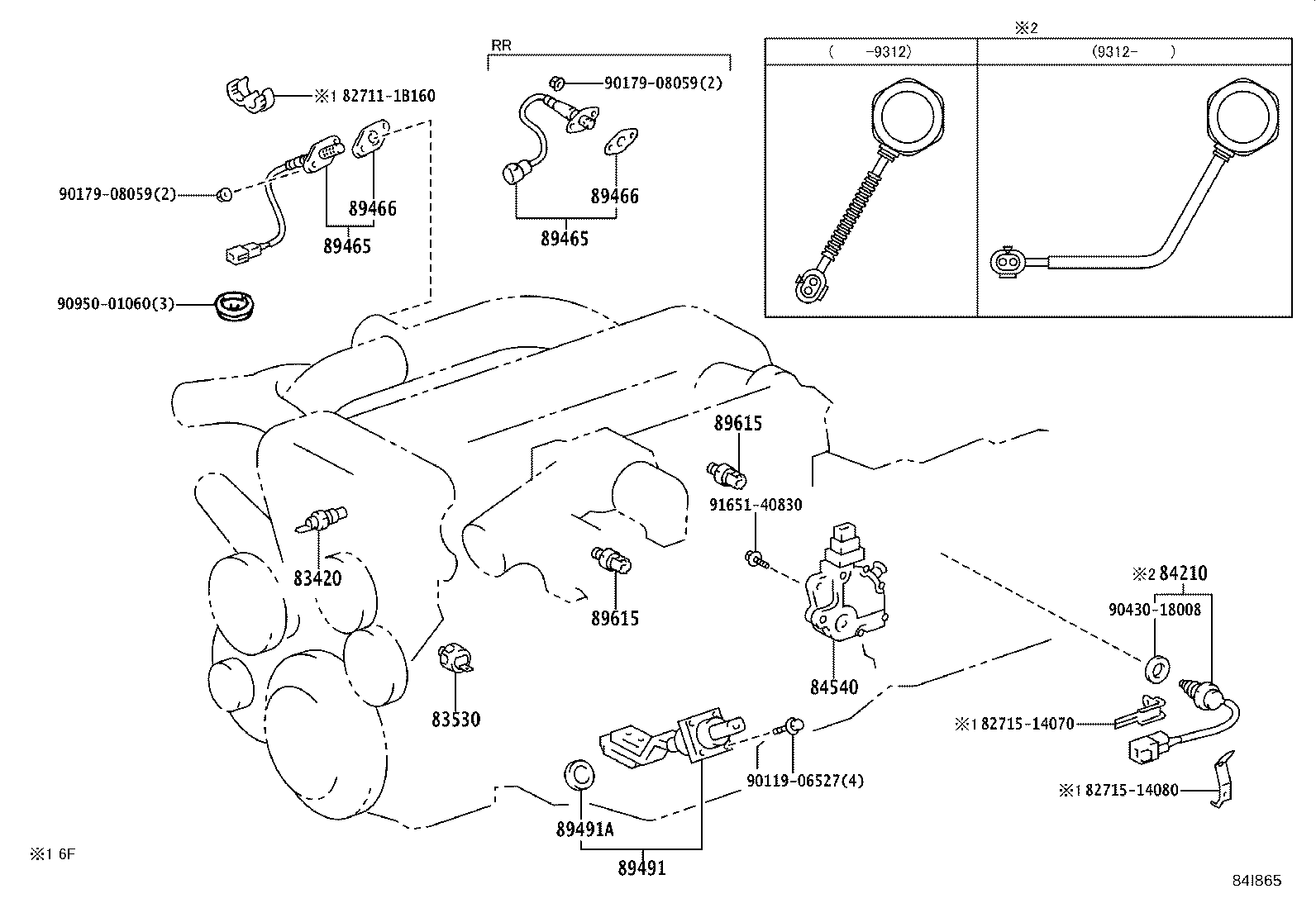

ILLUST NO. 1 OF 7(9305- )
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20040 |
JZA80..EUR |
1 | ||
| 83420-16050 |
JZA80..EUR |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14060 |
JZA80 NIPPONDENSO |
1 | ||
| 83530-30090 |
JZA80 YAZAKI |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-30270 |
JZA80..4FC |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-19605 |
JZA80..EUR FR |
1 | ||
| 89465-19595 |
JZA80..EUR RR |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-19605 |
JZA80..EUR FR |
1 | ||
| 89465-19595 |
JZA80..EUR RR |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
JZA80..EUR |
2 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
JZA80..EUR |
2 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-14070 |
JZA80 |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 90430-27001 |
JZA80 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-22040 |
JZA80 |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-22040 |
JZA80 |
2 | ||
| Common parts | ||||
| 82711-1B160 | ||||
| 82715-14070 | ||||
| 82715-14080 | ||||
| 90119-06527 | ||||
| 90179-08059 | ||||
| 90430-18008 | ||||
| 90950-01060 | ||||
| 91651-40830 | ||||

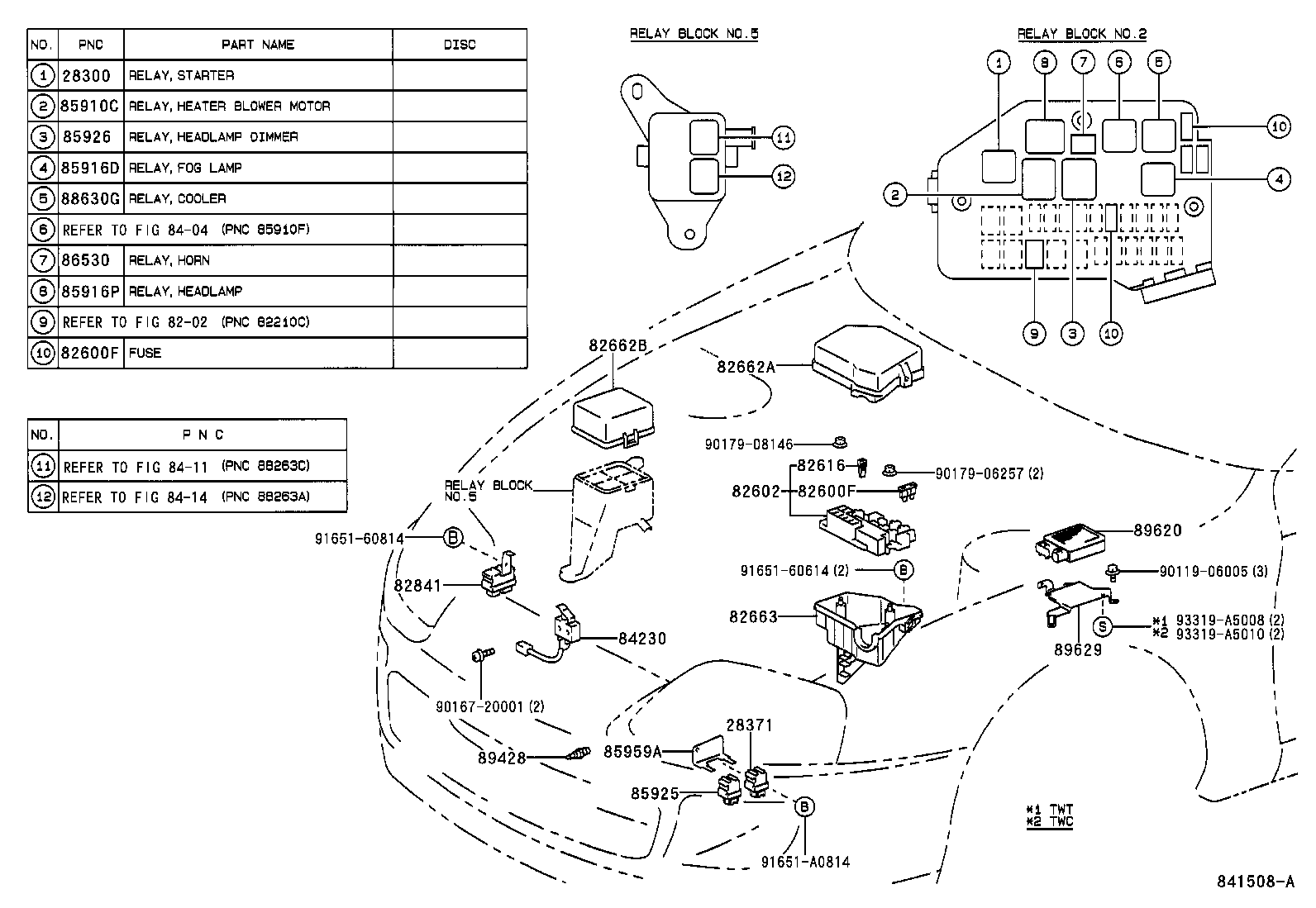

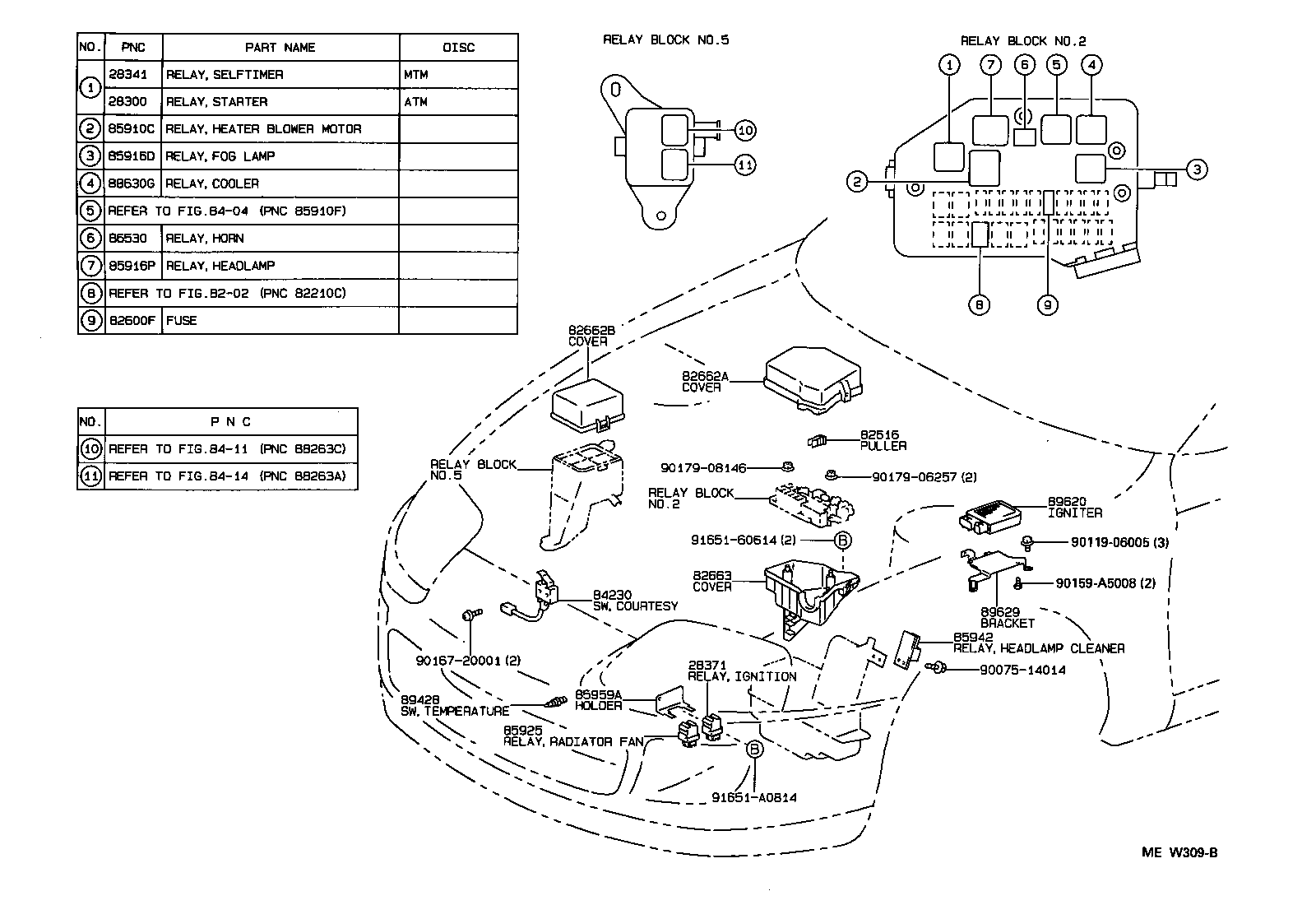

ILLUST NO. 2 OF 7(9305- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
2JZ#..JZA80..4FC |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 88263-35070 |
2JZ#..JZA80..EUR,GCC |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
JZA80 30A,GREEN |
2 | ||
| 90982-09005 |
JZA80 7.5A |
5 | ||
| 90982-09002 |
JZA80 10A |
6 | ||
| 90982-09003 |
JZA80 15A |
4 | ||
| 90982-09004 |
JZA80 20A,YELLOW |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12020 |
JZA80 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-14020 |
JZA80..EUR |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-24032 |
JZA80..EUR |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-14010 |
JZA80 |
1 | ||
| 84230 - SWITCH ASSY, COURTESY LAMP (FOR ENGINE ROOM) | ||||
| 84231-24030 |
JZA80..EUR |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
JZA80 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02009 |
JZA80 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
JZA80 |
1 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 85925-20010 |
JZA80..EUR,GCC |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-33010 |
JZA80..RHD..EUR |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-14010 |
JZA80..EUR,GCC |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
JZA80 |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02009 |
JZA80 |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-24010 |
JZA80..EUR,GCC |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-22030 |
JZA80..EUR |
1 | ||
| 89621-22020 |
JZA80..EUR |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-24040 |
JZA80..EUR |
1 | ||
| 89629-24020 |
JZA80..EUR |
1 | ||
| Common parts | ||||
| 90075-14014 | ||||
| 90119-06005 | ||||
| 90159-A5008 | ||||
| 90167-20001 | ||||
| 90179-06257 | ||||
| 90179-08146 | ||||
| 91651-60614 | ||||
| 91651-A0814 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8411 | ||||
| 8414 | ||||

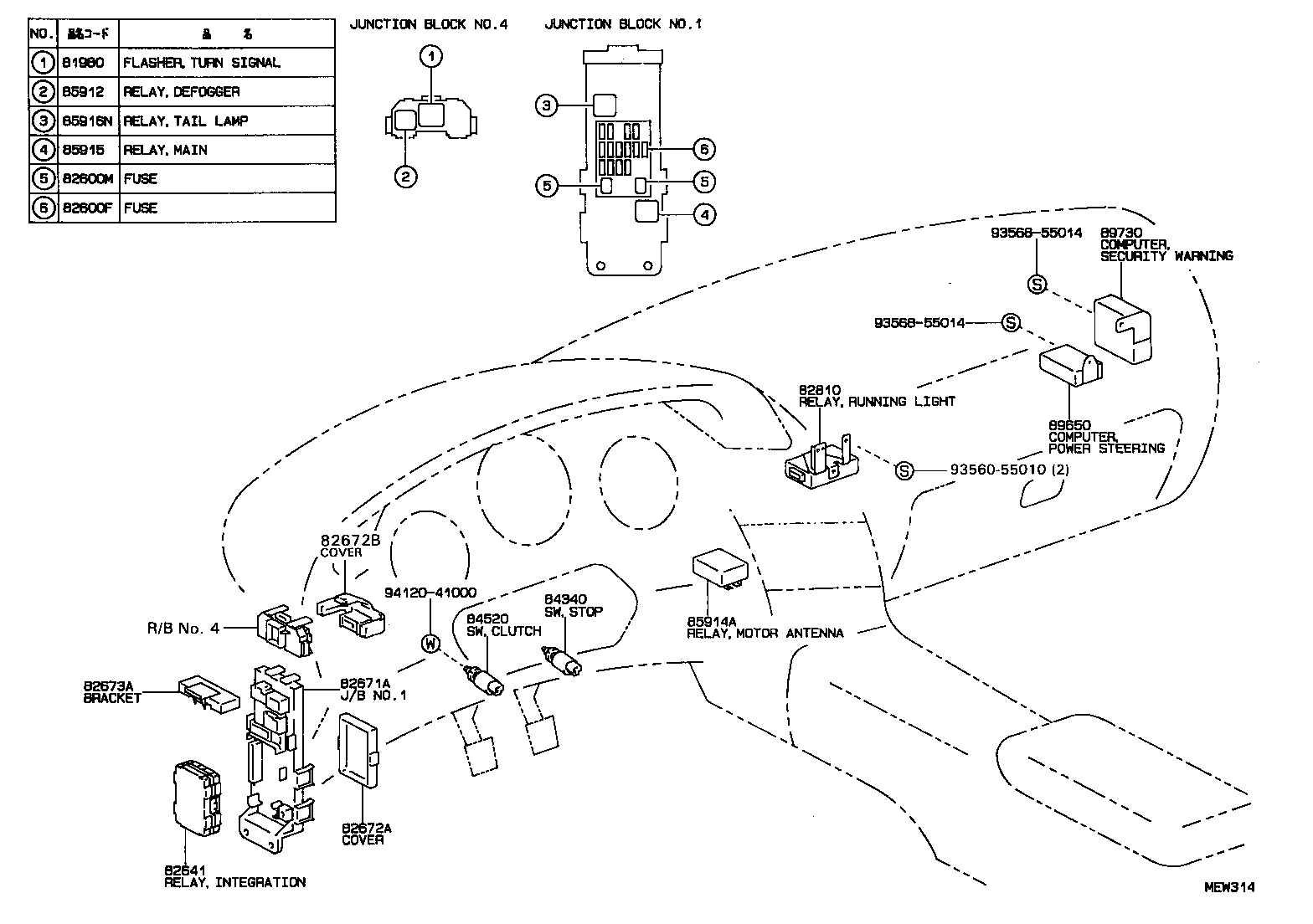

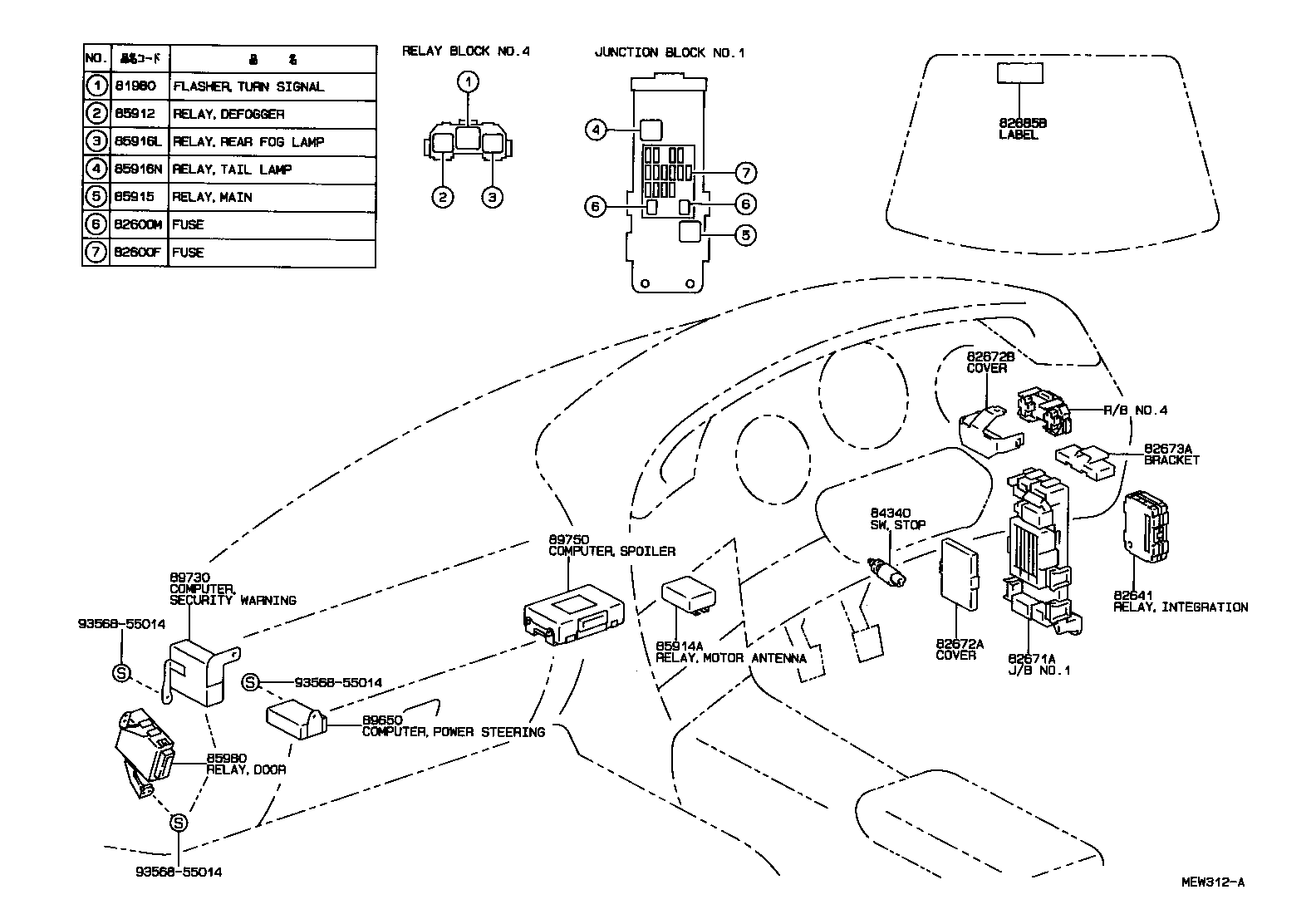

ILLUST NO. 3 OF 7(9305- )RHD
COWL & CONSOLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
JZA80 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
JZA80 30A,GREEN |
2 | ||
| 90982-09005 |
JZA80 7.5A |
5 | ||
| 90982-09002 |
JZA80 10A |
6 | ||
| 90982-09003 |
JZA80 15A |
4 | ||
| 90982-09004 |
JZA80 20A,YELLOW |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
JZA80 30A,PINK |
2 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-14050 |
JZA80..EUR |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-14050 |
JZA80 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-14091 |
JZA80..RHD |
1 | ||
| 82672-14090 |
JZA80..GCC,GEN;JZA80..RHD..EUR |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82674-14010 |
JZA80 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-14010 |
JZA80 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32110 |
JZA80 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02009 |
JZA80 |
1 | ||
| 85914A - RELAY, MOTOR ANTENNA CONTROL | ||||
| 85914-33010 |
JZA80 |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02009 |
JZA80 |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02009 |
JZA80..EUR |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02009 |
JZA80 |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-14100 |
JZA80..EUR |
1 | ||
| 89650-14101 |
JZA80..EUR |
1 | ||
| 89650-14102 |
JZA80..EUR |
1 | ||
| 89730 - COMPUTER ASSY, SECURITY WARNING | ||||
| 89730-14050 |
JZA80..RHD..EUR |
1 | ||
| 89750 - COMPUTER ASSY, SPOILER CONTROL | ||||
| 89750-14010 |
JZA80..EUR |
1 | ||
| Common parts | ||||
| 93568-55014 | ||||

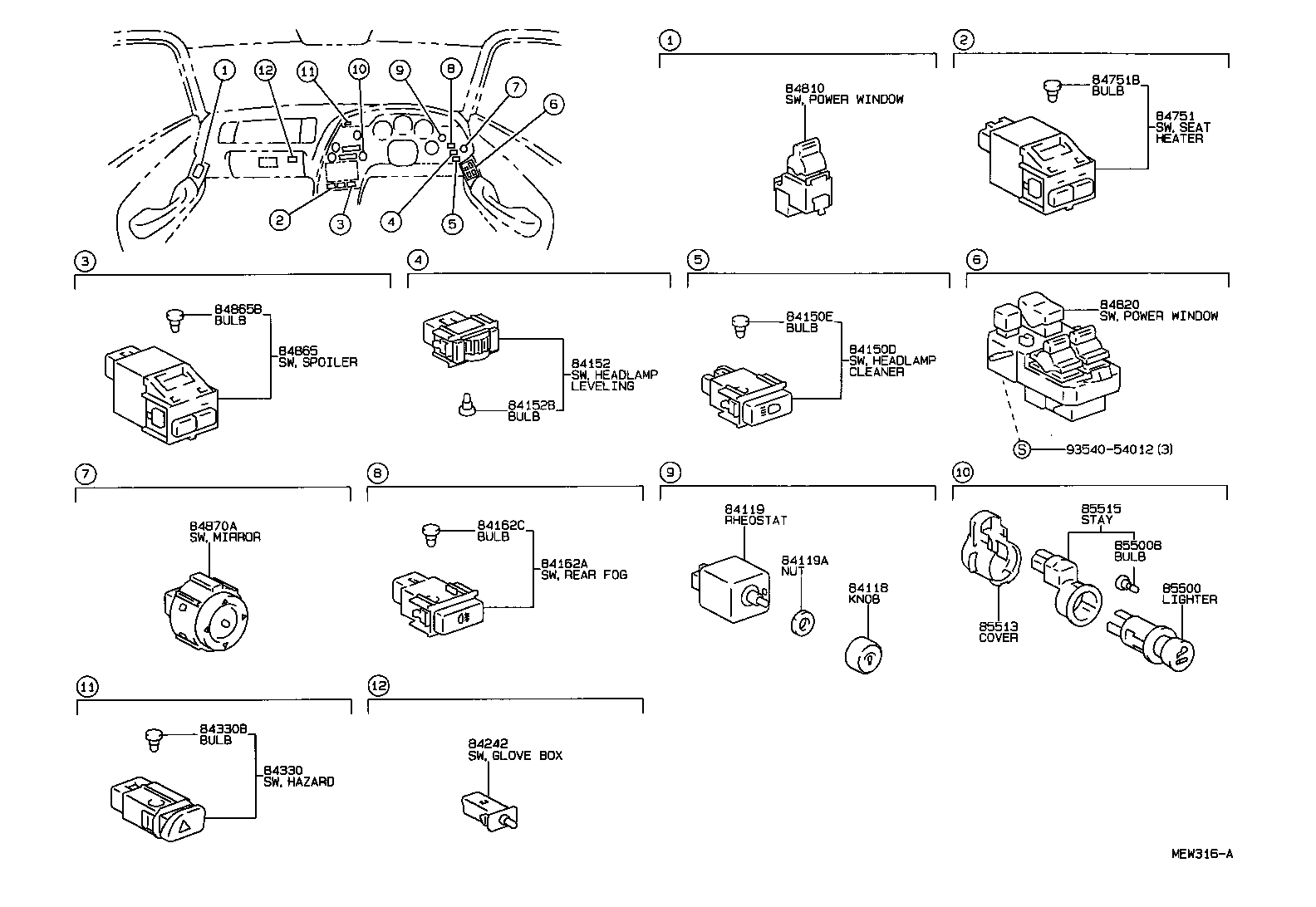

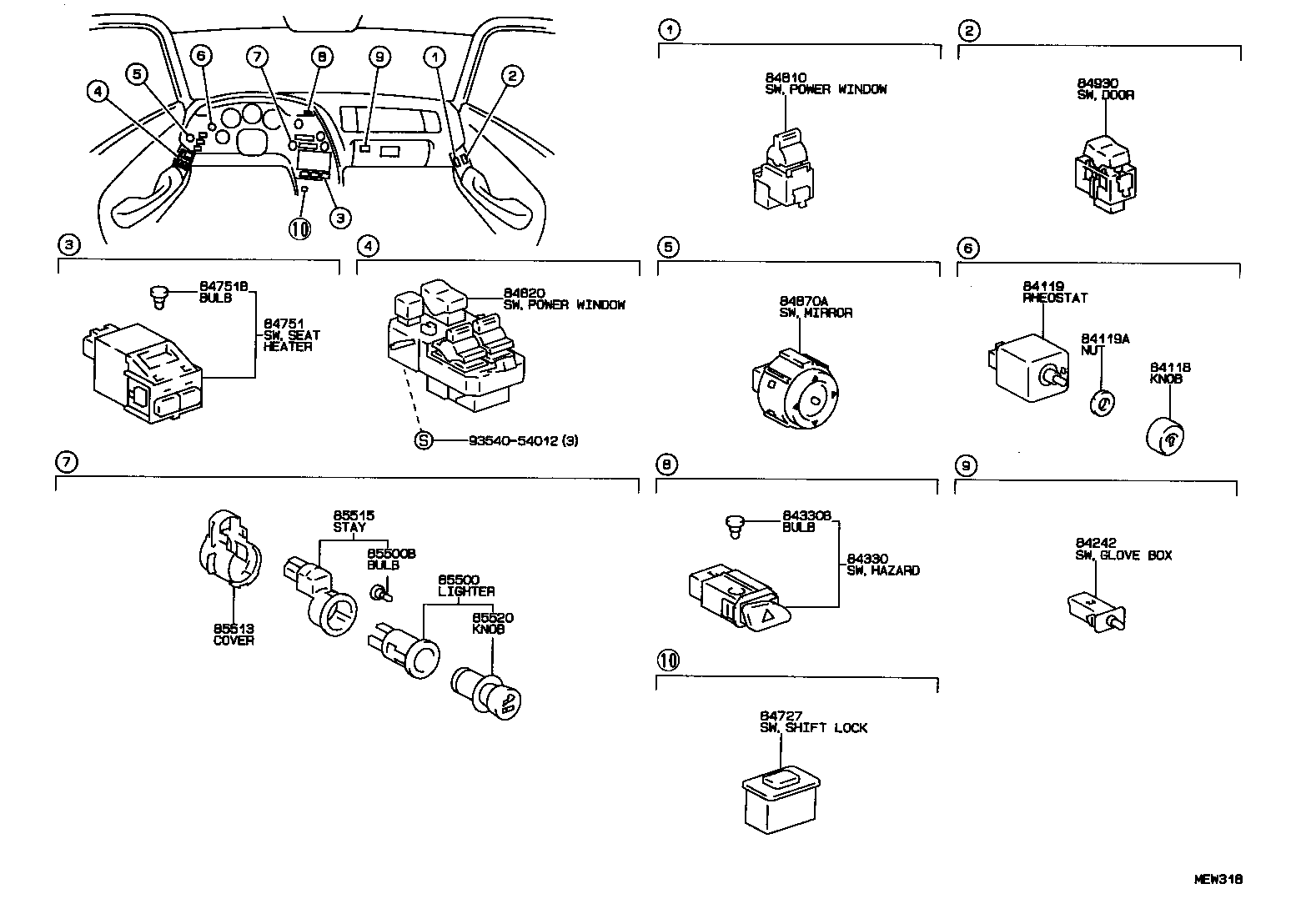

ILLUST NO. 4 OF 7(9305- )RHD
INSTRUMENT PANEL & DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-20030 |
JZA80 |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-14200 |
JZA80 |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09002 |
JZA80 |
1 | ||
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-14020 |
JZA80..RHD..EUR |
1 | ||
| 84150E - BULB, HEADLAMP CLEANER SWITCH | ||||
| 84999-10770 |
JZA80..RHD..EUR 14V 0.84W |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-14040 |
JZA80..RHD..EUR |
1 | ||
| 84152B - BULB (FOR HEADLAMP LEVELING SWITCH) | ||||
| 84999-10730 |
JZA80..RHD..EUR |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84165-14010 |
JZA80..EUR |
1 | ||
| 84165-14020 |
JZA80..EUR |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 84999-10770 |
JZA80..EUR 14V 0.84W |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
JZA80 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-14150 |
JZA80..RHD |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
JZA80 14V 0.84W |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-14030 |
JZA80..EUR |
1 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 84999-10750 |
JZA80..EUR 14V 0.84W |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-14110 |
JZA80 |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-14240 |
JZA80..RHD..EUR |
1 | ||
| 84865 - SWITCH, SPOILER CONTROL | ||||
| 84865-14010 |
JZA80..EUR |
1 | ||
| 84865B - BULB, SPOILER CONTROL SWITCH | ||||
| 84999-10750 |
JZA80..EUR |
3 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-14090 |
JZA80 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-17050 |
JZA80 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10250 |
JZA80 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
JZA80 |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-14010 |
JZA80 |
1 | ||
| Common parts | ||||
| 93540-54012 | ||||

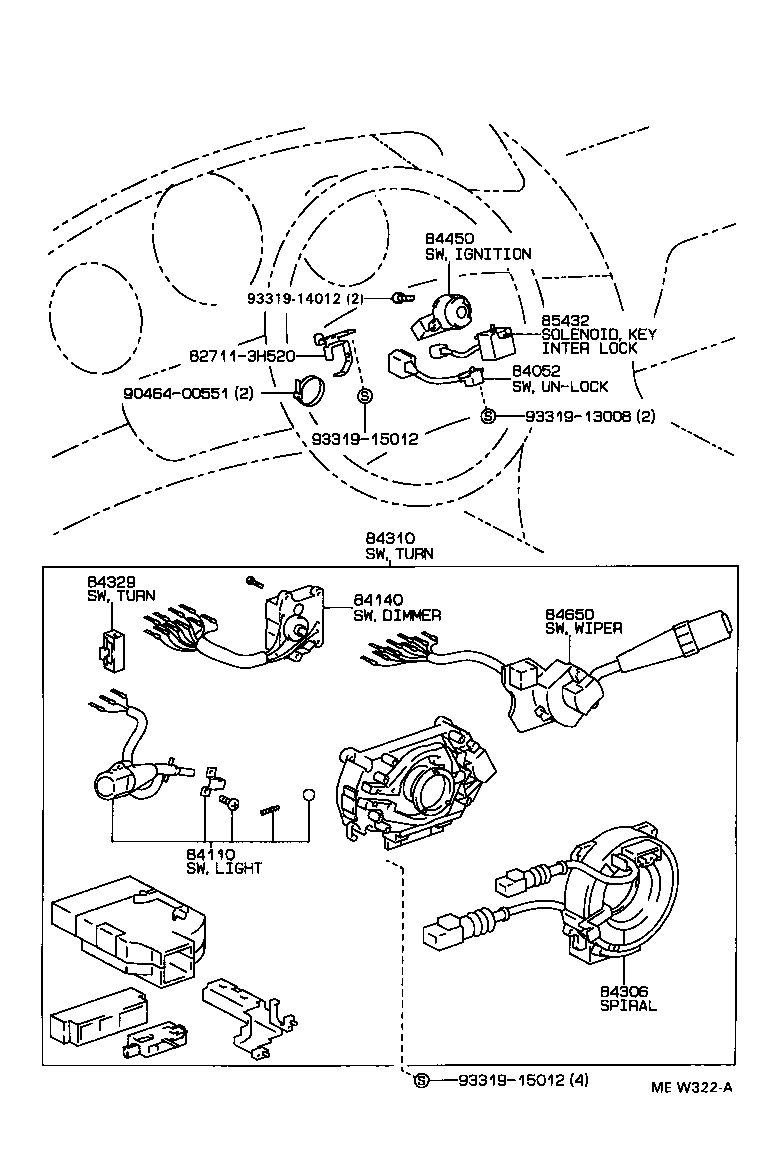

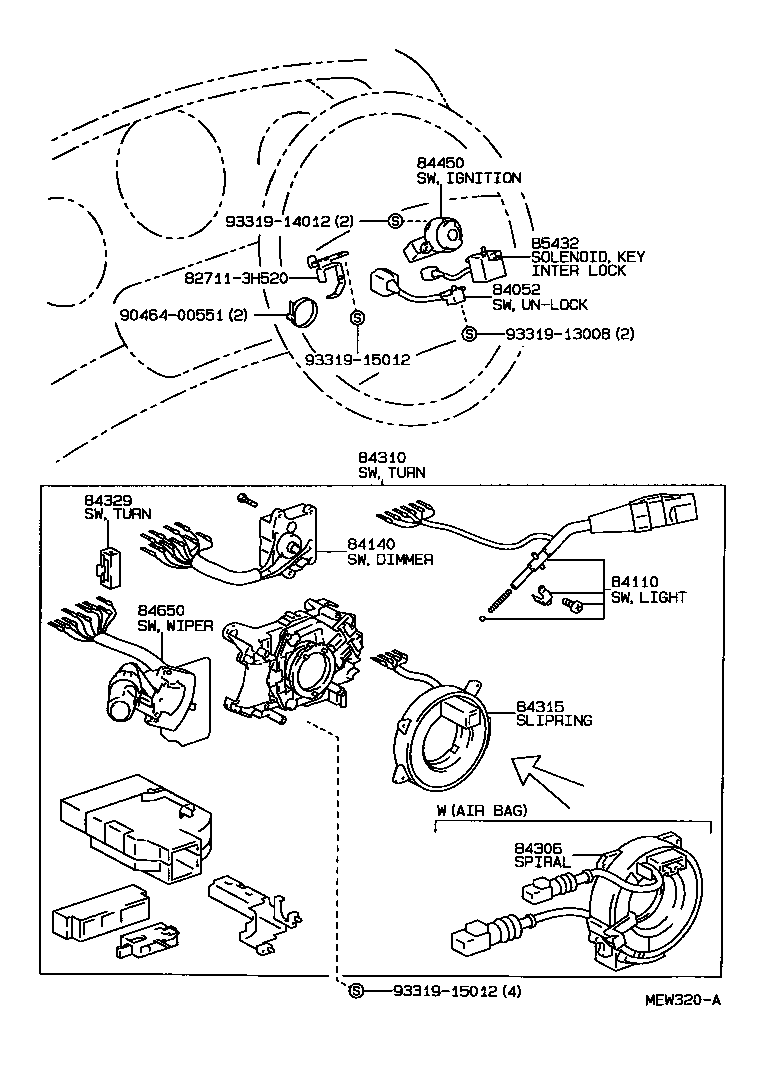

ILLUST NO. 5 OF 7(9305- )RHD
COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-16020 |
JZA80 |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80153 |
JZA80..RHD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-14110 |
JZA80..RHD |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-14030 |
JZA80 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-1B160 |
JZA80..RHD..EUR |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-14040 |
JZA80..RHD |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12180 |
JZA80 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-14630 |
JZA80..RHD |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-14030 |
JZA80..LHD;JZA80..RHD..EUR |
1 | ||
| Common parts | ||||
| 82711-3H520 | ||||
| 90464-00551 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||

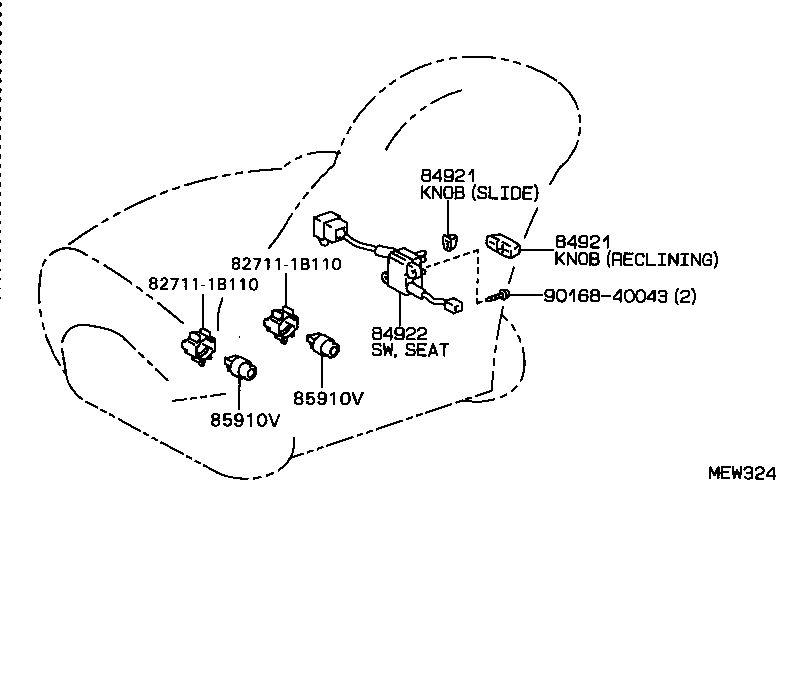

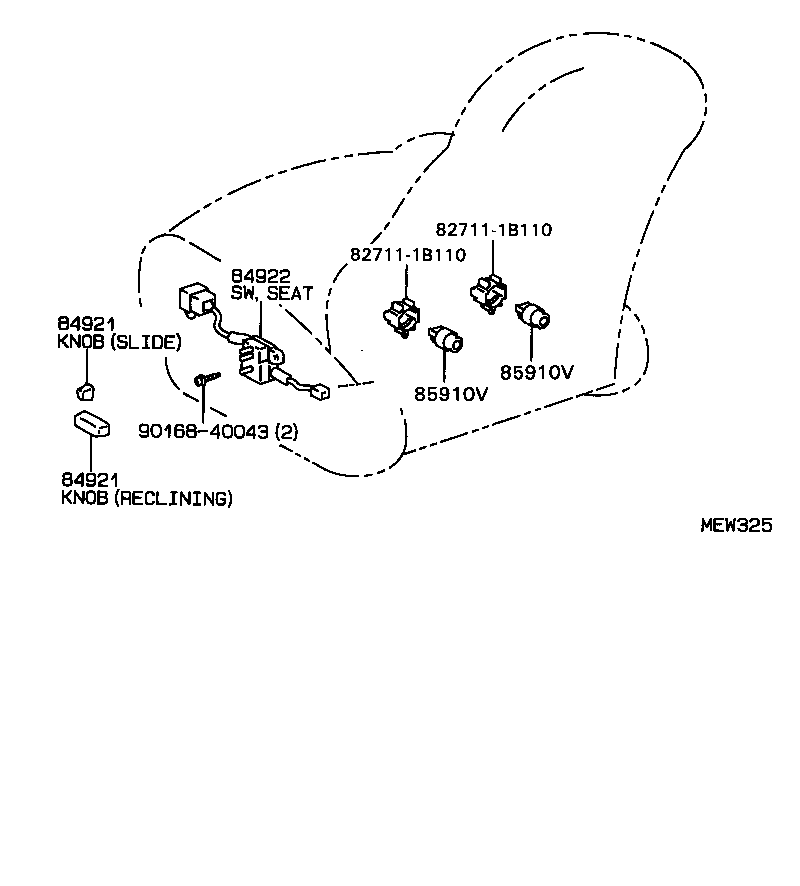

ILLUST NO. 6 OF 7(9305- )RHD
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84921 - KNOB, POWER SEAT SWITCH | ||||
| 84921-14020A0 |
JZA80 IVORY,TRIM0#,SLIDE |
1 | ||
| 84921-14030A0 |
JZA80 IVORY,TRIM0#,RECLINING |
1 | ||
| 84921-14020C0 |
JZA80 BLACK,TRIM2#,SLIDE |
1 | ||
| 84921-14030C0 |
JZA80 BLACK,TRIM2#,RECLINING |
1 | ||
| 84921 - KNOB, POWER SEAT SWITCH | ||||
| 84921-14020A0 |
JZA80 IVORY,TRIM0#,SLIDE |
1 | ||
| 84921-14030A0 |
JZA80 IVORY,TRIM0#,RECLINING |
1 | ||
| 84921-14020C0 |
JZA80 BLACK,TRIM2#,SLIDE |
1 | ||
| 84921-14030C0 |
JZA80 BLACK,TRIM2#,RECLINING |
1 | ||
| 84922 - SWITCH, FRONT POWER SEAT | ||||
| 84922-14040 |
JZA80..RHD |
1 | ||
| 85910V - RELAY, SEAT HEATER | ||||
| 90987-02004 |
JZA80..EUR |
2 | ||
| 85910V - RELAY, SEAT HEATER | ||||
| 90987-02004 |
JZA80..EUR |
2 | ||
| Common parts | ||||
| 82711-1B110 | ||||
| 90168-40043 | ||||

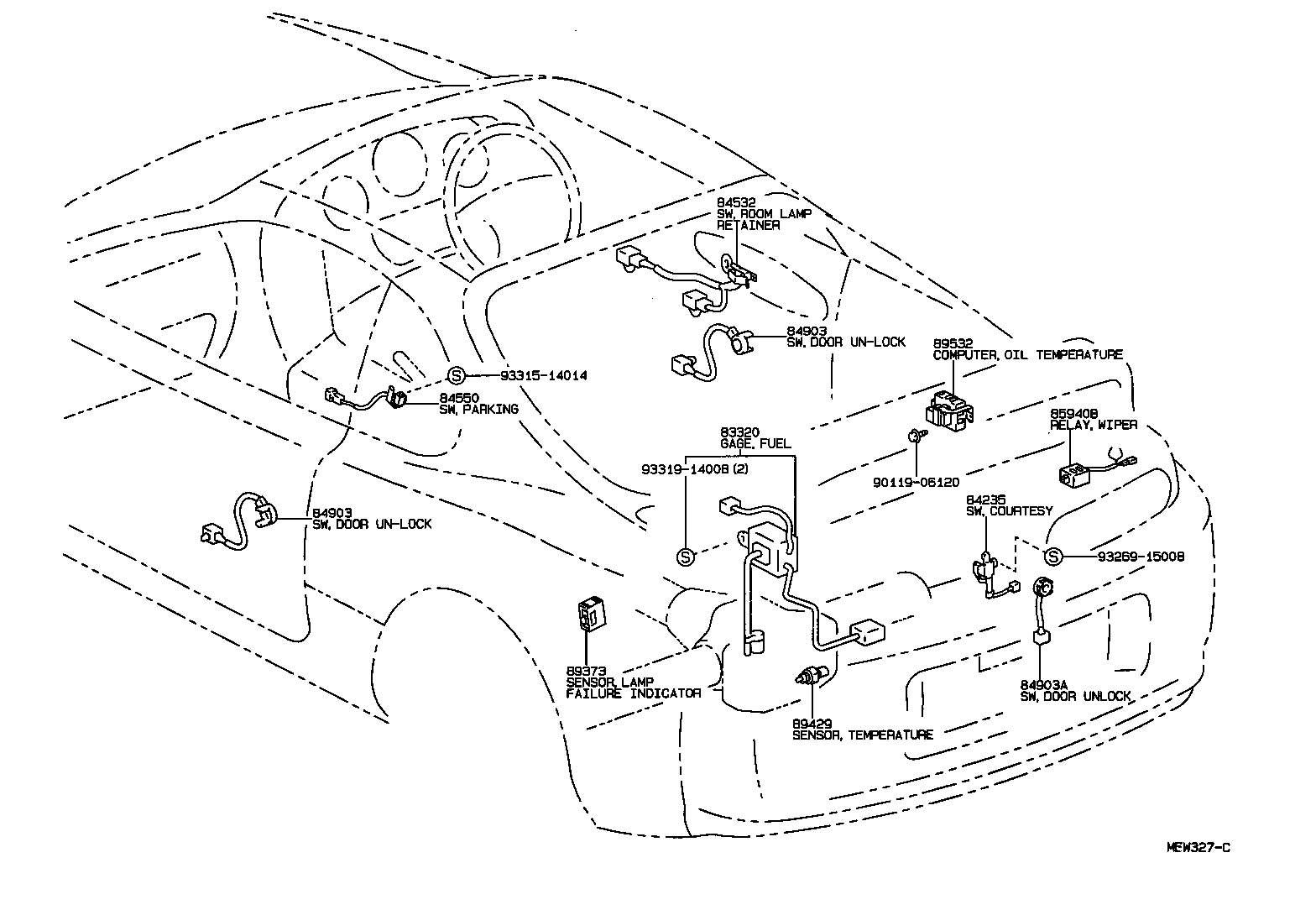

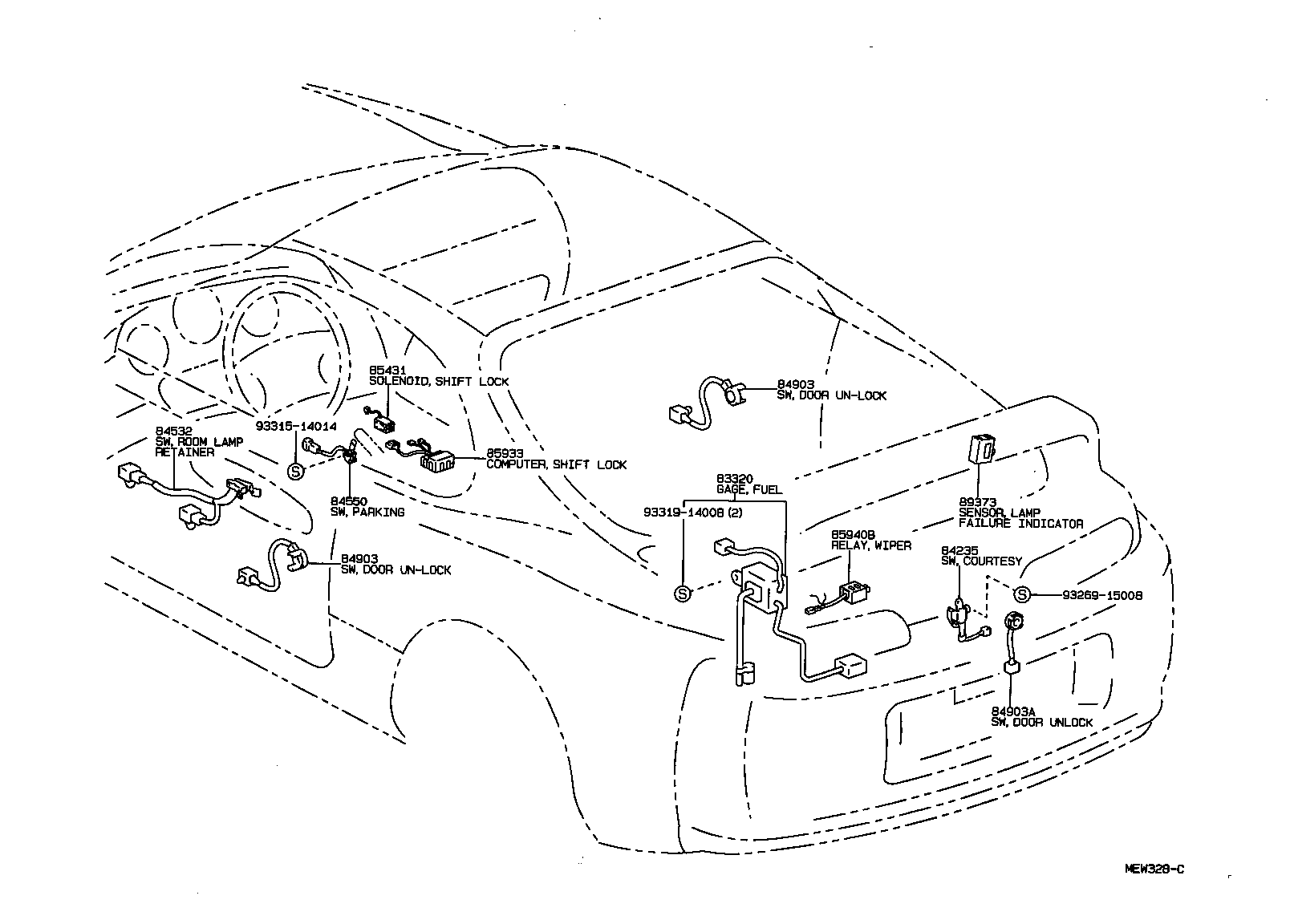

ILLUST NO. 7 OF 7(9305- )
BODY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80268 |
JZA80..EUR |
1 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-20190 |
JZA80 |
1 | ||
| 84532 - SWITCH, ROOM LAMP RETAINER | ||||
| 84532-14040 |
JZA80 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-14050 |
JZA80..RHD |
1 | ||
| 84903 - SWITCH SUB-ASSY, DOOR UN-LOCK | ||||
| 84903-14050 |
JZA80..RHD RH |
1 | ||
| 84903-14070 |
JZA80..RHD LH |
1 | ||
| 84903 - SWITCH SUB-ASSY, DOOR UN-LOCK | ||||
| 84903-14050 |
JZA80..RHD RH |
1 | ||
| 84903-14070 |
JZA80..RHD LH |
1 | ||
| 84903A - SWITCH SUB-ASSY, DOOR UNLOCK | ||||
| 84903-14060 |
JZA80..EUR |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-14110 |
JZA80..RHD |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-14100 |
JZA80..RHD..EUR |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89429-14010 |
JZA80..EUR,GCC |
1 | ||
| 89532 - COMPUTER, OIL TEMPERATURE CONTROL | ||||
| 89532-14010 |
JZA80..EUR,GCC |
1 | ||
| Common parts | ||||
| 90119-06120 | ||||
| 93269-15008 | ||||
| 93315-14014 | ||||
| 93319-14008 | ||||
ILLUST NO. 1 OF 7(9305-9709) ; (9709- )TWT
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1B160 | ||||
| 82711-35060 | ||||
| 82715-14070 | ||||
| 82715-14080 | ||||
| 82715-14120 | ||||
| 82715-14130 | ||||
| 90119-06527 | ||||
| 90119-08983 | ||||
| 90179-08059 | ||||
| 90430-18008 | ||||
| 91651-40830 | ||||
ILLUST NO. 2 OF 7(9305- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06005 | ||||
| 90167-20001 | ||||
| 90179-06257 | ||||
| 90179-08146 | ||||
| 91651-60614 | ||||
| 91651-60814 | ||||
| 91651-A0814 | ||||
| 93319-A5008 | ||||
| 93319-A5010 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8411 | ||||
| 8414 | ||||
ILLUST NO. 3 OF 7(9305- )
COWL & CONSOLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 93560-55010 | ||||
| 93568-55014 | ||||
| 94120-41000 | ||||
ILLUST NO. 4 OF 7(9305- )
INSTRUMENT PANEL & DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 93540-54012 | ||||
ILLUST NO. 5 OF 7(9305- )
COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-3H520 | ||||
| 90464-00551 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
ILLUST NO. 6 OF 7(9305- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84921 - KNOB, POWER SEAT SWITCH | ||||
| 84921-14020A0 |
JZA80 IVORY,TRIM0#,SLIDE |
1 | ||
| 84921-14030A0 |
JZA80 IVORY,TRIM0#,RECLINING |
1 | ||
| 84921-14020C0 |
JZA80 BLACK,TRIM2#,SLIDE |
1 | ||
| 84921-14030C0 |
JZA80 BLACK,TRIM2#,RECLINING |
1 | ||
| 84921 - KNOB, POWER SEAT SWITCH | ||||
| 84921-14020A0 |
JZA80 IVORY,TRIM0#,SLIDE |
1 | ||
| 84921-14030A0 |
JZA80 IVORY,TRIM0#,RECLINING |
1 | ||
| 84921-14020C0 |
JZA80 BLACK,TRIM2#,SLIDE |
1 | ||
| 84921-14030C0 |
JZA80 BLACK,TRIM2#,RECLINING |
1 | ||
| 84922 - SWITCH, FRONT POWER SEAT | ||||
| 84922-14040 |
JZA80..RHD |
1 | ||
| 85910V - RELAY, SEAT HEATER | ||||
| 90987-02004 |
JZA80..EUR |
2 | ||
| 85910V - RELAY, SEAT HEATER | ||||
| 90987-02004 |
JZA80..EUR |
2 | ||
| Common parts | ||||
| 82711-1B110 | ||||
| 90168-40043 | ||||
ILLUST NO. 7 OF 7(9305- )
BODY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 93269-15008 | ||||
| 93315-14014 | ||||
| 93319-14008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
