JZA80R-ALPVZW (1993)
Toyota Supra
(9305- )

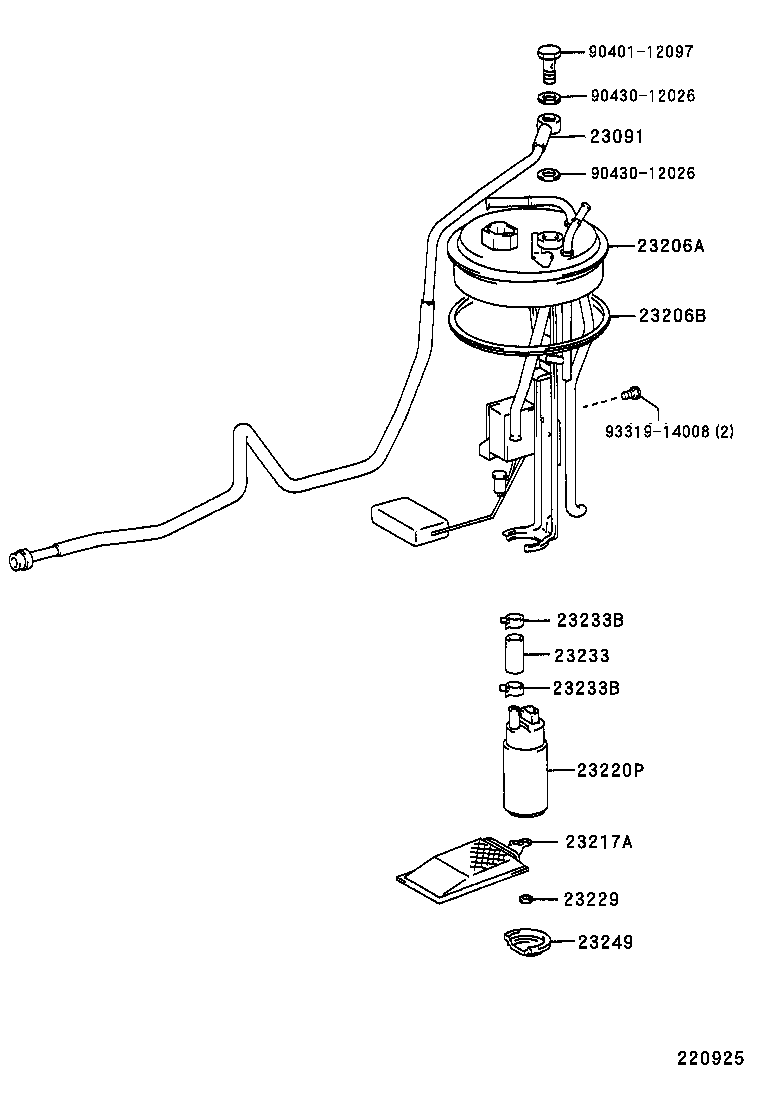

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23091 - TUBE SUB-ASSY, FUEL PUMP | ||||
| 23091-46010 |
2JZ#..JZA80 |
1 | ||
| 23206A - BRACKET, FUEL PUMP | ||||
| 23206-46160 |
2JZGTE..JZA80 |
1 | ||
| 23206B - GASKET, FUEL PUMP BRACKET | ||||
| 77169-14030 |
2JZ#..JZA80 |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-46110 |
2JZGTE..JZA80 |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23221-46110 |
2JZGTE..JZA80 |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
2JZ#..JZA80 |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-63010 |
2JZ#..JZA80 |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13054 |
2JZ#..JZA80 |
2 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13054 |
2JZ#..JZA80 |
2 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74150 |
2JZGTE..JZA80 |
1 | ||
| Common parts | ||||
| 90401-12097 | ||||
| 90430-12026 | ||||
| 93319-14008 | ||||

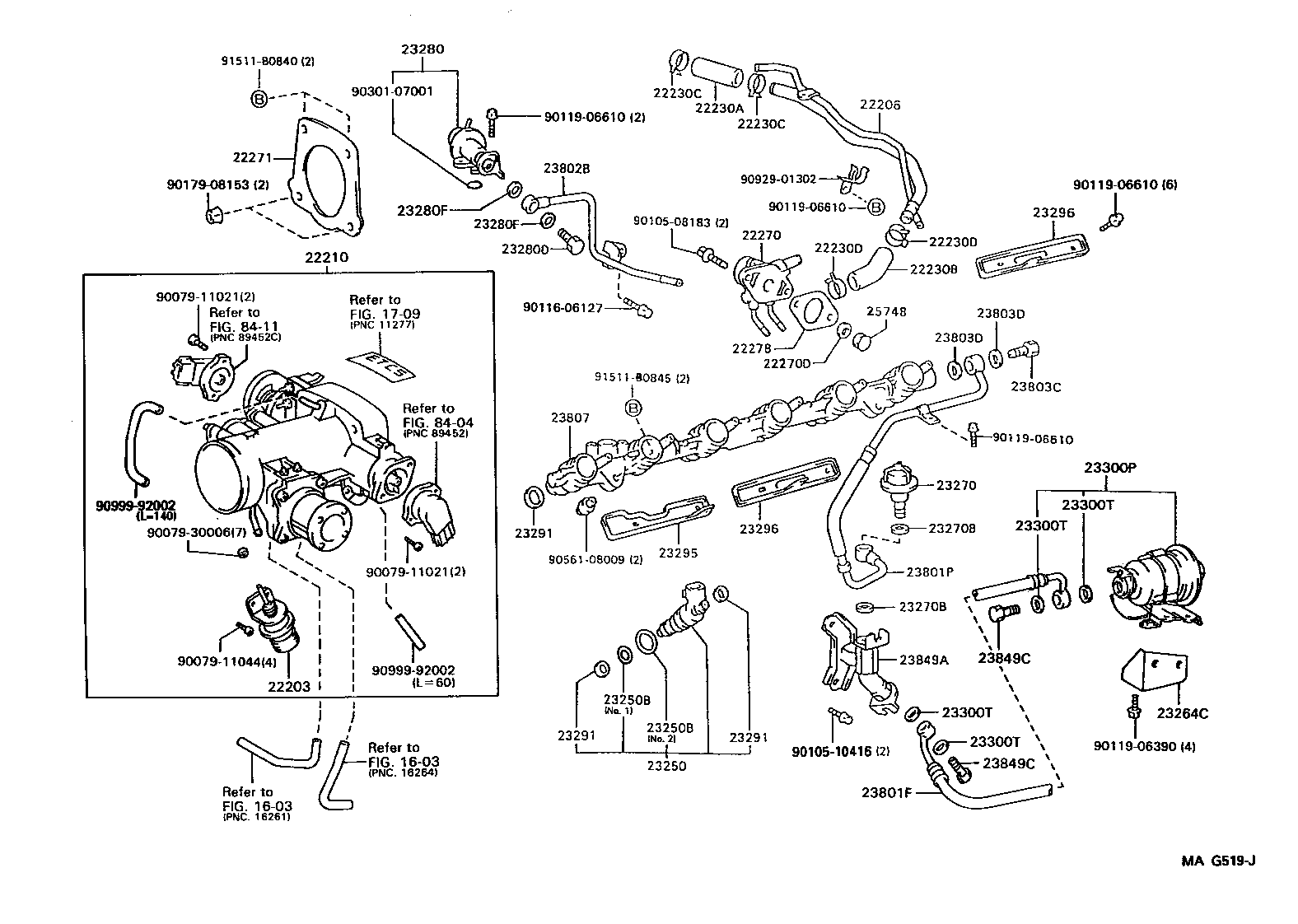

(9305- )2JZGTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY) | ||||
| 22202-46050 |
2JZGTE..JZA80 |
1 | ||
| 22202-46040 |
2JZGTE..JZA80 |
1 | ||
| 22206 - PIPE SUB-ASSY, IDLE SPEED CONTROL | ||||
| 22206-46020 |
2JZGTE..JZA80 |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22030-46020 |
2JZGTE..JZA80 |
1 | ||
| 22230A - HOSE, AUXILIARY AIR VALVE, NO.1 | ||||
| 22233-46010 |
2JZGTE..JZA80 |
1 | ||
| 22230B - HOSE, AUXILIARY AIR VALVE, NO.2 | ||||
| 22234-46010 |
2JZGTE..JZA80 |
1 | ||
| 22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1 | ||||
| 90467-26006 |
2JZGTE..JZA80 |
2 | ||
| 90467-26005 |
2JZGTE..JZA80 |
2 | ||
| 22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1 | ||||
| 90467-26006 |
2JZGTE..JZA80 |
2 | ||
| 90467-26005 |
2JZGTE..JZA80 |
2 | ||
| 22230D - CLIP, AUXILIARY AIR VALVE HOSE, NO.2 | ||||
| 90467-26005 |
2JZGTE..JZA80 |
2 | ||
| 90467-26006 |
2JZGTE..JZA80 |
2 | ||
| 22230D - CLIP, AUXILIARY AIR VALVE HOSE, NO.2 | ||||
| 90467-26005 |
2JZGTE..JZA80 |
2 | ||
| 90467-26006 |
2JZGTE..JZA80 |
2 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-46060 |
2JZGTE..JZA80 |
1 | ||
| 22270D - WASHER, SEAL(FOR IDLE SPEED CONTROL VALVE) | ||||
| 90210-25001 |
2JZGTE..JZA80 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-46030 |
2JZGTE..JZA80 |
1 | ||
| 22278 - GASKET, IDLE SPEED CONTROL VALVE | ||||
| 22278-46010 |
2JZGTE..JZA80 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-49035 |
2JZGTE..JZA80 |
6 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-14006 |
2JZGTE..JZA80 NO.1 |
6 | ||
| 90301-17007 |
2JZGTE..JZA80 NO.2 |
6 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-14006 |
2JZGTE..JZA80 NO.1 |
6 | ||
| 90301-17007 |
2JZGTE..JZA80 NO.2 |
6 | ||
| 23264C - BRACKET, FUEL FILTER | ||||
| 23264-46020 |
2JZ#..JZA80 |
1 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23207-46021 |
2JZ#..JZA80 |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 90430-12026 |
2JZ#..JZA80 DERIVERY PIPE SIDE |
1 | ||
| 90430-14008 |
2JZ#..JZA80 DAMPER SIDE |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 90430-12026 |
2JZ#..JZA80 DERIVERY PIPE SIDE |
1 | ||
| 90430-14008 |
2JZ#..JZA80 DAMPER SIDE |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-46030 |
2JZGTE..JZA80 |
1 | ||
| 23280D - BOLT, UNION(FOR FUEL PIPE OR HOSE SET) | ||||
| 90401-10038 |
2JZ#..JZA80 |
1 | ||
| 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) | ||||
| 90430-10012 |
2JZ#..JZA80 |
2 | ||
| 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) | ||||
| 90430-10012 |
2JZ#..JZA80 |
2 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-76010 |
2JZGTE..JZA80 DELIVERY PIPE SIDE |
6 | ||
| 23291-75010 |
2JZGTE..JZA80 INJECTOR SIDE |
12 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-76010 |
2JZGTE..JZA80 DELIVERY PIPE SIDE |
6 | ||
| 23291-75010 |
2JZGTE..JZA80 INJECTOR SIDE |
12 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-76010 |
2JZGTE..JZA80 DELIVERY PIPE SIDE |
6 | ||
| 23291-75010 |
2JZGTE..JZA80 INJECTOR SIDE |
12 | ||
| 23295 - HOLDER, INJECTOR, NO.1 | ||||
| 23295-46010 |
2JZGTE..JZA80 |
1 | ||
| 23296 - HOLDER, INJECTOR, NO.2 | ||||
| 23296-46010 |
2JZGTE..JZA80 |
2 | ||
| 23296 - HOLDER, INJECTOR, NO.2 | ||||
| 23296-46010 |
2JZGTE..JZA80 |
2 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-49195 |
2JZGTE..JZA80 |
1 | ||
| 23300-49185 |
2JZ#..JZA80 |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
2JZ#..JZA80 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
2JZ#..JZA80 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
2JZ#..JZA80 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
2JZ#..JZA80 |
4 | ||
| 23801F - HOSE, FUEL, NO.1 | ||||
| 90923-01403 |
2JZ#..JZA80 |
1 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-46040 |
2JZGTE..JZA80 |
1 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23802-46050 |
2JZGTE..JZA80 |
1 | ||
| 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90401-12023 |
2JZ#..JZA80 |
1 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-12026 |
2JZ#..JZA80 |
2 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-12026 |
2JZ#..JZA80 |
2 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23814-46030 |
2JZGTE..JZA80 |
1 | ||
| 23849A - SUPPORT, FUEL PIPE | ||||
| 23849-46010 |
2JZ#..JZA80 |
1 | ||
| 23849C - BOLT, UNION(FOR FUEL PIPE SUPPORT) | ||||
| 90401-12097 |
2JZ#..JZA80 |
2 | ||
| 23849C - BOLT, UNION(FOR FUEL PIPE SUPPORT) | ||||
| 90401-12097 |
2JZ#..JZA80 |
2 | ||
| 25748 - VALVE, CHECK(FOR IDLE SPEED CONTROL) | ||||
| 25748-88400 |
2JZGTE..JZA80 |
1 | ||
| Common parts | ||||
| 90079-11021 | ||||
| 90079-11044 | ||||
| 90079-30006 | ||||
| 90105-08183 | ||||
| 90105-10416 | ||||
| 90116-06127 | ||||
| 90119-06390 | ||||
| 90119-06610 | ||||
| 90179-08153 | ||||
| 90301-07001 | ||||
| 90561-08009 | ||||
| 90929-01302 | ||||
| 90999-92002 | ||||
| 91511-B0840 | ||||
| 91511-B0845 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1709 | ||||
| 8404 | ||||
| 8411 | ||||
ILLUST NO. 2 OF 2(9305-9709)2JZGE ; (9305- )2JZGTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23091 - TUBE SUB-ASSY, FUEL PUMP | ||||
| 23091-46010 |
2JZ#..JZA80 |
1 | ||
| 23206A - BRACKET, FUEL PUMP | ||||
| 23206-46160 |
2JZGTE..JZA80 |
1 | ||
| 23206B - GASKET, FUEL PUMP BRACKET | ||||
| 77169-14030 |
2JZ#..JZA80 |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-46110 |
2JZGTE..JZA80 |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23221-46110 |
2JZGTE..JZA80 |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
2JZ#..JZA80 |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-63010 |
2JZ#..JZA80 |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13054 |
2JZ#..JZA80 |
2 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13054 |
2JZ#..JZA80 |
2 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74150 |
2JZGTE..JZA80 |
1 | ||
| Common parts | ||||
| 90401-12097 | ||||
| 90430-12026 | ||||
| 93319-14008 | ||||
ILLUST NO. 1 OF 2(9305-9709)2JZGTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY) | ||||
| 22202-46050 |
2JZGTE..JZA80 |
1 | ||
| 22202-46040 |
2JZGTE..JZA80 |
1 | ||
| 22206 - PIPE SUB-ASSY, IDLE SPEED CONTROL | ||||
| 22206-46020 |
2JZGTE..JZA80 |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22030-46020 |
2JZGTE..JZA80 |
1 | ||
| 22230A - HOSE, AUXILIARY AIR VALVE, NO.1 | ||||
| 22233-46010 |
2JZGTE..JZA80 |
1 | ||
| 22230B - HOSE, AUXILIARY AIR VALVE, NO.2 | ||||
| 22234-46010 |
2JZGTE..JZA80 |
1 | ||
| 22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1 | ||||
| 90467-26006 |
2JZGTE..JZA80 |
2 | ||
| 90467-26005 |
2JZGTE..JZA80 |
2 | ||
| 22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1 | ||||
| 90467-26006 |
2JZGTE..JZA80 |
2 | ||
| 90467-26005 |
2JZGTE..JZA80 |
2 | ||
| 22230D - CLIP, AUXILIARY AIR VALVE HOSE, NO.2 | ||||
| 90467-26005 |
2JZGTE..JZA80 |
2 | ||
| 90467-26006 |
2JZGTE..JZA80 |
2 | ||
| 22230D - CLIP, AUXILIARY AIR VALVE HOSE, NO.2 | ||||
| 90467-26005 |
2JZGTE..JZA80 |
2 | ||
| 90467-26006 |
2JZGTE..JZA80 |
2 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-46060 |
2JZGTE..JZA80 |
1 | ||
| 22270D - WASHER, SEAL(FOR IDLE SPEED CONTROL VALVE) | ||||
| 90210-25001 |
2JZGTE..JZA80 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-46030 |
2JZGTE..JZA80 |
1 | ||
| 22278 - GASKET, IDLE SPEED CONTROL VALVE | ||||
| 22278-46010 |
2JZGTE..JZA80 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-49035 |
2JZGTE..JZA80 |
6 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-14006 |
2JZGTE..JZA80 NO.1 |
6 | ||
| 90301-17007 |
2JZGTE..JZA80 NO.2 |
6 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-14006 |
2JZGTE..JZA80 NO.1 |
6 | ||
| 90301-17007 |
2JZGTE..JZA80 NO.2 |
6 | ||
| 23264C - BRACKET, FUEL FILTER | ||||
| 23264-46020 |
2JZ#..JZA80 |
1 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23207-46021 |
2JZ#..JZA80 |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 90430-12026 |
2JZ#..JZA80 DERIVERY PIPE SIDE |
1 | ||
| 90430-14008 |
2JZ#..JZA80 DAMPER SIDE |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 90430-12026 |
2JZ#..JZA80 DERIVERY PIPE SIDE |
1 | ||
| 90430-14008 |
2JZ#..JZA80 DAMPER SIDE |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-46030 |
2JZGTE..JZA80 |
1 | ||
| 23280D - BOLT, UNION(FOR FUEL PIPE OR HOSE SET) | ||||
| 90401-10038 |
2JZ#..JZA80 |
1 | ||
| 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) | ||||
| 90430-10012 |
2JZ#..JZA80 |
2 | ||
| 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) | ||||
| 90430-10012 |
2JZ#..JZA80 |
2 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-76010 |
2JZGTE..JZA80 DELIVERY PIPE SIDE |
6 | ||
| 23291-75010 |
2JZGTE..JZA80 INJECTOR SIDE |
12 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-76010 |
2JZGTE..JZA80 DELIVERY PIPE SIDE |
6 | ||
| 23291-75010 |
2JZGTE..JZA80 INJECTOR SIDE |
12 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-76010 |
2JZGTE..JZA80 DELIVERY PIPE SIDE |
6 | ||
| 23291-75010 |
2JZGTE..JZA80 INJECTOR SIDE |
12 | ||
| 23295 - HOLDER, INJECTOR, NO.1 | ||||
| 23295-46010 |
2JZGTE..JZA80 |
1 | ||
| 23296 - HOLDER, INJECTOR, NO.2 | ||||
| 23296-46010 |
2JZGTE..JZA80 |
2 | ||
| 23296 - HOLDER, INJECTOR, NO.2 | ||||
| 23296-46010 |
2JZGTE..JZA80 |
2 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-49195 |
2JZGTE..JZA80 |
1 | ||
| 23300-49185 |
2JZ#..JZA80 |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
2JZ#..JZA80 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
2JZ#..JZA80 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
2JZ#..JZA80 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
2JZ#..JZA80 |
4 | ||
| 23801F - HOSE, FUEL, NO.1 | ||||
| 90923-01403 |
2JZ#..JZA80 |
1 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-46040 |
2JZGTE..JZA80 |
1 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23802-46050 |
2JZGTE..JZA80 |
1 | ||
| 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90401-12023 |
2JZ#..JZA80 |
1 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-12026 |
2JZ#..JZA80 |
2 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-12026 |
2JZ#..JZA80 |
2 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23814-46030 |
2JZGTE..JZA80 |
1 | ||
| 23849A - SUPPORT, FUEL PIPE | ||||
| 23849-46010 |
2JZ#..JZA80 |
1 | ||
| 23849C - BOLT, UNION(FOR FUEL PIPE SUPPORT) | ||||
| 90401-12097 |
2JZ#..JZA80 |
2 | ||
| 23849C - BOLT, UNION(FOR FUEL PIPE SUPPORT) | ||||
| 90401-12097 |
2JZ#..JZA80 |
2 | ||
| 25748 - VALVE, CHECK(FOR IDLE SPEED CONTROL) | ||||
| 25748-88400 |
2JZGTE..JZA80 |
1 | ||
| Common parts | ||||
| 90079-11021 | ||||
| 90079-11044 | ||||
| 90079-30006 | ||||
| 90105-08183 | ||||
| 90105-10416 | ||||
| 90116-06127 | ||||
| 90119-06390 | ||||
| 90119-06610 | ||||
| 90179-08153 | ||||
| 90301-07001 | ||||
| 90561-08009 | ||||
| 90929-01302 | ||||
| 90999-92002 | ||||
| 91511-B0840 | ||||
| 91511-B0845 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1709 | ||||
| 8404 | ||||
| 8411 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
