JZA80R-ALMVF (1993)
Toyota Supra
Production
May 1993
-
Aug 1994
Engine
2JZGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )

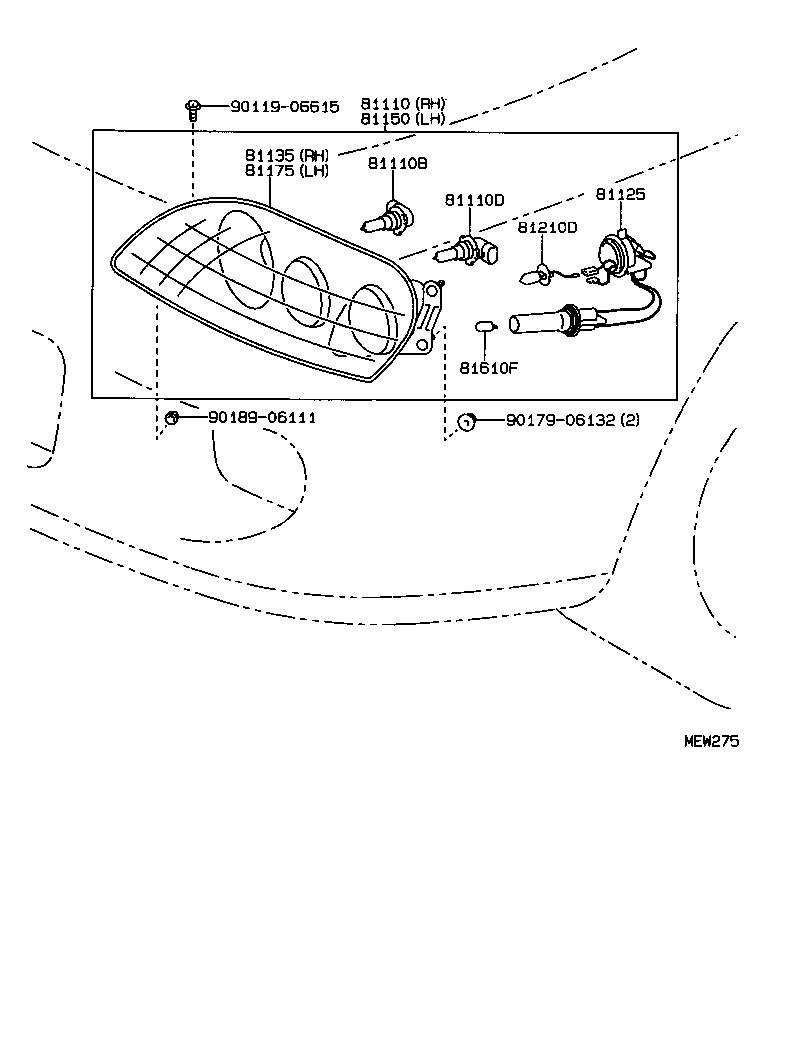

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-1B180 |
JZA80..RHD..GEN |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90080-81041 |
JZA80 12V 65W |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90080-81040 |
JZA80 12V 51W |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81165-1B160 |
JZA80 LH |
1 | ||
| 81125-1B160 |
JZA80 RH |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-1B180 |
JZA80..RHD..GEN |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-1B180 |
JZA80..RHD..GEN |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-1B180 |
JZA80..RHD..GEN |
1 | ||
| 81210D - BULB, FOG LAMP | ||||
| 90981-13018 |
JZA80 12V 55W,HALOGEN |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
JZA80 12V 5W |
2 | ||
| Common parts | ||||
| 90119-06615 | ||||
| 90179-06132 | ||||
| 90189-06111 | ||||
(9305-9607)

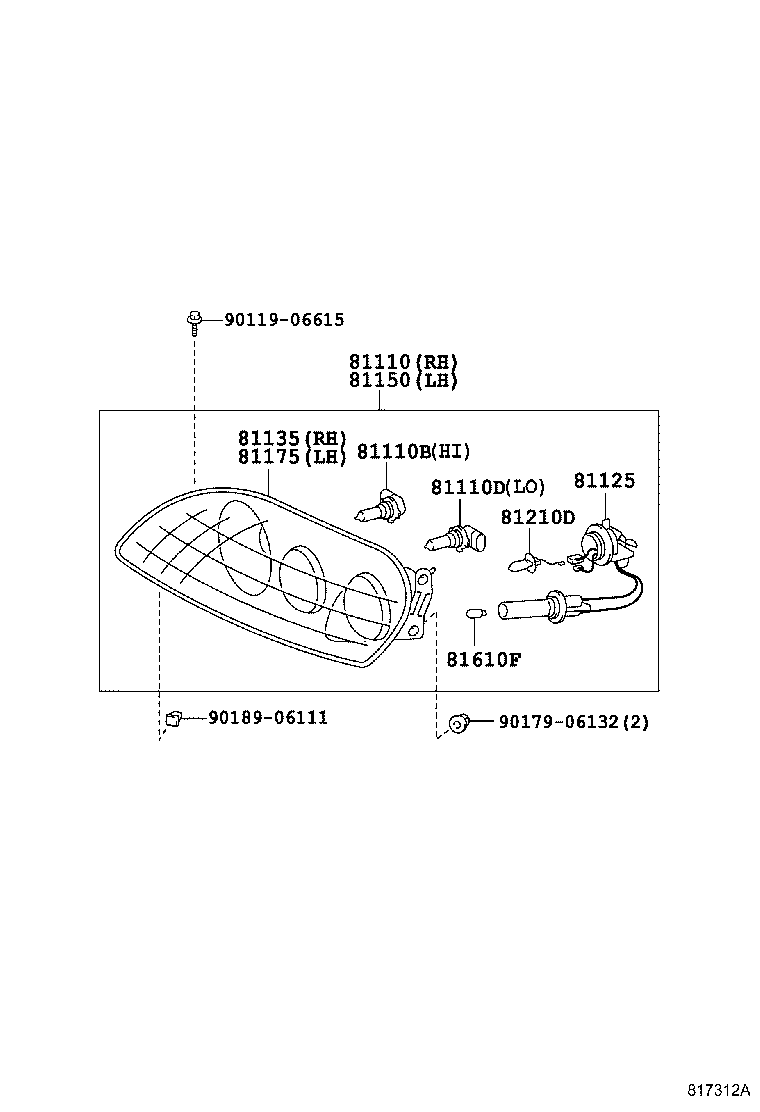

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06615 | ||||
| 90179-06132 | ||||
| 90189-06111 | ||||
