JZA80R-ALMVF (1993)
Toyota Supra
Production
May 1993
-
Aug 1994
Engine
2JZGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )

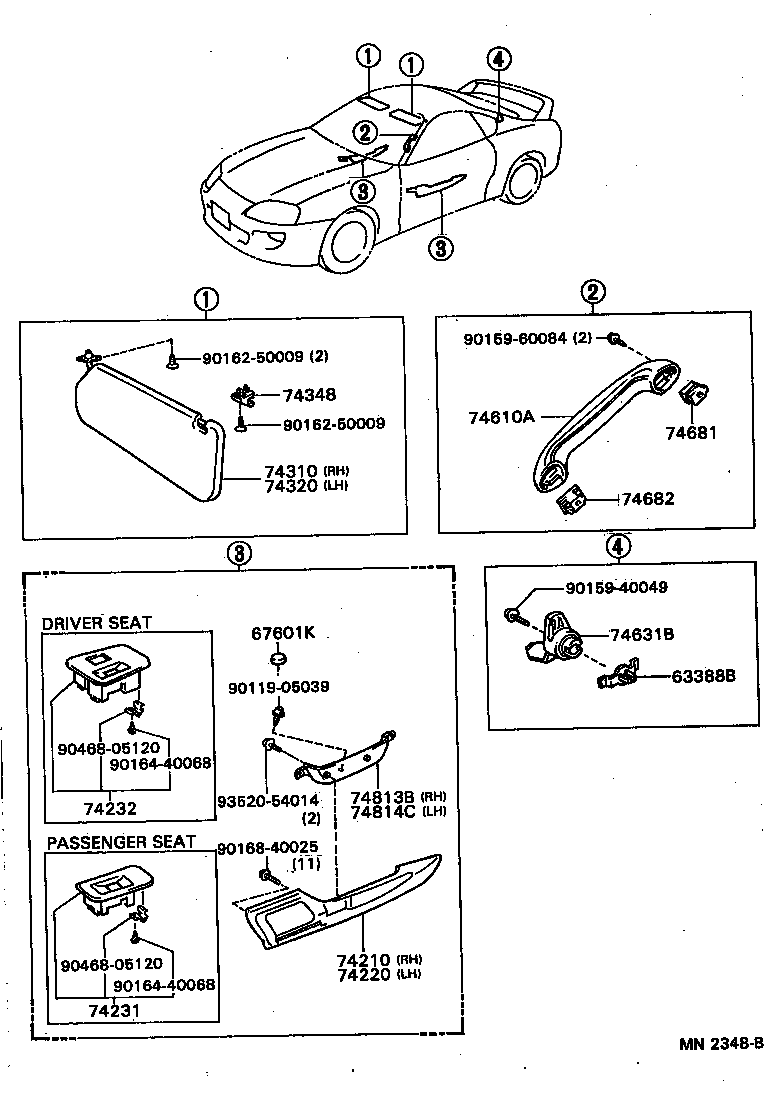

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63388B - STOPPER, ROOF HEADLINING TRIM CLIP | ||||
| 63388-14020 |
JZA80 |
2 | ||
| 67601K - CAP, FRONT DOOR ARMREST | ||||
| 90339-10002C0 |
JZA80 BLACK,TRIM0#,2# |
2 | ||
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-14120C0 |
JZA80..RHD..GEN BLACK,TRIM0#,2# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-14130C0 |
JZA80..RHD..GEN BLACK,TRIM0#,2# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-14120 |
JZA80..RHD |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-14120 |
JZA80..RHD |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-14110C0 |
JZA80..RHD BLACK,TRIM0#,2# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-14110C0 |
JZA80..RHD BLACK,TRIM0#,2# |
1 | ||
| 74310 - VISOR ASSY, RH | ||||
| 74310-14660C0 |
JZA80..RHD..GEN BLACK,TRIM0#,2# |
1 | ||
| 74310-14670C0 |
JZA80..RHD..GEN W(AIR BAG),BLACK,TRIM0#,2# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-14710C0 |
JZA80..RHD..GEN BLACK,TRIM0#,2# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-22020C0 |
JZA80 BLACK,TRIM0#,2# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-24050C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 74631B - HOOK, COAT | ||||
| 74631-2006022 |
JZA80 BLACK,TRIM0#,2# |
2 | ||
| 74681 - RETAINER, ASSIST GRIP, UPPER | ||||
| 74681-14010 |
JZA80 |
1 | ||
| 74682 - RETAINER, ASSIST GRIP, LOWER | ||||
| 74682-14010 |
JZA80 |
1 | ||
| 74813B - HANDLE, FRONT DOOR PULL, RH | ||||
| 74813-14010C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 74814C - HANDLE, FRONT DOOR PULL, LH | ||||
| 74814-14010C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 90119-05039 | ||||
| 90159-40049 | ||||
| 90159-60084 | ||||
| 90162-50009 | ||||
| 90164-40068 | ||||
| 90168-40025 | ||||
| 90468-05120 | ||||
| 93520-54014 | ||||
(9305- )

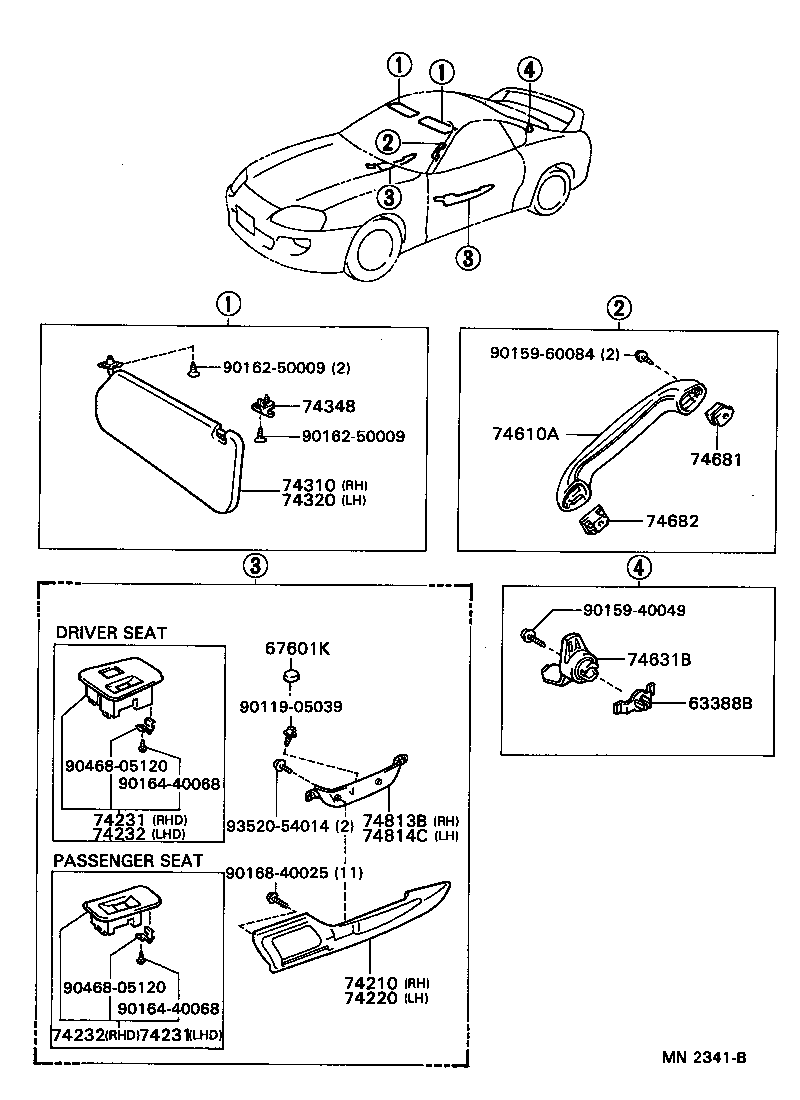

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-05039 | ||||
| 90159-40049 | ||||
| 90159-60084 | ||||
| 90162-50009 | ||||
| 90164-40068 | ||||
| 90168-40025 | ||||
| 90468-05120 | ||||
| 93520-54014 | ||||
