JZA80R-ALMVF (1993)
Toyota Supra
Production
May 1993
-
Aug 1994
Engine
2JZGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )

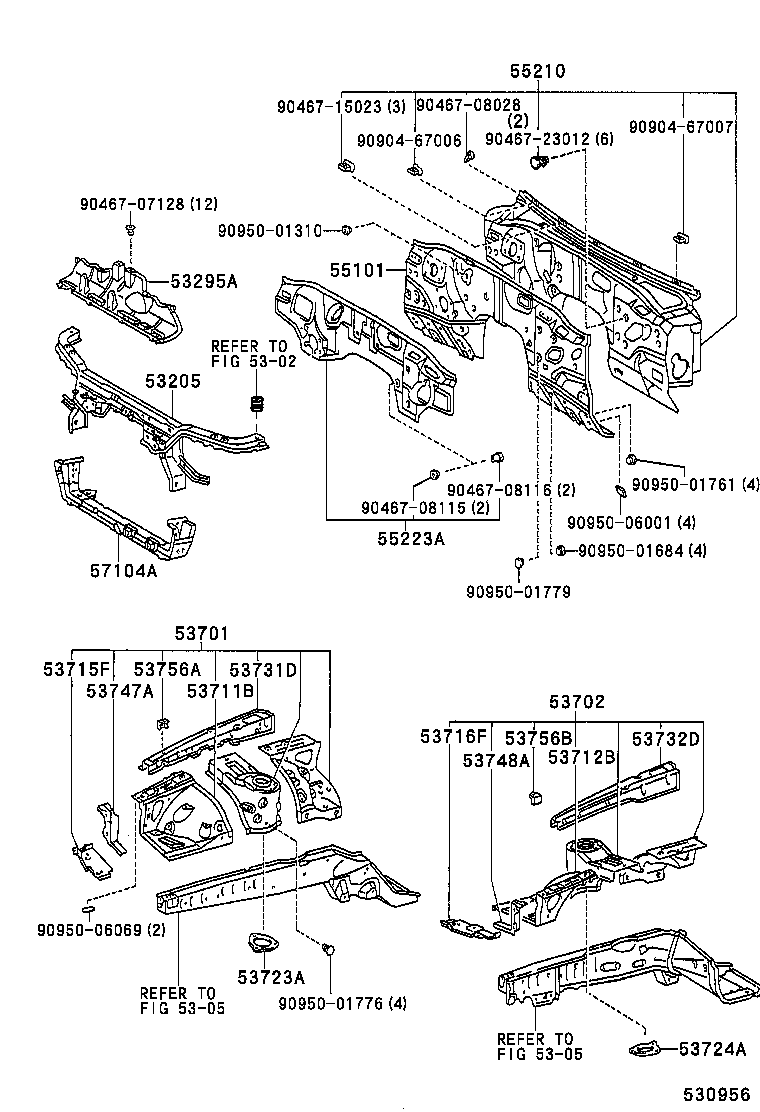

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-14110 |
JZA80 |
1 | ||
| 53295A - DEFLECTOR, RADIATOR UPPER AIR | ||||
| 53293-14070 |
JZA80 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-14936 |
JZA80..RHD |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-14939 |
JZA80..RHD |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-24900 |
JZA80 |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-24900 |
JZA80 |
1 | ||
| 53715F - APRON, FENDER SIDE, RH | ||||
| 53715-14030 |
JZA80 |
1 | ||
| 53716F - APRON, FENDER SIDE, LH | ||||
| 53716-14060 |
JZA80 |
1 | ||
| 53723A - REINFORCEMENT, FRONT SPRING SUPPORT, RH | ||||
| 53723-24011 |
JZA80 |
1 | ||
| 53724A - REINFORCEMENT, FRONT SPRING SUPPORT, LH | ||||
| 53723-24011 |
JZA80 |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-14090 |
JZA80 |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-14090 |
JZA80 |
1 | ||
| 53747A - EXTENSION, APRON FENDER SIDE, RH | ||||
| 53747-14030 |
JZA80 |
1 | ||
| 53748A - EXTENSION, APRON FENDER SIDE, LH | ||||
| 53748-14030 |
JZA80 |
1 | ||
| 53756A - BRACKET, SPEED CONTROL MOUNTING | ||||
| 53756-14010 |
JZA80 |
1 | ||
| 53756B - BRACKET, SPEED, CONTROL MOUNTING, LH | ||||
| 53756-14010 |
JZA80 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-14630 |
JZA80..RHD..MTM |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-14390 |
JZA80..RHD |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-14030 |
JZA80..RHD |
1 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-24021 |
JZA80 |
1 | ||
| Common parts | ||||
| 90467-07128 | ||||
| 90467-08028 | ||||
| 90467-08115 | ||||
| 90467-08116 | ||||
| 90467-15023 | ||||
| 90467-23012 | ||||
| 90561-04013 | ||||
| 90561-12009 | ||||
| 90904-67006 | ||||
| 90904-67007 | ||||
| 90950-01310 | ||||
| 90950-01684 | ||||
| 90950-01761 | ||||
| 90950-01776 | ||||
| 90950-01779 | ||||
| 90950-06013 | ||||
| 90950-06069 | ||||
| Linked diagrams | ||||
| 5305 | ||||
(9305-9808)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90467-07128 | ||||
| 90467-08028 | ||||
| 90467-08115 | ||||
| 90467-08116 | ||||
| 90467-15023 | ||||
| 90467-23012 | ||||
| 90904-67006 | ||||
| 90904-67007 | ||||
| 90950-01310 | ||||
| 90950-01684 | ||||
| 90950-01761 | ||||
| 90950-01776 | ||||
| 90950-01779 | ||||
| 90950-06001 | ||||
| 90950-06069 | ||||
| Linked diagrams | ||||
| 5302 | ||||
| 5305 | ||||
