JZA80R-ALFVZW (1993)
Toyota Supra
Production
May 1993
-
Jan 1996
Engine
2JZGTE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )EUR

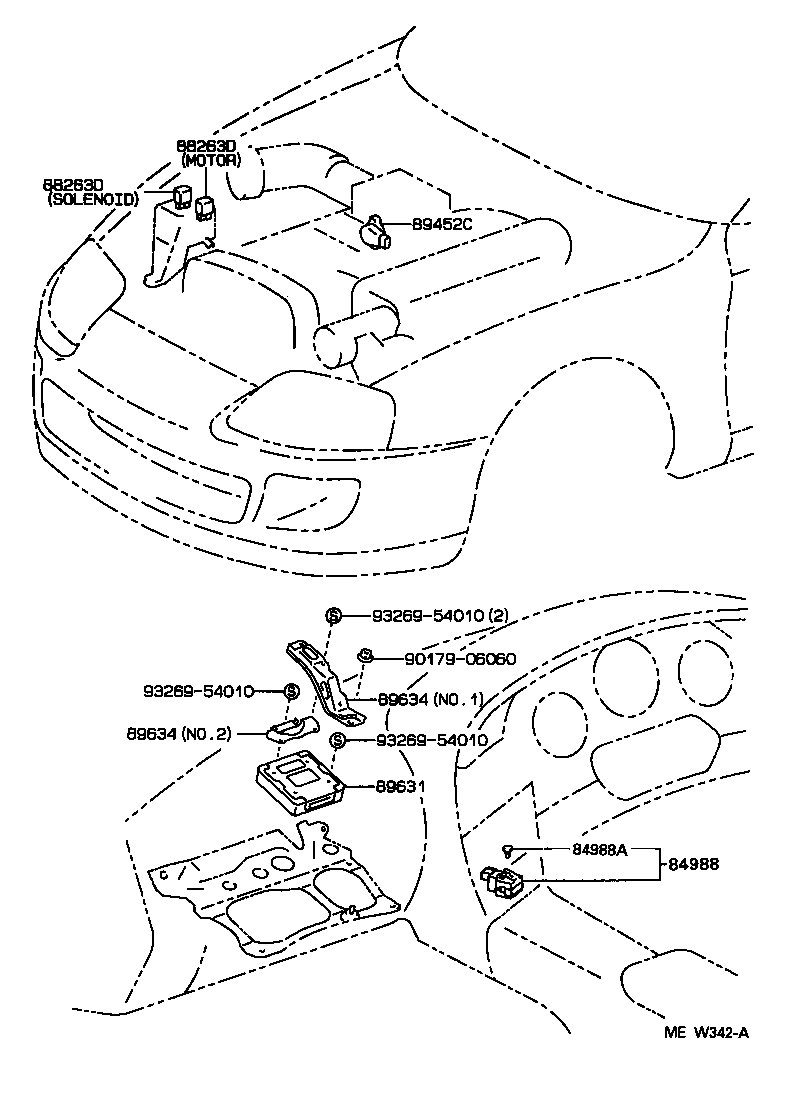

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84988 - SWITCH, TRACTION CONTROL | ||||
| 84988-14010 |
JZA80..EUR |
1 | ||
| 84988A - BULB, TRACTION CONTROL SWITCH | ||||
| 84999-10750 |
JZA80..EUR 14V 0.84W |
1 | ||
| 88263D - RELAY, TRACTION CONTROL | ||||
| 88263-24020 |
JZA80..EUR MOTOR |
1 | ||
| 88263-24030 |
JZA80..EUR SOLENOID |
1 | ||
| 88263D - RELAY, TRACTION CONTROL | ||||
| 88263-24020 |
JZA80..EUR MOTOR |
1 | ||
| 88263-24030 |
JZA80..EUR SOLENOID |
1 | ||
| 89452C - SENSOR, THROTTLE POSITION | ||||
| 89452-22090 |
JZA80..EUR |
1 | ||
| 89631 - COMPUTER, TRACTION CONTROL | ||||
| 89631-14010 |
JZA80..EUR |
1 | ||
| 89634 - BRACKET, TRACTION CONTROL COMPUTER | ||||
| 89634-14010 |
JZA80..RHD..EUR NO.1 |
1 | ||
| 89634-14020 |
JZA80..RHD..EUR NO.2 |
1 | ||
| 89634 - BRACKET, TRACTION CONTROL COMPUTER | ||||
| 89634-14010 |
JZA80..RHD..EUR NO.1 |
1 | ||
| 89634-14020 |
JZA80..RHD..EUR NO.2 |
1 | ||
| Common parts | ||||
| 90179-06060 | ||||
| 93269-54010 | ||||
