JZA80R-ALFVZW (1993)

Toyota Supra

Production May 1993 - Jan 1996
Engine 2JZGTE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9305- )EUR

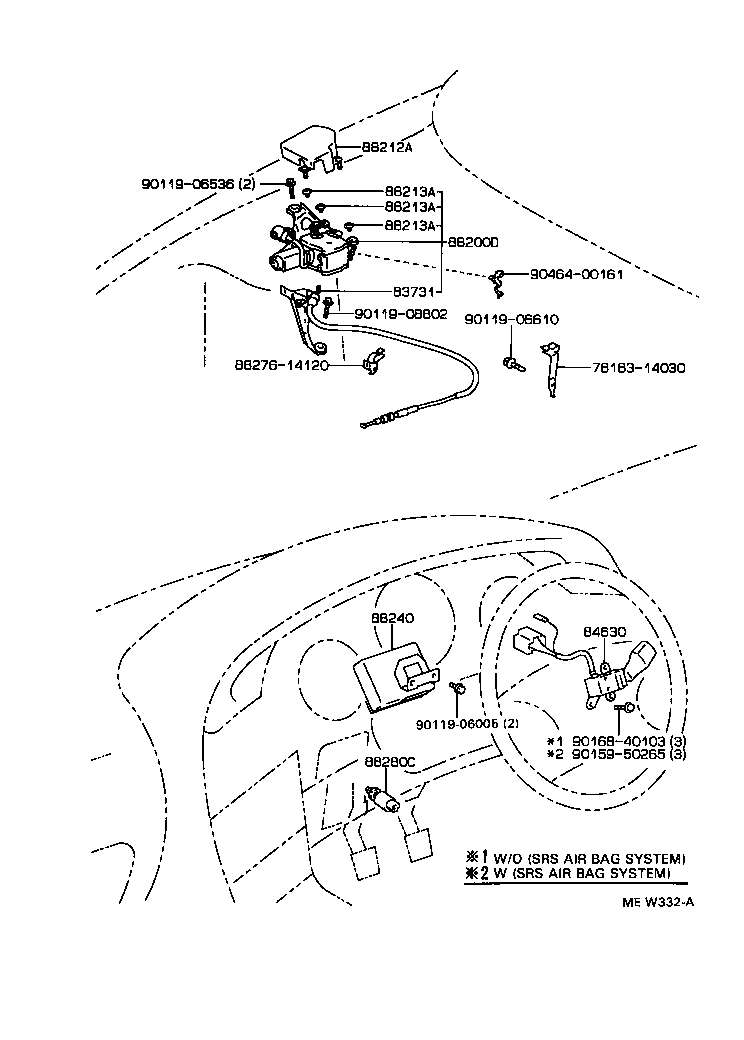

Click highlighted areas on diagram

diagram 7818314030 83731 84630 88200D 88212A 88213A 88213A 88213A 88240 8827614120 88280C 9011906005 9011906536 9011906610 9011908802 9015950265 9016840103 9046400161
Part # Description Qty Price
83731 - CABLE, CRUISE CONTROL
83731-14040

JZA80..EUR

 1
84630 - SWITCH ASSY, CRUISE CONTROL MAIN
84630-33020

JZA80..EUR

 1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88002-14030

JZA80..EUR

 1
88212A - COVER, CRUISE CONTROL ACTUATOR
88212-14110

JZA80

 1
88213A - GROMMET, CRUISE CONTROL ACTUATOR COVER
88213-22150

JZA80

 3
88213A - GROMMET, CRUISE CONTROL ACTUATOR COVER
88213-22150

JZA80

 3
88213A - GROMMET, CRUISE CONTROL ACTUATOR COVER
88213-22150

JZA80

 3
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-14270

JZA80..RHD

 1
88280C - SWITCH ASSY, CLUTCH
88280-14030

JZA80..MTM

 1
Common parts
78183-14030
88276-14120
90119-06005
90119-06536
90119-06610
90119-08802
90159-50265
90168-40103
90464-00161
