JZA80R-AJPVZW (1993)
Toyota Supra
Production
May 1993
-
Jan 1996
Engine
2JZGTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

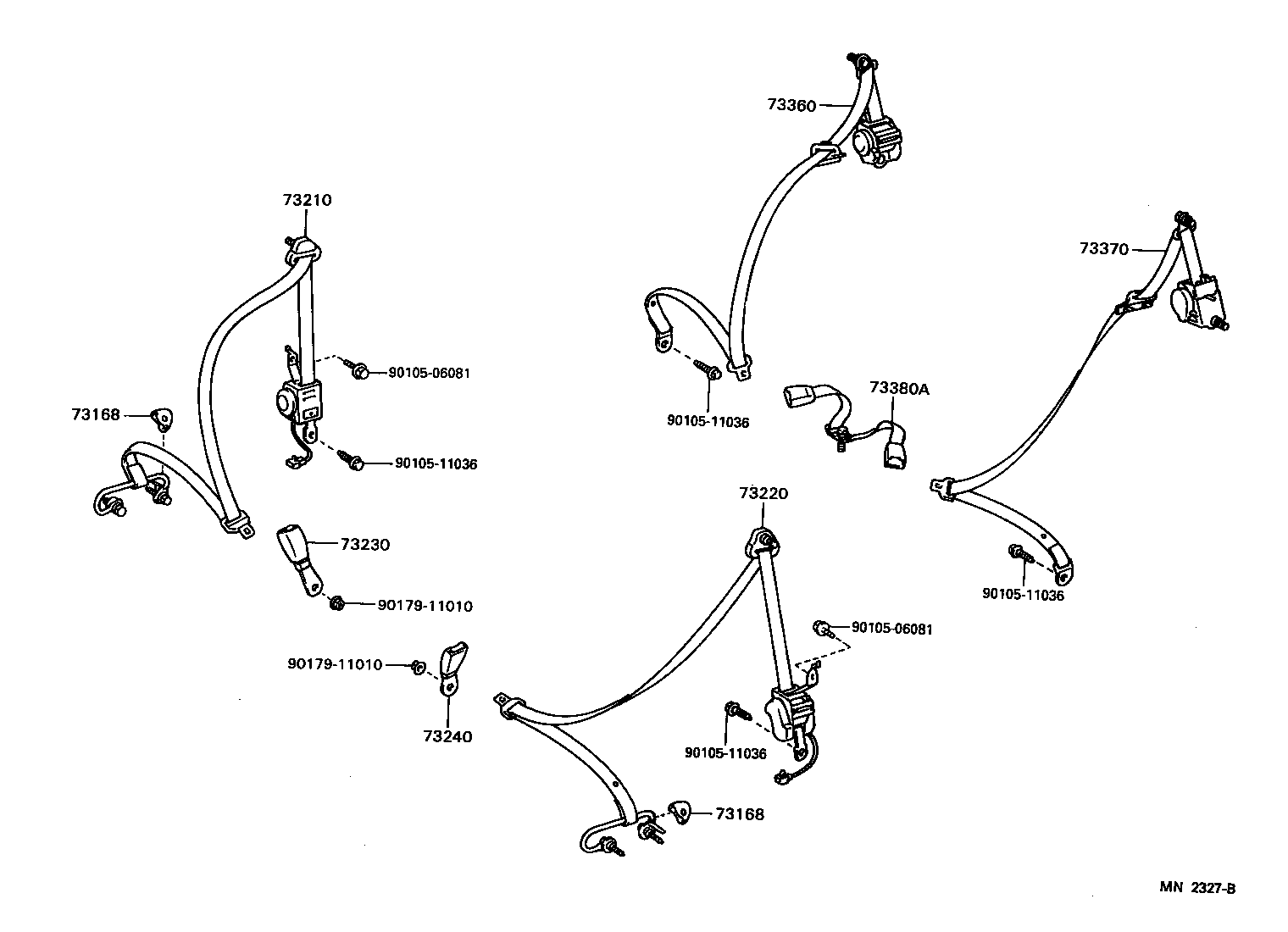

ILLUST NO. 1 OF 2(9305- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-14561C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 73210-14560C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-14500C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 73220-14501C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-14500C0 |
JZA80..EUR,GEN BLACK,TRIM0#,2# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-14500C0 |
JZA80..EUR,GEN BLACK,TRIM0#,2# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-14310C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 73360-14311C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 73360-14311C0 |
JZA80..EUR,GEN BLACK,TRIM0#,2# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-14191C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 73370-14190C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 73380A - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-14210C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 90105-06081 | ||||
| 90105-11036 | ||||
| 90179-11010 | ||||
(9305- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-06081 | ||||
| 90105-11036 | ||||
| 90179-11010 | ||||
| 90333-48001 | ||||
