JZA80R-AJPVZW (1993)
Toyota Supra
Production
May 1993
-
Jan 1996
Engine
2JZGTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

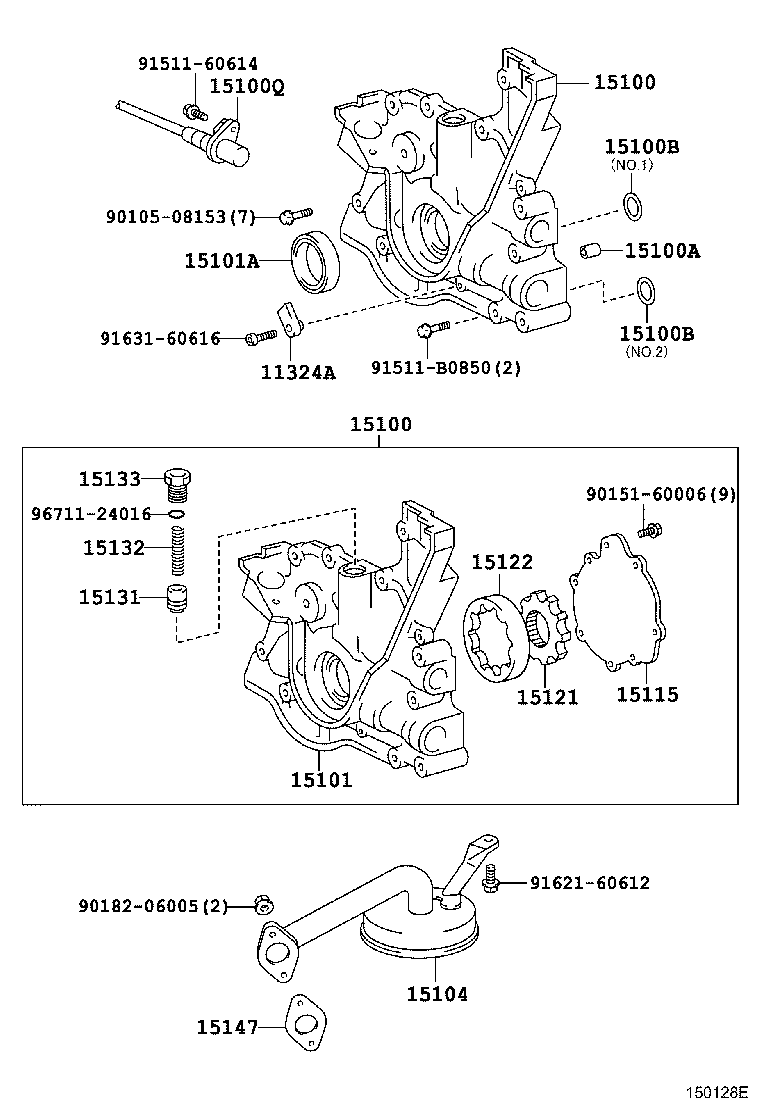

(9305- )2JZGTE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11324A - PLATE, TIMING BELT | ||||
| 11324-46020 |
2JZGTE..JZA80 |
1 | ||
| 11324-46030 |
2JZGTE..JZA80 |
1 | ||
| 15100 - PUMP ASSY, OIL | ||||
| 15100-46051 |
2JZGTE..JZA80 |
1 | ||
| 15100 - PUMP ASSY, OIL | ||||
| 15100-46051 |
2JZGTE..JZA80 |
1 | ||
| 15100A - PIN, RING(FOR OIL PUMP SET) | ||||
| 90253-11021 |
2JZ#..JZA80 |
2 | ||
| 15100Q - SENSOR, CRANK POSITION | ||||
| 90919-05006 |
2JZGTE..JZA80 |
1 | ||
| 15101 - BODY SUB-ASSY, OIL PUMP | ||||
| 15101-46051 |
2JZGTE..JZA80 |
1 | ||
| 15101A - SEAL(FOR CRANKSHAFT) | ||||
| 90311-46001 |
2JZ#..JZA80 |
1 | ||
| 15104 - STRAINER SUB-ASSY, OIL | ||||
| 15104-46030 |
2JZ#..JZA80 |
1 | ||
| 15115 - COVER, OIL PUMP | ||||
| 15115-46050 |
2JZGTE..JZA80 |
1 | ||
| 15121 - GEAR, OIL PUMP DRIVE | ||||
| 15121-46050 |
2JZGTE..JZA80 |
1 | ||
| 15122 - GEAR, OIL PUMP DRIVEN | ||||
| 15122-46050 |
2JZGTE..JZA80 |
1 | ||
| 15131 - VALVE, OIL PUMP RELIEF | ||||
| 15131-46050 |
2JZGTE..JZA80 |
1 | ||
| 15132 - SPRING, OIL PUMP RELIEF VALVE | ||||
| 15132-46050 |
2JZGTE..JZA80 |
1 | ||
| 15133 - PLUG, OIL PUMP RELIEF VALVE | ||||
| 15133-46050 |
2JZGTE..JZA80 |
1 | ||
| 15147 - GASKET, OIL STRAINER | ||||
| 15147-46010 |
2JZ#..JZA80 |
1 | ||
| Common parts | ||||
| 90105-06011 | ||||
| 90105-08153 | ||||
| 90151-60006 | ||||
| 90179-06257 | ||||
| 91511-B0850 | ||||
| 91611-60620 | ||||
| 91621-60612 | ||||
| 96711-24016 | ||||
(9305- )2JZGTE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08153 | ||||
| 90151-60006 | ||||
| 90182-06005 | ||||
| 91511-60614 | ||||
| 91511-B0850 | ||||
| 91621-60612 | ||||
| 91631-60616 | ||||
| 96711-24016 | ||||
