JZA80R-AJFVZW (1993)
Toyota Supra
Production
May 1993
-
Jan 1996
Engine
2JZGTE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )RHD

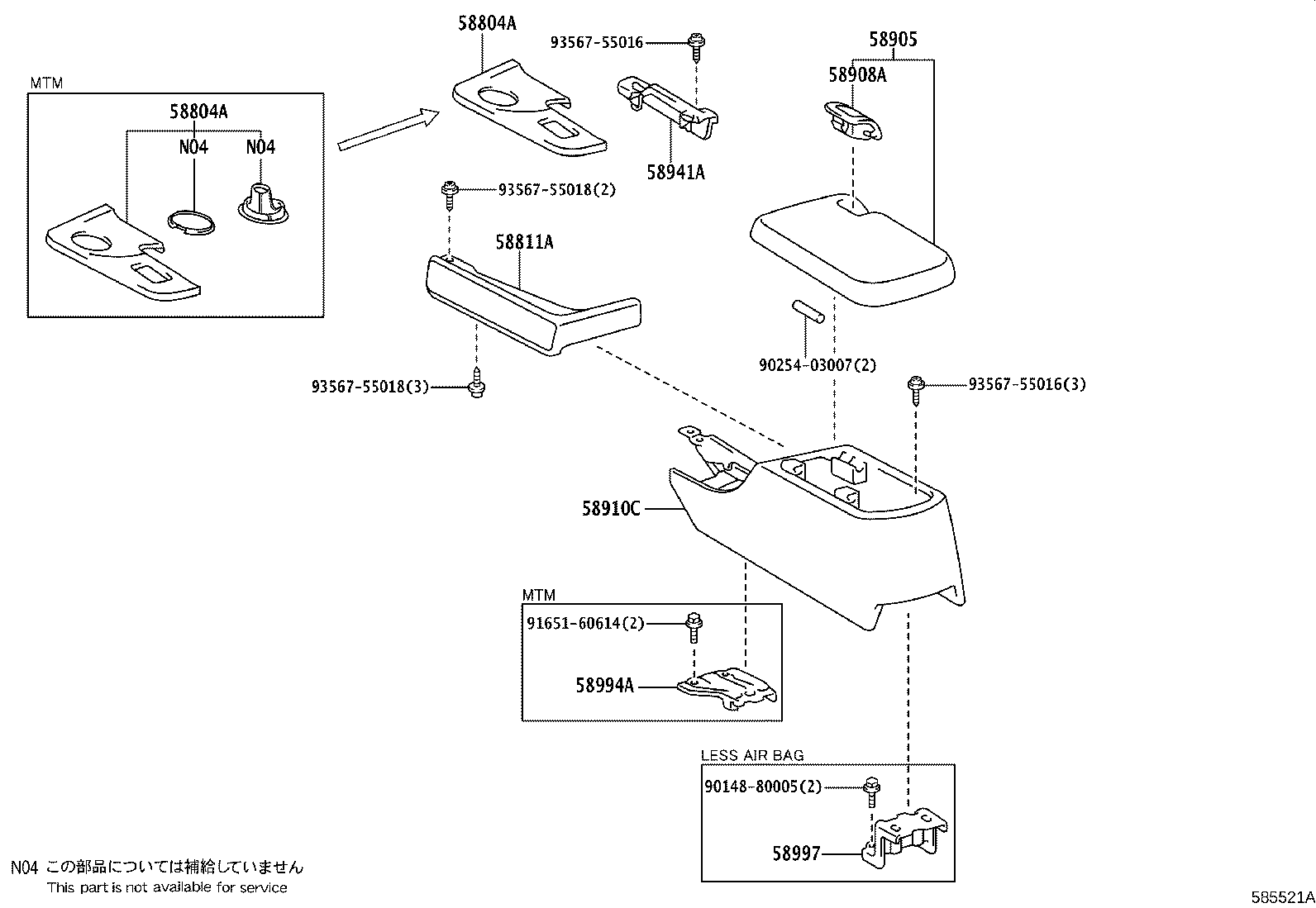

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-14040 |
JZA80..RHD..MTM |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-14040 |
JZA80..RHD..MTM |
1 | ||
| 58811A - BOX, CONSOLE, FRONT | ||||
| 58802-14060C0 |
JZA80..RHD BLACK,TRIM0#,2# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-14080C0 |
JZA80..RHD BLACK,TRIM0#,2# |
1 | ||
| 58905-14081C0 |
JZA80..RHD BLACK,TRIM0#,2# |
1 | ||
| 58905-14081C0 |
JZA80..RHD BLACK,TRIM0#,2# |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-14020C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58911-14121C0 |
JZA80..RHD BLACK,TRIM0#,2# |
1 | ||
| 58911-14120C0 |
JZA80..RHD BLACK,TRIM0#,2# |
1 | ||
| 58911-14121C0 |
JZA80..RHD BLACK,TRIM0#,2# |
1 | ||
| 58941A - COVER, PARKING BRAKE HOLE | ||||
| 58904-14010 |
JZA80..RHD |
1 | ||
| 58994A - BRACKET, CONSOLE BOX MOUNTING, NO.4 | ||||
| 58994-14010 |
JZA80..MTM |
1 | ||
| Common parts | ||||
| 90148-80005 | ||||
| 90254-03007 | ||||
| 91651-60614 | ||||
| 93567-55016 | ||||
| 93567-55018 | ||||
(9305- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90254-03007 | ||||
| 91651-60614 | ||||
| 93567-55016 | ||||
| 93567-55018 | ||||
