JZA80L-ALPVZW (1993)

Toyota Supra

Production May 1993 - Jan 1996
Engine 2JZGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 6 OF 9(9305- )

Click highlighted areas on diagram

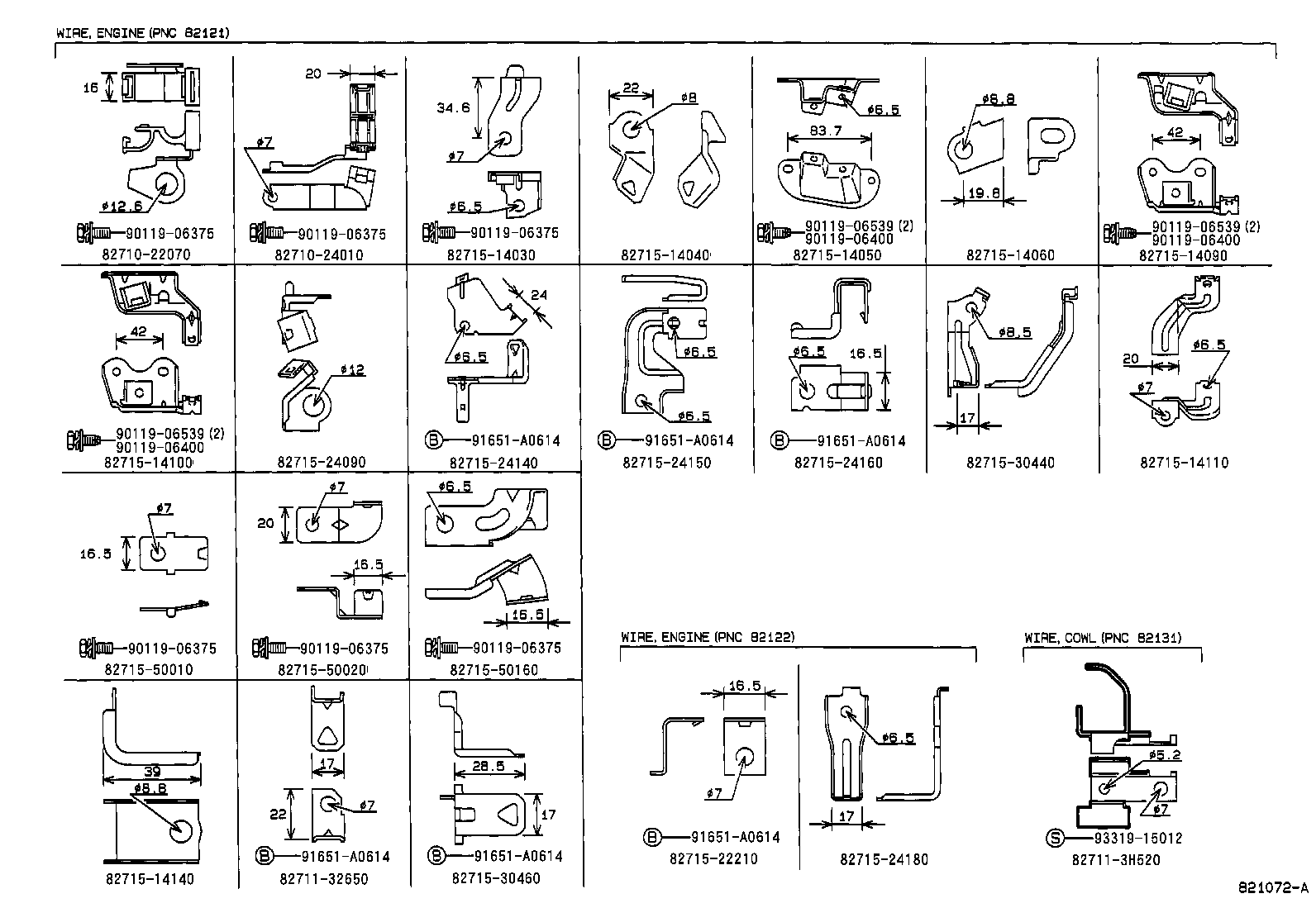

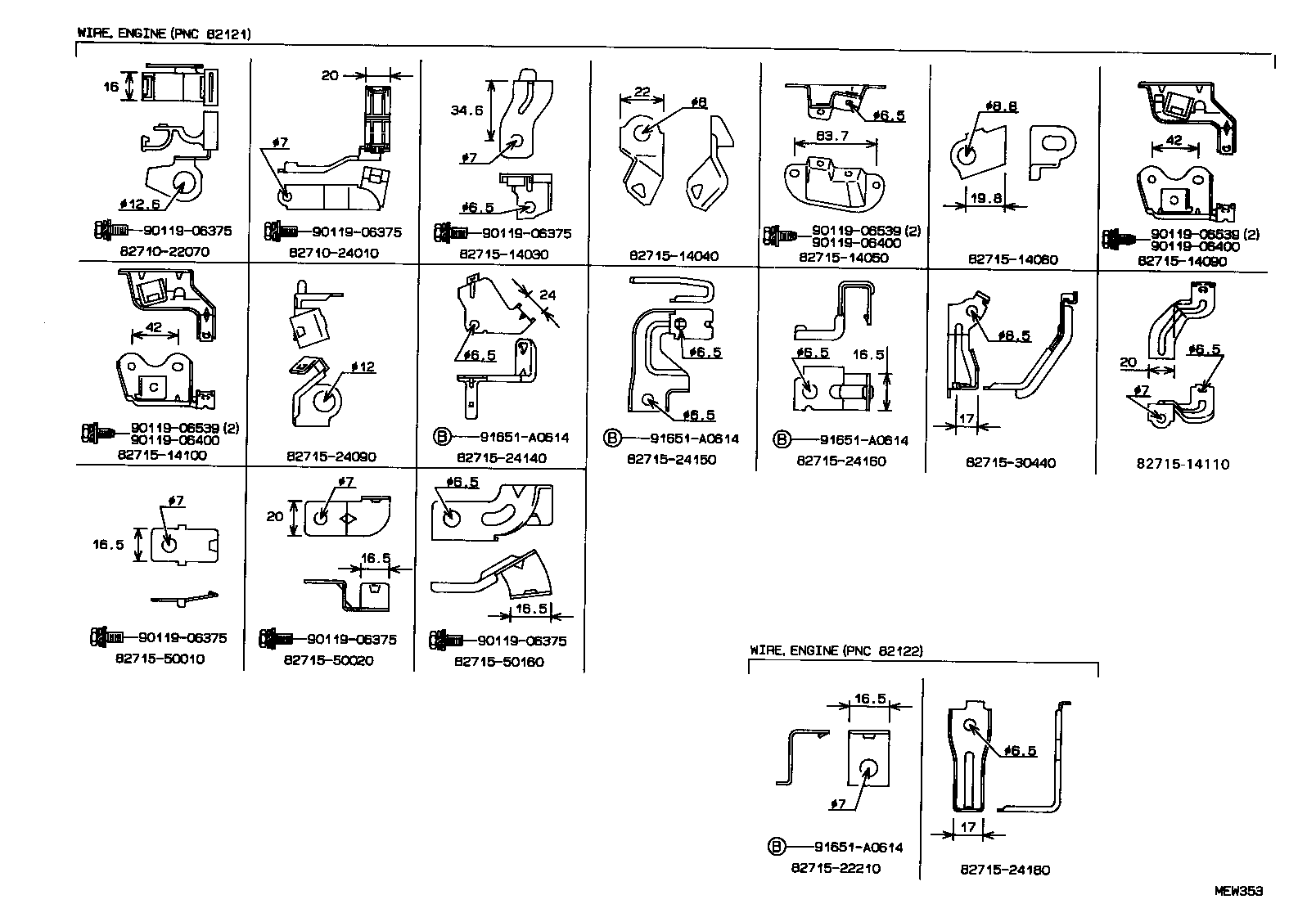

CLAMP

diagram 82121 82122 8271022070 8271024010 8271514030 8271514040 8271514050 8271514060 8271514090 8271514100 8271514110 8271522210 8271524090 8271524140 8271524150 8271524160 8271524180 8271530440 8271550010 8271550020 8271550160 9011906375 9011906375 9011906375 9011906375 9011906375 9011906375 9011906400 9011906400 9011906400 9011906539 9011906539 9011906539 91651A0614 91651A0614 91651A0614 91651A0614
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-14891

JZA80..LHD..4FC..EUR

 1
82121-14890

JZA80..LHD..4FC

 1
82121-1B120

JZA80..LHD..4FC..EUR

 1
82122 - WIRE, ENGINE, NO.2
82122-14521

JZA80..EUR

 1
82122-14520

JZA80..EUR

 1
82122-14522

JZA80..EUR

 1
Common parts
82710-22070
82710-24010
82715-14030
82715-14040
82715-14050
82715-14060
82715-14090
82715-14100
82715-14110
82715-22210
82715-24090
82715-24140
82715-24150
82715-24160
82715-24180
82715-30440
82715-50010
82715-50020
82715-50160
90119-06375
90119-06400
90119-06539
91651-A0614

ILLUST NO. 1 OF 9(9305- )LHD

Click highlighted areas on diagram

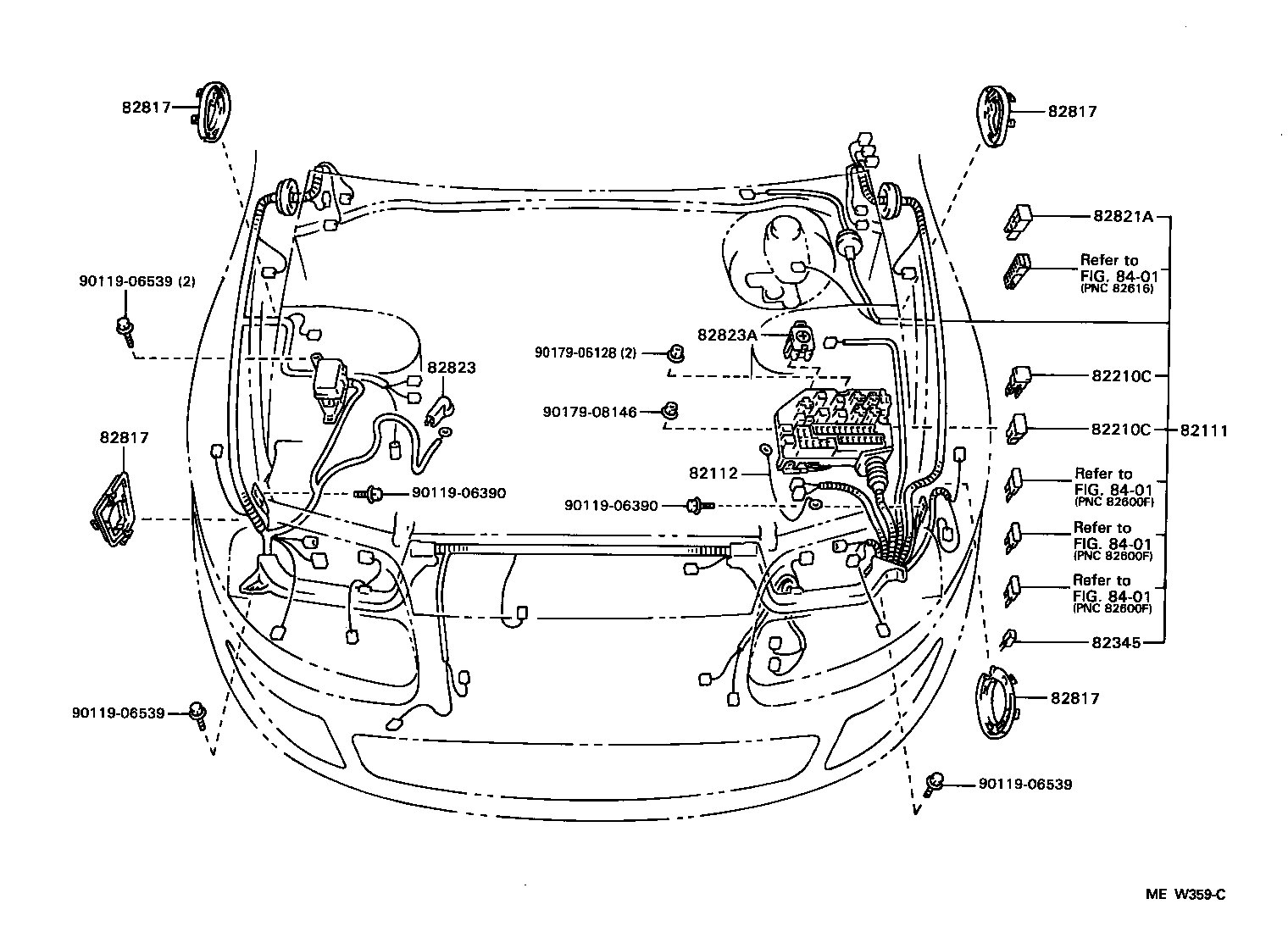

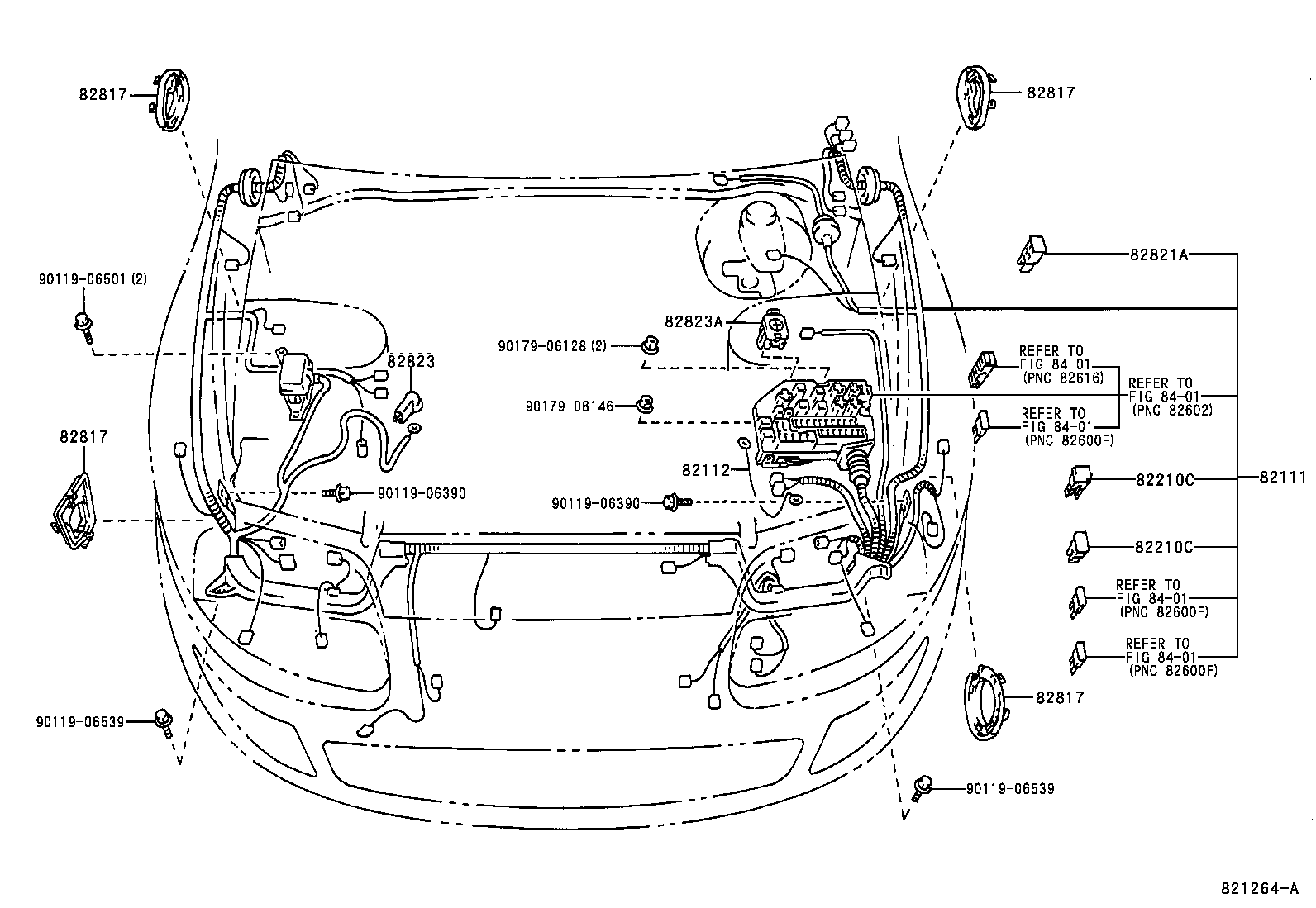

ENGINE ROOM

diagram 82111 82112 82210C 82210C 82345 82817 82817 82817 82817 82821A 82823 82823A 8401 8401 8401 8401 9011906390 9011906390 9011906539 9011906539 9011906539 9017906128 9017908146
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-1B550

JZA80..LHD..EUR

 1
82112 - WIRE, ENGINE ROOM, NO.2
82112-14020

JZA80

 1
82210C - FUSIBLE LINK
90982-08188

JZA80..EUR

30A,TERM.:FEMALE,PNK

 2
90982-08190

JZA80

60A,TERM.:FEMALE,YEL

 1
90982-08277

JZA80

50A,TERM.:FEMALE,RED

 1
90982-08271

JZA80

120A,TERM.:MALE,WHT

 1
82210C - FUSIBLE LINK
90982-08188

JZA80..EUR

30A,TERM.:FEMALE,PNK

 2
90982-08190

JZA80

60A,TERM.:FEMALE,YEL

 1
90982-08277

JZA80

50A,TERM.:FEMALE,RED

 1
90982-08271

JZA80

120A,TERM.:MALE,WHT

 1
82345 - DIODE
82345-32010

JZA80..LHD..EUR

 3
82345-32010

JZA80..EUR

 2
82345-20050

JZA80

 1
82345-20040

JZA80

 1
82345-32010

JZA80

 1
82345-32010

JZA80..LHD..EUR

 3
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-24490

JZA80..EUR

FRONT RH APRN

 1
82817-24480

JZA80

FRONT LH APRN

 1
82817-24511

JZA80

REAR APRN

 2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-24490

JZA80..EUR

FRONT RH APRN

 1
82817-24480

JZA80

FRONT LH APRN

 1
82817-24511

JZA80

REAR APRN

 2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-24490

JZA80..EUR

FRONT RH APRN

 1
82817-24480

JZA80

FRONT LH APRN

 1
82817-24511

JZA80

REAR APRN

 2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-24490

JZA80..EUR

FRONT RH APRN

 1
82817-24480

JZA80

FRONT LH APRN

 1
82817-24511

JZA80

REAR APRN

 2
82823 - CAP, TERMINAL, NO.1
82823-24030

JZA80

 1
82823A - CAP, TERMINAL, NO.2
82823-14100

JZA80

 1
Common parts
90119-06390
90119-06539
90179-06128
90179-08146
Linked diagrams
8401

ILLUST NO. 2 OF 9(9305- )LHD

Click highlighted areas on diagram

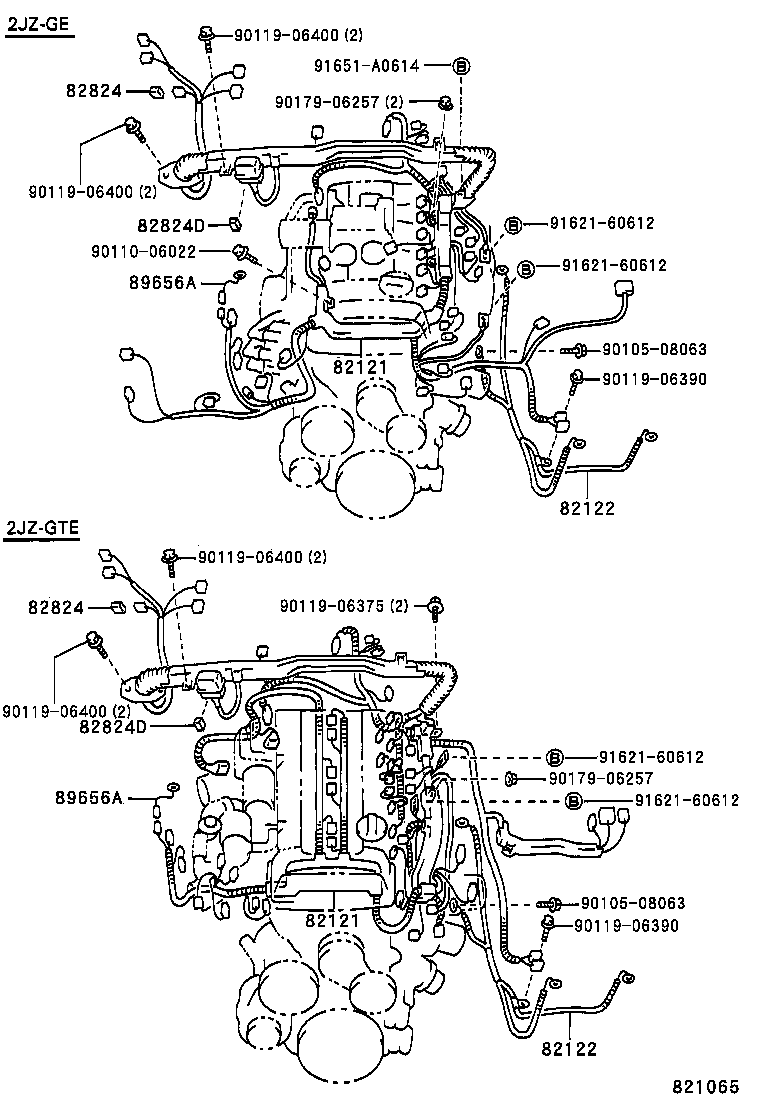

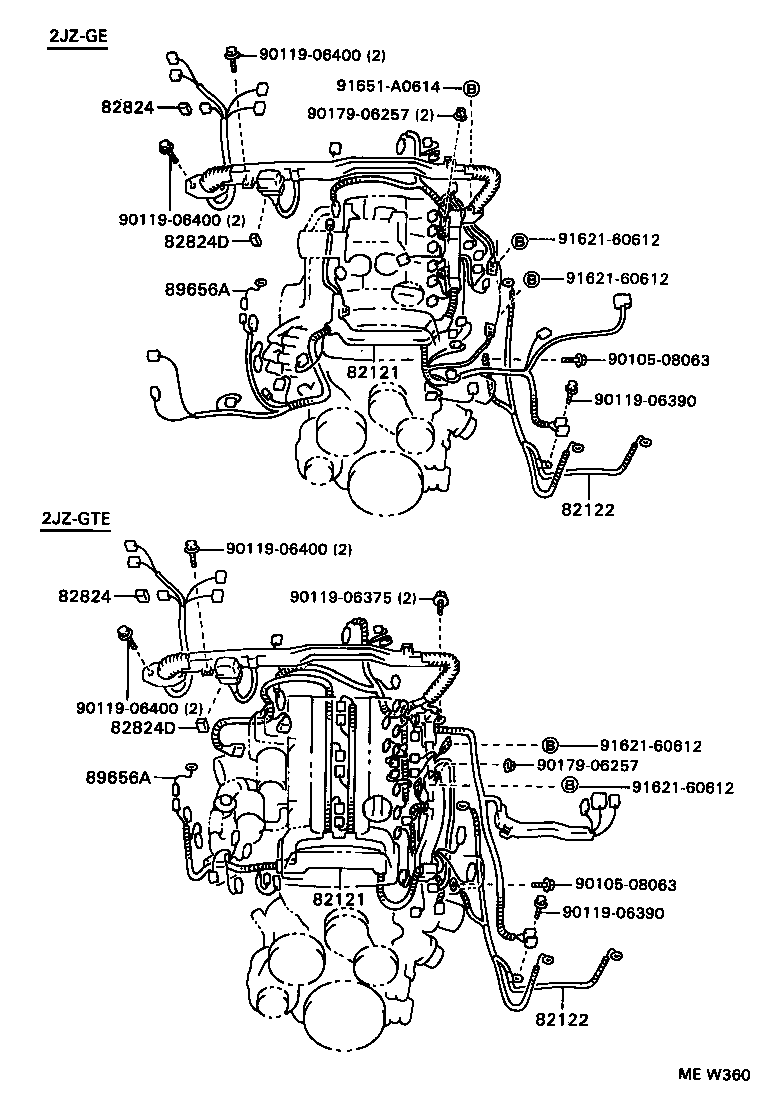

ENGINE

diagram 82121 82121 82122 82122 82824 82824 82824D 82824D 89656A 89656A 9010508063 9010508063 9011906375 9011906390 9011906390 9011906400 9011906400 9011906400 9011906400 9017906257 9017906257 9162160612 9162160612 9162160612 9162160612 91651A0614
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-14891

JZA80..LHD..4FC..EUR

 1
82121-14890

JZA80..LHD..4FC

 1
82121-1B120

JZA80..LHD..4FC..EUR

 1
82121 - WIRE, ENGINE
82121-14891

JZA80..LHD..4FC..EUR

 1
82121-14890

JZA80..LHD..4FC

 1
82121-1B120

JZA80..LHD..4FC..EUR

 1
82122 - WIRE, ENGINE, NO.2
82122-14521

JZA80..EUR

 1
82122-14520

JZA80..EUR

 1
82122-14522

JZA80..EUR

 1
82122 - WIRE, ENGINE, NO.2
82122-14521

JZA80..EUR

 1
82122-14520

JZA80..EUR

 1
82122-14522

JZA80..EUR

 1
82824 - CONNECTOR, WIRING HARNESS
82824-22060

JZA80

 1
82824 - CONNECTOR, WIRING HARNESS
82824-22060

JZA80

 1
82824D - CONNECTOR, WIRING HARNESS
82824-24010

JZA80

 1
82824D - CONNECTOR, WIRING HARNESS
82824-24010

JZA80

 1
89656A - WIRE, POWER STEERING EARTH
89656-14010

JZA80

 1
89656A - WIRE, POWER STEERING EARTH
89656-14010

JZA80

 1
Common parts
90105-08063
90119-06375
90119-06390
90119-06400
90179-06257
91621-60612
91651-A0614

ILLUST NO. 3 OF 9(9305- )LHD

Click highlighted areas on diagram

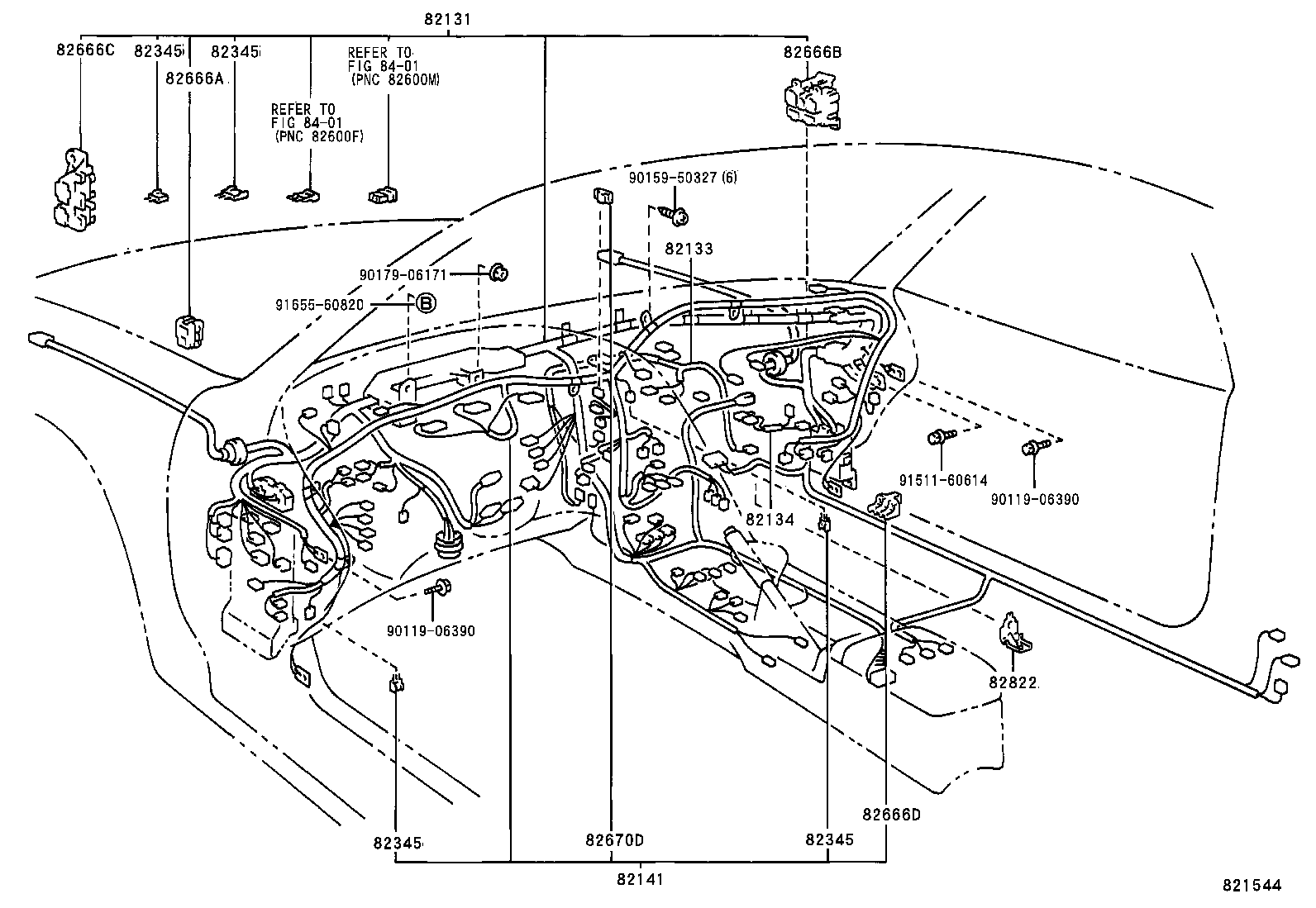

INSTRUMENT PANEL

diagram 82131 82133 82134 82141 82345 82345 82345 82345 82666A 82666B 82666C 82666D 82670D 8281914230 8281914230 82822 8401 8401 9011906390 9011906390 9011940616 9017907171 9165560820
Part # Description Qty Price
82131 - WIRE, COWL
82131-1D760

JZA80..LHD..EUR

 1
82131-1D761

JZA80..LHD..EUR

 1
82131-1D771

JZA80..LHD..EUR

NORWAY,DENMARK OR ICELAND SPEC

 1
82131-1D770

JZA80..LHD..EUR

SWEDEN,NORWAY,DENMARK OR ICELAND SPEC

 1
82133 - WIRE, COWL, NO.3
82133-14020

JZA80..LHD

 1
82134 - WIRE, COWL, NO.4
82134-14030

JZA80..LHD

 1
82141 - WIRE, INSTRUMENT PANEL
82141-1B321

JZA80..LHD..EUR

 1
82141-1B320

JZA80..LHD..EUR

 1
82345 - DIODE
82345-32010

JZA80..EUR

 2
82345-20050

JZA80

 1
82345-32010

JZA80..LHD..EUR

 3
82345-20040

JZA80

 1
82345-32010

JZA80

 1
82345-32010

JZA80..LHD..EUR

 3
82345 - DIODE
82345-32010

JZA80..EUR

 2
82345-20050

JZA80

 1
82345-32010

JZA80..LHD..EUR

 3
82345-20040

JZA80

 1
82345-32010

JZA80

 1
82345-32010

JZA80..LHD..EUR

 3
82345 - DIODE
82345-32010

JZA80..EUR

 2
82345-20050

JZA80

 1
82345-32010

JZA80..LHD..EUR

 3
82345-20040

JZA80

 1
82345-32010

JZA80

 1
82345-32010

JZA80..LHD..EUR

 3
82345 - DIODE
82345-32010

JZA80..EUR

 2
82345-20050

JZA80

 1
82345-32010

JZA80..LHD..EUR

 3
82345-20040

JZA80

 1
82345-32010

JZA80

 1
82345-32010

JZA80..LHD..EUR

 3
82666A - HOLDER, CONNECTOR NO.2
82666-14030

JZA80

 1
82666B - HOLDER, CONNECTOR NO.3
82666-14040

JZA80

 1
82666C - HOLDER, CONNECTOR NO.4
82666-14020

JZA80..LHD

 1
82666D - HOLDER, CONNECTOR NO.5
82666-14050

JZA80

 1
82670D - BLOCK ASSY, JUNCTION,NO.2
82670-20890

JZA80

 1
82822 - BRACKET,CONNECTOR BLOCK
82822-14090

JZA80

 1
Common parts
82819-14230
90119-06390
90119-40616
90179-07171
91655-60820
Linked diagrams
8401

ILLUST NO. 4 OF 9(9305- )LHD

Click highlighted areas on diagram

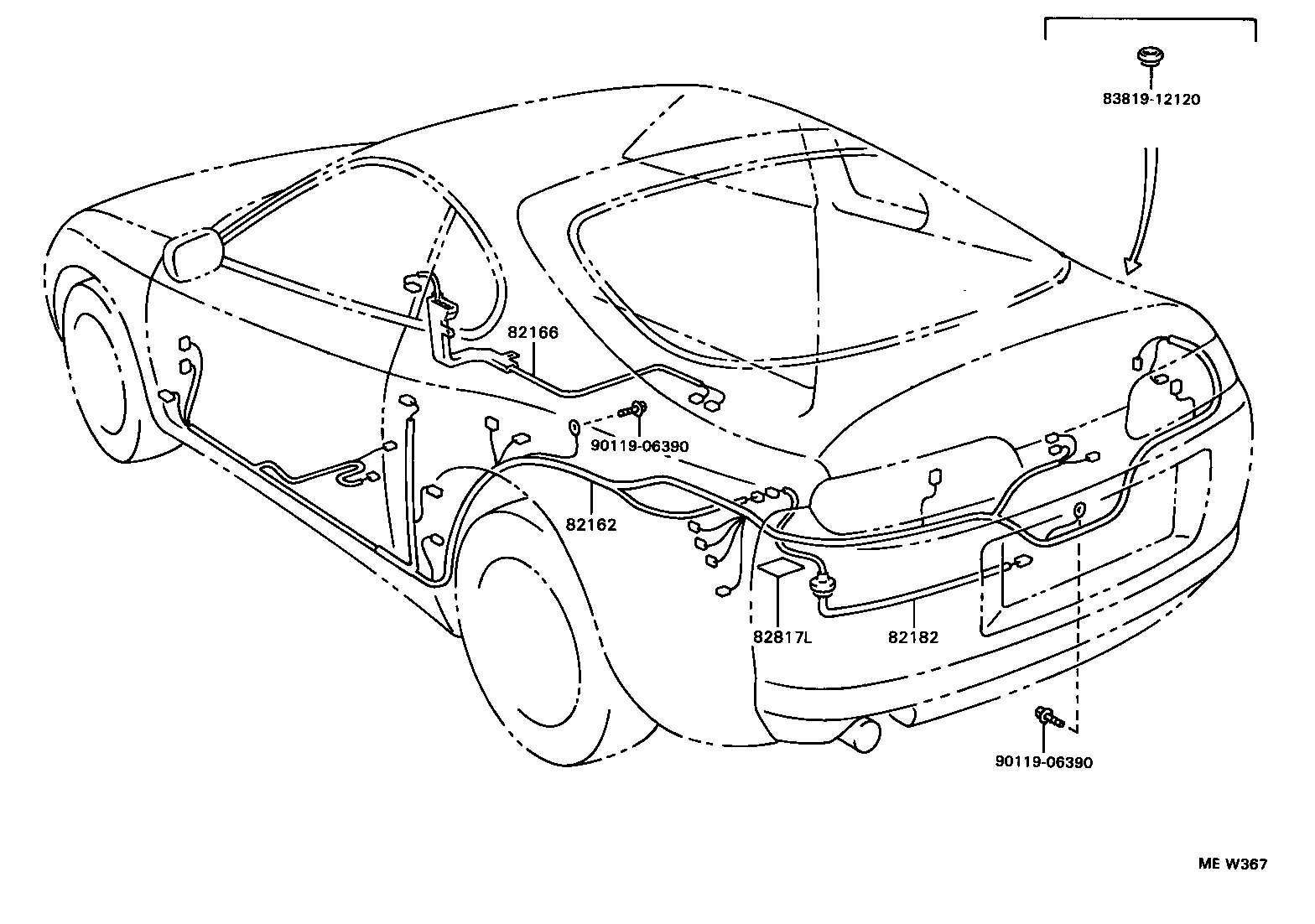

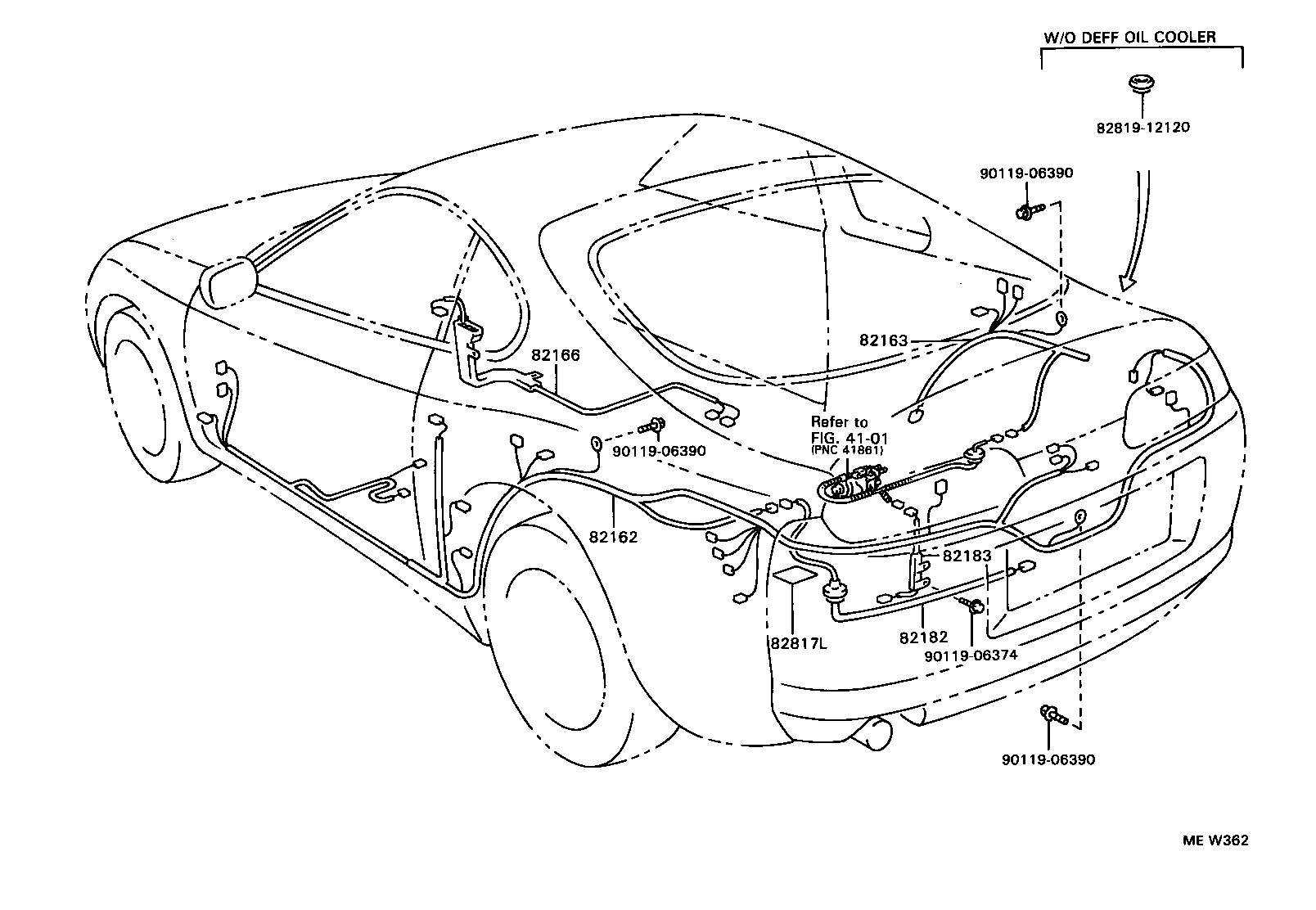

FLOOR

diagram 4101 82162 82163 82166 82182 82183 82817L 8281912120 9011906374 9011906390 9011906390 9011906390
Part # Description Qty Price
82162 - WIRE, FLOOR, NO.2
82162-14220

JZA80..LHD..EUR

 1
82162-14221

JZA80..LHD..EUR

 1
82162-14222

JZA80..LHD..EUR

 1
82162-14223

JZA80..LHD..EUR

 1
82163 - WIRE, FLOOR, NO.3
82163-14050

JZA80..LHD..(EUR,GCC)

 1
82166 - WIRE, CONSOLE BOX
82166-14101

JZA80..LHD..EUR

 1
82166-14100

JZA80..LHD..EUR

 1
82182 - WIRE, LUGGAGE ROOM, NO.2
82182-14020

JZA80

 1
82183 - WIRE, LUGGAGE ROOM, NO.3
82183-14010

JZA80..EUR,GCC

 1
82817L - PROTECTOR, WIRING HARNESS, NO.11
61825-20100

JZA80

 1
Common parts
82819-12120
90119-06374
90119-06390
Linked diagrams
4101

ILLUST NO. 5 OF 9(9305- )LHD

Click highlighted areas on diagram

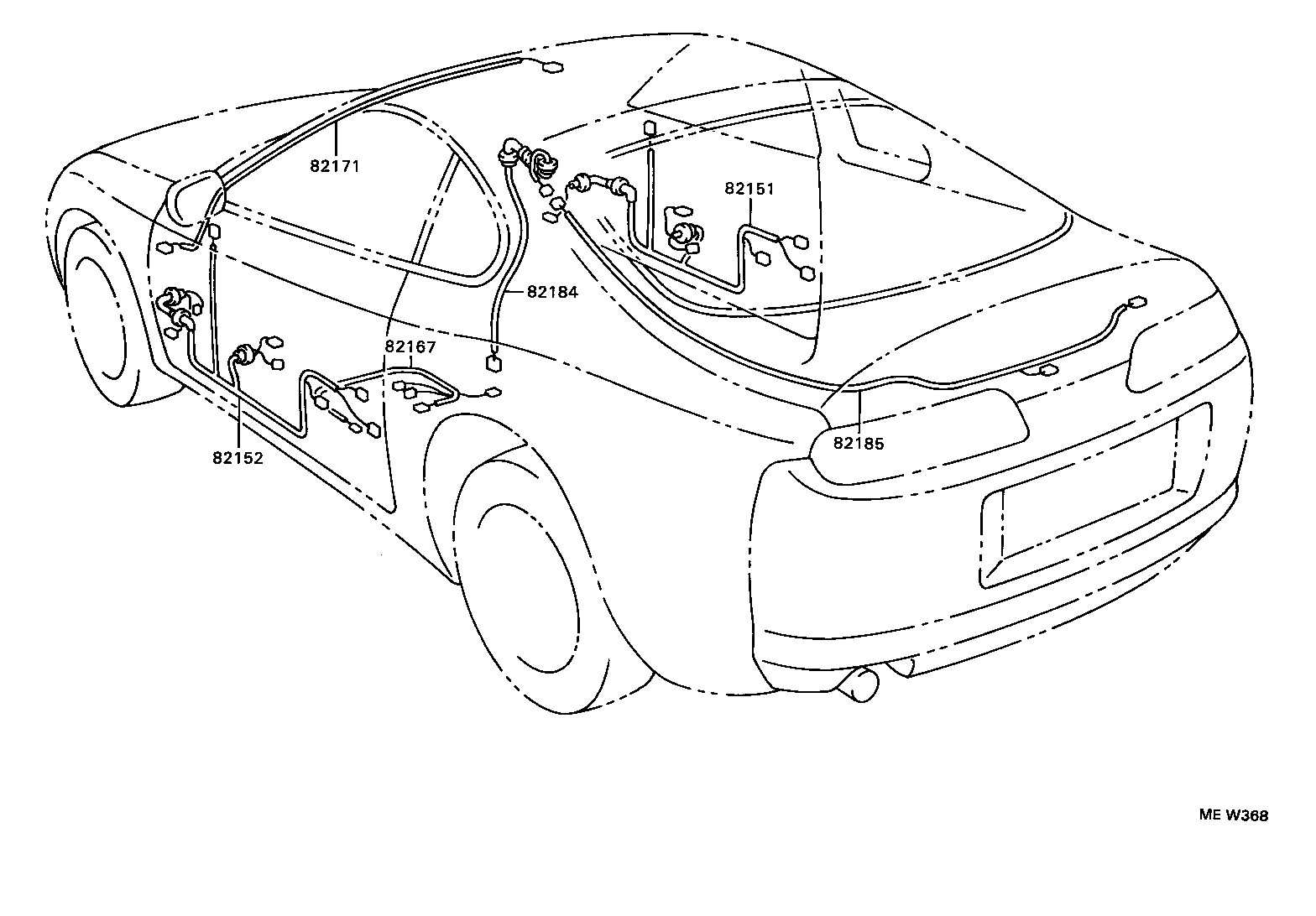

DOOR,SEAT,ROOF & BACK DOOR

diagram 82151 82152 82167 82171 82184 82185
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82151-14610

JZA80..LHD

 1
82152 - WIRE, FRONT DOOR, LH
82152-14470

JZA80..LHD

 1
82167 - WIRE, SEAT, NO.1
82167-14130

JZA80

 1
82167-14140

JZA80..EUR

W(SEAT HEATER)

 1
82171 - WIRE, ROOF, NO.1
82171-14310

JZA80..LHD

 1
82184 - WIRE, BACK DOOR, NO.1
82184-14100

JZA80

 1
82185 - WIRE, BACK DOOR, NO.2
82185-14190

JZA80..LHD

 1

ILLUST NO. 7 OF 9(9305- )

Click highlighted areas on diagram

DIODE

diagram 82345 82345 82345 8234520040 8234520050 8234532010
Part # Description Qty Price
82345 - DIODE
82345-32010

JZA80..EUR

 2
82345-20050

JZA80

 1
82345-32010

JZA80..LHD..EUR

 3
82345-20040

JZA80

 1
82345-32010

JZA80

 1
82345-32010

JZA80..LHD..EUR

 3
82345 - DIODE
82345-32010

JZA80..EUR

 2
82345-20050

JZA80

 1
82345-32010

JZA80..LHD..EUR

 3
82345-20040

JZA80

 1
82345-32010

JZA80

 1
82345-32010

JZA80..LHD..EUR

 3
82345 - DIODE
82345-32010

JZA80..EUR

 2
82345-20050

JZA80

 1
82345-32010

JZA80..LHD..EUR

 3
82345-20040

JZA80

 1
82345-32010

JZA80

 1
82345-32010

JZA80..LHD..EUR

 3
Common parts
82345-20040
82345-20050
82345-32010

ILLUST NO. 8 OF 9(9305- )

Click highlighted areas on diagram

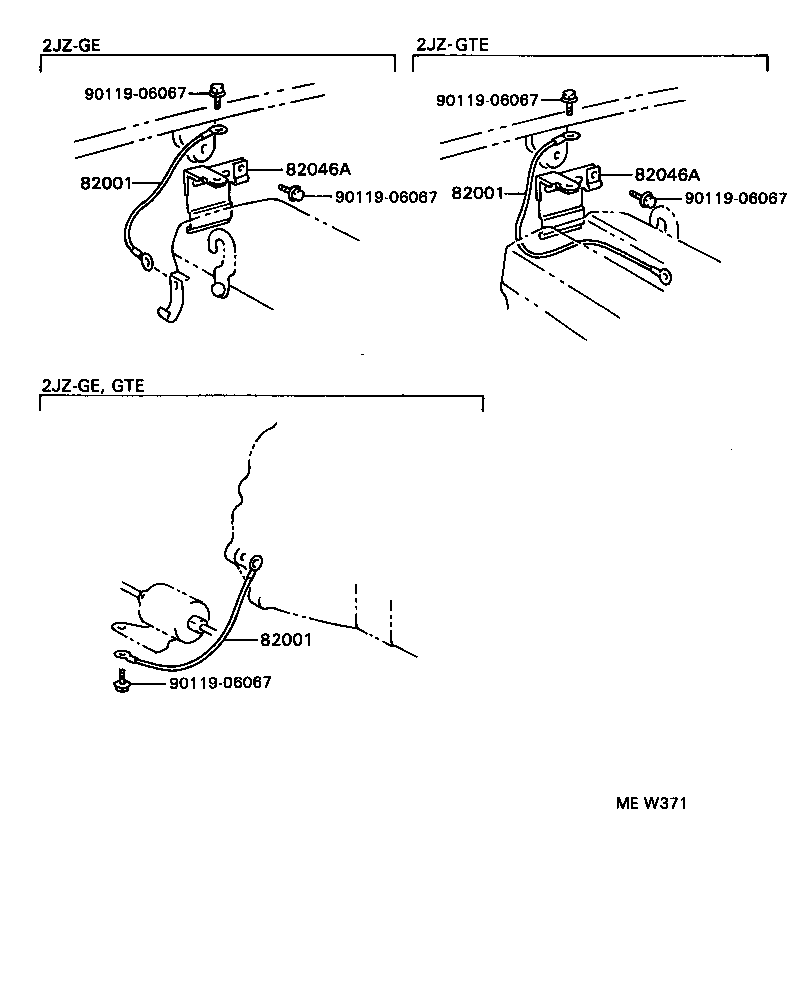

CABLE BOND

diagram 82001 82001 82001 82046A 82046A 9011906067 9011906067 9011906067 9011906067 9011906067
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07208

JZA80..EUR

E/G HEAD-COWLTOP

 1
90980-07345

JZA80

T/M-FLOOR

 1
82001 - CABLE, BOND, NO.1
90980-07208

JZA80..EUR

E/G HEAD-COWLTOP

 1
90980-07345

JZA80

T/M-FLOOR

 1
82001 - CABLE, BOND, NO.1
90980-07208

JZA80..EUR

E/G HEAD-COWLTOP

 1
90980-07345

JZA80

T/M-FLOOR

 1
82046A - WIRE SUB-ASSY, BODY GROUND, NO.1
82046-14140

JZA80..LHD

 1
82046A - WIRE SUB-ASSY, BODY GROUND, NO.1
82046-14140

JZA80..LHD

 1
Common parts
90119-06067

ILLUST NO. 9 OF 9(9305- )

Click highlighted areas on diagram

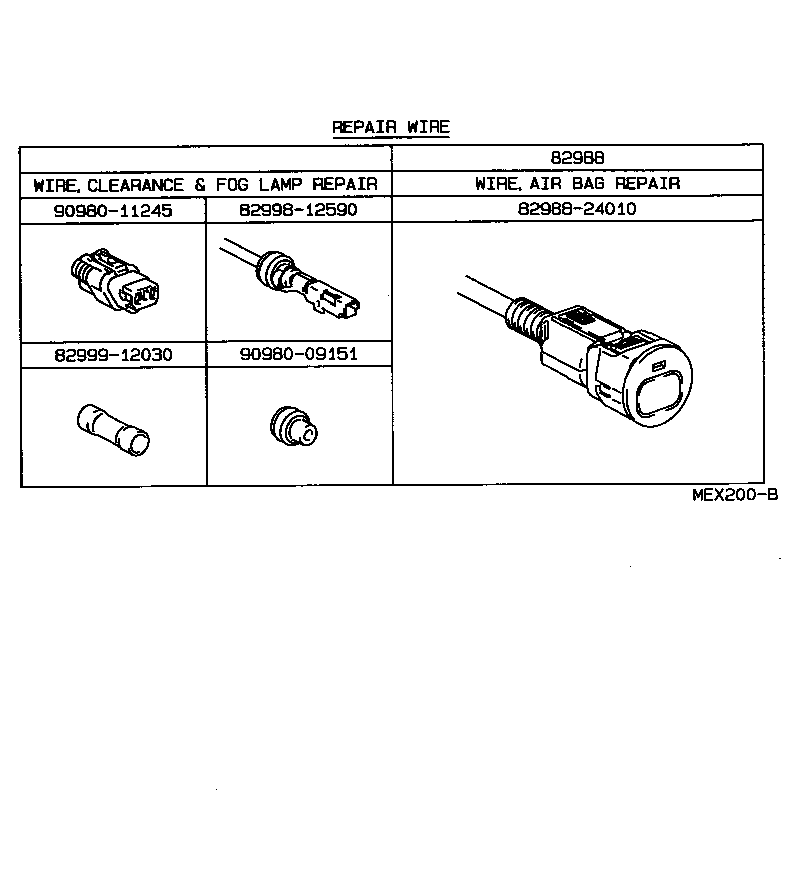

REPAIR WIRE

diagram 8299812590 8299812590 8299812590 8299812600 8299812610 8299812610 8299912030 8299912030 8299912030 8299912030 8299912030 8299912030 9098009151 9098009151 9098009151 9098009151 9098009396 9098009396 9098010598 9098010619 9098011002 9098011019 9098011095 9098011096
Part # Description Qty Price
Common parts
82998-12590
82998-12600
82998-12610
82999-12030
90980-09151
90980-09396
90980-10598
90980-10619
90980-11002
90980-11019
90980-11095
90980-11096

ILLUST NO. 9 OF 9(9305- )

Click highlighted areas on diagram

REPAIR WIRE

diagram 82988 8298824010 8299812590 8299912030 9098009151 9098011245
Part # Description Qty Price
82988 - WIRE, AIR BAG REPAIR
82988-24010

JZA80

 1
Common parts
82988-24010
82998-12590
82999-12030
90980-09151
90980-11245

ILLUST NO. 2 OF 9(9305- )

Click highlighted areas on diagram

ENGINE

diagram 82121 82121 82122 82122 82824 82824 82824D 82824D 89656A 89656A 9010508063 9010508063 9011006022 9011906375 9011906390 9011906390 9011906400 9011906400 9011906400 9011906400 9017906257 9017906257 9162160612 9162160612 9162160612 9162160612 91651A0614
Part # Description Qty Price
Common parts
90105-08063
90110-06022
90119-06375
90119-06390
90119-06400
90179-06257
91621-60612
91651-A0614

ILLUST NO. 6 OF 9(9305- )

Click highlighted areas on diagram

CLAMP

diagram 8271022070 8271024010 8271132650 827113H520 8271514030 8271514040 8271514050 8271514060 8271514090 8271514100 8271514110 8271514140 8271522210 8271524090 8271524140 8271524150 8271524160 8271524180 8271530440 8271530460 8271550010 8271550020 8271550160 9011906375 9011906375 9011906375 9011906375 9011906375 9011906375 9011906400 9011906400 9011906400 9011906539 9011906539 9011906539 91651A0614 91651A0614 91651A0614 91651A0614 91651A0614 91651A0614 9331915012
Part # Description Qty Price
Common parts
82710-22070
82710-24010
82711-32650
82711-3H520
82715-14030
82715-14040
82715-14050
82715-14060
82715-14090
82715-14100
82715-14110
82715-14140
82715-22210
82715-24090
82715-24140
82715-24150
82715-24160
82715-24180
82715-30440
82715-30460
82715-50010
82715-50020
82715-50160
90119-06375
90119-06400
90119-06539
91651-A0614
93319-15012

ILLUST NO. 1 OF 9(9305- )

Click highlighted areas on diagram

ENGINE ROOM

diagram 82111 82112 82210C 82210C 82817 82817 82817 82817 82821A 82823 82823A 8401 8401 8401 8401 8401 9011906390 9011906390 9011906501 9011906539 9011906539 9017906128 9017908146
Part # Description Qty Price
Common parts
90119-06390
90119-06501
90119-06539
90179-06128
90179-08146
Linked diagrams
8401

ILLUST NO. 9 OF 9(9305-9808)

Click highlighted areas on diagram

REPAIR WIRE

diagram 82988 8298824010 8299812590 8299912030 9098009151 9098011245
Part # Description Qty Price
Common parts
82988-24010
82998-12590
82999-12030
90980-09151
90980-11245

ILLUST NO. 3 OF 9(9305- )

Click highlighted areas on diagram

INSTRUMENT PANEL

diagram 82131 82133 82134 82141 82345 82345 82345 82345 82666A 82666B 82666C 82666D 82670D 82822 8401 8401 9011906390 9011906390 9015950327 9017906171 9151160614 9165560820
Part # Description Qty Price
Common parts
90119-06390
90159-50327
90179-06171
91511-60614
91655-60820
Linked diagrams
8401

ILLUST NO. 4 OF 9(9305- )

Click highlighted areas on diagram

FLOOR

diagram 82162 82166 82182 82817L 8381912120 9011906390 9011906390
Part # Description Qty Price
Common parts
83819-12120
90119-06390

ILLUST NO. 5 OF 9(9305- )

Click highlighted areas on diagram

DOOR, SEAT, ROOF & BACK DOOR

diagram 82151 82152 82167 82171 82184 82185
Part # Description Qty Price

ILLUST NO. 7 OF 9(9305- )

Click highlighted areas on diagram

DIODE

diagram 82345 82345 82345 8234520040 8234520050 8234532010
Part # Description Qty Price
82345 - DIODE
82345-32010

JZA80..EUR

 2
82345-20050

JZA80

 1
82345-32010

JZA80..LHD..EUR

 3
82345-20040

JZA80

 1
82345-32010

JZA80

 1
82345-32010

JZA80..LHD..EUR

 3
82345 - DIODE
82345-32010

JZA80..EUR

 2
82345-20050

JZA80

 1
82345-32010

JZA80..LHD..EUR

 3
82345-20040

JZA80

 1
82345-32010

JZA80

 1
82345-32010

JZA80..LHD..EUR

 3
82345 - DIODE
82345-32010

JZA80..EUR

 2
82345-20050

JZA80

 1
82345-32010

JZA80..LHD..EUR

 3
82345-20040

JZA80

 1
82345-32010

JZA80

 1
82345-32010

JZA80..LHD..EUR

 3
Common parts
82345-20040
82345-20050
82345-32010

ILLUST NO. 8 OF 9(9305- )

Click highlighted areas on diagram

CABLE BOND

diagram 82001 82001 82001 82046A 82046A 9011906067 9011906067 9011906067 9011906067 9011906067
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07208

JZA80..EUR

E/G HEAD-COWLTOP

 1
90980-07345

JZA80

T/M-FLOOR

 1
82001 - CABLE, BOND, NO.1
90980-07208

JZA80..EUR

E/G HEAD-COWLTOP

 1
90980-07345

JZA80

T/M-FLOOR

 1
82001 - CABLE, BOND, NO.1
90980-07208

JZA80..EUR

E/G HEAD-COWLTOP

 1
90980-07345

JZA80

T/M-FLOOR

 1
82046A - WIRE SUB-ASSY, BODY GROUND, NO.1
82046-14140

JZA80..LHD

 1
82046A - WIRE SUB-ASSY, BODY GROUND, NO.1
82046-14140

JZA80..LHD

 1
Common parts
90119-06067

ILLUST NO. 9 OF 9(9305-9808)

Click highlighted areas on diagram

REPAIR WIRE

diagram 8299812590 8299812590 8299812590 8299812600 8299812610 8299812610 8299912030 8299912030 8299912030 8299912030 8299912030 8299912030 9098009151 9098009151 9098009151 9098009151 9098009396 9098009396 9098010598 9098010619 9098011002 9098011019 9098011095 9098011096
Part # Description Qty Price
Common parts
82998-12590
82998-12600
82998-12610
82999-12030
90980-09151
90980-09396
90980-10598
90980-10619
90980-11002
90980-11019
90980-11095
90980-11096
