JZA80L-ALPVZW (1993)
Toyota Supra
Production
May 1993
-
Jan 1996
Engine
2JZGTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )

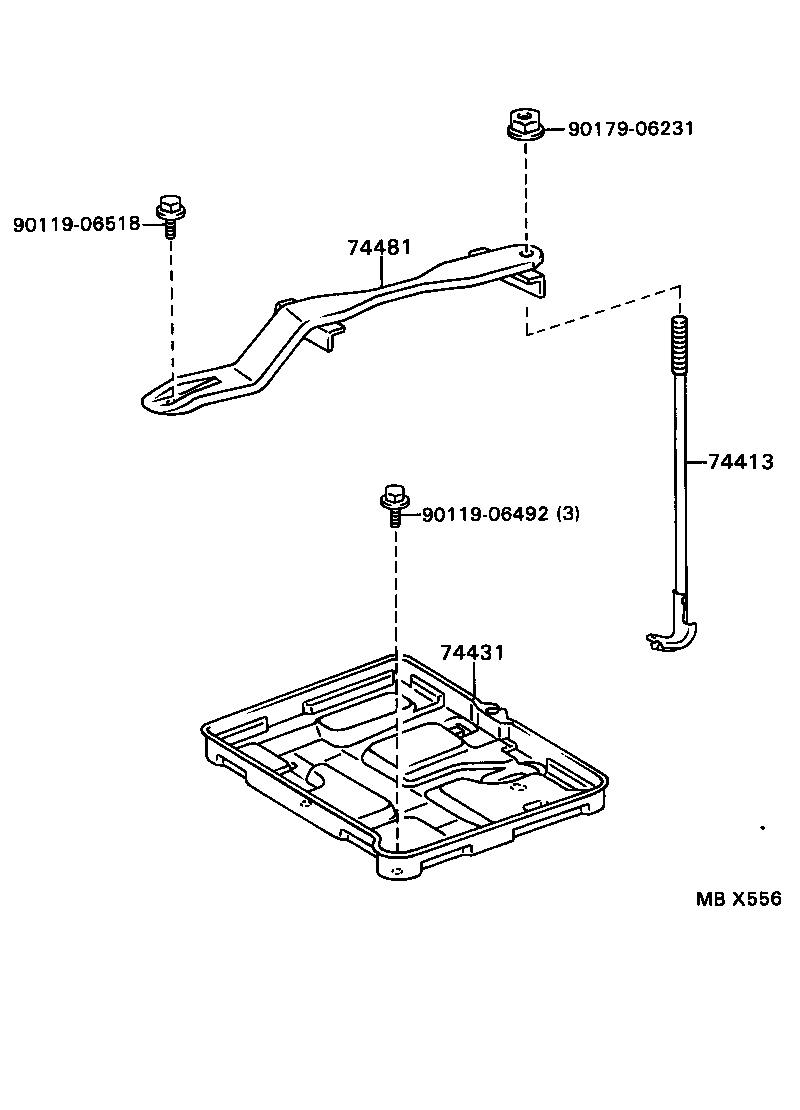

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74407-14020 |
JZA80 |
1 | ||
| 74431 - TRAY, BATTERY | ||||
| 74431-14070 |
JZA80 |
1 | ||
| 74481 - CLAMP, BATTERY HOLD DOWN | ||||
| 74404-14320 |
JZA80 |
1 | ||
| Common parts | ||||
| 90119-06492 | ||||
| 90119-06518 | ||||
| 90179-06231 | ||||
(9305- )

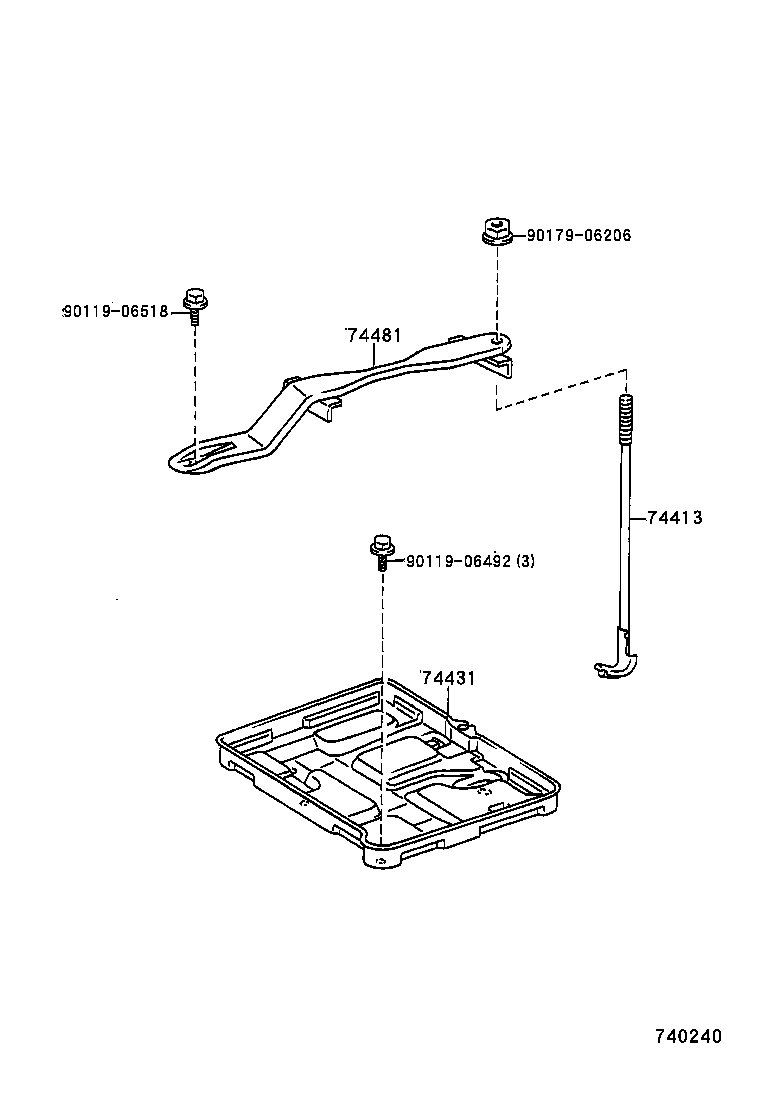

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06492 | ||||
| 90119-06518 | ||||
| 90179-06206 | ||||
