JZA80L-ALPVZW (1993)

Toyota Supra

Production May 1993 - Jan 1996
Engine 2JZGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9305- )

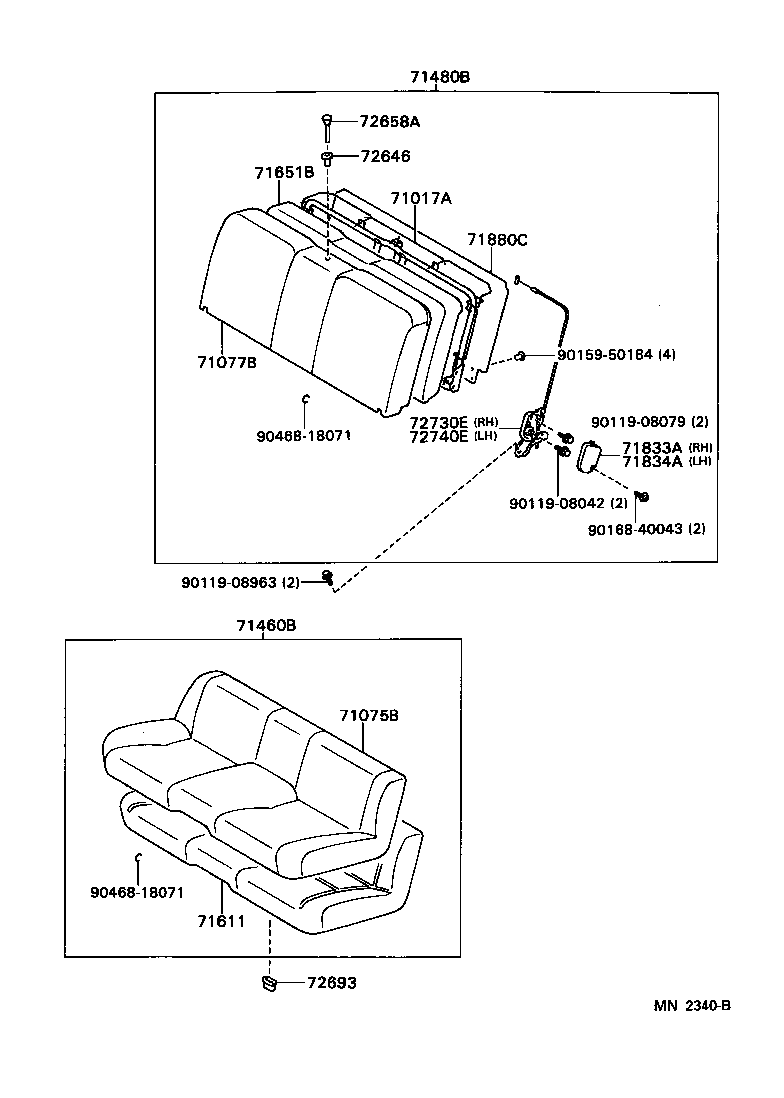

Click highlighted areas on diagram

diagram 71017A 71075B 71077B 71460B 71480B 71611 71651B 71833A 71834A 71880C 72646 72658A 72693 72730E 72740E 9011908042 9011908079 9011908963 9015950184 9016840043 9046818071 9046818071
Part # Description Qty Price
71017A - FRAME SUB-ASSY, REAR SEAT BACK
71017-14280

JZA80

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71065-14400C0

JZA80

BLACK,TRIM2#

 2
71065-14420A0

JZA80

W(LEATHER SEAT),IVORY,TRIM0#

 1
71065-14420A0

JZA80..EUR,GEN

IVORY,TRIM0#

 1
71065-14420C1

JZA80..EUR

BLACK,TRIM2#

 1
71065-14420C1

JZA80..EUR,GCC;JZA80..RHD..GEN

W(LEATHER SEAT),BLACK,TRIM2#

 1
71065-14420C1

JZA80..EUR,GCC

BLACK,TRIM2#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-1D380A0

JZA80

W(LEATHER SEAT),IVORY,TRIM0#

 1
71077-1D360C0

JZA80..LHD..(EUR,GEN)

BLACK,TRIM2#

 1
71077-1D380C1

JZA80

W(LEATHER SEAT),BLACK,TRIM2#

 1
71077-1D381C1

JZA80..EUR,GCC

BLACK,TRIM2#

 1
71077-1D381A0

JZA80..EUR,GEN

IVORY,TRIM0#

 1
71077-1D381C1

JZA80..EUR

BLACK,TRIM2#

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71560-14490C1

JZA80..EUR

BLACK,TRIM2#

 1
71560-14490A0

JZA80..EUR,GEN

IVORY,TRIM0#

 1
71560-14490C1

JZA80..RHD;JZA80..LHD..EUR

W(LEATHER SEAT),BLACK,TRIM2#

 1
71560-14470C0

JZA80

BLACK,TRIM2#

 1
71560-14490A0

JZA80..EUR,GEN

W(LEATHER SEAT),IVORY,TRIM0#

 1
71560-14490C1

JZA80..EUR,GCC

BLACK,TRIM2#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-1D500C1

JZA80

W(LEATHER SEAT),BLACK,TRIM2#

 1
71480-1D500A0

JZA80

W(LEATHER SEAT),IVORY,TRIM0#

 1
71480-1D480C0

JZA80

BLACK,TRIM2#

 1
71480-1D501A0

JZA80..EUR,GEN

IVORY,TRIM0#

 1
71611 - PAD, REAR SEAT CUSHION
71503-14010

JZA80

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-14260

JZA80

 1
71833A - COVER, REAR SEAT RECLINING, NO.1 RH
71833-14040

JZA80

 1
71834A - COVER, REAR SEAT RECLINING, NO.1 LH
71834-14020

JZA80

 1
71880C - CARPET ASSY, REAR SEAT BACK BOARD
71880-14031C1

JZA80..EUR,GCC

BLACK,TRIM0#,2#

 1
71880-14030C0

JZA80

BLACK,TRIM0#,2#

 1
71880-14031C1

JZA80..LHD..EUR

BLACK,TRIM2#

 1
72646 - GROMMET, REAR SEAT BACK STOP BUTTON
72646-18010C0

JZA80..EUR,GCC

BLACK,TRIM2#

 1
72646-18010A0

JZA80

IVORY,TRIM0#

 1
72646-18010C0

JZA80

BLACK,TRIM2#

 1
72658A - KNOB, REAR SEAT BACK LOCKING
72658-23010C0

JZA80..EUR,GCC

BLACK,TRIM2#

 1
72658-23010C0

JZA80

BLACK,TRIM2#

 1
72658-23010A0

JZA80

IVORY,TRIM0#

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-14050

JZA80

 2
72730E - ADJUSTER ASSY, REAR SEAT BACK, OUTER RH
72730-14030

JZA80

 1
72740E - ADJUSTER ASSY, REAR SEAT BACK, OUTER LH
72740-14010

JZA80

 1
Common parts
90119-08042
90119-08079
90119-08963
90159-50184
90168-40043
90468-18071

(9305- )

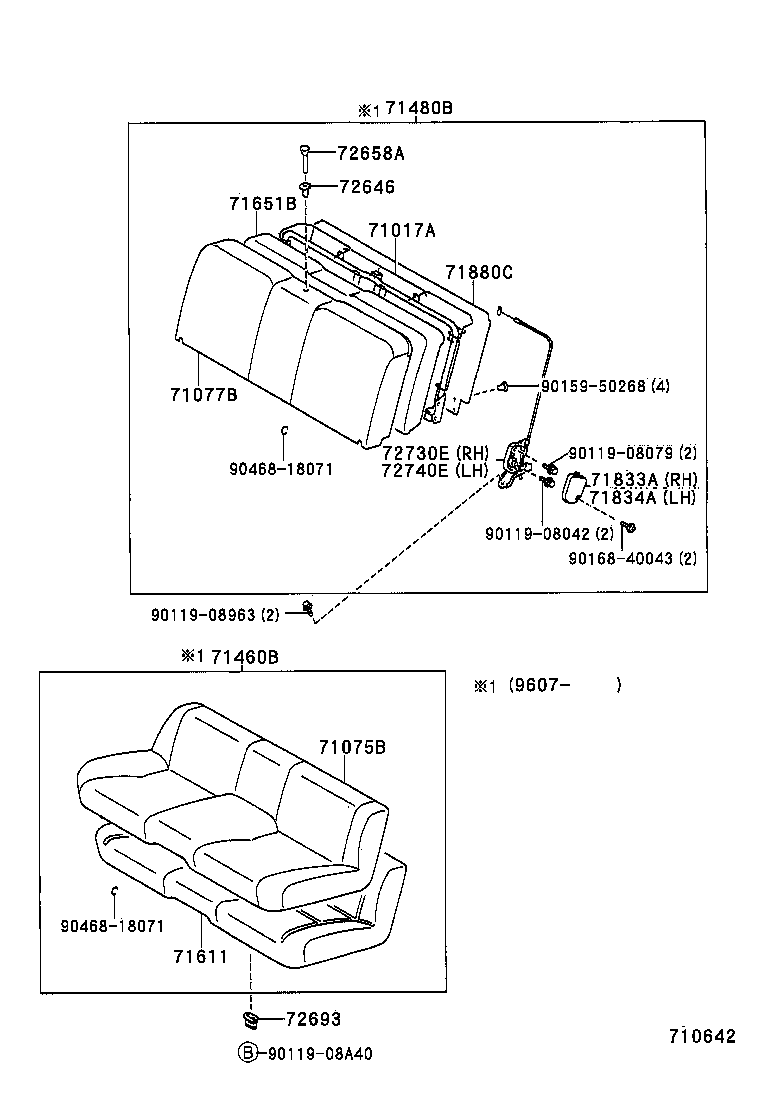

Click highlighted areas on diagram

diagram 71017A 71075B 71077B 71460B 71480B 71611 71651B 71833A 71834A 71880C 72646 72658A 72693 72730E 72740E 9011908042 9011908079 9011908963 9011908A40 9015950268 9016840043 9046818071 9046818071
Part # Description Qty Price
Common parts
90119-08042
90119-08079
90119-08963
90119-08A40
90159-50268
90168-40043
90468-18071
