JZA80L-ALPVZW (1993)
Toyota Supra
Production
May 1993
-
Jan 1996
Engine
2JZGTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )LB

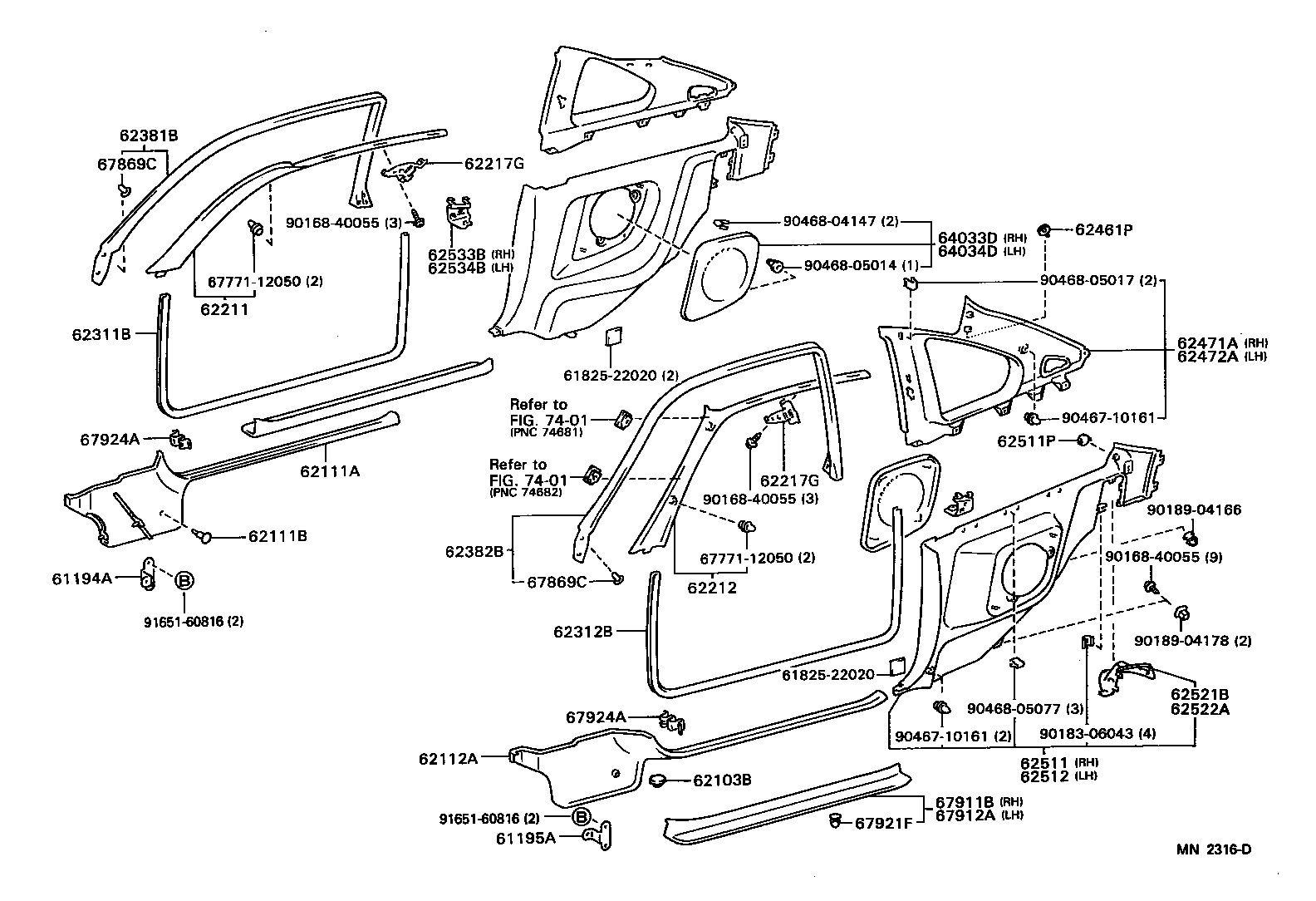

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61194A - BRACKET, COWL SIDE TRIM, RH | ||||
| 61194-14020 |
JZA80..LB |
1 | ||
| 61195A - BRACKET, COWL SIDE TRIM, LH | ||||
| 61194-14020 |
JZA80..LB |
1 | ||
| 62111A - TRIM SUB-ASSY, COWL SIDE, RH | ||||
| 62101-14190C0 |
JZA80..LHD BLACK,TRIM0#,2# |
1 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-07043C0 |
JZA80 BLACK,TRIM0#,2# |
2 | ||
| 62112A - TRIM SUB-ASSY, COWL SIDE, LH | ||||
| 62102-14250C0 |
JZA80..LHD BLACK,TRIM0#,2# |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-14070C0 |
JZA80..LHD..LB BLACK,TRIM0#,2# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-14070C0 |
JZA80..LHD..LB BLACK,TRIM0#,2# |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 62217-14020 |
JZA80..LB |
6 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 62217-14020 |
JZA80..LB |
6 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-14070 |
JZA80 |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-14070 |
JZA80 |
1 | ||
| 62381B - WEATHERSTRIP, ROOF SIDE RAIL, RH | ||||
| 62381-14140 |
JZA80..LB |
1 | ||
| 62382B - WEATHERSTRIP, ROOF SIDE RAIL, LH | ||||
| 62382-14150 |
JZA80..LB |
1 | ||
| 62461P - PLUG, HOLE (FOR ROOF SIDE INNER GARNISH) | ||||
| 90950-01503C0 |
JZA80 BLACK,TRIM0#,2# |
2 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62471-14290C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62472-14280C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 62511 - BOARD, QUARTER INSIDE TRIM, RH | ||||
| 62510-1B160C0 |
JZA80..LB BLACK,TRIM0#,2# |
1 | ||
| 62511P - PLUG, QUARTER TRIM BOARD | ||||
| 90950-01503C0 |
JZA80 BLACK,TRIM0#,2# |
4 | ||
| 62512 - BOARD, QUARTER INSIDE TRIM, LH | ||||
| 62520-1B150C0 |
JZA80..LB BLACK,TRIM0#,2# |
1 | ||
| 62521B - COVER, QUARTER TRIM, RH | ||||
| 62521-14120C0 |
JZA80..LB BLACK,TRIM0#,2# |
1 | ||
| 62522A - COVER, QUARTER TRIM, LH | ||||
| 62522-14110C0 |
JZA80..LB BLACK,TRIM0#,2# |
1 | ||
| 62533B - BRACKET, QUARTER TRIM, RH | ||||
| 62533-14080 |
JZA80 |
1 | ||
| 62534B - BRACKET, QUARTER TRIM, LH | ||||
| 62534-14050 |
JZA80 |
1 | ||
| 64033D - GRILLE SUB-ASSY, REAR SPEAKER, RH | ||||
| 64033-14090C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 64034D - GRILLE SUB-ASSY, REAR SPEAKER, LH | ||||
| 64034-14080C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 67869C - CLIP, ROOF SIDE RAIL WEATHERSTRIP | ||||
| 67869-30020 |
JZA80..LB |
10 | ||
| 67869C - CLIP, ROOF SIDE RAIL WEATHERSTRIP | ||||
| 67869-30020 |
JZA80..LB |
10 | ||
| 67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH | ||||
| 67911-14030C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67912-14020C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 67921F - RETAINER, FRONT DOOR SCUFF PLATE | ||||
| 67921-32010 |
JZA80 |
10 | ||
| 67924A - CLAMP, DOOR SCUFF PLATE, NO.2 | ||||
| 67924-14010 |
JZA80 |
2 | ||
| 67924A - CLAMP, DOOR SCUFF PLATE, NO.2 | ||||
| 67924-14010 |
JZA80 |
2 | ||
| Common parts | ||||
| 61825-22020 | ||||
| 67771-12050 | ||||
| 90168-40055 | ||||
| 90183-06043 | ||||
| 90189-04166 | ||||
| 90189-04178 | ||||
| 90467-10161 | ||||
| 90468-04147 | ||||
| 90468-05014 | ||||
| 90468-05017 | ||||
| 90468-05077 | ||||
| 91651-60816 | ||||
| Linked diagrams | ||||
| 7401 | ||||
(9305- )LB

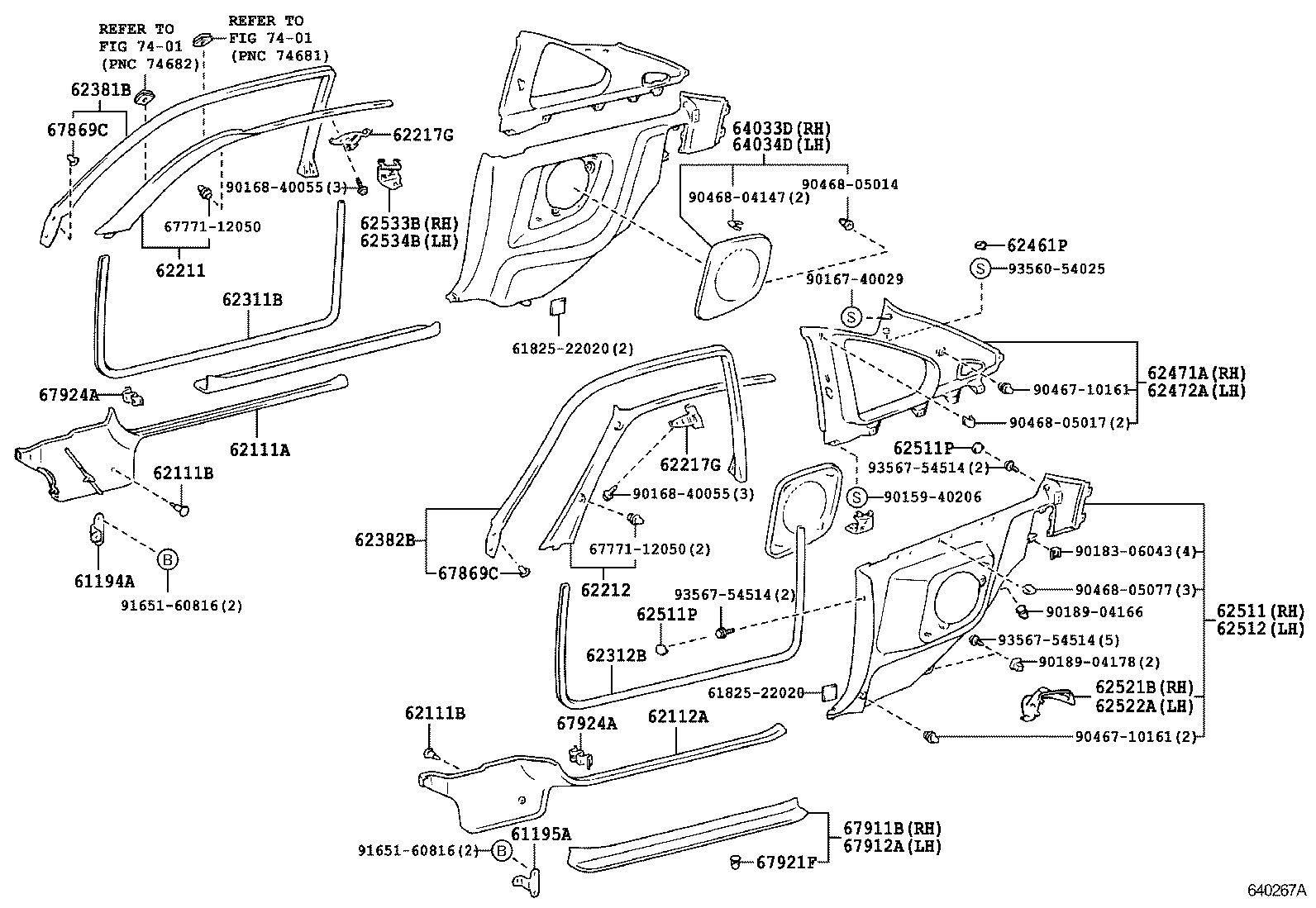

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 61825-22020 | ||||
| 67771-12050 | ||||
| 90159-40206 | ||||
| 90167-40029 | ||||
| 90168-40055 | ||||
| 90183-06043 | ||||
| 90189-04166 | ||||
| 90189-04178 | ||||
| 90467-10161 | ||||
| 90468-04147 | ||||
| 90468-05014 | ||||
| 90468-05017 | ||||
| 90468-05077 | ||||
| 91651-60816 | ||||
| 93560-54025 | ||||
| 93567-54514 | ||||
| Linked diagrams | ||||
| 7401 | ||||
