JZA80L-ALPVZW (1993)
Toyota Supra
Production
May 1993
-
Jan 1996
Engine
2JZGTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )LHD

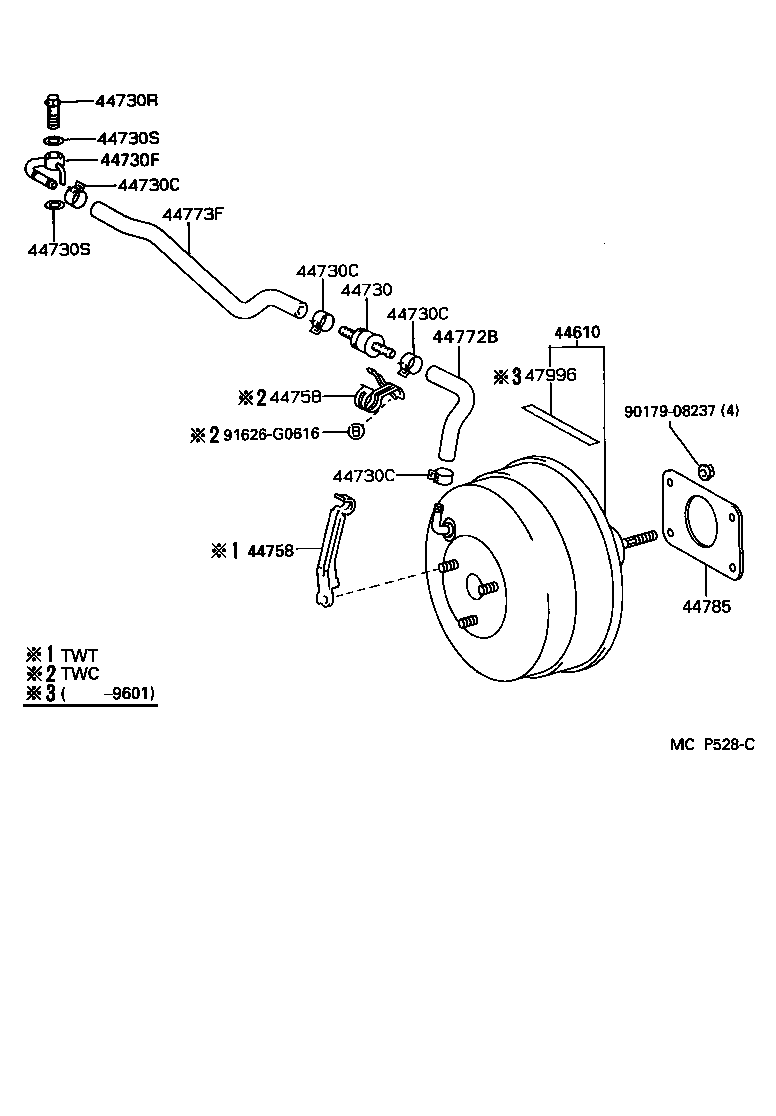

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-14860 |
JZA80..LHD..EUR |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-24020 |
JZA80..LHD |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
JZA80 |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
JZA80 |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
JZA80 |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
JZA80 |
4 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90405-09174 |
JZA80..LHD..EUR |
1 | ||
| 44730R - BOLT, UNION(FOR VACUUM HOSE UNION) | ||||
| 90401-12012 |
JZA80 |
1 | ||
| 44730S - GASKET(FOR VACUUM HOSE UNION) | ||||
| 90430-12005 |
JZA80 |
2 | ||
| 44730S - GASKET(FOR VACUUM HOSE UNION) | ||||
| 90430-12005 |
JZA80 |
2 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-14180 |
JZA80..LHD..EUR |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-14180 |
JZA80..LHD..EUR |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-14210 |
JZA80..LHD..EUR |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-14440 |
JZA80..LHD..EUR |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-14020 |
JZA80 |
1 | ||
| 47996 - LABEL, BRAKE BLEED NOTICE | ||||
| 47996-50010 |
JZA80..EUR |
1 | ||
| Common parts | ||||
| 90179-08237 | ||||
| 91626-G0616 | ||||
(9305- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-14860 |
JZA80..LHD..EUR |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-24020 |
JZA80..LHD |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
JZA80 |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
JZA80 |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
JZA80 |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
JZA80 |
4 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90405-09174 |
JZA80..LHD..EUR |
1 | ||
| 44730R - BOLT, UNION(FOR VACUUM HOSE UNION) | ||||
| 90401-12012 |
JZA80 |
1 | ||
| 44730S - GASKET(FOR VACUUM HOSE UNION) | ||||
| 90430-12005 |
JZA80 |
2 | ||
| 44730S - GASKET(FOR VACUUM HOSE UNION) | ||||
| 90430-12005 |
JZA80 |
2 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-14180 |
JZA80..LHD..EUR |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-14180 |
JZA80..LHD..EUR |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-14210 |
JZA80..LHD..EUR |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-14440 |
JZA80..LHD..EUR |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-14020 |
JZA80 |
1 | ||
| 47996 - LABEL, BRAKE BLEED NOTICE | ||||
| 47996-50010 |
JZA80..EUR |
1 | ||
| Common parts | ||||
| 90179-08237 | ||||
| 91626-G0616 | ||||
