JZA80L-ALPVZW (1993)
Toyota Supra
Production
May 1993
-
Jan 1996
Engine
2JZGTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

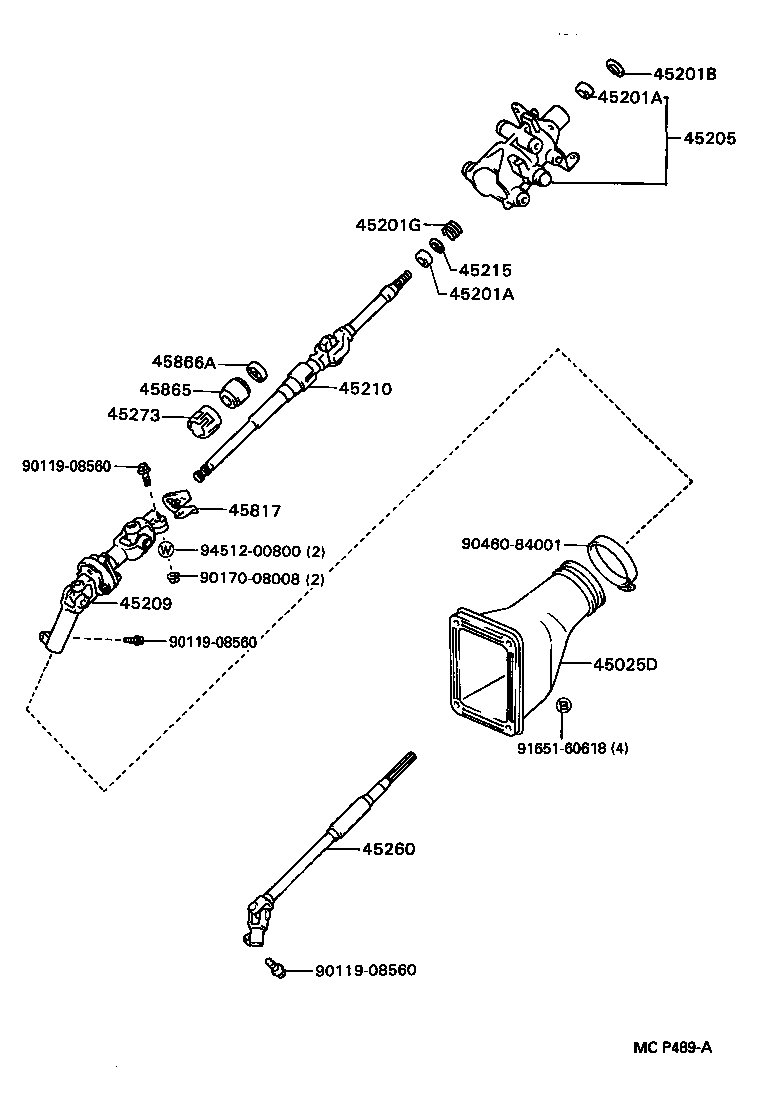

ILLUST NO. 1 OF 3(9305- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-24030 |
JZA80..LHD |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18005 |
JZA80 |
3 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18005 |
JZA80 |
3 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
JZA80 T=1.20 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-40017 |
JZA80 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-14200 |
JZA80 |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-14070 |
JZA80..LHD |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-14190 |
JZA80 |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-12010 |
JZA80 |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-24080 |
JZA80..LHD |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-22020 |
JZA80 |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45817-22030 |
JZA80 |
1 | ||
| 45865 - COLLAR, STEERING MAIN SHAFT | ||||
| 45865-12050 |
JZA80 |
1 | ||
| 45866A - STOPPER, STEERING MAIN SHAFT BUSH | ||||
| 45866-12010 |
JZA80 |
1 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90170-08008 | ||||
| 90460-84001 | ||||
| 91651-60618 | ||||
| 94512-00800 | ||||

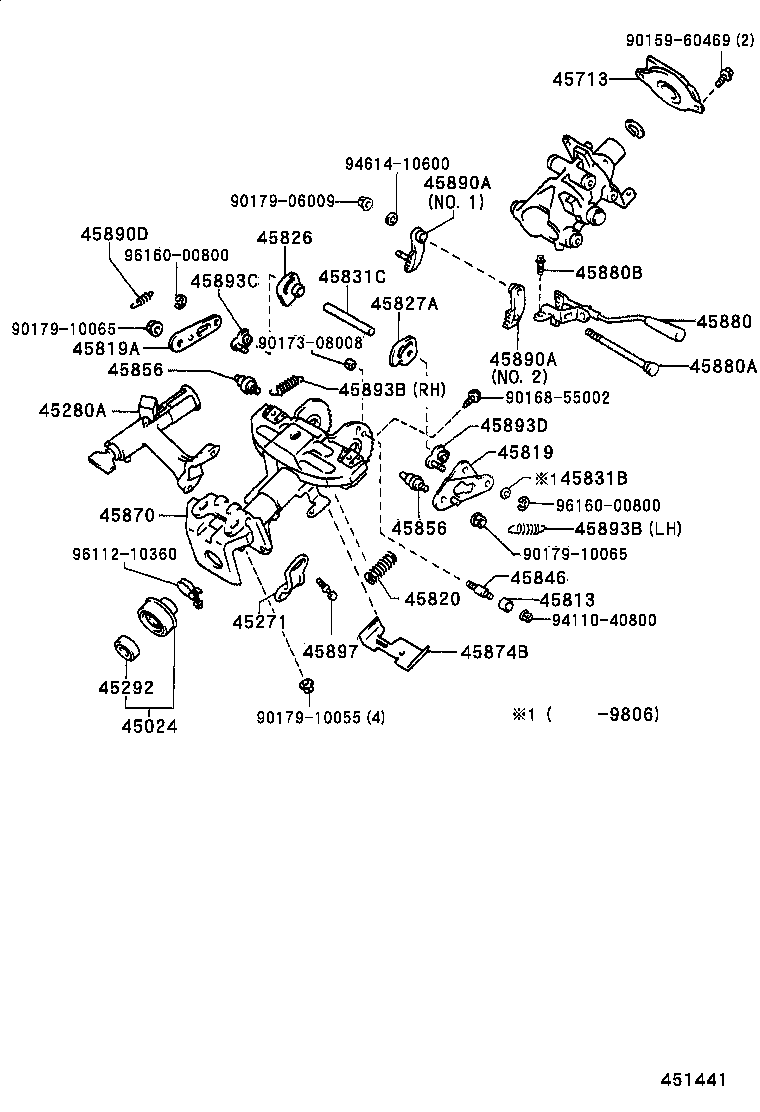

ILLUST NO. 2 OF 3(9305- )LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45024 - COVER SUB-ASSY, STEERING COLUMN, LOWER | ||||
| 45024-14060 |
JZA80 |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12060 |
JZA80 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-14120 |
JZA80 |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-22100 |
JZA80 |
1 | ||
| 45713 - DUMPER, STEERING SHAKE | ||||
| 45713-14010 |
JZA80..LHD |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-20150 |
JZA80 OD=11.75-11.85 |
1 | ||
| 45813-20140 |
JZA80 OD=11.95-12.05 |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-14040 |
JZA80 |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 45819-22060 |
JZA80 |
1 | ||
| 45820 - SPRING ASSY, TILT STEERING SUPPORT | ||||
| 45820-32020 |
JZA80..EUR |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-22050 |
JZA80 |
1 | ||
| 45827A - LEVER, STEERING TILT SUB | ||||
| 45827-22030 |
JZA80 |
1 | ||
| 45831B - SPACER(FOR TILT LEVER LOCK SHAFT) | ||||
| 90560-10062 |
JZA80 |
1 | ||
| 45831C - SHAFT, TILT LEVER LOCK | ||||
| 45831-20030 |
JZA80 |
1 | ||
| 45846 - BOLT, TILT MEMORY | ||||
| 45846-20030 |
JZA80 |
1 | ||
| 45856 - BOLT, TILT STEERING, NO.2 | ||||
| 45856-22010 |
JZA80 OD=9.989-9.998 |
2 | ||
| 45856 - BOLT, TILT STEERING, NO.2 | ||||
| 45856-22010 |
JZA80 OD=9.989-9.998 |
2 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-14200 |
JZA80 |
1 | ||
| 45880 - LEVER ASSY, STEERING TILT | ||||
| 45880-14010 |
JZA80 |
1 | ||
| 45880A - BOLT(FOR STEERING TILT LEVER) | ||||
| 90109-06168 |
JZA80 |
1 | ||
| 45880B - SCREW(FOR STEERING TILT LEVER) | ||||
| 90163-50001 |
JZA80 |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-20110 |
JZA80 NO.1 |
1 | ||
| 45890-22090 |
JZA80 NO.2 |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-20110 |
JZA80 NO.1 |
1 | ||
| 45890-22090 |
JZA80 NO.2 |
1 | ||
| 45890D - SPRING, TENSION(FOR TILT STEERING PAWL ASSY) | ||||
| 90507-07003 |
JZA80 |
1 | ||
| 45893B - SPRING, TENSION(FOR TILT STEERING PAWL STOPPER) | ||||
| 90507-08010 |
JZA80 LH |
1 | ||
| 90507-10019 |
JZA80 RH |
1 | ||
| 45893B - SPRING, TENSION(FOR TILT STEERING PAWL STOPPER) | ||||
| 90507-08010 |
JZA80 LH |
1 | ||
| 90507-10019 |
JZA80 RH |
1 | ||
| 45893C - STOPPER, STEERING PAWL, RH | ||||
| 45893-24040 |
JZA80 MARK 4 |
1 | ||
| 45893-24020 |
JZA80 MARK 2 |
1 | ||
| 45893-24010 |
JZA80 MARK 1 |
1 | ||
| 45893-24060 |
JZA80 MARK 6 |
1 | ||
| 45893-24050 |
JZA80 MARK 5 |
1 | ||
| 45893-24070 |
JZA80 MARK 7 |
1 | ||
| 45893-24030 |
JZA80 MARK 3 |
1 | ||
| 45893D - STOPPER, STEERING PAWL, LH | ||||
| 45893-20260 |
JZA80 MARK A |
1 | ||
| 45893-20270 |
JZA80 MARK B |
1 | ||
| 45893-20290 |
JZA80 MARK D |
1 | ||
| 45893-20300 |
JZA80 MARK E |
1 | ||
| 45893-20310 |
JZA80 MARK F |
1 | ||
| 45893-20280 |
JZA80 MARK C |
1 | ||
| 45893-20320 |
JZA80 MARK G |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
JZA80 |
2 | ||
| Common parts | ||||
| 90159-60469 | ||||
| 90168-55002 | ||||
| 90173-08008 | ||||
| 90179-06009 | ||||
| 90179-10055 | ||||
| 90179-10065 | ||||
| 94110-40800 | ||||
| 94614-10600 | ||||
| 96112-10360 | ||||
| 96160-00800 | ||||

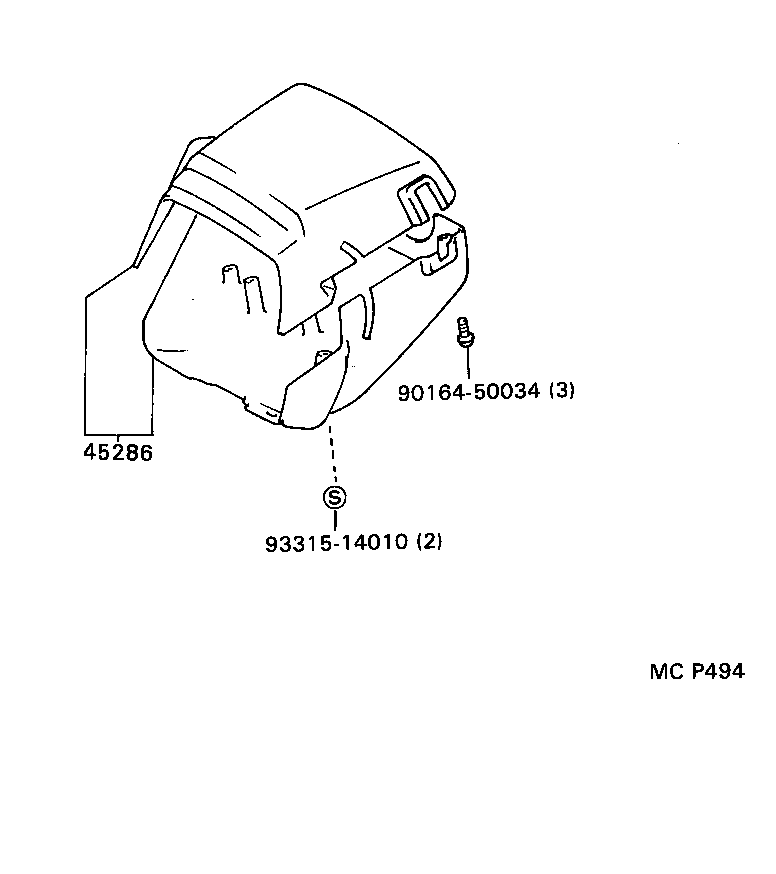

ILLUST NO. 3 OF 3(9305- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-14939C0 |
JZA80..LHD BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 90164-50034 | ||||
| 93315-14010 | ||||
ILLUST NO. 2 OF 3(9305- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60469 | ||||
| 90168-55002 | ||||
| 90173-08008 | ||||
| 90179-06009 | ||||
| 90179-10055 | ||||
| 90179-10065 | ||||
| 94110-40800 | ||||
| 94614-10600 | ||||
| 96112-10360 | ||||
| 96160-00800 | ||||

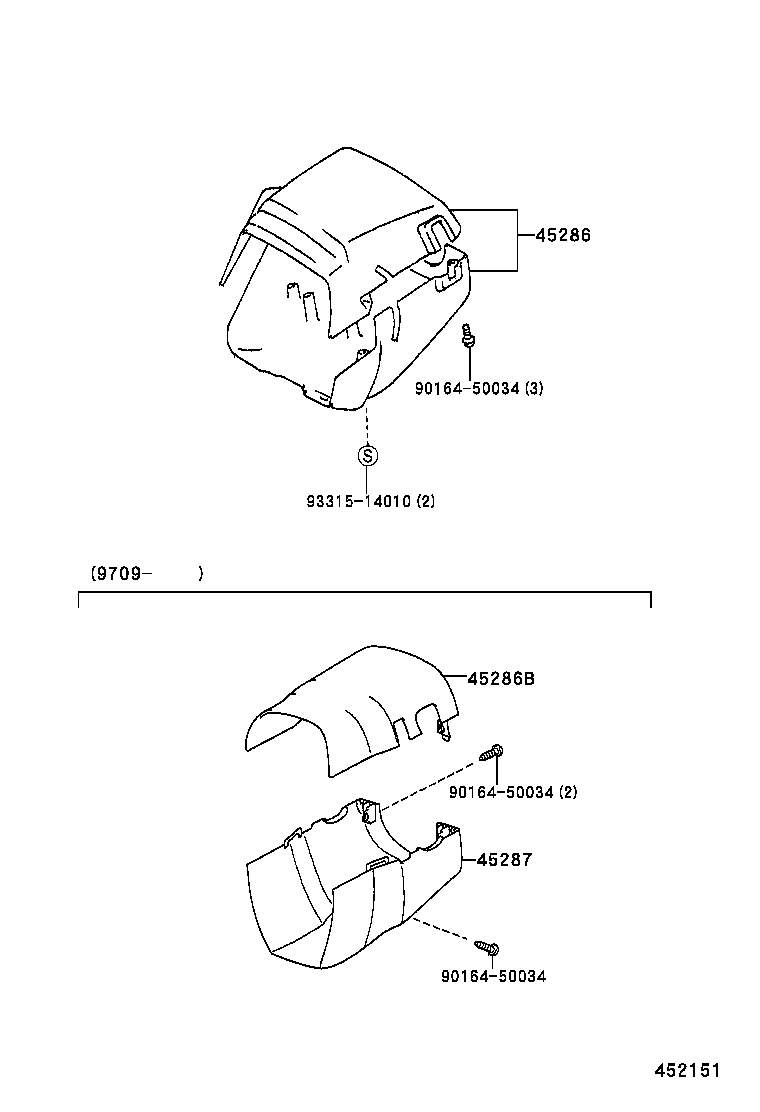

ILLUST NO. 3 OF 3(9305- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90164-50034 | ||||
| 93315-14010 | ||||

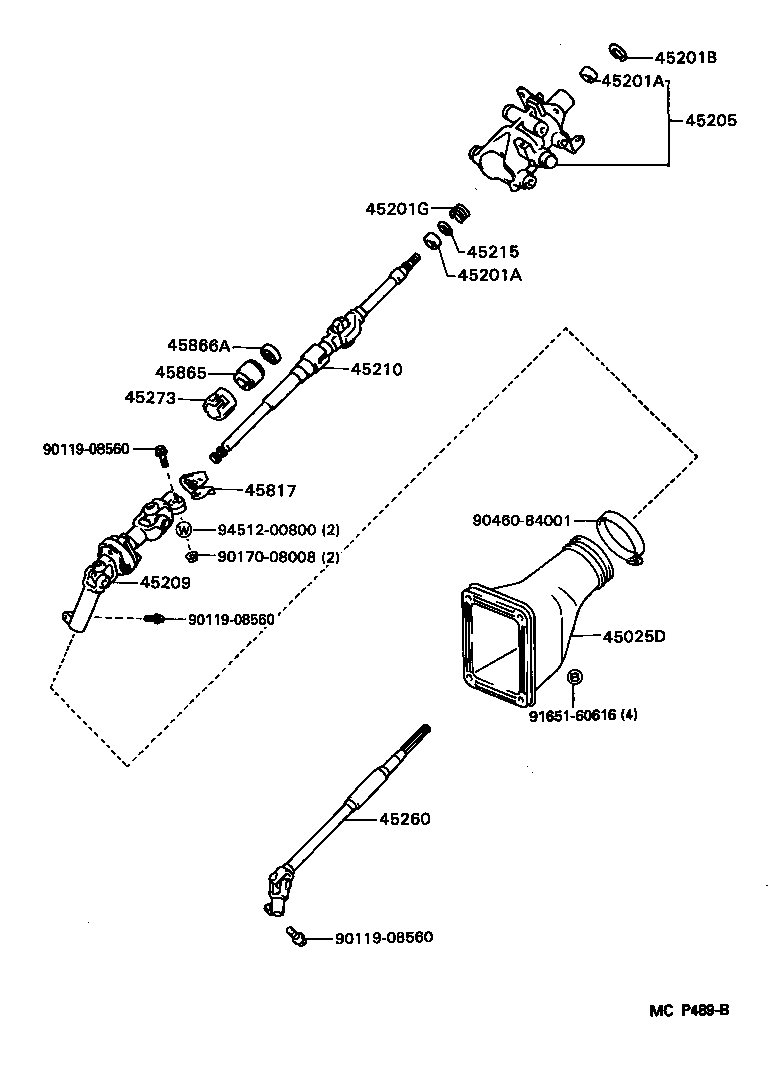

ILLUST NO. 1 OF 3(9305- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08560 | ||||
| 90170-08008 | ||||
| 90460-84001 | ||||
| 91651-60616 | ||||
| 94512-00800 | ||||
