JZA80L-ALPVZW (1993)
Toyota Supra
Production
May 1993
-
Jan 1996
Engine
2JZGTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )

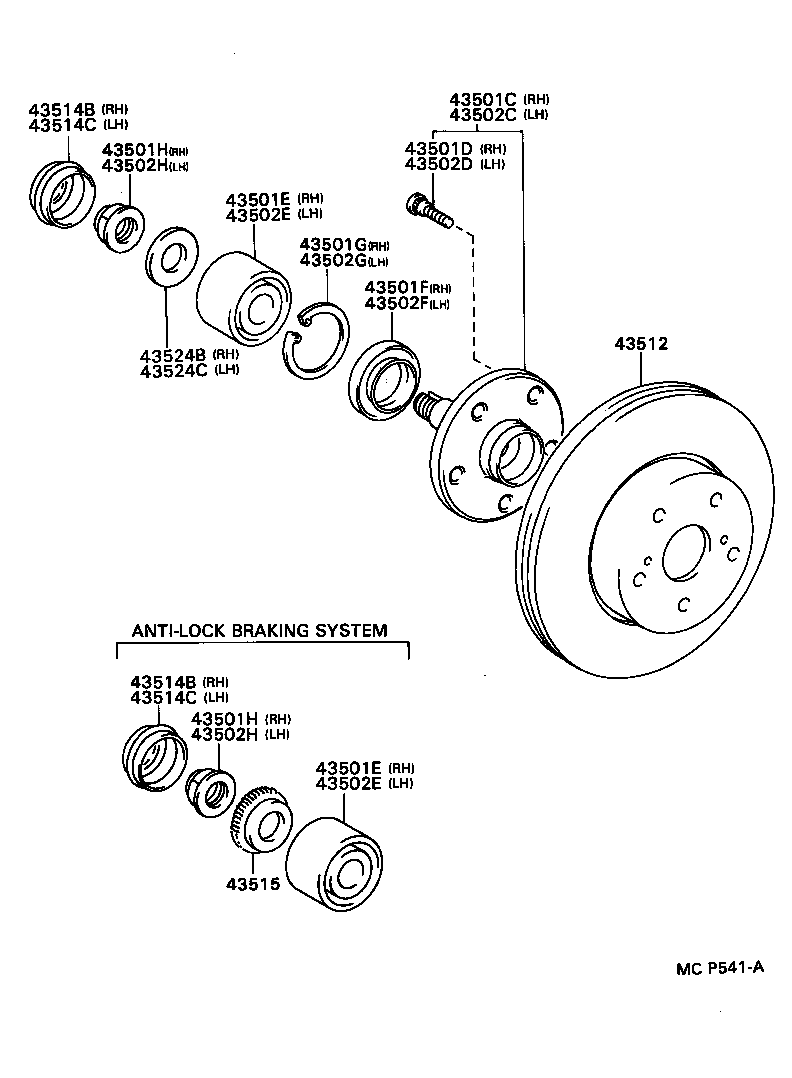

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43501C - HUB SUB-ASSY, FRONT AXLE, RH | ||||
| 43502-30140 |
JZA80 |
1 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02070 |
JZA80 |
5 | ||
| 43501E - BEARING (FOR FRONT AXLE HUB RH) | ||||
| 90369-35034 |
JZA80 |
1 | ||
| 43501E - BEARING (FOR FRONT AXLE HUB RH) | ||||
| 90369-35034 |
JZA80 |
1 | ||
| 43501F - SEAL, OIL (FOR FRONT AXLE HUB RH) | ||||
| 90311-50008 |
JZA80 |
1 | ||
| 43501G - RING, HOLE SNAP (FOR FRONT AXLE HUB RH) | ||||
| 90521-82001 |
JZA80 |
1 | ||
| 43501H - NUT (FOR FRONT AXLE SHAFT RH) | ||||
| 90179-24005 |
JZA80 |
1 | ||
| 43501H - NUT (FOR FRONT AXLE SHAFT RH) | ||||
| 90179-24005 |
JZA80 |
1 | ||
| 43502C - HUB SUB-ASSY, FRONT AXLE, LH | ||||
| 43502-30140 |
JZA80 |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02070 |
JZA80 |
5 | ||
| 43502E - BEARING (FOR FRONT AXLE HUB LH) | ||||
| 90369-35034 |
JZA80 |
1 | ||
| 43502E - BEARING (FOR FRONT AXLE HUB LH) | ||||
| 90369-35034 |
JZA80 |
1 | ||
| 43502F - SEAL, OIL (FOR FRONT AXLE HUB LH) | ||||
| 90311-50008 |
JZA80 |
1 | ||
| 43502G - RING, HOLE SNAP (FOR FRONT AXLE HUB LH) | ||||
| 90521-82001 |
JZA80 |
1 | ||
| 43502H - NUT (FOR FRONT AXLE SHAFT LH) | ||||
| 90179-24005 |
JZA80 |
1 | ||
| 43502H - NUT (FOR FRONT AXLE SHAFT LH) | ||||
| 90179-24005 |
JZA80 |
1 | ||
| 43512 - DISC, FRONT | ||||
| 43516-14030 |
JZA80..EUR LH |
1 | ||
| 43512-14200 |
JZA80..EUR RH |
1 | ||
| 43514B - CAP, FRONT AXLE HUB GREASE, RH | ||||
| 43514-24010 |
JZA80 |
1 | ||
| 43514B - CAP, FRONT AXLE HUB GREASE, RH | ||||
| 43514-24010 |
JZA80 |
1 | ||
| 43514C - CAP, FRONT AXLE HUB GREASE, LH | ||||
| 43514-24010 |
JZA80 |
1 | ||
| 43514C - CAP, FRONT AXLE HUB GREASE, LH | ||||
| 43514-24010 |
JZA80 |
1 | ||
| 43515 - ROTOR, SKID CONTROL, FRONT | ||||
| 43515-24010 |
JZA80 |
2 | ||
