JZA80L-ALPVZW (1993)
Toyota Supra

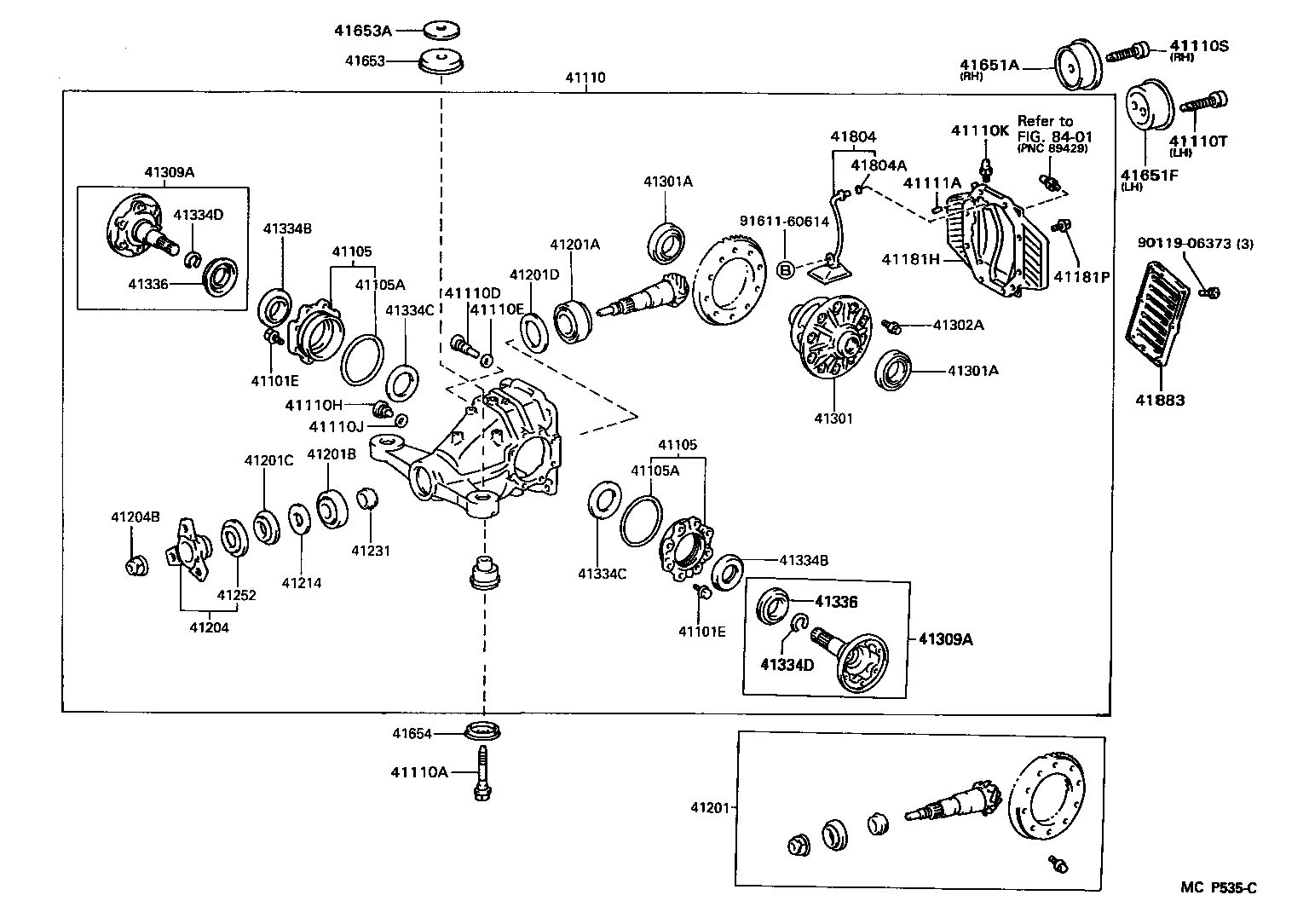

ILLUST NO. 1 OF 2(9305- )EUR,GCC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101E - BOLT (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90105-10376 |
JZA80..EUR,GCC |
16 | ||
| 41101E - BOLT (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90105-10376 |
JZA80..EUR,GCC |
16 | ||
| 41105 - RETAINER SUB-ASSY, REAR DIFFERENTIAL CARRIER | ||||
| 41105-14010 |
JZA80..EUR,GCC |
2 | ||
| 41105 - RETAINER SUB-ASSY, REAR DIFFERENTIAL CARRIER | ||||
| 41105-14010 |
JZA80..EUR,GCC |
2 | ||
| 41105A - RING, O (FOR REAR DIFFERENTIAL CARRIER RETAINER) | ||||
| 96721-31110 |
JZA80..EUR,GCC |
2 | ||
| 41105A - RING, O (FOR REAR DIFFERENTIAL CARRIER RETAINER) | ||||
| 96721-31110 |
JZA80..EUR,GCC |
2 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-14770 |
JZA80..LHD..4FC..EUR *FGR=49:15=3.266,SWITZERLAND SPEC;AUSTRIA SPEC |
1 | ||
| 41110-14750 |
JZA80..5F..GCC;JZA80..4FC..EUR *FGR=46:13=3.538 |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90105-12218 |
JZA80 *12-1.25PX90-26 |
2 | ||
| 41110D - PLUG (FOR REAR DIFFERENTIAL DRAIN) | ||||
| 90341-18035 |
JZA80..EUR,GCC |
1 | ||
| 41110E - GASKET (FOR REAR DIFFERENTIAL DRAIN PLUG) | ||||
| 12157-10010 |
JZA80 |
1 | ||
| 41110H - PLUG (FOR REAR DIFFERENTIAL FILLER) | ||||
| 90341-18023 |
JZA80 |
1 | ||
| 90341-18032 |
JZA80 |
1 | ||
| 41110J - GASKET (FOR REAR DIFFERENTIAL FILLER PLUG) | ||||
| 12157-10010 |
JZA80 |
1 | ||
| 41110K - PLUG, BREATHER (FOR REAR DIFFERENTIAL) | ||||
| 90930-03127 |
JZA80 |
1 | ||
| 41110S - BOLT, NO.2 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90110-14003 |
JZA80..EUR |
1 | ||
| 41110T - BOLT, NO.3 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90110-14003 |
JZA80 |
2 | ||
| 41111A - PIN, STRAIGHT (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90250-10017 |
JZA80 |
2 | ||
| 41181H - COVER, REAR DIFFERENTIAL CARRIER | ||||
| 41181-14070 |
JZA80..EUR,GCC |
1 | ||
| 41181P - BOLT (FOR REAR DIFFERENTIAL CARRIER COVER SETTING) | ||||
| 90105-12257 |
JZA80..EUR,GCC |
8 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-80055 |
JZA80..LHD..4FC..EUR *FGR=49:15=3.267,SWITZERLAND SPEC;AUSTRIA SPEC |
1 | ||
| 41201-80056 |
JZA80..5F..GCC;JZA80..4FC..EUR *FGR=46:13=3.538 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-50039 |
JZA80..EUR,GCC |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-38009 |
JZA80..EUR,GCC |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-50018 |
JZA80..EUR,GCC |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90560-82004 |
JZA80..EUR,GCC T=1.83,MARK 83 |
1 | ||
| 90560-82002 |
JZA80..EUR,GCC T=1.81,MARK 81 |
1 | ||
| 90560-82007 |
JZA80..EUR,GCC T=1.86,MARK 86 |
1 | ||
| 90560-82006 |
JZA80..EUR,GCC T=1.85,MARK 85 |
1 | ||
| 90560-82003 |
JZA80..EUR,GCC T=1.82,MARK 82 |
1 | ||
| 90560-82001 |
JZA80..EUR,GCC T=1.80,MARK 80 |
1 | ||
| 90560-82005 |
JZA80..EUR,GCC T=1.84,MARK 84 |
1 | ||
| 90560-82008 |
JZA80..EUR,GCC T=1.87,MARK 87 |
1 | ||
| 90560-82014 |
JZA80..EUR,GCC T=1.93,MARK 93 |
1 | ||
| 90560-82013 |
JZA80..EUR,GCC T=1.92,MARK 92 |
1 | ||
| 90560-82020 |
JZA80..EUR,GCC T=1.99,MARK 99 |
1 | ||
| 90560-82018 |
JZA80..EUR,GCC T=1.97,MARK 97 |
1 | ||
| 90560-82009 |
JZA80..EUR,GCC T=1.88,MARK 88 |
1 | ||
| 90560-82021 |
JZA80..EUR,GCC T=2.00,MARK 00 |
1 | ||
| 90560-82019 |
JZA80..EUR,GCC T=1.98,MARK 98 |
1 | ||
| 90560-82023 |
JZA80..EUR,GCC T=2.02,MARK 02 |
1 | ||
| 90560-82017 |
JZA80..EUR,GCC T=1.96,MARK 96 |
1 | ||
| 90560-82024 |
JZA80..EUR,GCC T=2.03,MARK 03 |
1 | ||
| 90560-82012 |
JZA80..EUR,GCC T=1.91,MARK 91 |
1 | ||
| 90560-82022 |
JZA80..EUR,GCC T=2.01,MARK 01 |
1 | ||
| 90560-82026 |
JZA80..EUR,GCC T=2.05,MARK 05 |
1 | ||
| 90560-82028 |
JZA80..EUR,GCC T=2.07,MARK 07 |
1 | ||
| 90560-82015 |
JZA80..EUR,GCC T=1.94,MARK 94 |
1 | ||
| 90560-82030 |
JZA80..EUR,GCC T=2.09,MARK 09 |
1 | ||
| 90560-82027 |
JZA80..EUR,GCC T=2.06,MARK 06 |
1 | ||
| 90560-82035 |
JZA80..EUR,GCC T=2.14,MARK 14 |
1 | ||
| 90560-82025 |
JZA80..EUR,GCC T=2.04,MARK 04 |
1 | ||
| 90560-82011 |
JZA80..EUR,GCC T=1.90,MARK 90 |
1 | ||
| 90560-82037 |
JZA80..EUR,GCC T=2.16,MARK 16 |
1 | ||
| 90560-82033 |
JZA80..EUR,GCC T=2.12,MARK 12 |
1 | ||
| 90560-82032 |
JZA80..EUR,GCC T=2.11,MARK 11 |
1 | ||
| 90560-82031 |
JZA80..EUR,GCC T=2.10,MARK 10 |
1 | ||
| 90560-82036 |
JZA80..EUR,GCC T=2.15,MARK 15 |
1 | ||
| 90560-82029 |
JZA80..EUR,GCC T=2.08,MARK 08 |
1 | ||
| 90560-82010 |
JZA80..EUR,GCC T=1.89,MARK 89 |
1 | ||
| 90560-82038 |
JZA80..EUR,GCC T=2.17,MARK 17 |
1 | ||
| 90560-82034 |
JZA80..EUR,GCC T=2.13,MARK 13 |
1 | ||
| 90560-82040 |
JZA80..EUR,GCC T=1.77,MARK 77 |
1 | ||
| 90560-82042 |
JZA80..EUR,GCC T=1.79,MARK 79 |
1 | ||
| 90560-82016 |
JZA80..EUR,GCC T=1.95,MARK 95 |
1 | ||
| 90560-82039 |
JZA80..EUR,GCC T=2.18,MARK 18 |
1 | ||
| 90560-82041 |
JZA80..EUR,GCC T=1.78,MARK 78 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-14010 |
JZA80..EUR,GCC |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-28006 |
JZA80..EUR,GCC OD=48.0 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-14010 |
JZA80..EUR,GCC |
1 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-14110 |
JZA80..EUR,GCC |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-14010 |
JZA80..EUR,GCC |
1 | ||
| 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-14090 |
JZA80..(4FC,5F)..(EUR,GCC) |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-54014 |
JZA80..EUR,GCC |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-54014 |
JZA80..EUR,GCC |
2 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90901-05012 |
JZA80..EUR,GCC |
12 | ||
| 41309A - SHAFT SUB-ASSY, REAR DIFFERENTIAL SIDE GEAR | ||||
| 41309-14080 |
JZA80..EUR,GCC |
2 | ||
| 41309A - SHAFT SUB-ASSY, REAR DIFFERENTIAL SIDE GEAR | ||||
| 41309-14080 |
JZA80..EUR,GCC |
2 | ||
| 41334B - SEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-45013 |
JZA80..EUR,GCC |
2 | ||
| 41334B - SEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-45013 |
JZA80..EUR,GCC |
2 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90209-99002 |
JZA80..EUR,GCC T=1.18,MARK 18 |
1 | ||
| 90209-99006 |
JZA80..EUR,GCC T=1.26,MARK 26 |
1 | ||
| 90209-99010 |
JZA80..EUR,GCC T=1.34,MARK 34 |
1 | ||
| 90209-99007 |
JZA80..EUR,GCC T=1.28,MARK 28 |
1 | ||
| 90209-99008 |
JZA80..EUR,GCC T=1.30,MARK 30 |
1 | ||
| 90209-99009 |
JZA80..EUR,GCC T=1.32,MARK 32 |
1 | ||
| 90209-99013 |
JZA80..EUR,GCC T=1.40,MARK 40 |
1 | ||
| 90209-99011 |
JZA80..EUR,GCC T=1.36,MARK 36 |
1 | ||
| 90209-99004 |
JZA80..EUR,GCC T=1.22,MARK 22 |
1 | ||
| 90209-99015 |
JZA80..EUR,GCC T=1.44,MARK 44 |
1 | ||
| 90209-99018 |
JZA80..EUR,GCC T=1.50,MARK 50 |
1 | ||
| 90209-99022 |
JZA80..EUR,GCC T=1.58,MARK 58 |
1 | ||
| 90209-99014 |
JZA80..EUR,GCC T=1.42,MARK 42 |
1 | ||
| 90209-99005 |
JZA80..EUR,GCC T=1.24,MARK 24 |
1 | ||
| 90209-99017 |
JZA80..EUR,GCC T=1.48,MARK 48 |
1 | ||
| 90209-99028 |
JZA80..EUR,GCC T=1.70,MARK 70 |
1 | ||
| 90209-99026 |
JZA80..EUR,GCC T=1.66,MARK 66 |
1 | ||
| 90209-99016 |
JZA80..EUR,GCC T=1.46,MARK 46 |
1 | ||
| 90209-99019 |
JZA80..EUR,GCC T=1.52,MARK 52 |
1 | ||
| 90209-99027 |
JZA80..EUR,GCC T=1.68,MARK 68 |
1 | ||
| 90209-99020 |
JZA80..EUR,GCC T=1.54,MARK 54 |
1 | ||
| 90209-99031 |
JZA80..EUR,GCC T=1.76,MARK 76 |
1 | ||
| 90209-99033 |
JZA80..EUR,GCC T=1.80,MARK 80 |
1 | ||
| 90209-99024 |
JZA80..EUR,GCC T=1.62,MARK 62 |
1 | ||
| 90209-99034 |
JZA80..EUR,GCC T=1.82,MARK 82 |
1 | ||
| 90209-99021 |
JZA80..EUR,GCC T=1.56,MARK 56 |
1 | ||
| 90209-99035 |
JZA80..EUR,GCC T=1.84,MARK 84 |
1 | ||
| 90209-99012 |
JZA80..EUR,GCC T=1.38,MARK 38 |
1 | ||
| 90209-99025 |
JZA80..EUR,GCC T=1.64,MARK 64 |
1 | ||
| 90209-99029 |
JZA80..EUR,GCC T=1.72,MARK 72 |
1 | ||
| 90209-99003 |
JZA80..EUR,GCC T=1.20,MARK 20 |
1 | ||
| 90209-99032 |
JZA80..EUR,GCC T=1.78,MARK 78 |
1 | ||
| 90209-99023 |
JZA80..EUR,GCC T=1.60,MARK 60 |
1 | ||
| 90209-99030 |
JZA80..EUR,GCC T=1.74,MARK 74 |
1 | ||
| 90209-99040 |
JZA80..EUR,GCC T=1.08,MARK 08 |
1 | ||
| 90209-99036 |
JZA80..EUR,GCC T=1.86,MARK 86 |
1 | ||
| 90209-99043 |
JZA80..EUR,GCC T=1.14,MARK 14 |
1 | ||
| 90209-99038 |
JZA80..EUR,GCC T=1.90,MARK 90 |
1 | ||
| 90209-99037 |
JZA80..EUR,GCC T=1.88,MARK 88 |
1 | ||
| 90209-99042 |
JZA80..EUR,GCC T=1.12,MARK 12 |
1 | ||
| 90209-99044 |
JZA80..EUR,GCC T=1.16,MARK 16 |
1 | ||
| 90209-99039 |
JZA80..EUR,GCC T=1.92,MARK 92 |
1 | ||
| 90209-99041 |
JZA80..EUR,GCC T=1.10,MARK 10 |
1 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90209-99002 |
JZA80..EUR,GCC T=1.18,MARK 18 |
1 | ||
| 90209-99006 |
JZA80..EUR,GCC T=1.26,MARK 26 |
1 | ||
| 90209-99010 |
JZA80..EUR,GCC T=1.34,MARK 34 |
1 | ||
| 90209-99007 |
JZA80..EUR,GCC T=1.28,MARK 28 |
1 | ||
| 90209-99008 |
JZA80..EUR,GCC T=1.30,MARK 30 |
1 | ||
| 90209-99009 |
JZA80..EUR,GCC T=1.32,MARK 32 |
1 | ||
| 90209-99013 |
JZA80..EUR,GCC T=1.40,MARK 40 |
1 | ||
| 90209-99011 |
JZA80..EUR,GCC T=1.36,MARK 36 |
1 | ||
| 90209-99004 |
JZA80..EUR,GCC T=1.22,MARK 22 |
1 | ||
| 90209-99015 |
JZA80..EUR,GCC T=1.44,MARK 44 |
1 | ||
| 90209-99018 |
JZA80..EUR,GCC T=1.50,MARK 50 |
1 | ||
| 90209-99022 |
JZA80..EUR,GCC T=1.58,MARK 58 |
1 | ||
| 90209-99014 |
JZA80..EUR,GCC T=1.42,MARK 42 |
1 | ||
| 90209-99005 |
JZA80..EUR,GCC T=1.24,MARK 24 |
1 | ||
| 90209-99017 |
JZA80..EUR,GCC T=1.48,MARK 48 |
1 | ||
| 90209-99028 |
JZA80..EUR,GCC T=1.70,MARK 70 |
1 | ||
| 90209-99026 |
JZA80..EUR,GCC T=1.66,MARK 66 |
1 | ||
| 90209-99016 |
JZA80..EUR,GCC T=1.46,MARK 46 |
1 | ||
| 90209-99019 |
JZA80..EUR,GCC T=1.52,MARK 52 |
1 | ||
| 90209-99027 |
JZA80..EUR,GCC T=1.68,MARK 68 |
1 | ||
| 90209-99020 |
JZA80..EUR,GCC T=1.54,MARK 54 |
1 | ||
| 90209-99031 |
JZA80..EUR,GCC T=1.76,MARK 76 |
1 | ||
| 90209-99033 |
JZA80..EUR,GCC T=1.80,MARK 80 |
1 | ||
| 90209-99024 |
JZA80..EUR,GCC T=1.62,MARK 62 |
1 | ||
| 90209-99034 |
JZA80..EUR,GCC T=1.82,MARK 82 |
1 | ||
| 90209-99021 |
JZA80..EUR,GCC T=1.56,MARK 56 |
1 | ||
| 90209-99035 |
JZA80..EUR,GCC T=1.84,MARK 84 |
1 | ||
| 90209-99012 |
JZA80..EUR,GCC T=1.38,MARK 38 |
1 | ||
| 90209-99025 |
JZA80..EUR,GCC T=1.64,MARK 64 |
1 | ||
| 90209-99029 |
JZA80..EUR,GCC T=1.72,MARK 72 |
1 | ||
| 90209-99003 |
JZA80..EUR,GCC T=1.20,MARK 20 |
1 | ||
| 90209-99032 |
JZA80..EUR,GCC T=1.78,MARK 78 |
1 | ||
| 90209-99023 |
JZA80..EUR,GCC T=1.60,MARK 60 |
1 | ||
| 90209-99030 |
JZA80..EUR,GCC T=1.74,MARK 74 |
1 | ||
| 90209-99040 |
JZA80..EUR,GCC T=1.08,MARK 08 |
1 | ||
| 90209-99036 |
JZA80..EUR,GCC T=1.86,MARK 86 |
1 | ||
| 90209-99043 |
JZA80..EUR,GCC T=1.14,MARK 14 |
1 | ||
| 90209-99038 |
JZA80..EUR,GCC T=1.90,MARK 90 |
1 | ||
| 90209-99037 |
JZA80..EUR,GCC T=1.88,MARK 88 |
1 | ||
| 90209-99042 |
JZA80..EUR,GCC T=1.12,MARK 12 |
1 | ||
| 90209-99044 |
JZA80..EUR,GCC T=1.16,MARK 16 |
1 | ||
| 90209-99039 |
JZA80..EUR,GCC T=1.92,MARK 92 |
1 | ||
| 90209-99041 |
JZA80..EUR,GCC T=1.10,MARK 10 |
1 | ||
| 41334D - RING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT | ||||
| 90521-38005 |
JZA80..EUR,GCC |
2 | ||
| 41334D - RING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT | ||||
| 90521-38005 |
JZA80..EUR,GCC |
2 | ||
| 41336 - COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 41336-14020 |
JZA80..EUR,GCC |
2 | ||
| 41336 - COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 41336-14020 |
JZA80..EUR,GCC |
2 | ||
| 41651A - CUSHION, REAR DIFFERENTIAL MOUNT, NO.2 | ||||
| 41651-14020 |
JZA80..EUR |
1 | ||
| 41651F - CUSHION, REAR DIFFERENTIAL MOUMT, NO.3 | ||||
| 41651-24020 |
JZA80..4FC,5F |
1 | ||
| 41653 - STOPPER, REAR DIFFERENTIAL MOUNT, UPPER | ||||
| 41653-14010 |
JZA80 |
2 | ||
| 41653A - WASHER, PLATE (FOR REAR DIFFERENTIAL MOUNT STOPPER UPPE | ||||
| 90201-15020 |
JZA80 T=1.0 |
1 | ||
| 90201-15028 |
JZA80 T=1.6 |
1 | ||
| 90201-15021 |
JZA80 T=2.0 |
1 | ||
| 41654 - STOPPER, REAR DIFFERENTIAL MOUNT, LOWER | ||||
| 41654-30010 |
JZA80 |
2 | ||
| 41804 - STRAINER SUB-ASSY, REAR DIFFERENTIAL OIL | ||||
| 41804-14010 |
JZA80..EUR,GCC |
1 | ||
| 41804A - RING, O (FOR REAR DIFFERENTIAL OIL STRAINER) | ||||
| 96721-19012 |
JZA80..EUR,GCC |
1 | ||
| 41883 - COVER, REAR DIFFERENTIAL OIL COOLER | ||||
| 41883-14010 |
JZA80..EUR,GCC |
1 | ||
| Common parts | ||||
| 90119-06373 | ||||
| 91611-60614 | ||||
| Linked diagrams | ||||
| 8401 | ||||

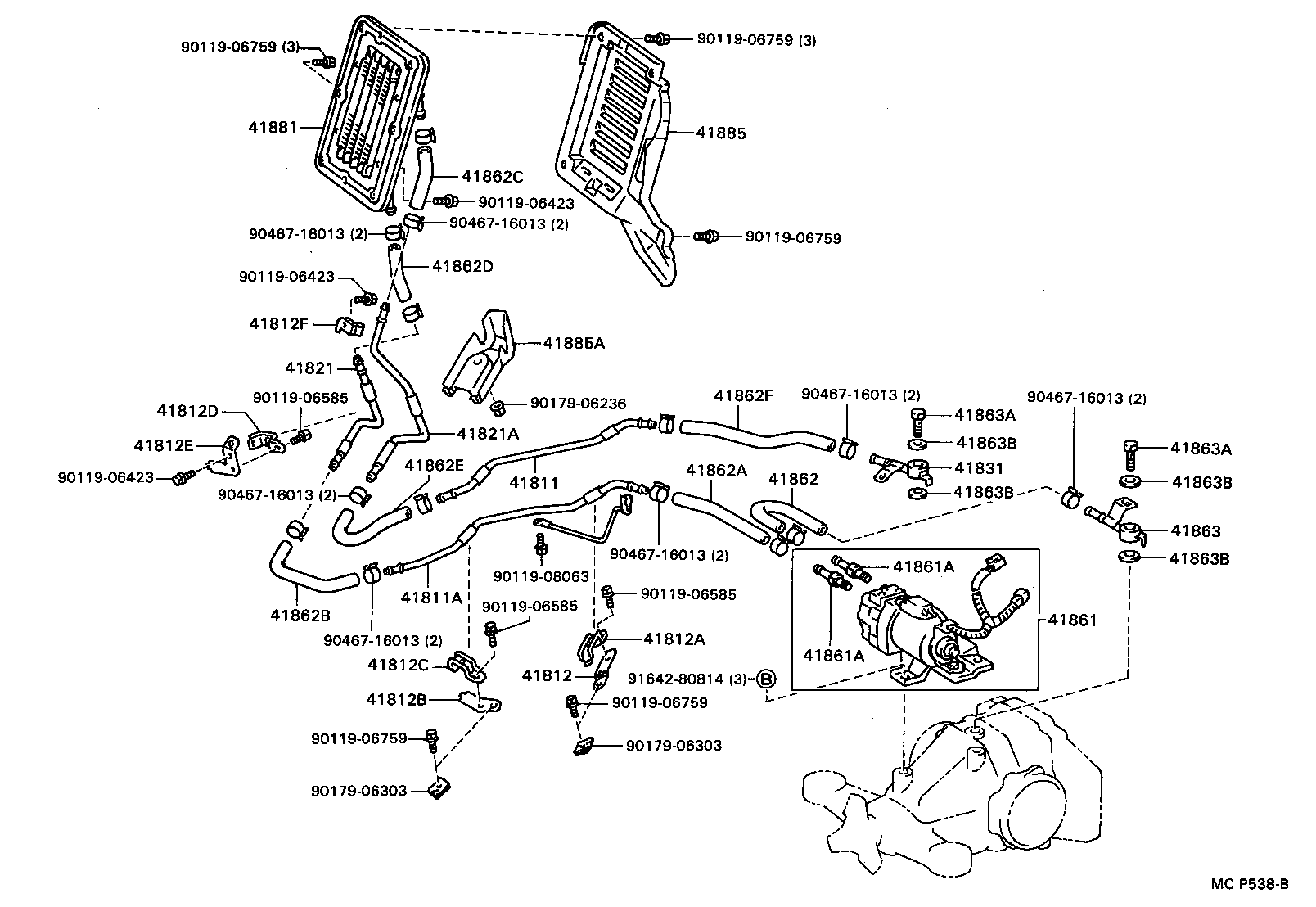

ILLUST NO. 2 OF 2(9305- )EUR,GCC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41811 - TUBE, REAR DIFFERENTIAL OIL COOLER, NO.1 | ||||
| 41811-14030 |
JZA80..EUR,GCC |
1 | ||
| 41811A - TUBE, REAR DIFFERENTIAL OIL COOLER, NO.3 | ||||
| 41811-14020 |
JZA80..EUR,GCC |
1 | ||
| 41812 - CLAMP, REAR DIFFERENTIAL OIL COOLER TUBE, NO.1 | ||||
| 41812-14010 |
JZA80..EUR,GCC |
1 | ||
| 41812A - CLAMP, REAR DIFFERENTIAL OIL COOLER TUBE, NO.2 | ||||
| 32929-24070 |
JZA80..EUR,GCC |
1 | ||
| 41812B - CLAMP, REAR DIFFERENTIAL OIL COOLER TUBE, NO.3 | ||||
| 41812-14020 |
JZA80..EUR,GCC |
1 | ||
| 41812C - CLAMP, REAR DIFFERENTIAL OIL COOLER TUBE, NO.4 | ||||
| 32929-24070 |
JZA80..EUR,GCC |
1 | ||
| 41812D - CLAMP, REAR DIFFERENTIAL OIL COOLER TUBE, NO.5 | ||||
| 32929-24070 |
JZA80..EUR,GCC |
1 | ||
| 41812E - CLAMP, REAR DIFFERENTIAL OIL COOLER TUBE, NO.6 | ||||
| 41822-14010 |
JZA80..EUR,GCC |
1 | ||
| 41812F - CLAMP, REAR DIFFERENTIAL OIL COOLER TUBE, NO.7 | ||||
| 90461-12337 |
JZA80..EUR,GCC |
1 | ||
| 41821 - TUBE, REAR DIFFERENTIAL OIL COOLER, NO.2 | ||||
| 41821-14010 |
JZA80..EUR,GCC |
1 | ||
| 41821A - TUBE, REAR DIFFERENTIAL OIL COOLER, NO.4 | ||||
| 41821-14020 |
JZA80..EUR,GCC |
1 | ||
| 41831 - TUBE, REAR DIFFERENTIAL OIL COOLER OUTLET | ||||
| 41831-14010 |
JZA80..EUR,GCC |
1 | ||
| 41861 - PUMP, REAR DIFFERENTIAL OIL COOLER | ||||
| 41861-14010 |
JZA80..EUR,GCC |
1 | ||
| 41861A - UNION (FOR REAR DIFFERENTIAL OIL COOLER PUMP) | ||||
| 90404-51070 |
JZA80..EUR,GCC |
2 | ||
| 41861A - UNION (FOR REAR DIFFERENTIAL OIL COOLER PUMP) | ||||
| 90404-51070 |
JZA80..EUR,GCC |
2 | ||
| 41862 - HOSE, REAR DIFFERENTIAL OIL COOLER, NO.1 | ||||
| 41862-14030 |
JZA80..EUR,GCC |
1 | ||
| 41862A - HOSE, REAR DIFFERENTIAL OIL COOLER, NO.2 | ||||
| 90445-17130 |
JZA80..EUR,GCC |
1 | ||
| 41862B - HOSE, REAR DIFFERENTIAL OIL COOLER, NO.3 | ||||
| 41862-14010 |
JZA80..EUR,GCC |
1 | ||
| 41862C - HOSE, REAR DIFFERENTIAL OIL COOLER, NO.4 | ||||
| 90445-17132 |
JZA80..EUR,GCC |
1 | ||
| 41862D - HOSE, REAR DIFFERENTIAL OIL COOLER, NO.5 | ||||
| 90445-17131 |
JZA80..EUR,GCC |
1 | ||
| 41862E - HOSE, REAR DIFFERENTIAL OIL COOLER, NO.6 | ||||
| 41862-14020 |
JZA80..EUR,GCC |
1 | ||
| 41862F - HOSE, REAR DIFFERENTIAL OIL COOLER, NO.7 | ||||
| 41862-14050 |
JZA80..EUR,GCC |
1 | ||
| 41863 - TUBE, REAR DIFFERENTIAL OIL COOLER INLET | ||||
| 41863-14010 |
JZA80..EUR,GCC |
1 | ||
| 41863A - BOLT, UNION (FOR REAR DIFFERENTIAL OIL COOLER TUBE) | ||||
| 90401-16032 |
JZA80..EUR,GCC |
2 | ||
| 41863A - BOLT, UNION (FOR REAR DIFFERENTIAL OIL COOLER TUBE) | ||||
| 90401-16032 |
JZA80..EUR,GCC |
2 | ||
| 41863B - GASKET (FOR REAR DIFFERENTIAL OIL COOLER TUBE) | ||||
| 90430-16007 |
JZA80..EUR,GCC |
4 | ||
| 41863B - GASKET (FOR REAR DIFFERENTIAL OIL COOLER TUBE) | ||||
| 90430-16007 |
JZA80..EUR,GCC |
4 | ||
| 41863B - GASKET (FOR REAR DIFFERENTIAL OIL COOLER TUBE) | ||||
| 90430-16007 |
JZA80..EUR,GCC |
4 | ||
| 41863B - GASKET (FOR REAR DIFFERENTIAL OIL COOLER TUBE) | ||||
| 90430-16007 |
JZA80..EUR,GCC |
4 | ||
| 41881 - COOLER, REAR DIFFERENTIAL OIL | ||||
| 41881-14010 |
JZA80..EUR,GCC |
1 | ||
| 41885 - PROTECTOR, REAR DIFFERENTIAL OIL COOLER, NO.1 | ||||
| 41885-14010 |
JZA80..EUR,GCC |
1 | ||
| 41885A - PROTECTOR, REAR DIFFERENTIAL OIL COOLER, NO.2 | ||||
| 41885-14020 |
JZA80..EUR,GCC |
1 | ||
| Common parts | ||||
| 90119-06423 | ||||
| 90119-06585 | ||||
| 90119-06759 | ||||
| 90119-08063 | ||||
| 90179-06236 | ||||
| 90179-06303 | ||||
| 90467-16013 | ||||
| 91642-80814 | ||||
(9305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06373 | ||||
| 91651-60614 | ||||
(9305- )

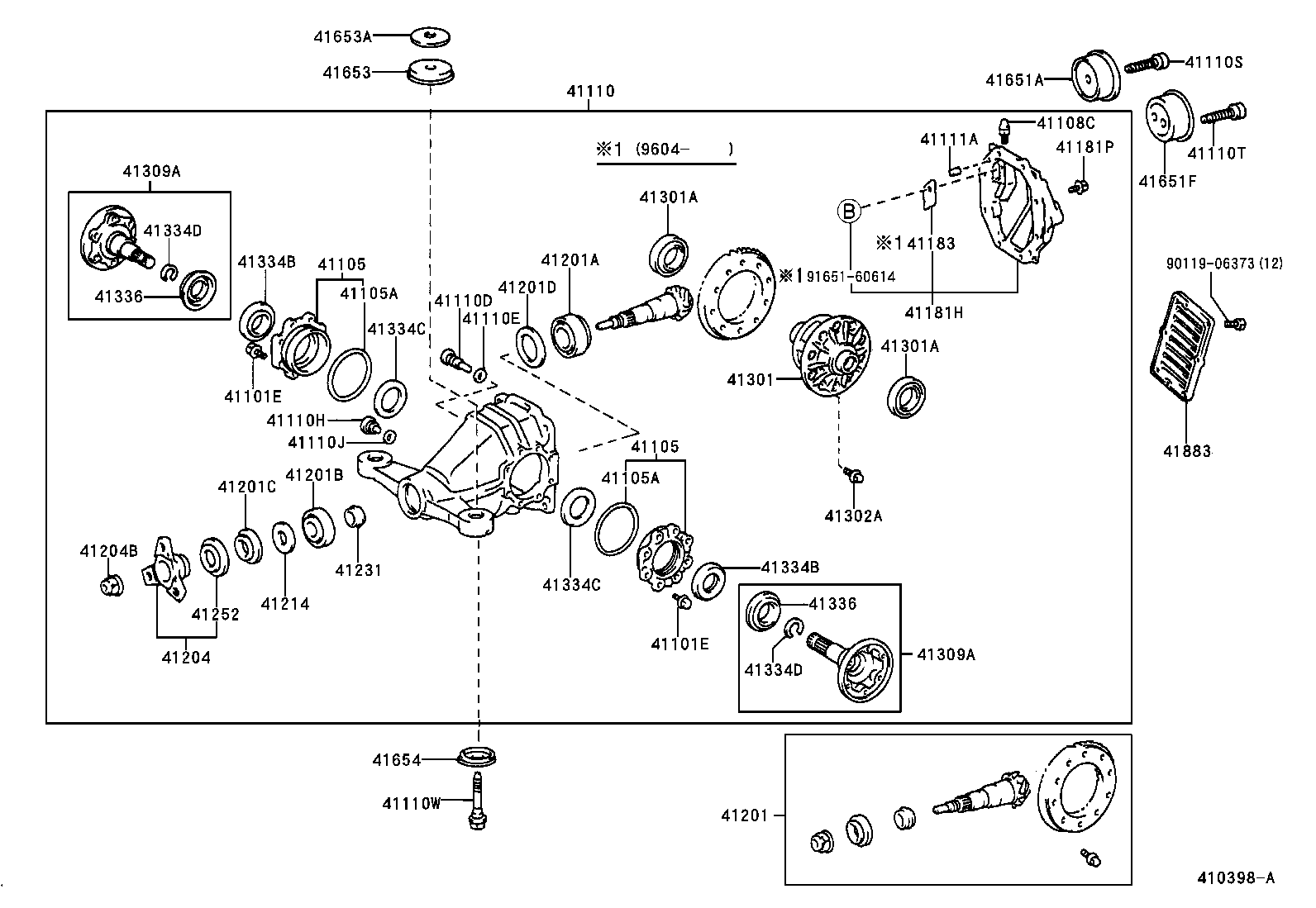

LIMITED SLIP DIFFERENTIAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06373 | ||||
| 91651-60614 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
