JZA80L-ALPVZW (1993)
Toyota Supra
Production
May 1993
-
Jan 1996
Engine
2JZGTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )4FC

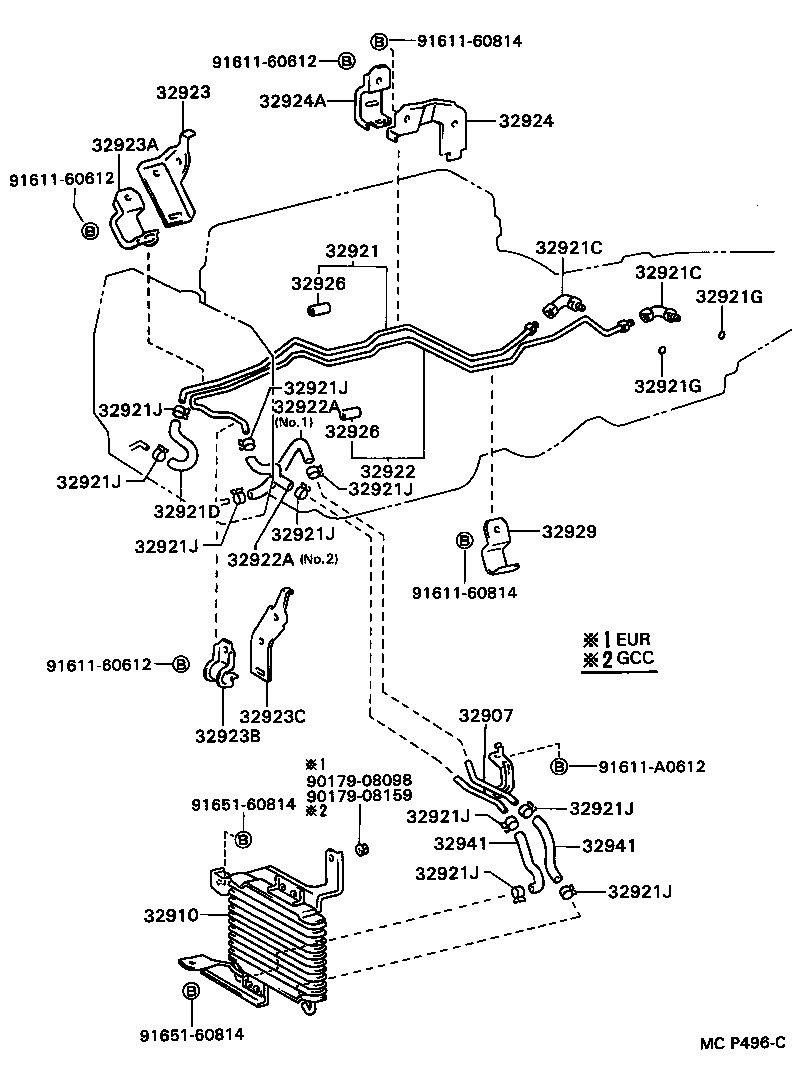

Click highlighted areas on diagram
A340E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32907 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2 | ||||
| 32907-14020 |
JZA80..4FC |
1 | ||
| 32910 - COOLER ASSY, OIL | ||||
| 32910-14030 |
JZA80..4FC |
1 | ||
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-14270 |
JZA80..4FC..EUR |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-14025 |
JZA80..4FC FR |
1 | ||
| 90407-16009 |
JZA80..4FC RR |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-14025 |
JZA80..4FC FR |
1 | ||
| 90407-16009 |
JZA80..4FC RR |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 90445-17102 |
JZA80..4FC..EUR |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
JZA80..4FC |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
JZA80..4FC |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
JZA80..4FC |
10 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
JZA80..4FC |
10 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
JZA80..4FC |
10 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
JZA80..4FC |
10 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
JZA80..4FC |
10 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
JZA80..4FC |
10 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
JZA80..4FC |
10 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
JZA80..4FC |
10 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
JZA80..4FC |
10 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
JZA80..4FC |
10 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-14270 |
JZA80..4FC..EUR |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-17095 |
JZA80..4FC NO.2 |
1 | ||
| 32942-14130 |
JZA80..4FC NO.1 |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-17095 |
JZA80..4FC NO.2 |
1 | ||
| 32942-14130 |
JZA80..4FC NO.1 |
1 | ||
| 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32924-22090 |
JZA80..4FC |
1 | ||
| 32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32929-24070 |
JZA80..4FC |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32929-14030 |
JZA80..4FC |
1 | ||
| 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 32924-14040 |
JZA80..4FC |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32923-30161 |
JZA80..4FC |
1 | ||
| 32924A - CLAMP(FOR OIL COOLER TUBE, NO.2) | ||||
| 32929-24070 |
JZA80..4FC |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
JZA80..4FC L=35,ID=10 |
7 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
JZA80..4FC L=35,ID=10 |
7 | ||
| 32929 - CLAMP, FLEXIBLE HOSE, NO.2 | ||||
| 32929-24060 |
JZA80..4FC |
1 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 90445-17096 |
JZA80..4FC |
2 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 90445-17096 |
JZA80..4FC |
2 | ||
| Common parts | ||||
| 90179-08098 | ||||
| 90179-08159 | ||||
| 91611-60612 | ||||
| 91611-60814 | ||||
| 91611-A0612 | ||||
| 91651-60814 | ||||
(9305- )4FC

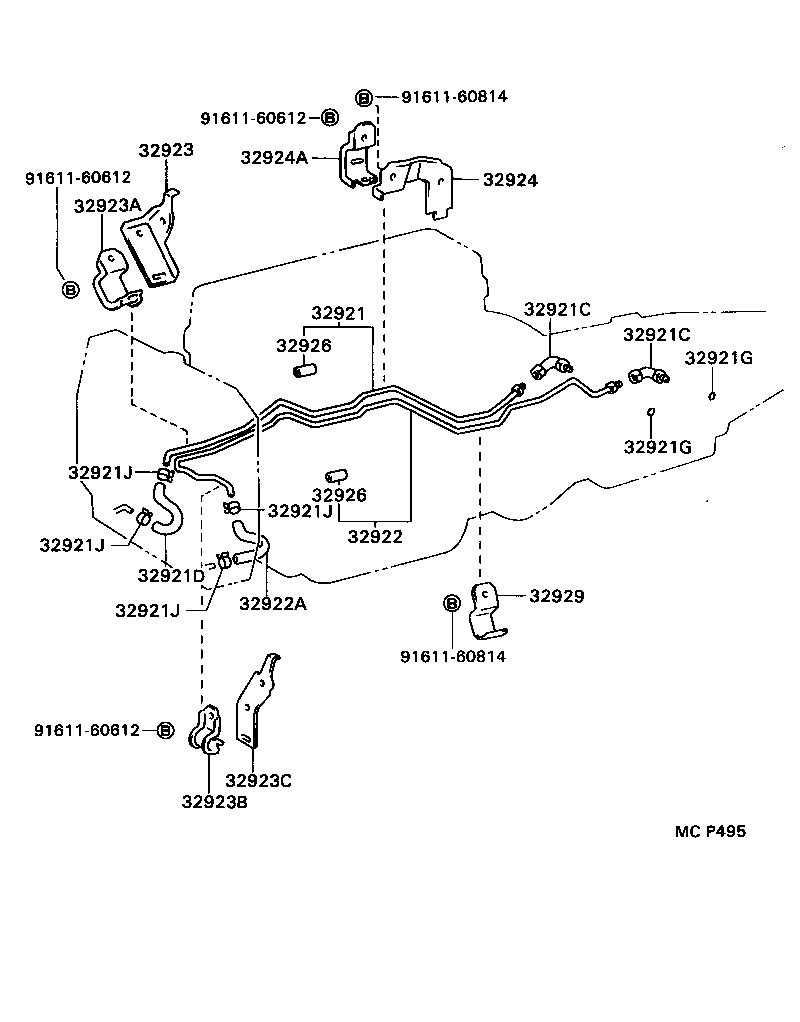

Click highlighted areas on diagram
A340E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91611-60612 | ||||
| 91611-60814 | ||||
