JZA80L-ALPVZW (1993)
Toyota Supra
Production
May 1993
-
Jan 1996
Engine
2JZGTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )2JZGTE

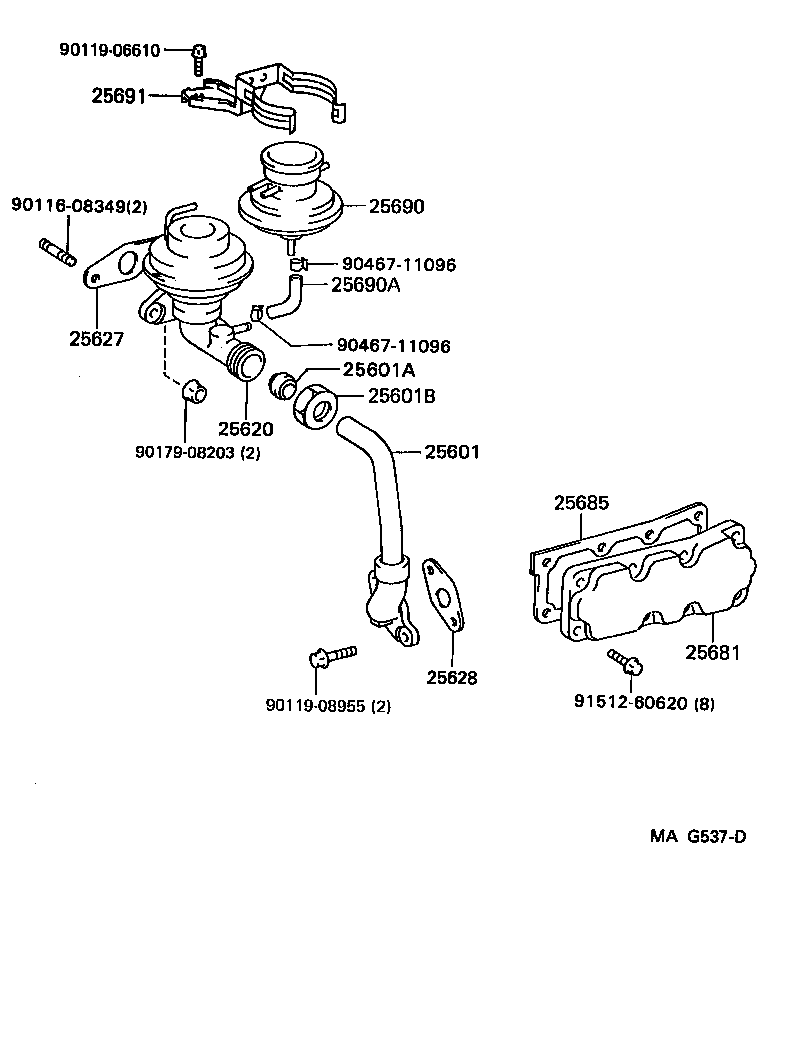

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25601 - PIPE SUB-ASSY, EGR, NO.1 | ||||
| 25601-46021 |
2JZGTE..JZA80 |
1 | ||
| 25601-46020 |
2JZGTE..JZA80 |
1 | ||
| 25601A - SLEEVE, BALL, EGR PIPE, NO.1 | ||||
| 90410-18002 |
2JZGTE..JZA80 |
1 | ||
| 25601B - NUT, UNION, EGR PIPE, NO.1 | ||||
| 90402-26002 |
2JZGTE..JZA80 |
1 | ||
| 25620 - VALVE ASSY, EGR | ||||
| 25620-46040 |
2JZGTE..JZA80..LHD |
1 | ||
| 25627 - GASKET, EGR VALVE | ||||
| 25627-46030 |
2JZGTE..JZA80 |
1 | ||
| 25628 - GASKET, EGR INLET | ||||
| 25628-46010 |
2JZGTE..JZA80 |
1 | ||
| 25681 - COOLER, EGR, NO.1 | ||||
| 25681-46010 |
2JZGTE..JZA80 |
1 | ||
| 25685 - GASKET, EGR COOLER, NO.1 | ||||
| 25685-46010 |
2JZGTE..JZA80 |
1 | ||
| 25690 - MODULATOR ASSY, EGR VACUUM | ||||
| 25690-46010 |
2JZGTE..JZA80 |
1 | ||
| 25690A - HOSE(FOR EGR VACUUM MODULATOR) | ||||
| 25695-46020 |
2JZGTE..JZA80 |
1 | ||
| 25691 - BRACKET, EGR VACUUM MODULATOR | ||||
| 25691-46020 |
2JZGTE..JZA80..LHD |
1 | ||
| Common parts | ||||
| 90116-08349 | ||||
| 90119-06610 | ||||
| 90119-08955 | ||||
| 90179-08203 | ||||
| 90467-11096 | ||||
| 91512-60620 | ||||
(9305- )

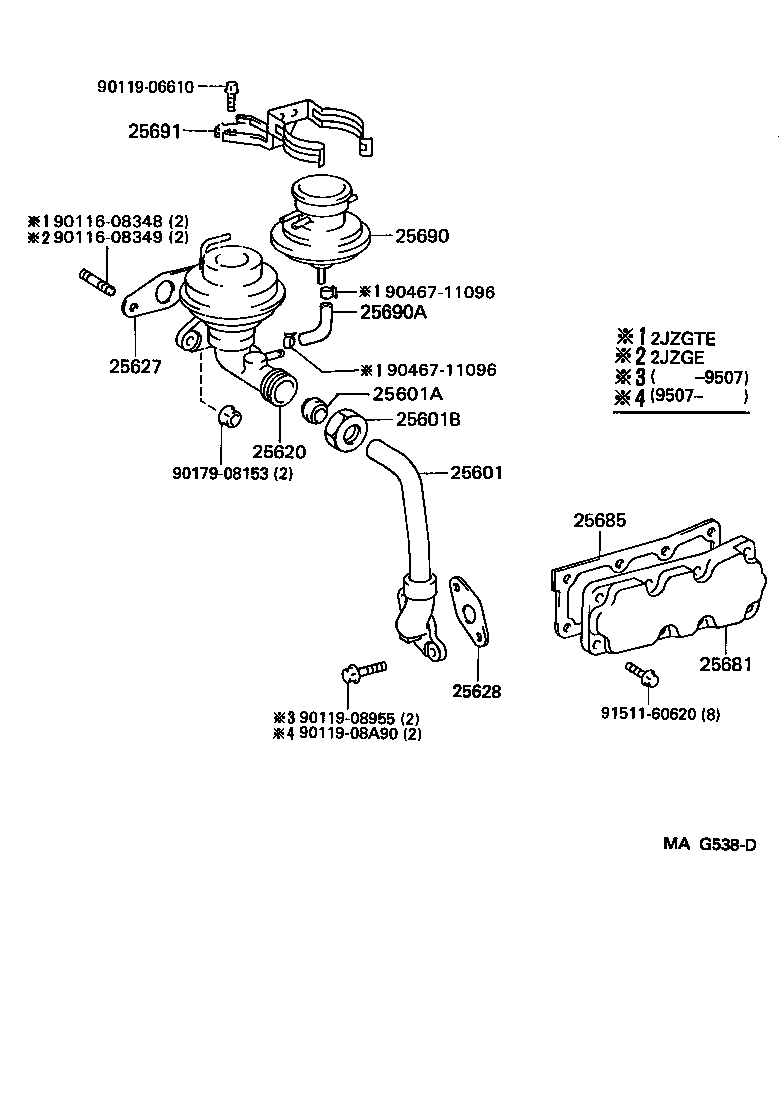

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90116-08348 | ||||
| 90116-08349 | ||||
| 90119-06610 | ||||
| 90119-08955 | ||||
| 90119-08A90 | ||||
| 90179-08153 | ||||
| 90467-11096 | ||||
| 91511-60620 | ||||
