JZA80L-ALPVZW (1993)
Toyota Supra

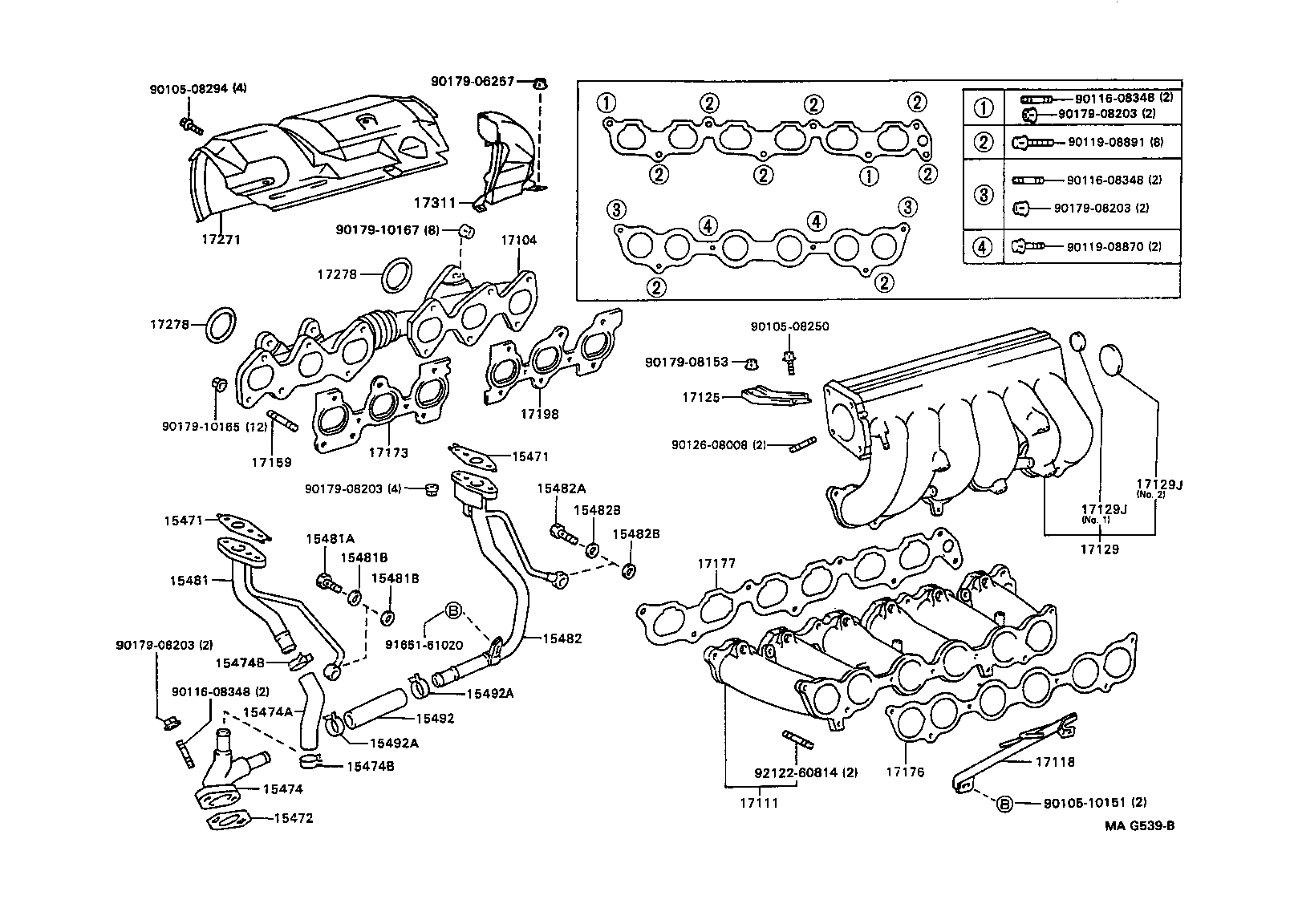

ILLUST NO. 1 OF 2(9305- )2JZGTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-46010 |
2JZGTE..JZA80 |
2 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-46010 |
2JZGTE..JZA80 |
2 | ||
| 15472 - GASKET, TURBO OIL OUTLET, NO.1 | ||||
| 15472-46010 |
2JZGTE..JZA80 |
1 | ||
| 15474 - PIPE, TURBO OIL OUTLET | ||||
| 15474-88401 |
2JZGTE..JZA80 |
1 | ||
| 15474A - HOSE, TURBO OIL OUTLET | ||||
| 15491-46020 |
2JZGTE..JZA80 |
1 | ||
| 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) | ||||
| 90467-28003 |
2JZGTE..JZA80 |
2 | ||
| 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) | ||||
| 90467-28003 |
2JZGTE..JZA80 |
2 | ||
| 15481 - PIPE, TURBO OIL, NO.1 | ||||
| 15481-46020 |
2JZGTE..JZA80 |
1 | ||
| 15481A - BOLT, UNION, NO.1 | ||||
| 90401-12009 |
2JZGTE..JZA80 |
1 | ||
| 15481B - GASKET(FOR UNION BOLT NO.1) | ||||
| 90430-12026 |
2JZGTE..JZA80 |
2 | ||
| 15481B - GASKET(FOR UNION BOLT NO.1) | ||||
| 90430-12026 |
2JZGTE..JZA80 |
2 | ||
| 15482 - PIPE, TURBO OIL, NO.2 | ||||
| 15482-46010 |
2JZGTE..JZA80 |
1 | ||
| 15482-46011 |
2JZGTE..JZA80 |
1 | ||
| 15482A - BOLT, UNION, NO.2 | ||||
| 90401-12009 |
2JZGTE..JZA80 |
1 | ||
| 15482B - GASKET(FOR UNION BOLT NO.2) | ||||
| 90430-12026 |
2JZGTE..JZA80 |
2 | ||
| 15482B - GASKET(FOR UNION BOLT NO.2) | ||||
| 90430-12026 |
2JZGTE..JZA80 |
2 | ||
| 15492 - HOSE, TURBO OIL OUTLET, NO.2 | ||||
| 15492-46020 |
2JZGTE..JZA80 |
1 | ||
| 15492A - CLIP(FOR TURBO OIL OUTLET HOSE NO.2) | ||||
| 90467-28003 |
2JZGTE..JZA80 |
2 | ||
| 15492A - CLIP(FOR TURBO OIL OUTLET HOSE NO.2) | ||||
| 90467-28003 |
2JZGTE..JZA80 |
2 | ||
| 17104 - MANIFOLD SUB-ASSY, EXHAUST, RH | ||||
| 17104-46030 |
2JZGTE..JZA80 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-46040 |
2JZGTE..JZA80 |
1 | ||
| 17111-46041 |
2JZGTE..JZA80 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-46031 |
2JZGTE..JZA80 |
1 | ||
| 17125 - STAY, SURGE TANK, NO.1 | ||||
| 17125-46020 |
2JZGTE..JZA80 |
1 | ||
| 17129 - TANK, INTAKE AIR SURGE | ||||
| 17109-46060 |
2JZGTE..JZA80 |
1 | ||
| 17129J - PLUG, TIGHT(FOR INTAKE AIR SURGE TANK) | ||||
| 96411-44000 |
2JZGTE..JZA80 OD=40,NO.2 |
1 | ||
| 96411-42000 |
2JZGTE..JZA80 OD=20,NO.1 |
1 | ||
| 17129J - PLUG, TIGHT(FOR INTAKE AIR SURGE TANK) | ||||
| 96411-44000 |
2JZGTE..JZA80 OD=40,NO.2 |
1 | ||
| 96411-42000 |
2JZGTE..JZA80 OD=20,NO.1 |
1 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-10014 |
2JZGTE..JZA80 |
12 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-46040 |
2JZGTE..JZA80 |
1 | ||
| 17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD | ||||
| 17176-46030 |
2JZGTE..JZA80 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-46031 |
2JZGTE..JZA80 |
1 | ||
| 17198 - GASKET, EXHAUST MANIFOLD, NO.2 | ||||
| 17198-46010 |
2JZGTE..JZA80 |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-46020 |
2JZGTE..JZA80 |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-46010 |
2JZGTE..JZA80 |
2 | ||
| 17278-46011 |
2JZGTE..JZA80 |
2 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-46010 |
2JZGTE..JZA80 |
2 | ||
| 17278-46011 |
2JZGTE..JZA80 |
2 | ||
| 17311 - DUCT, AIR INLET, NO.1 | ||||
| 17311-46010 |
2JZGTE..JZA80 |
1 | ||
| Common parts | ||||
| 90105-08250 | ||||
| 90105-08294 | ||||
| 90105-10151 | ||||
| 90116-08348 | ||||
| 90119-08870 | ||||
| 90119-08891 | ||||
| 90126-08008 | ||||
| 90179-06257 | ||||
| 90179-08153 | ||||
| 90179-08203 | ||||
| 90179-10165 | ||||
| 90179-10167 | ||||
| 91651-61020 | ||||
| 92122-60814 | ||||

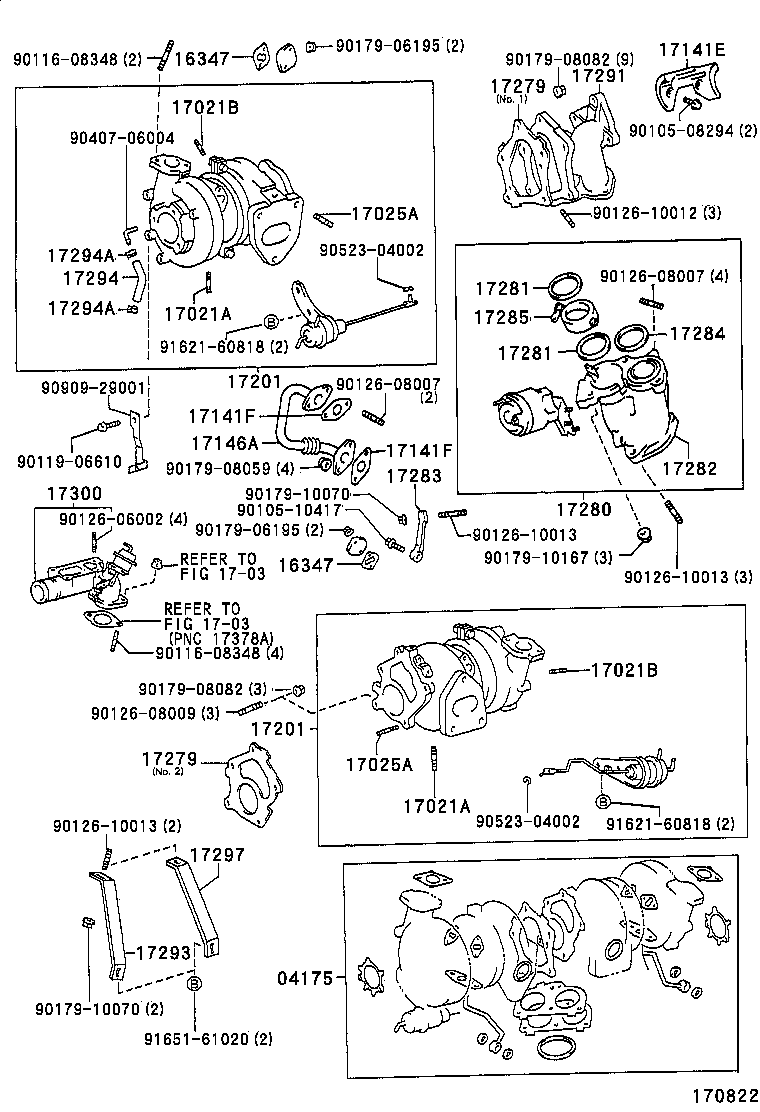

ILLUST NO. 2 OF 2(9305- )2JZGTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-46030 |
2JZGTE..JZA80 |
1 | ||
| 04175-46031 |
2JZGTE..JZA80 |
1 | ||
| 16347 - GASKET, WATER BY-PASS | ||||
| 16347-42020 |
2JZGTE..JZA80 |
2 | ||
| 16347 - GASKET, WATER BY-PASS | ||||
| 16347-42020 |
2JZGTE..JZA80 |
2 | ||
| 17021A - BOLT, STUD(FOR BEARING HOUSING) | ||||
| 90116-08158 |
2JZGTE..JZA80 |
4 | ||
| 17021A - BOLT, STUD(FOR BEARING HOUSING) | ||||
| 90116-08158 |
2JZGTE..JZA80 |
4 | ||
| 17021B - BOLT, STUD | ||||
| 90116-06048 |
2JZGTE..JZA80 |
8 | ||
| 17021B - BOLT, STUD | ||||
| 90116-06048 |
2JZGTE..JZA80 |
8 | ||
| 17025A - BOLT, STUD(FOR TURBINE HOUSING) | ||||
| 90116-10175 |
2JZGTE..JZA80 |
8 | ||
| 17025A - BOLT, STUD(FOR TURBINE HOUSING) | ||||
| 90116-10175 |
2JZGTE..JZA80 |
8 | ||
| 17141E - PLATE, EXHAUST MANIFOLD | ||||
| 17148-46010 |
2JZGTE..JZA80 |
1 | ||
| 17141F - GASKET(FOR EXHAUST MANIFOLD PLATE) | ||||
| 25634-46010 |
2JZGTE..JZA80 |
2 | ||
| 17141F - GASKET(FOR EXHAUST MANIFOLD PLATE) | ||||
| 25634-46010 |
2JZGTE..JZA80 |
2 | ||
| 17146A - PIPE, EXHAUST BY-PASS | ||||
| 17146-46010 |
2JZGTE..JZA80 |
1 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17208-46030 |
2JZGTE..JZA80 RR |
1 | ||
| 17201-46030 |
2JZGTE..JZA80 FR |
1 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17208-46030 |
2JZGTE..JZA80 RR |
1 | ||
| 17201-46030 |
2JZGTE..JZA80 FR |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-46020 |
2JZGTE..JZA80 NO.1 |
1 | ||
| 17287-46020 |
2JZGTE..JZA80 NO.2 |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-46020 |
2JZGTE..JZA80 NO.1 |
1 | ||
| 17287-46020 |
2JZGTE..JZA80 NO.2 |
1 | ||
| 17280 - VALVE ASSY, EXHAUST GAS CONTROL | ||||
| 17280-46021 |
2JZGTE..JZA80 |
1 | ||
| 17281 - GASKET, EXHAUST GAS CONTROL VALVE | ||||
| 17281-46020 |
2JZGTE..JZA80 |
2 | ||
| 17281 - GASKET, EXHAUST GAS CONTROL VALVE | ||||
| 17281-46020 |
2JZGTE..JZA80 |
2 | ||
| 17282 - OUTLET, EXHAUST GAS CONTROL VALVE | ||||
| 17282-46020 |
2JZGTE..JZA80 |
1 | ||
| 17283 - STAY, EXHAUST GAS CONTROL VALVE OUTLET | ||||
| 17283-46011 |
2JZGTE..JZA80 |
1 | ||
| 17284 - GASKET, EXHAUST GAS CONTROL VALVE, NO.2 | ||||
| 17284-46010 |
2JZGTE..JZA80 |
1 | ||
| 17285 - VALVE, EXHAUST GAS CONTROL | ||||
| 17285-46011 |
2JZGTE..JZA80 |
1 | ||
| 17291 - ELBOW, TURBINE OUTLET | ||||
| 17291-46020 |
2JZGTE..JZA80 |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17293-46010 |
2JZGTE..JZA80 |
1 | ||
| 17294 - HOSE, ACTUATOR | ||||
| 90445-12265 |
2JZGTE..JZA80 |
1 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 96132-41100 |
2JZGTE..JZA80 |
2 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 96132-41100 |
2JZGTE..JZA80 |
2 | ||
| 17297 - STAY, TURBOCHARGER, NO.2 | ||||
| 17297-46020 |
2JZGTE..JZA80 |
1 | ||
| 17300 - VALVE ASSY, INTAKE AIR CONTROL | ||||
| 17300-46010 |
2JZGTE..JZA80 |
1 | ||
| Common parts | ||||
| 90105-08294 | ||||
| 90105-10117 | ||||
| 90116-08348 | ||||
| 90119-06610 | ||||
| 90126-06002 | ||||
| 90126-08007 | ||||
| 90126-08009 | ||||
| 90126-10012 | ||||
| 90126-10013 | ||||
| 90179-06195 | ||||
| 90179-08059 | ||||
| 90179-08082 | ||||
| 90179-10070 | ||||
| 90179-10167 | ||||
| 90467-06004 | ||||
| 90523-04002 | ||||
| 90909-29001 | ||||
| 91621-60818 | ||||
| 91651-61020 | ||||
| Linked diagrams | ||||
| 1703 | ||||

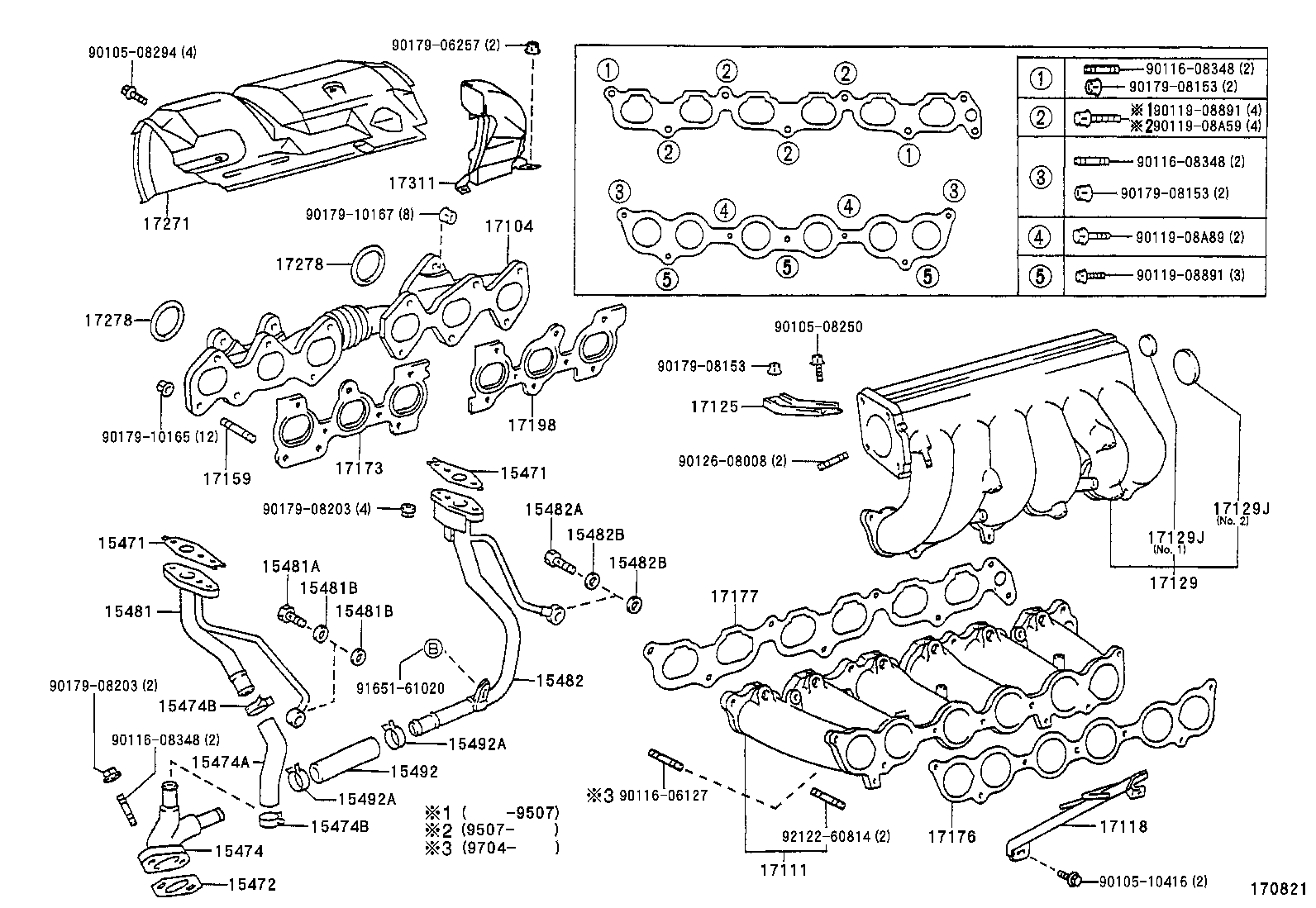

ILLUST NO. 1 OF 2(9305- )2JZGTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08250 | ||||
| 90105-08294 | ||||
| 90105-10416 | ||||
| 90116-06127 | ||||
| 90116-08348 | ||||
| 90119-08891 | ||||
| 90119-08A59 | ||||
| 90119-08A89 | ||||
| 90126-08008 | ||||
| 90179-06257 | ||||
| 90179-08153 | ||||
| 90179-08203 | ||||
| 90179-10165 | ||||
| 90179-10167 | ||||
| 91651-61020 | ||||
| 92122-60814 | ||||

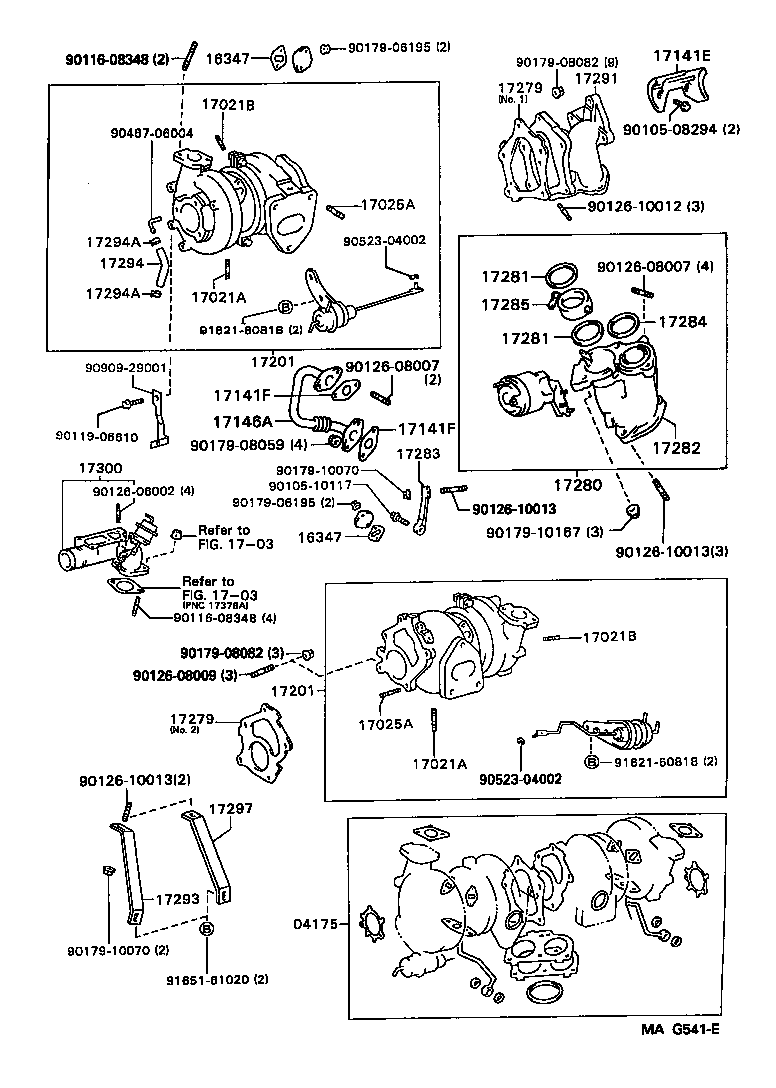

ILLUST NO. 2 OF 2(9305- )2JZGTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08294 | ||||
| 90105-10417 | ||||
| 90116-08348 | ||||
| 90119-06610 | ||||
| 90126-06002 | ||||
| 90126-08007 | ||||
| 90126-08009 | ||||
| 90126-10012 | ||||
| 90126-10013 | ||||
| 90179-06195 | ||||
| 90179-08059 | ||||
| 90179-08082 | ||||
| 90179-10070 | ||||
| 90179-10167 | ||||
| 90407-06004 | ||||
| 90523-04002 | ||||
| 90909-29001 | ||||
| 91621-60818 | ||||
| 91651-61020 | ||||
| Linked diagrams | ||||
| 1703 | ||||
