JZA80L-ALPVZA (1993)

Toyota Supra

Production May 1993 - Jul 1996
Engine 2JZGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9305-9709)4FC..TWT ; (9709- )4FC

Click highlighted areas on diagram

A340E

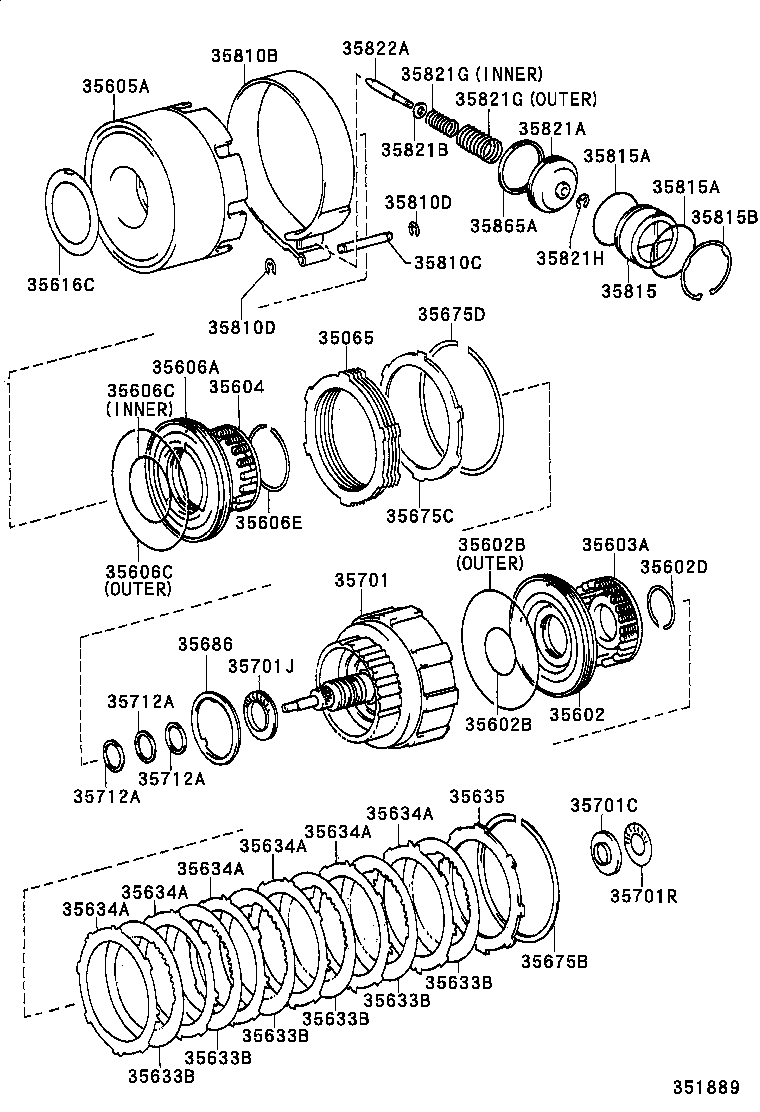

diagram 35065 35602 35602B 35602B 35602D 35603A 35604 35605A 35606A 35606C 35606C 35606E 35616C 35633B 35633B 35633B 35633B 35633B 35633B 35634A 35634A 35634A 35634A 35634A 35634A 35635 35675B 35675C 35675D 35686 35701 35701C 35701J 35701R 35712A 35712A 35712A 35810B 35810C 35810D 35810D 35815 35815A 35815A 35815B 35821A 35821B 35821G 35821G 35821H 35822A 35865A
Part # Description Qty Price
35065 - DRUM SUB-ASSY, REAR CLUTCH & FRONT SUN GEAR
35065-30020

JZA80..4FC..TWT

 1
35602 - PISTON SUB-ASSY, FRONT CLUTCH
35602-30070

JZA80..4FC..TWT

 1
35602B - RING, O (FOR FORWARD CLUTCH PISTON)
90301-39005

JZA80..4FC

INNER

 1
90301-99058

JZA80..4FC

OUTER

 1
35602B - RING, O (FOR FORWARD CLUTCH PISTON)
90301-39005

JZA80..4FC

INNER

 1
90301-99058

JZA80..4FC

OUTER

 1
35602D - RING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRIN
90520-35001

JZA80..4FC

 1
35603A - SPRING SUB-ASSY, FORWARD CLUTCH RETURN
35603-50010

JZA80..4FC..TWT

 1
35604 - SPRING SUB-ASSY, DIRECT CLUTCH RETURN
35604-30020

JZA80..4FC..TWT

 1
35605A - DRUM SUB-ASSY, DIRECT CLUTCH
35605-50010

JZA80..4FC..TWT

 1
35606A - PISTON SUB-ASSY, DIRECT CLUTCH
35606-35010

JZA80..4FC..TWT

 1
35606C - RING, O (FOR DIRECT CLUTCH PISTON)
90301-65006

JZA80..4FC..TWT

INNER

 1
90301-99058

JZA80..4FC..TWT

OUTER

 1
35606C - RING, O (FOR DIRECT CLUTCH PISTON)
90301-65006

JZA80..4FC..TWT

INNER

 1
90301-99058

JZA80..4FC..TWT

OUTER

 1
35606E - RING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRIN
90520-58001

JZA80..4FC

 1
35616C - WASHER, CLUTCH DRUM THRUST (FOR DIRECT CLUTCH DRUM)
35616-30050

JZA80..4FC

 1
35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35677-30150

JZA80..4FC..TWT

 7
35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35677-30150

JZA80..4FC..TWT

 7
35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35677-30150

JZA80..4FC..TWT

 7
35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35677-30150

JZA80..4FC..TWT

 7
35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35677-30150

JZA80..4FC..TWT

 7
35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35677-30150

JZA80..4FC..TWT

 7
35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634-32010

JZA80..4FC..TWT

T=1.8

 7
35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634-32010

JZA80..4FC..TWT

T=1.8

 7
35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634-32010

JZA80..4FC..TWT

T=1.8

 7
35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634-32010

JZA80..4FC..TWT

T=1.8

 7
35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634-32010

JZA80..4FC..TWT

T=1.8

 7
35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634-32010

JZA80..4FC..TWT

T=1.8

 7
35635 - FLANGE, FORWARD CLUTCH
35635-50010

JZA80..4FC

T=4.00,MARK 42

 1
35635-50020

JZA80..4FC

T=3.80,MARK 44

 1
35635-50030

JZA80..4FC

T=3.60,MARK 62

 1
35635-50040

JZA80..4FC

T=3.40,MARK 45

 1
35635-50060

JZA80..4FC

T=3.00,MARK 61

 1
35635-50050

JZA80..4FC

T=3.20,MARK 60

 1
35675B - RING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
90521-99001

JZA80..4FC

 1
35675C - FLANGE, DIRECT CLUTCH
35675-30150

JZA80..4FC..TWT

T=2.7

 1
35675-30091

JZA80..4FC

T=3.2

 1
35675-30111

JZA80..4FC

T=3.0

 1
35675-30051

JZA80..4FC

T=3.6

 1
35675-30081

JZA80..4FC

T=3.3

 1
35675-30071

JZA80..4FC

T=3.4

 1
35675-30120

JZA80..4FC

T=3.7

 1
35675-30170

JZA80..4FC..TWT

T=2.9

 1
35675-30061

JZA80..4FC

T=3.5

 1
35675-30160

JZA80..4FC..TWT

T=2.8

 1
35675-30101

JZA80..4FC

T=3.1

 1
35675D - RING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE)
90521-99032

JZA80..4FC

 1
35686 - WASHER, CLUTCH DRUM THRUST (FOR INPUT SHAFT)
35686-30010

JZA80..4FC

 1
35701 - SHAFT SUB-ASSY, INPUT
35701-30070

JZA80..4FC..TWT

 1
35701C - RACE, THRUST BEARING (FOR INPUT SHAFT REAR)
35789-30230

JZA80..4FC..TWT

 1
35701J - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT)
90374-33001

JZA80..4FC

 1
35701R - BEARING, THRUST NEEDLE ROLLER
90374-25006

JZA80..4FC..TWT

 1
35712A - RING, INPUT SHAFT OIL SEAL
35712-30020

JZA80..4FC

 3
35712A - RING, INPUT SHAFT OIL SEAL
35712-30020

JZA80..4FC

 3
35712A - RING, INPUT SHAFT OIL SEAL
35712-30020

JZA80..4FC

 3
35810B - BAND ASSY, 2ND COAST BRAKE
35810-14010

JZA80..4FC

 1
35810C - PIN (FOR 2ND COAST BRAKE BAND)
90249-07011

JZA80..4FC

 1
35810D - RING, E (FOR 2ND COAST BRAKE BAND PIN)
96160-00500

JZA80..4FC

 2
35810D - RING, E (FOR 2ND COAST BRAKE BAND PIN)
96160-00500

JZA80..4FC

 2
35815 - COVER, 2ND COAST BRAKE
35815-30010

JZA80..4FC

 1
35815A - RING, O (FOR 2ND COAST BRAKE COVER)
90301-48001

JZA80..4FC

 2
35815A - RING, O (FOR 2ND COAST BRAKE COVER)
90301-48001

JZA80..4FC

 2
35815B - RING, HOLE SNAP (FOR 2ND COAST BRAKE COVER)
90521-60003

JZA80..4FC

 1
35821A - PISTON, 2ND COAST BRAKE
35821-30020

JZA80..4FC

 1
35821B - WASHER, PLATE (FOR 2ND COAST BRAKE PISTON)
90201-06557

JZA80..4FC

 1
35821G - SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON)
90501-26024

JZA80..4FC

OUTER

 1
90501-27009

JZA80..4FC

INNER

 1
35821G - SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON)
90501-26024

JZA80..4FC

OUTER

 1
90501-27009

JZA80..4FC

INNER

 1
35821H - RING, E (FOR 2ND COAST BRAKE PISTON)
96160-00500

JZA80..4FC

 1
35822A - ROD, 2ND COAST BRAKE PISTON
35822-32020

JZA80..4FC..TWT

L=72.4

 1
35822-50010

JZA80..4FC..TWT

L=72.15

 1
35822-14010

JZA80..4FC..TWT

 1
35822-32010

JZA80..4FC

L=70.9

 1
35822-50020

JZA80..4FC..TWT

L=70.65

 1
35865A - RING, 2ND COAST BRAKE PISTON OIL SEAL
35865-30010

JZA80..4FC

 1
