JZA80L-ALPVFA (1993)

Toyota Supra

Production May 1993 - Aug 1998
Engine 2JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

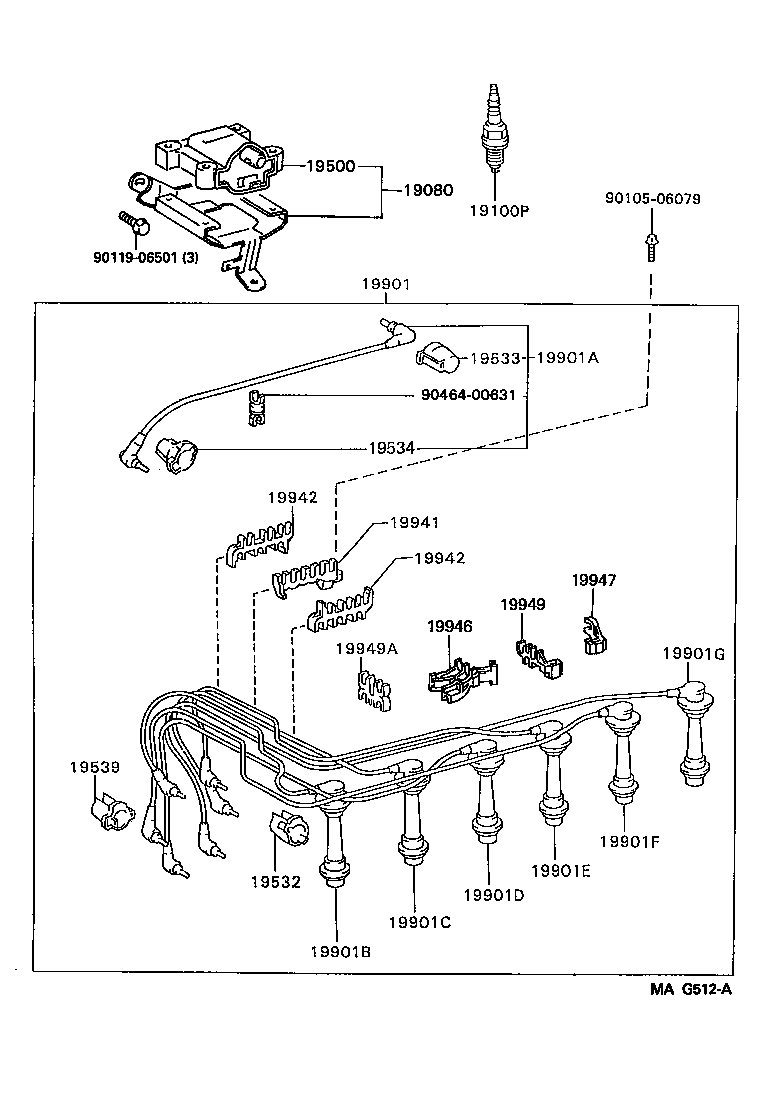

(9305- )2JZGE

Click highlighted areas on diagram

diagram 19080 19100P 19500 19532 19533 19534 19539 19901 19901A 19901B 19901C 19901D 19901E 19901F 19901G 19941 19942 19942 19946 19947 19949 19949A 9010506079 9011906501 9046400631
Part # Description Qty Price
Common parts
90105-06079
90119-06501
90464-00631

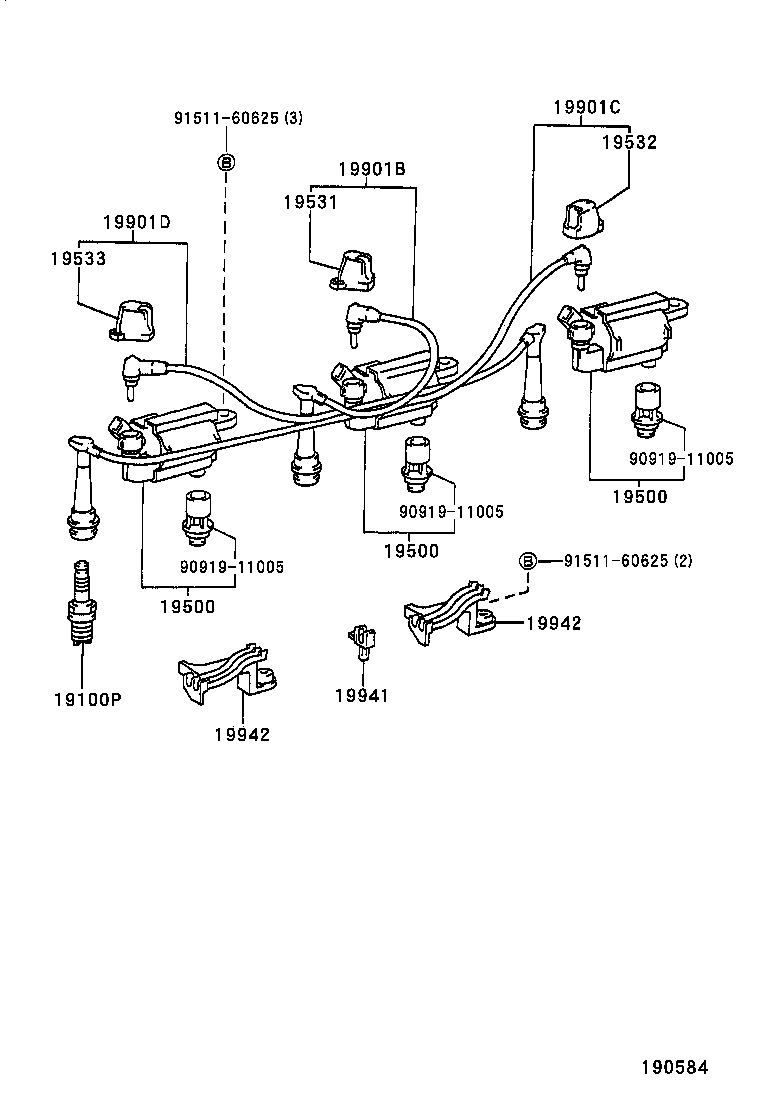

(9709- )2JZGE

Click highlighted areas on diagram

diagram 19100P 19500 19500 19500 19531 19532 19533 19901B 19901C 19901D 19941 19942 19942 9091911005 9091911005 9091911005 9151160625 9151160625
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01168

2JZGE..JZA80

PK16R11

 6
90919-01196

2JZGE..JZA80

PK16TR11

 6
90919-01197

2JZGE..JZA80

BKR5EKPB11

 6
19500 - COIL ASSY, IGNITION
90919-02207

2JZGE..JZA80

 1
90919-02216

2JZGE..JZA80

 3
19500 - COIL ASSY, IGNITION
90919-02207

2JZGE..JZA80

 1
90919-02216

2JZGE..JZA80

 3
19500 - COIL ASSY, IGNITION
90919-02207

2JZGE..JZA80

 1
90919-02216

2JZGE..JZA80

 3
19531 - HOLDER, RESISTIVE CORD, NO.1
19539-50010

2JZGE..JZA80

 1
19532 - HOLDER, RESISTIVE CODE, NO.2
19532-46010

2JZGE..JZA80

 1
19533 - HOLDER, RESISTIVE CORD, NO.3
19539-70010

2JZGE..JZA80

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15325

2JZGE..JZA80

 1
90919-15317

2JZGE..JZA80

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15456

2JZGE..JZA80

 1
90919-15326

2JZGE..JZA80

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-15457

2JZGE..JZA80

 1
90919-15327

2JZGE..JZA80

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90929-01277

2JZGE..JZA80

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90929-01278

2JZGE..JZA80

 2
19942 - CLAMP, RESISTIVE CORD, NO.2
90929-01278

2JZGE..JZA80

 2
Common parts
90919-11005
91511-60625

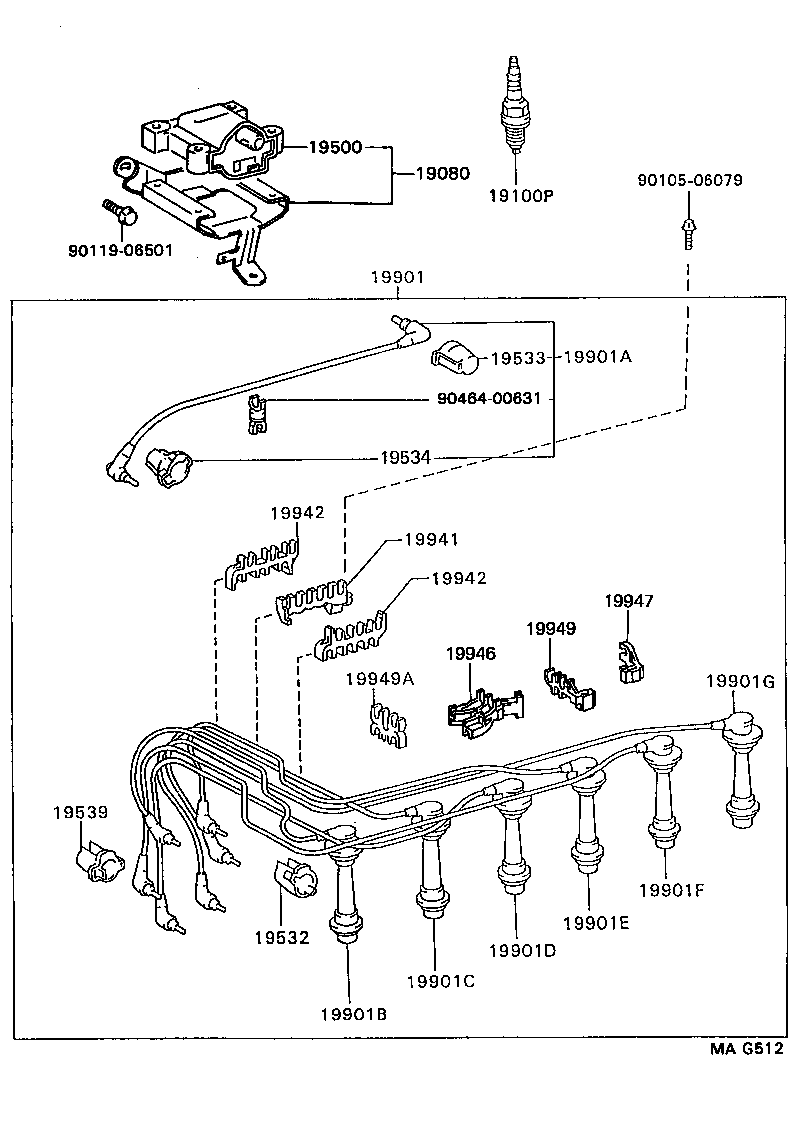

(9305-9709)2JZGE

Click highlighted areas on diagram

diagram 19080 19100P 19500 19532 19533 19534 19539 19901 19901A 19901B 19901C 19901D 19901E 19901F 19901G 19941 19942 19942 19946 19947 19949 19949A 9010506079 9011906501 9046400631
Part # Description Qty Price
19080 - COIL ASSY, W/BRACKET & CORD
19080-46020

2JZGE..JZA80

 1
19100P - PLUG, SPARK
90919-01168

2JZGE..JZA80

PK16R11

 6
90919-01196

2JZGE..JZA80

PK16TR11

 6
90919-01197

2JZGE..JZA80

BKR5EKPB11

 6
19500 - COIL ASSY, IGNITION
90919-02207

2JZGE..JZA80

 1
90919-02216

2JZGE..JZA80

 3
19532 - HOLDER, RESISTIVE CODE, NO.2
19532-46010

2JZGE..JZA80

 1
19533 - HOLDER, RESISTIVE CORD, NO.3
19539-70010

2JZGE..JZA80

 1
19534 - HOLDER, RESISTIVE CORD, NO.4
19539-50010

2JZGE..JZA80

 1
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-11010

2JZGE..JZA80

NO.1

 1
19539-50010

2JZGE..JZA80

NO.3

 1
19539-46010

2JZGE..JZA80

NO.5

 1
19539-62010

2JZGE..JZA80

NO.2,4

 2
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21521

2JZGE..JZA80

 1
19901A - CORD, COIL RESISTIVE
90919-13411

2JZGE..JZA80

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15325

2JZGE..JZA80

 1
90919-15317

2JZGE..JZA80

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15456

2JZGE..JZA80

 1
90919-15326

2JZGE..JZA80

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-15457

2JZGE..JZA80

 1
90919-15327

2JZGE..JZA80

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15328

2JZGE..JZA80

 1
19901F - CORD, SPARK PLUG RESISTIVE, NO.5
90919-12946

2JZGE..JZA80

 1
19901G - CORD, SPARK PLUG RESISTIVE, NO.6
90919-15329

2JZGE..JZA80

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90929-01277

2JZGE..JZA80

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90929-01278

2JZGE..JZA80

 2
19942 - CLAMP, RESISTIVE CORD, NO.2
90929-01278

2JZGE..JZA80

 2
19946 - CLAMP, RESISTIVE CORD, NO.3
19941-46010

2JZGE..JZA80

 1
19947 - CLAMP, RESISTIVE CORD, NO.4
90929-01280

2JZGE..JZA80

 1
19949 - CLAMP, RESISTIVE CORD, NO.5
90929-01285

2JZGE..JZA80

 1
19949A - CLAMP, CORD, NO.6
19949-50010

2JZGE..JZA80

 1
Common parts
90105-06079
90119-06501
90464-00631
