JZA80L-ALMVFV (1993)
Toyota Supra
Production
May 1993
-
May 1996
Engine
2JZGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )

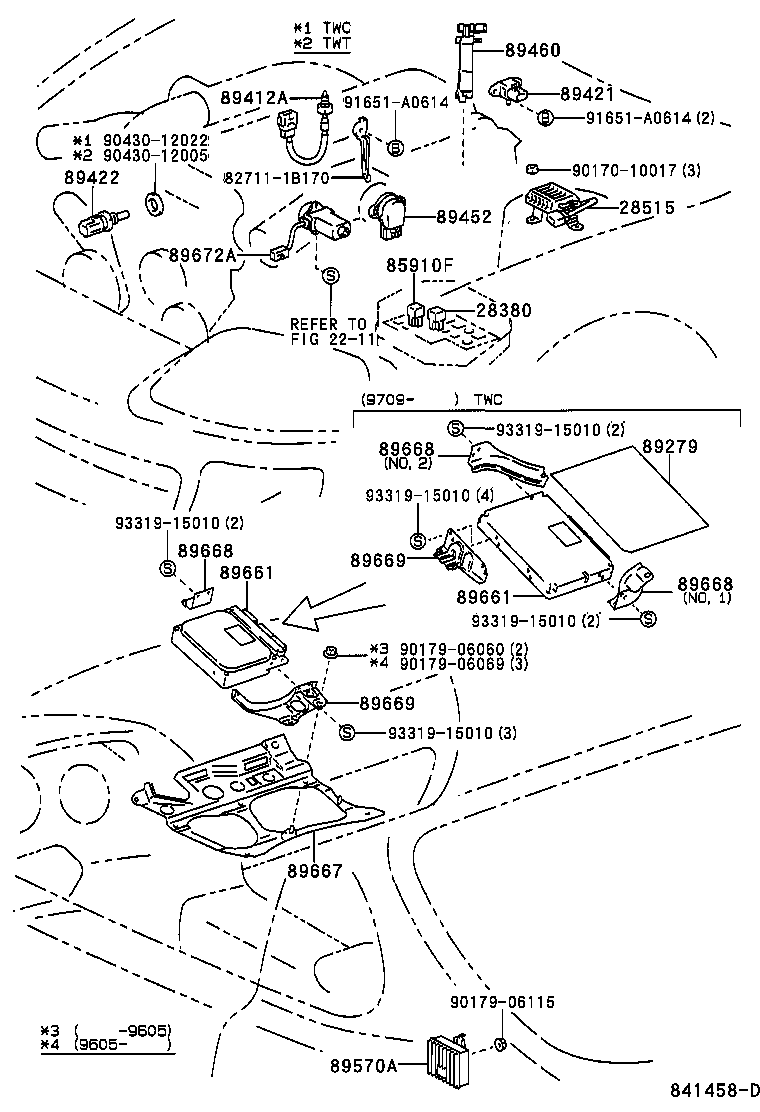

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85910F - RELAY, COMPUTER (FOR EFI) | ||||
| 90987-02009 |
JZA80..GCC,GEN |
1 | ||
| 89421 - SENSOR ASSY, VACUUM (FOR E.F.I.) | ||||
| 89420-14090 |
JZA80..LHD..(GCC,GEN) |
1 | ||
| 89421 - SENSOR ASSY, VACUUM (FOR E.F.I.) | ||||
| 89420-14090 |
JZA80..LHD..(GCC,GEN) |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-20010 |
JZA80..GCC,GEN |
1 | ||
| 89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.) | ||||
| 89424-12010 |
JZA80..GCC,GEN |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-22090 |
JZA80..GCC,GEN |
1 | ||
| 89456 - RESISTOR, VARIABLE | ||||
| 89450-14010 |
JZA80..GCC,GEN |
1 | ||
| 89570A - COMPUTER ASSY, FUEL PUMP CONTROL | ||||
| 89570-14250 |
JZA80..GCC,GEN |
1 | ||
| 89570-30130 |
JZA80..5F |
1 | ||
| 89570-14220 |
JZA80..5F |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-14630 |
JZA80..LHD..5F |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-14090 |
JZA80..LHD |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-14030 |
JZA80 |
1 | ||
| 89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3 | ||||
| 89669-14030 |
JZA80..LHD..(GCC,GEN) |
1 | ||
| Common parts | ||||
| 82711-1B170 | ||||
| 90119-06005 | ||||
| 90170-10017 | ||||
| 90179-06060 | ||||
| 90179-06115 | ||||
| 90339-11004 | ||||
| 90430-12005 | ||||
| 90430-12022 | ||||
| 91651-40614 | ||||
| 91651-A0614 | ||||
| 93319-15010 | ||||
(9305- )

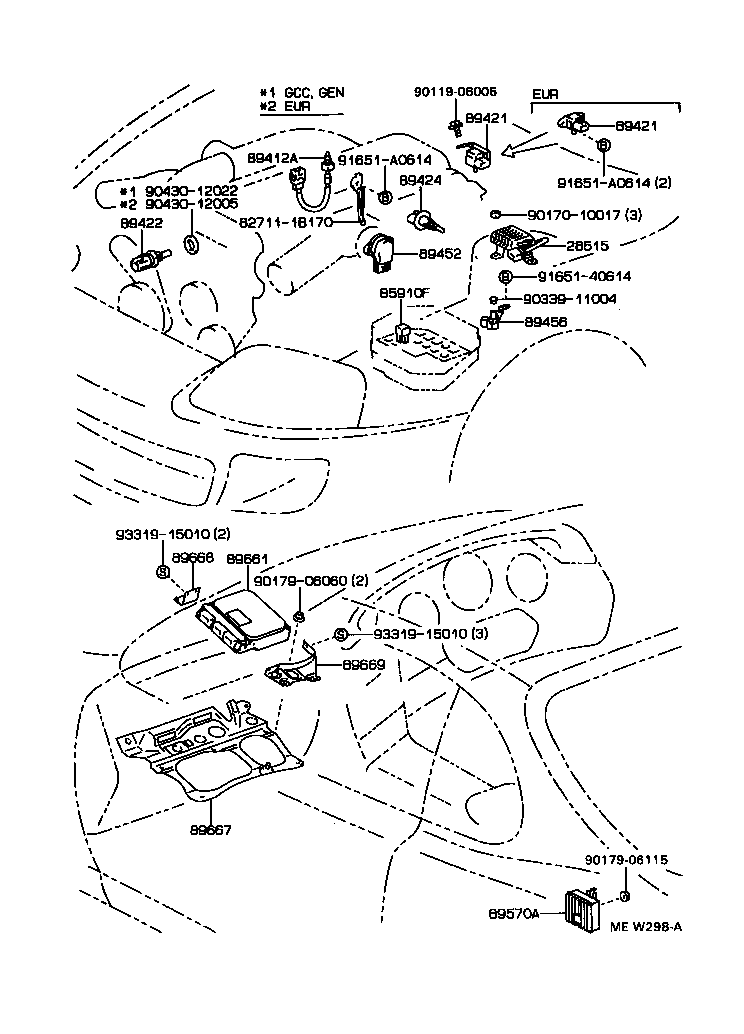

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1B170 | ||||
| 90170-10017 | ||||
| 90179-06060 | ||||
| 90179-06069 | ||||
| 90179-06115 | ||||
| 90430-12005 | ||||
| 90430-12022 | ||||
| 91651-A0614 | ||||
| 93319-15010 | ||||
| Linked diagrams | ||||
| 2211 | ||||
