JZA80L-ALMVFV (1993)

Toyota Supra

Production May 1993 - May 1996
Engine 2JZGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9305- )

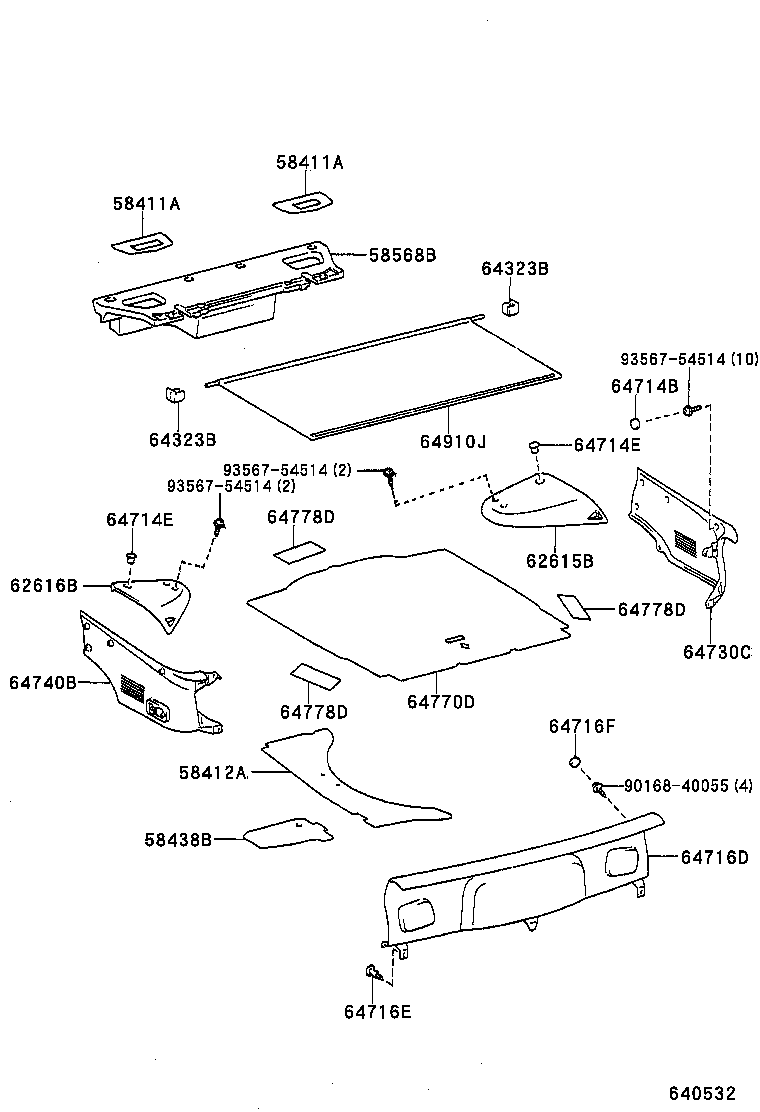

Click highlighted areas on diagram

diagram 58411A 58411A 58412A 58438B 58568B 62615B 62616B 64323B 64323B 64714B 64714E 64714E 64716D 64716E 64716F 64730C 64740B 64770D 64778D 64778D 64778D 64910J 9016840055 9356754514 9356754514 9356754514
Part # Description Qty Price
58411A - BOARD, DECK, NO.1
58411-14100

JZA80

 2
58411A - BOARD, DECK, NO.1
58411-14100

JZA80

 2
58412A - BOARD, DECK, NO.2
58412-14040

JZA80..GCC,GEN

 1
58438B - BOARD, DECK, NO.3
58438-14020

JZA80

 1
58568B - SPACER, REAR FLOOR CARPET
58568-14010

JZA80

 1
62615B - COVER, QUARTER WHEEL HOUSE, INNER RH
62615-14070C0

JZA80..GCC;JZA80..RHD

BLACK,TRIM0#,2#

 1
62615-14070C0

JZA80

BLACK,TRIM0#,2#

 1
62616B - COVER, QUARTER WHEEL HOUSE, INNER LH
62616-14060C0

JZA80

BLACK,TRIM0#,2#

 1
62616-14060C0

JZA80..GCC;JZA80..RHD

BLACK,TRIM0#,2#

 1
64323B - CLAMP, TONNEAU COVER
64323-14040C0

JZA80

BLACK,TRIM0#,2#

 2
64323-14041C0

JZA80..GCC;JZA80..RHD

BLACK,TRIM0#,2#

 2
64323B - CLAMP, TONNEAU COVER
64323-14040C0

JZA80

BLACK,TRIM0#,2#

 2
64323-14041C0

JZA80..GCC;JZA80..RHD

BLACK,TRIM0#,2#

 2
64714B - PLUG, HOLE(FOR DECK TRIM SIDE COVER)
90950-01503C0

JZA80

BLACK,TRIM0#,2#

 8
90950-01503C0

JZA80..GCC;JZA80..RHD

BLACK,TRIM0#,2#

 8
64714E - CLIP(FOR DECK TRIM SIDE COVER)
90467-08150

JZA80

 2
64714E - CLIP(FOR DECK TRIM SIDE COVER)
90467-08150

JZA80

 2
64716D - COVER, DECK TRIM, REAR
64716-14151C0

JZA80..GCC;JZA80..RHD..LB

BLACK,TRIM0#,2#

 1
64716-14150C0

JZA80..LB

BLACK,TRIM0#,2#

 1
64716E - CLIP(FOR DECK TRIM REAR COVER)
90467-07108

JZA80

 2
64716F - PLUG, HOLE(FOR DECK TRIM REAR COVER)
90950-01503C0

JZA80..GCC;JZA80..RHD

BLACK,TRIM0#,2#

 4
90950-01503C0

JZA80

BLACK,TRIM0#,2#

 4
64730C - BOARD, DECK TRIM SIDE, RH
64731-14130C0

JZA80

BLACK,TRIM0#,2#

 1
64731-14131C0

JZA80..GCC;JZA80..RHD

BLACK,TRIM0#,2#

 1
64740B - BOARD, DECK TRIM SIDE, LH
64732-14131C0

JZA80..GCC;JZA80..RHD

BLACK,TRIM0#,2#

 1
64732-14130C0

JZA80

BLACK,TRIM0#,2#

 1
64770D - COVER ASSY, SPARE WHEEL
64771-14100

JZA80..GCC

W(SPARE TIRE=STANDARD SIZE)

 1
64771-14110

JZA80..GCC

 1
64778D - PROTECTOR, SPARE WHEEL
64778-14030

JZA80

 3
64778D - PROTECTOR, SPARE WHEEL
64778-14030

JZA80

 3
64778D - PROTECTOR, SPARE WHEEL
64778-14030

JZA80

 3
64910J - COVER ASSY, TONNEAU
64910-14060C0

JZA80..GCC;JZA80..RHD

BLACK,TRIM0#,2#

 1
64910-14060C0

JZA80

BLACK,TRIM0#,2#

 1
Common parts
90168-40055
93567-54514

(9305- )

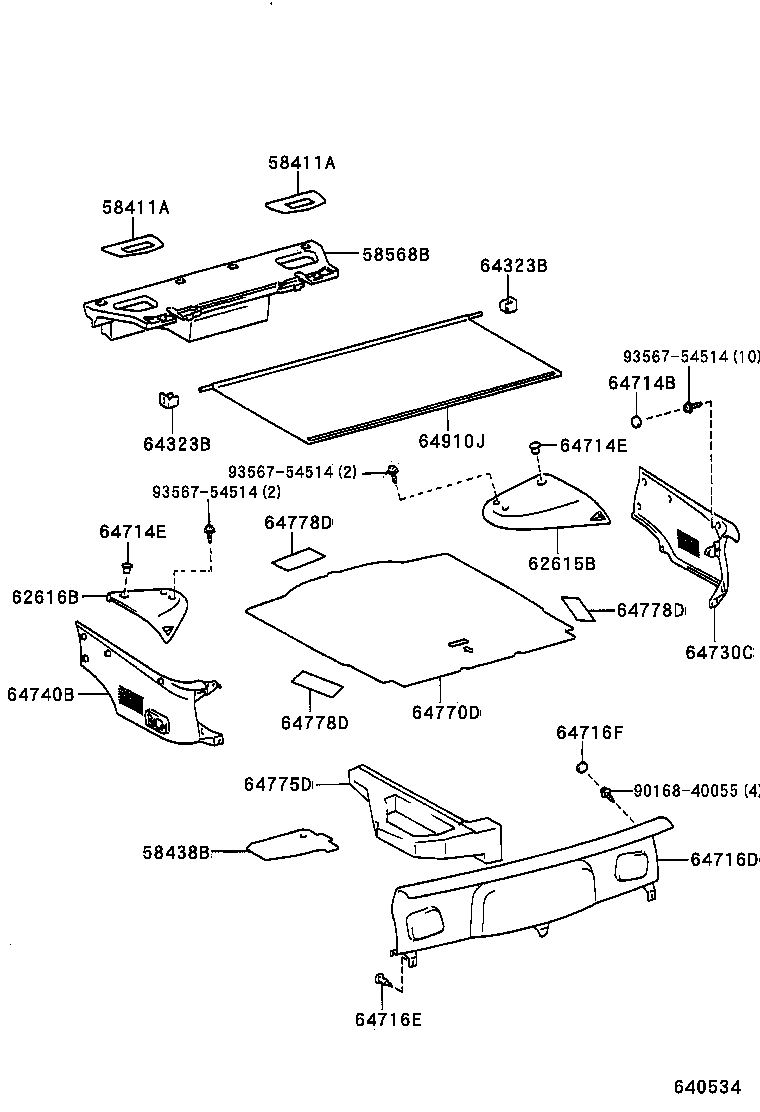

Click highlighted areas on diagram

diagram 58411A 58411A 58438B 58568B 62615B 62616B 64323B 64323B 64714B 64714E 64714E 64716D 64716E 64716F 64730C 64740B 64770D 64775D 64778D 64778D 64778D 64910J 9016840055 9356754514 9356754514 9356754514
Part # Description Qty Price
Common parts
90168-40055
93567-54514
