JZA80L-ALMVFV (1993)
Toyota Supra
Production
May 1993
-
May 1996
Engine
2JZGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )

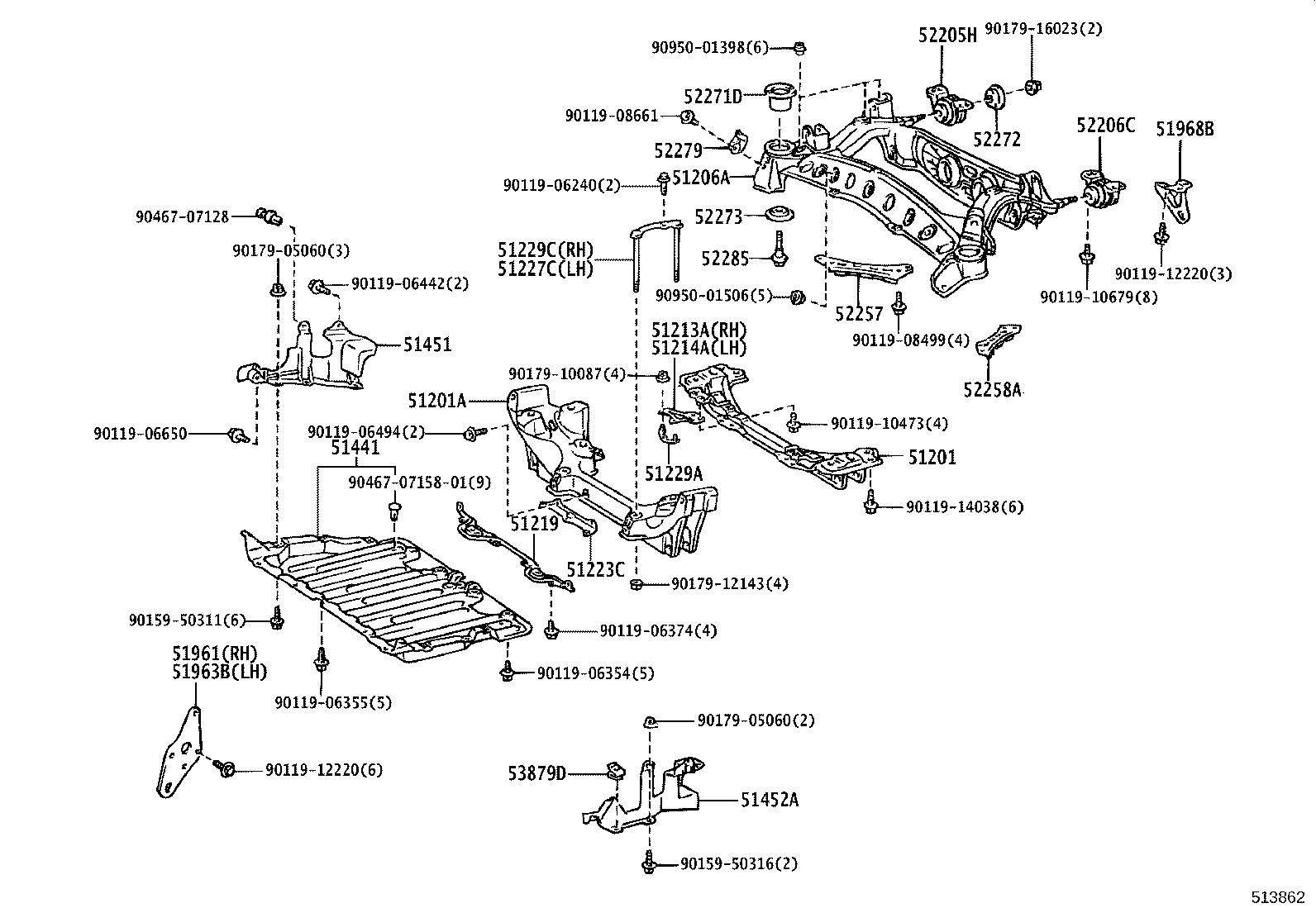

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-24030 |
JZA80 |
1 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51211-24020 |
JZA80 |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-14100 |
JZA80 |
1 | ||
| 51213A - EXTENSION, FRONT CROSSMEMBER, UPPER RH | ||||
| 51213-24010 |
JZA80 |
1 | ||
| 51214A - EXTENSION, FRONT CROSSMEMBER, UPPER LH | ||||
| 51214-24010 |
JZA80 |
1 | ||
| 51219 - PROTECTOR, FRONT SUSPENSION MEMBER, LWR | ||||
| 51219-24011 |
JZA80 |
1 | ||
| 51223C - BRACKET, FRONT SUSPENSION MEMBER BRACKT, NO.1 | ||||
| 51223-24010 |
JZA80 |
1 | ||
| 51227C - PLATE, SUSPENSION MEMBER SET, NO.2 | ||||
| 51227-24010 |
JZA80 |
1 | ||
| 51229A - BOLT, FRONT SUSPENSION MEMBER MOUNTING | ||||
| 51229-24030 |
JZA80 |
2 | ||
| 51229C - PLATE, SUSPENSION MEMBER SET | ||||
| 51229-24020 |
JZA80 |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-14140 |
JZA80..GCC,GEN |
1 | ||
| 51442 - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-14040 |
JZA80..GCC,GEN |
1 | ||
| 51451 - COVER, ENGINE UNDER, NO.4 RH | ||||
| 51451-14010 |
JZA80..GCC,GEN |
1 | ||
| 51452A - COVER, ENGINE UNDER, NO.4 LH | ||||
| 51452-14030 |
JZA80..GCC,GEN |
1 | ||
| 51961 - HOOK, NO.1 | ||||
| 51964-24010 |
JZA80..GCC,GEN |
1 | ||
| 51963B - HOOK, TRANSPORT, FRONT RH | ||||
| 51964-24010 |
JZA80..MTM |
1 | ||
| 51968B - HOOK, TRANSPORT, REAR LH | ||||
| 51968-14100 |
JZA80 |
1 | ||
| 52205H - CUSHION SUB-ASSY, BODY MOUNTING, REAR RH | ||||
| 52205-14020 |
JZA80 |
1 | ||
| 52206C - CUSHION SUB-ASSY, BODY MOUNTING, REAR LH | ||||
| 52206-14010 |
JZA80 |
1 | ||
| 52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH | ||||
| 51503-14020 |
JZA80 |
1 | ||
| 52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH | ||||
| 51503-14020 |
JZA80 |
1 | ||
| 52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52271-14070 |
JZA80 |
2 | ||
| 52272 - STOPPER, REAR SUSPENSION MEMBER, UPPER | ||||
| 52272-14040 |
JZA80 |
1 | ||
| 52273 - STOPPER, REAR SUSPENSION MEMBER, LOWER | ||||
| 52273-14060 |
JZA80 |
2 | ||
| 52273-14040 |
JZA80 |
2 | ||
| 52279 - RETAINER, REAR SUSPENSION MEMBER CUSHION | ||||
| 52279-24010 |
JZA80 |
2 | ||
| 52285 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1 | ||||
| 52285-50011 |
JZA80 |
2 | ||
| 52285-50010 |
JZA80 |
2 | ||
| 53879D - RETAINER, FRONT FENDER LINER | ||||
| 53879-17020 |
JZA80 |
2 | ||
| 53879D - RETAINER, FRONT FENDER LINER | ||||
| 53879-17020 |
JZA80 |
2 | ||
| Common parts | ||||
| 90119-06240 | ||||
| 90119-06354 | ||||
| 90119-06374 | ||||
| 90119-06442 | ||||
| 90119-06494 | ||||
| 90119-06650 | ||||
| 90119-06687 | ||||
| 90119-08499 | ||||
| 90119-08661 | ||||
| 90119-10473 | ||||
| 90119-10679 | ||||
| 90119-12220 | ||||
| 90119-14038 | ||||
| 90159-50311 | ||||
| 90159-50316 | ||||
| 90168-50037 | ||||
| 90179-05060 | ||||
| 90179-06242 | ||||
| 90179-10087 | ||||
| 90179-12081 | ||||
| 90179-16023 | ||||
| 90189-05070 | ||||
| 90467-07128 | ||||
| 90467-0715801 | ||||
| 90950-01398 | ||||
| 90950-01506 | ||||
(9305- )

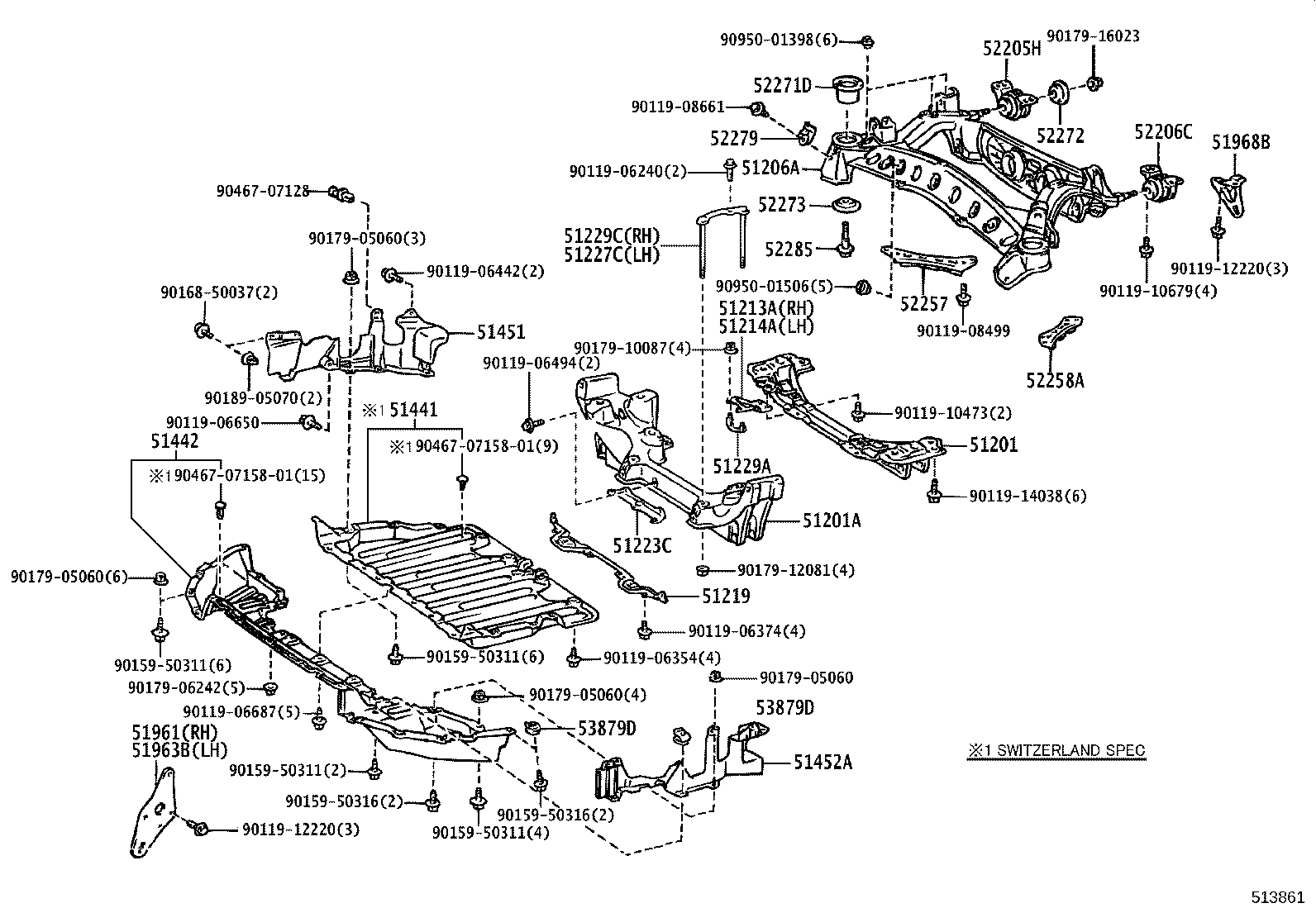

Click highlighted areas on diagram
W(FRONT ACTIVE SPOILER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-24030 |
JZA80 |
1 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51211-24020 |
JZA80 |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-14100 |
JZA80 |
1 | ||
| 51213A - EXTENSION, FRONT CROSSMEMBER, UPPER RH | ||||
| 51213-24010 |
JZA80 |
1 | ||
| 51214A - EXTENSION, FRONT CROSSMEMBER, UPPER LH | ||||
| 51214-24010 |
JZA80 |
1 | ||
| 51219 - PROTECTOR, FRONT SUSPENSION MEMBER, LWR | ||||
| 51219-24011 |
JZA80 |
1 | ||
| 51223C - BRACKET, FRONT SUSPENSION MEMBER BRACKT, NO.1 | ||||
| 51223-24010 |
JZA80 |
1 | ||
| 51227C - PLATE, SUSPENSION MEMBER SET, NO.2 | ||||
| 51227-24010 |
JZA80 |
1 | ||
| 51229A - BOLT, FRONT SUSPENSION MEMBER MOUNTING | ||||
| 51229-24030 |
JZA80 |
2 | ||
| 51229C - PLATE, SUSPENSION MEMBER SET | ||||
| 51229-24020 |
JZA80 |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-14140 |
JZA80..GCC,GEN |
1 | ||
| 51451 - COVER, ENGINE UNDER, NO.4 RH | ||||
| 51451-14010 |
JZA80..GCC,GEN |
1 | ||
| 51452A - COVER, ENGINE UNDER, NO.4 LH | ||||
| 51452-14030 |
JZA80..GCC,GEN |
1 | ||
| 51961 - HOOK, NO.1 | ||||
| 51964-24010 |
JZA80..GCC,GEN |
1 | ||
| 51963B - HOOK, TRANSPORT, FRONT RH | ||||
| 51964-24010 |
JZA80..MTM |
1 | ||
| 51968B - HOOK, TRANSPORT, REAR LH | ||||
| 51968-14100 |
JZA80 |
1 | ||
| 52205H - CUSHION SUB-ASSY, BODY MOUNTING, REAR RH | ||||
| 52205-14020 |
JZA80 |
1 | ||
| 52206C - CUSHION SUB-ASSY, BODY MOUNTING, REAR LH | ||||
| 52206-14010 |
JZA80 |
1 | ||
| 52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH | ||||
| 51503-14020 |
JZA80 |
1 | ||
| 52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH | ||||
| 51503-14020 |
JZA80 |
1 | ||
| 52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52271-14070 |
JZA80 |
2 | ||
| 52272 - STOPPER, REAR SUSPENSION MEMBER, UPPER | ||||
| 52272-14040 |
JZA80 |
1 | ||
| 52273 - STOPPER, REAR SUSPENSION MEMBER, LOWER | ||||
| 52273-14060 |
JZA80 |
2 | ||
| 52273-14040 |
JZA80 |
2 | ||
| 52279 - RETAINER, REAR SUSPENSION MEMBER CUSHION | ||||
| 52279-24010 |
JZA80 |
2 | ||
| 52285 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1 | ||||
| 52285-50011 |
JZA80 |
2 | ||
| 52285-50010 |
JZA80 |
2 | ||
| 53879D - RETAINER, FRONT FENDER LINER | ||||
| 53879-17020 |
JZA80 |
2 | ||
| Common parts | ||||
| 90119-06240 | ||||
| 90119-06354 | ||||
| 90119-06355 | ||||
| 90119-06374 | ||||
| 90119-06442 | ||||
| 90119-06494 | ||||
| 90119-06650 | ||||
| 90119-08499 | ||||
| 90119-08661 | ||||
| 90119-10473 | ||||
| 90119-10679 | ||||
| 90119-12220 | ||||
| 90119-14038 | ||||
| 90159-50311 | ||||
| 90159-50316 | ||||
| 90179-05060 | ||||
| 90179-10087 | ||||
| 90179-12143 | ||||
| 90179-16023 | ||||
| 90467-07128 | ||||
| 90467-0715801 | ||||
| 90950-01398 | ||||
| 90950-01506 | ||||
(9305-9808)

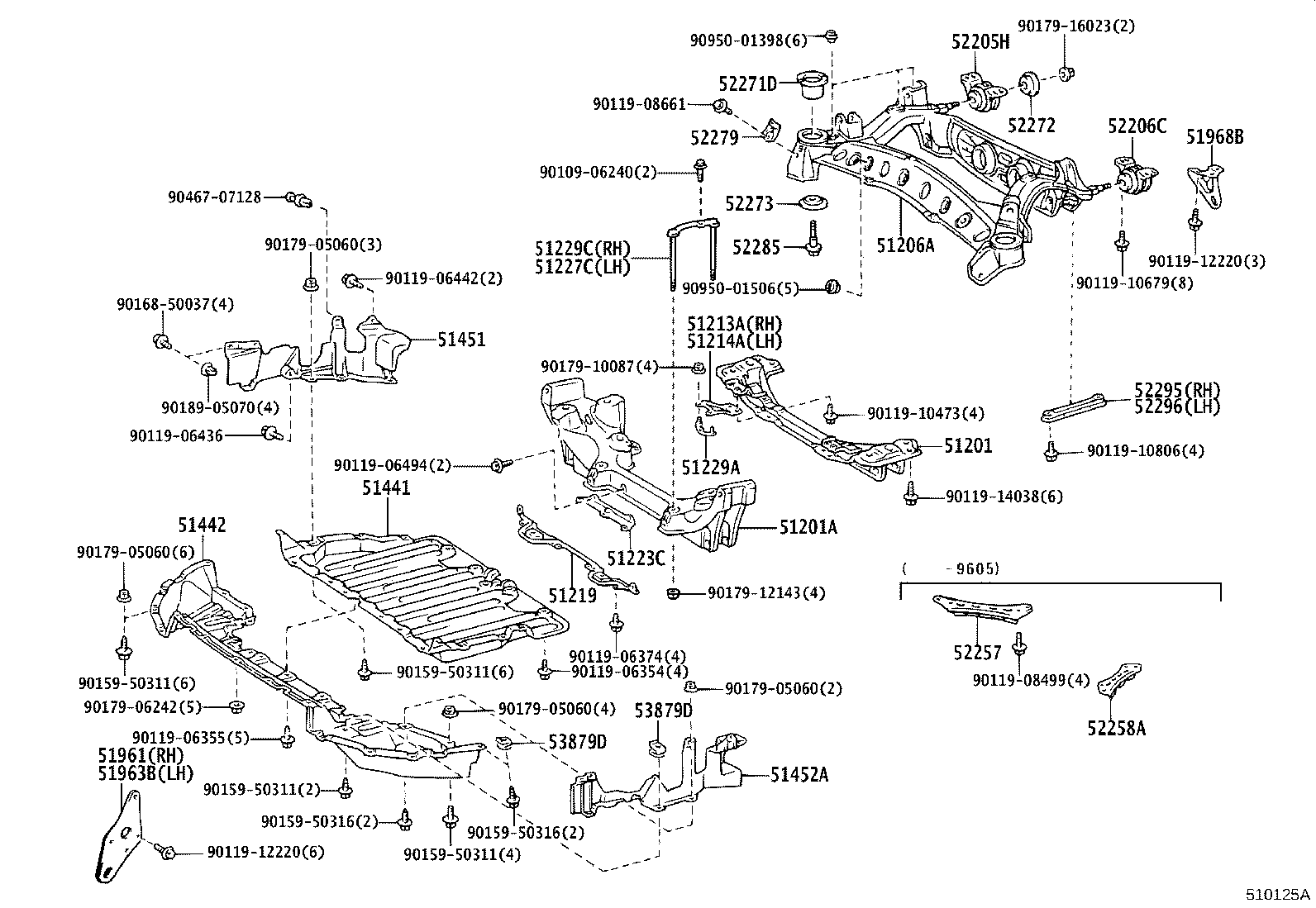

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-06240 | ||||
| 90119-06354 | ||||
| 90119-06355 | ||||
| 90119-06374 | ||||
| 90119-06436 | ||||
| 90119-06442 | ||||
| 90119-06494 | ||||
| 90119-08499 | ||||
| 90119-08661 | ||||
| 90119-10473 | ||||
| 90119-10679 | ||||
| 90119-10806 | ||||
| 90119-12220 | ||||
| 90119-14038 | ||||
| 90159-50311 | ||||
| 90159-50316 | ||||
| 90168-50037 | ||||
| 90179-05060 | ||||
| 90179-06242 | ||||
| 90179-10087 | ||||
| 90179-12143 | ||||
| 90179-16023 | ||||
| 90189-05070 | ||||
| 90467-07128 | ||||
| 90950-01398 | ||||
| 90950-01506 | ||||
