JZA80L-ALMVFV (1993)
Toyota Supra
Production
May 1993
-
May 1996
Engine
2JZGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

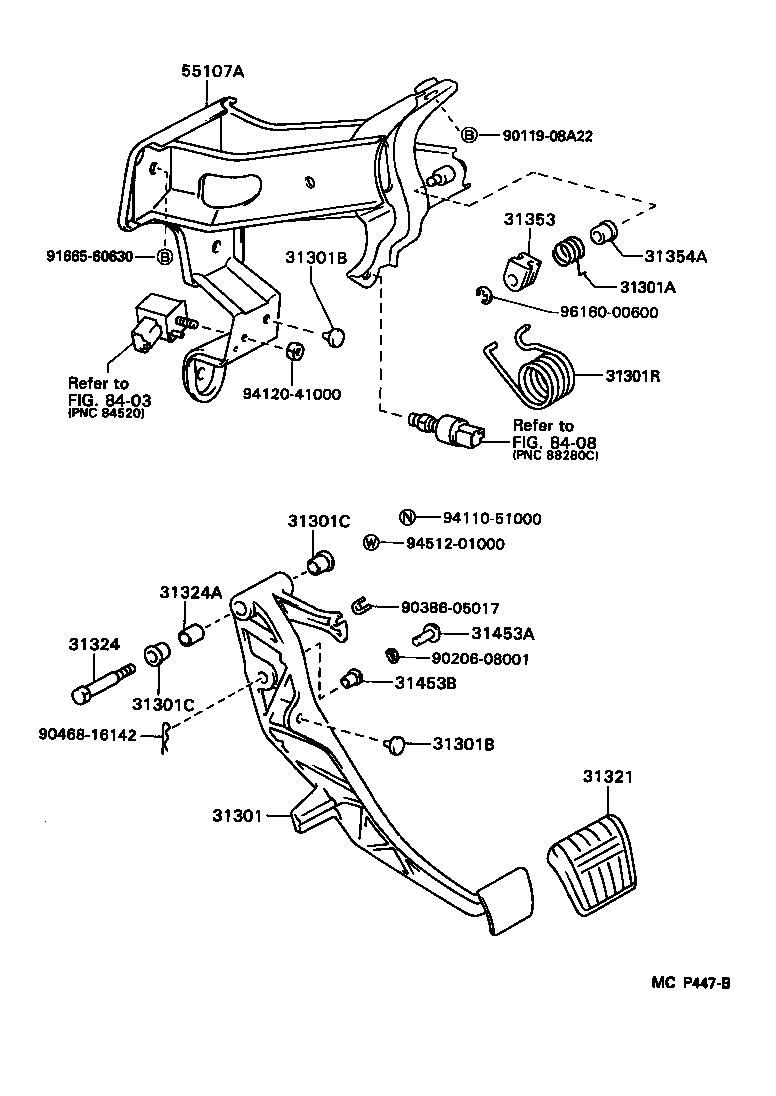

ILLUST NO. 1 OF 2(9305- )LHD..MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31311-14120 |
JZA80..LHD..MTM |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90949-03011 |
JZA80..LHD..MTM |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
JZA80..MTM |
2 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
JZA80..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
JZA80..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
JZA80..MTM |
2 | ||
| 31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT) | ||||
| 90949-03013 |
JZA80..LHD..MTM |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
JZA80..MTM |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10015 |
JZA80..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
JZA80..MTM |
1 | ||
| 31353 - HOLDER, CLUTCH PEDAL SPRING | ||||
| 31353-14010 |
JZA80..MTM |
1 | ||
| 31354A - BUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER) | ||||
| 90386-13015 |
JZA80..MTM |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
JZA80..MTM L=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08010 |
JZA80..LHD..MTM |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-14140 |
JZA80..LHD..MTM |
1 | ||
| Common parts | ||||
| 90119-08A22 | ||||
| 90206-08001 | ||||
| 90386-05017 | ||||
| 90468-16142 | ||||
| 91665-60630 | ||||
| 94110-51000 | ||||
| 94120-41000 | ||||
| 94512-01000 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 8403 | ||||
| 8408 | ||||

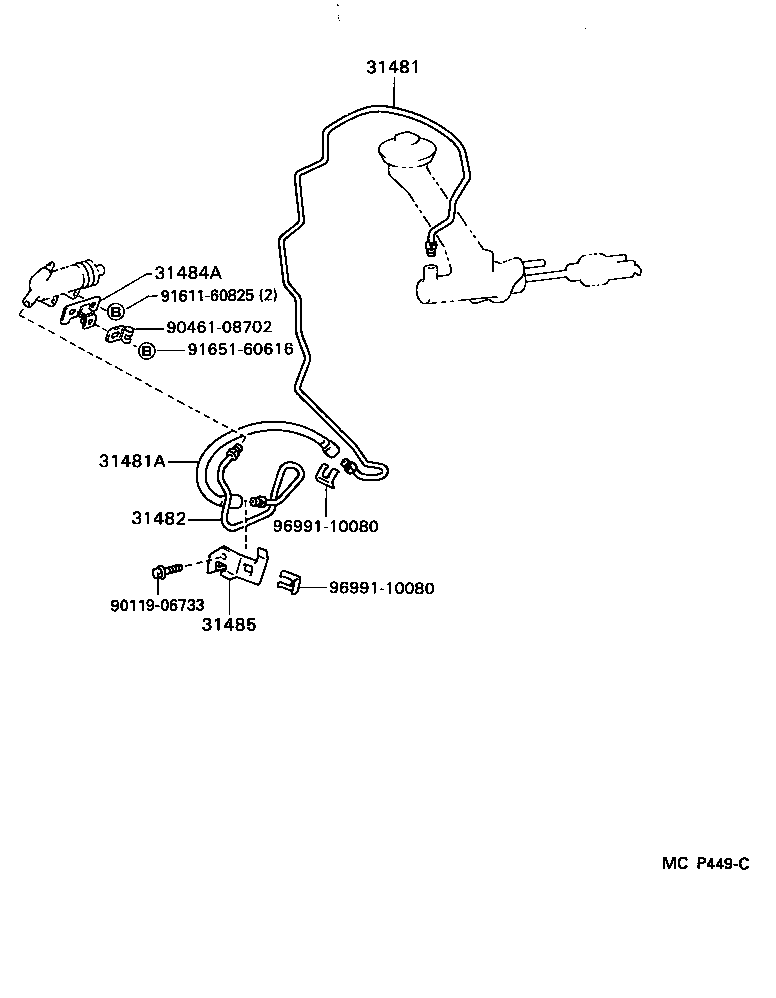

ILLUST NO. 2 OF 2(9305- )LHD..5F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-14260 |
JZA80..LHD..MTM |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96816-50335 |
JZA80..MTM |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-24020 |
JZA80..5F |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-24020 |
JZA80..5F |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31484-24010 |
JZA80..MTM |
1 | ||
| Common parts | ||||
| 90119-06733 | ||||
| 90461-08702 | ||||
| 91611-60825 | ||||
| 91651-60616 | ||||
| 96991-10080 | ||||

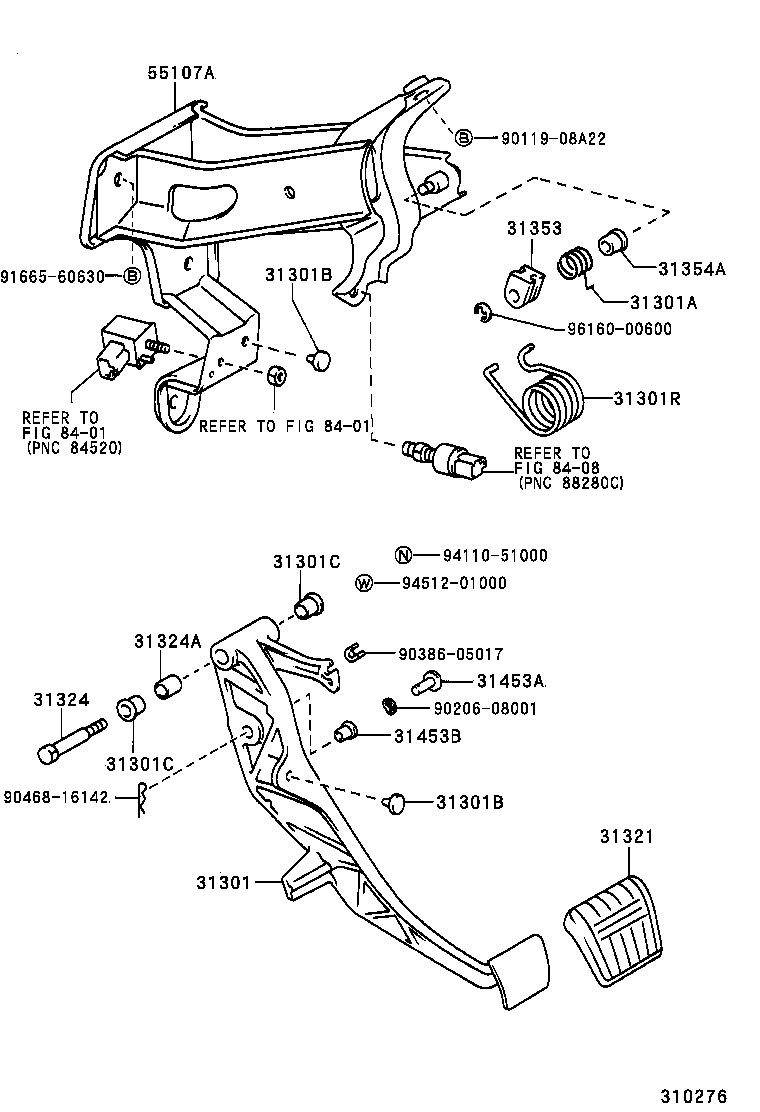

ILLUST NO. 1 OF 2(9305- )MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08A22 | ||||
| 90206-08001 | ||||
| 90386-05017 | ||||
| 90468-16142 | ||||
| 91665-60630 | ||||
| 94110-51000 | ||||
| 94512-01000 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8408 | ||||

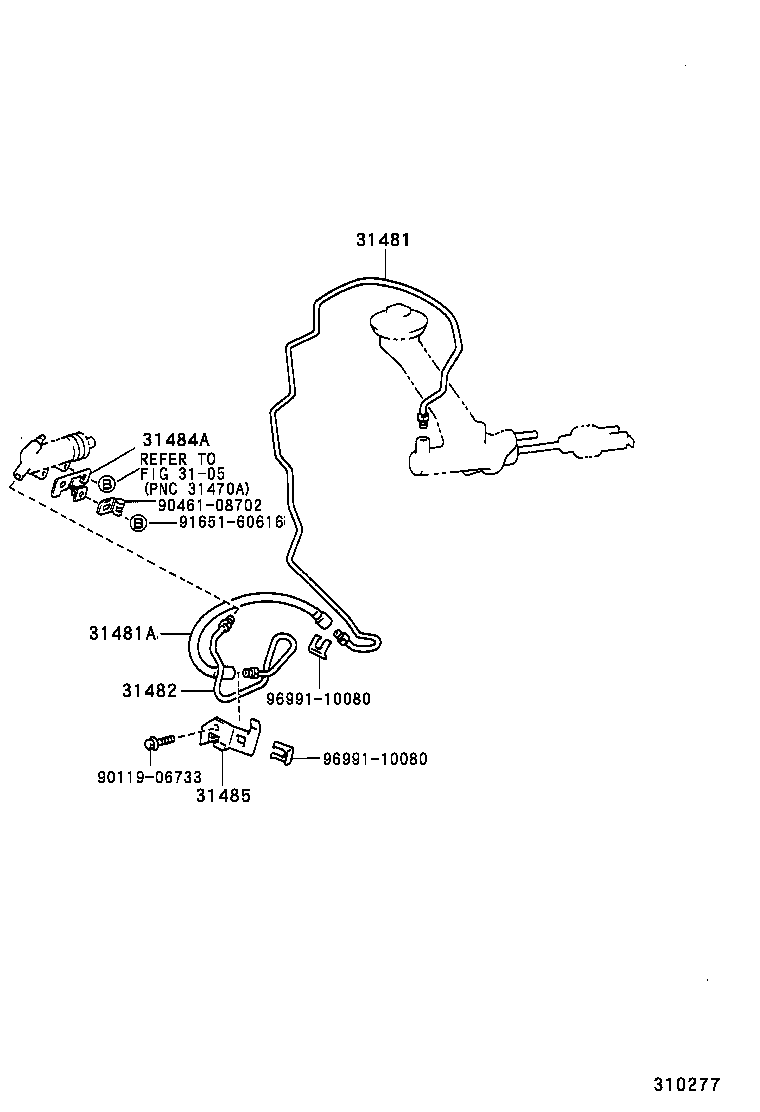

ILLUST NO. 2 OF 2(9305-9709)5F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06733 | ||||
| 90461-08702 | ||||
| 91651-60616 | ||||
| 96991-10080 | ||||
| Linked diagrams | ||||
| 3105 | ||||
