JZA80L-ALMVFA (1993)
Toyota Supra
Production
May 1993
-
Sep 1997
Engine
2JZGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )5F

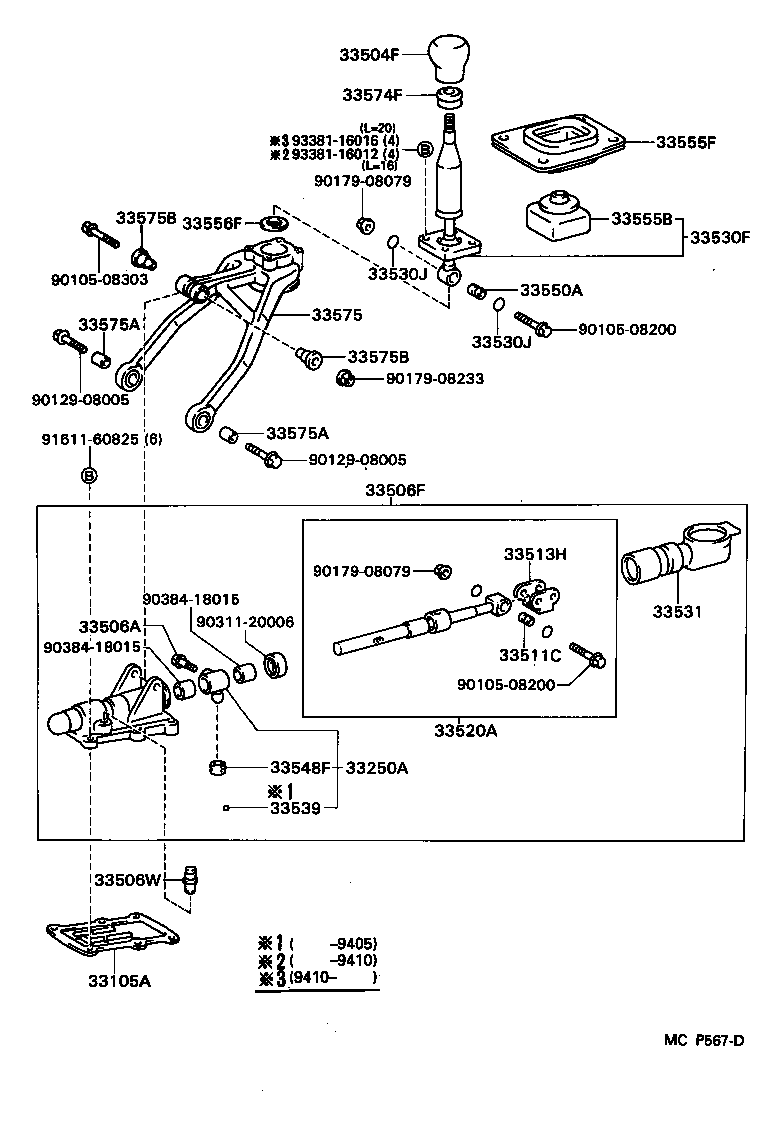

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08200 | ||||
| 90105-08303 | ||||
| 90129-08005 | ||||
| 90179-08079 | ||||
| 90179-08233 | ||||
| 90311-20006 | ||||
| 90384-18015 | ||||
| 91611-60825 | ||||
| 93381-16012 | ||||
| 93381-16016 | ||||
(9305-9709)5F

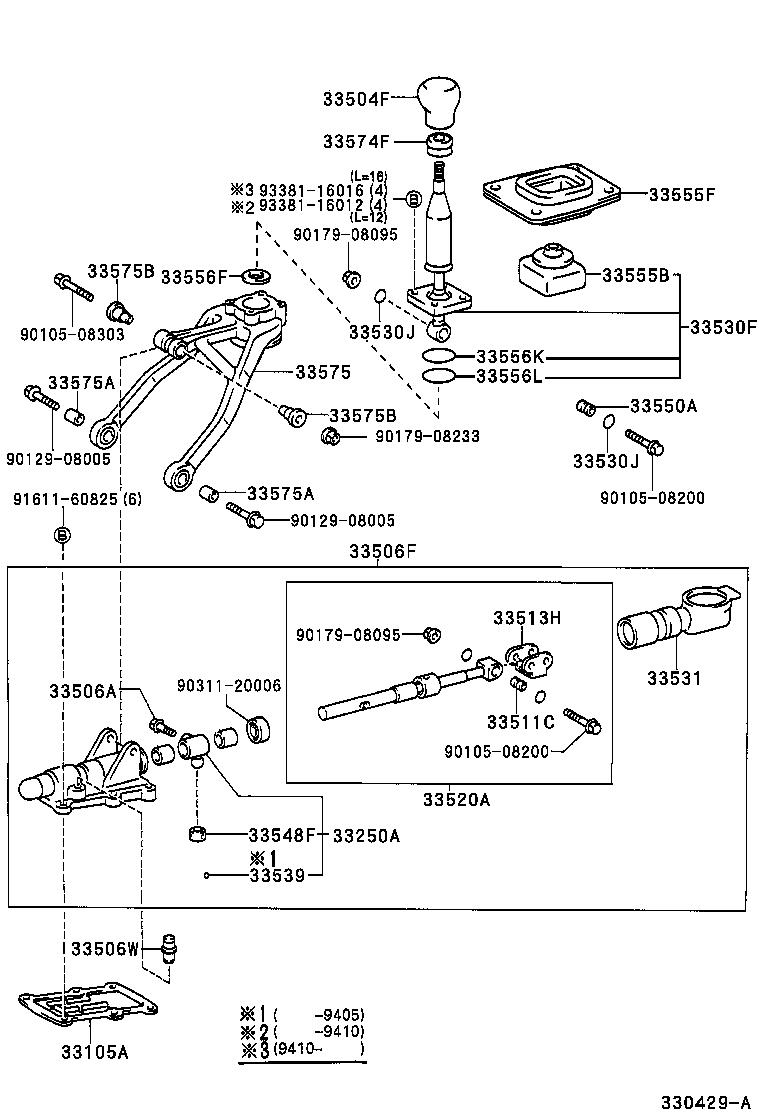

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33105A - DEFLECTOR SUB-ASSY, EXTENSION HOUSING OIL(MTM) | ||||
| 33105-22010 |
JZA80..5F |
1 | ||
| 33250A - LEVER ASSY, SHIFT, INNER NO.2 | ||||
| 33250-22011 |
JZA80..5F |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-14120C0 |
JZA80..5F BLACK,TRIM2# |
1 | ||
| 33504-14120C0 |
JZA80..5F BLACK,TRIM0#,2# |
1 | ||
| 33506A - BOLT (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90105-08079 |
JZA80..5F |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33570-14060 |
JZA80..5F |
1 | ||
| 33506W - PLUG, BREATHER (FOR SHIFT LEVER RETAINER) | ||||
| 90930-03114 |
JZA80..5F |
1 | ||
| 33511C - COLLAR (FOR CONTROL SHAFT) | ||||
| 90387-08134 |
JZA80..5F |
1 | ||
| 33513H - YOKE, CONTROL SHAFT, NO.1 | ||||
| 33513-22030 |
JZA80..MTM |
1 | ||
| 33520A - SHAFT ASSY, FLOOR SHIFT CONTROL | ||||
| 33520-14030 |
JZA80..5F |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-14431 |
JZA80..5F |
1 | ||
| 33530-14450 |
JZA80..5F |
1 | ||
| 33530-14432 |
JZA80..5F |
1 | ||
| 33530J - RING, O (FOR SHIFT LEVER) | ||||
| 90301-11015 |
JZA80..5F |
2 | ||
| 33530J - RING, O (FOR SHIFT LEVER) | ||||
| 90301-11015 |
JZA80..5F |
2 | ||
| 33531 - BOOT, DUST (FOR CONTROL SHIFT LEVER) | ||||
| 33531-22021 |
JZA80..5F |
1 | ||
| 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE | ||||
| 33539-22010 |
JZA80..5F |
3 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-22010 |
JZA80..5F |
1 | ||
| 33548-22020 |
JZA80..5F |
1 | ||
| 33550A - COLLAR FOR FLOOR SHIFT) | ||||
| 90387-08134 |
JZA80..5F |
1 | ||
| 33555B - BOOT, SHIFT & SELECT LEVER | ||||
| 33555-22130 |
JZA80..5F |
1 | ||
| 33555F - BOOT, SHIFT & SELECT LEVER, NO.2 | ||||
| 33555-14090 |
JZA80..5F |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-14050 |
JZA80..MTM |
1 | ||
| 33556K - RING, O, N0.1 (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 96711-19033 |
JZA80..MTM |
1 | ||
| 33556L - RING, O, N0.2 (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 96711-19033 |
JZA80..MTM |
1 | ||
| 33574F - RETAINER, DUST SEAL (FOR FLOOR SHIFT) | ||||
| 33574-14010 |
JZA80..5F |
1 | ||
| 33575 - RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33575-14080 |
JZA80..5F |
1 | ||
| 33575A - BUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 33546-22010 |
JZA80..MTM |
2 | ||
| 33575A - BUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 33546-22010 |
JZA80..MTM |
2 | ||
| 33575B - BUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 33546-22020 |
JZA80..MTM |
2 | ||
| 33575B - BUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 33546-22020 |
JZA80..MTM |
2 | ||
| Common parts | ||||
| 90105-08200 | ||||
| 90105-08303 | ||||
| 90129-08005 | ||||
| 90179-08095 | ||||
| 90179-08233 | ||||
| 90311-20006 | ||||
| 91611-60825 | ||||
| 93381-16012 | ||||
| 93381-16016 | ||||
