JZA80L-ALFVZW (1993)
Toyota Supra
Production
May 1993
-
Jan 1996
Engine
2JZGTE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

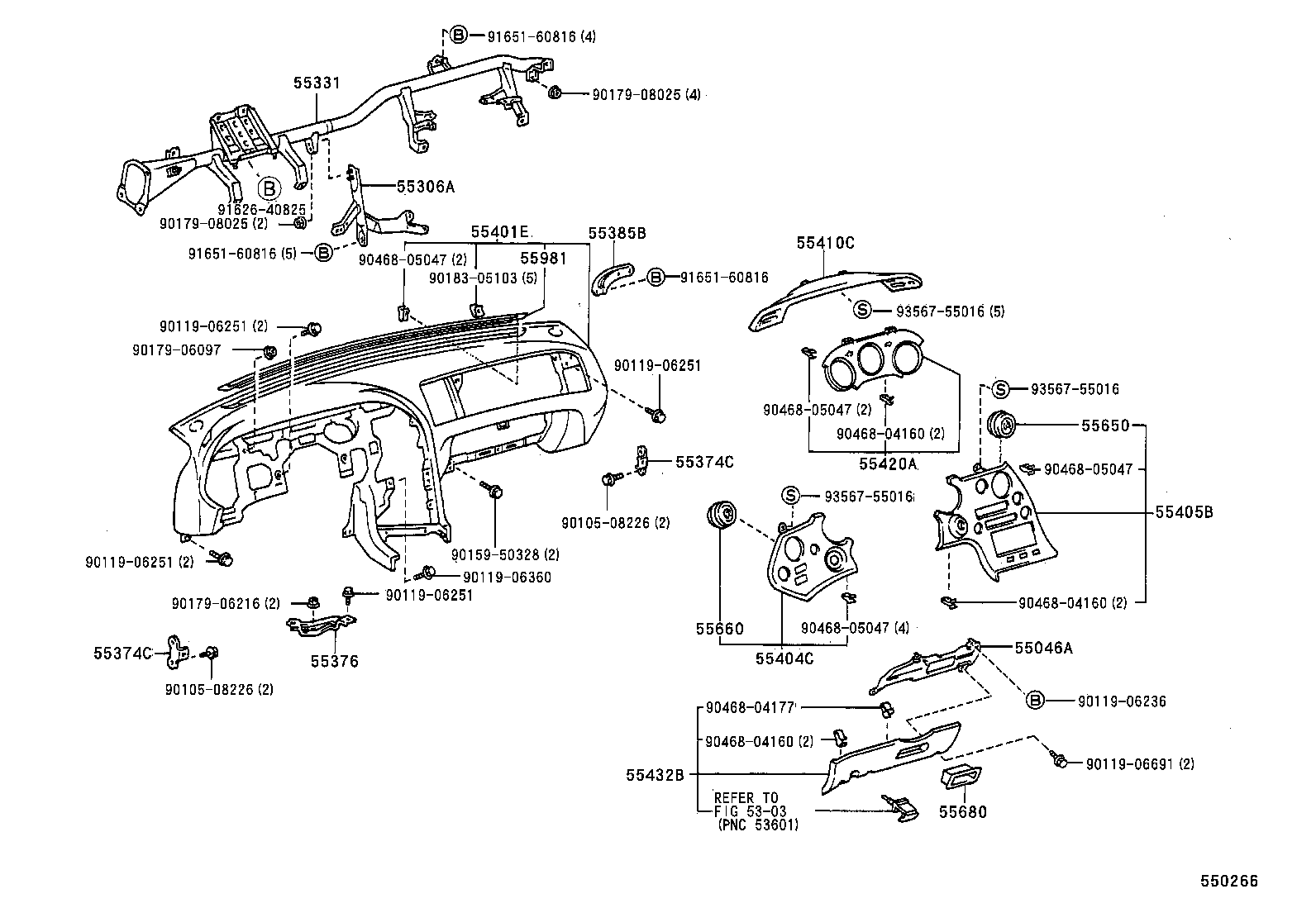

ILLUST NO. 1 OF 2(9305- )LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-14120 |
JZA80..LHD |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-14090 |
JZA80..LHD..EUR |
1 | ||
| 55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1 | ||||
| 55374-14020 |
JZA80 |
2 | ||
| 55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1 | ||||
| 55374-14020 |
JZA80 |
2 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-14060 |
JZA80..LHD |
1 | ||
| 55385B - BRACKET, FINISH PANEL MOUNTING, NO.5 | ||||
| 55385-14030 |
JZA80..LHD |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-14510C0 |
JZA80..LHD BLACK,TRIM0#,2# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-14540 |
JZA80..LHD..EUR |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-14150 |
JZA80..LHD..EUR |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-14510 |
JZA80..LHD |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-14040 |
JZA80..LHD |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-14270C0 |
JZA80..LHD BLACK,TRIM0#,2# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-14130 |
JZA80 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55650-14130 |
JZA80 |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-89101 |
JZA80 |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-14010 |
JZA80 |
1 | ||
| Common parts | ||||
| 90105-08226 | ||||
| 90119-06251 | ||||
| 90119-06360 | ||||
| 90119-06691 | ||||
| 90159-50328 | ||||
| 90179-06097 | ||||
| 90179-06216 | ||||
| 90179-08025 | ||||
| 90183-05103 | ||||
| 90468-04160 | ||||
| 90468-04177 | ||||
| 90468-05047 | ||||
| 91651-60816 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 5303 | ||||

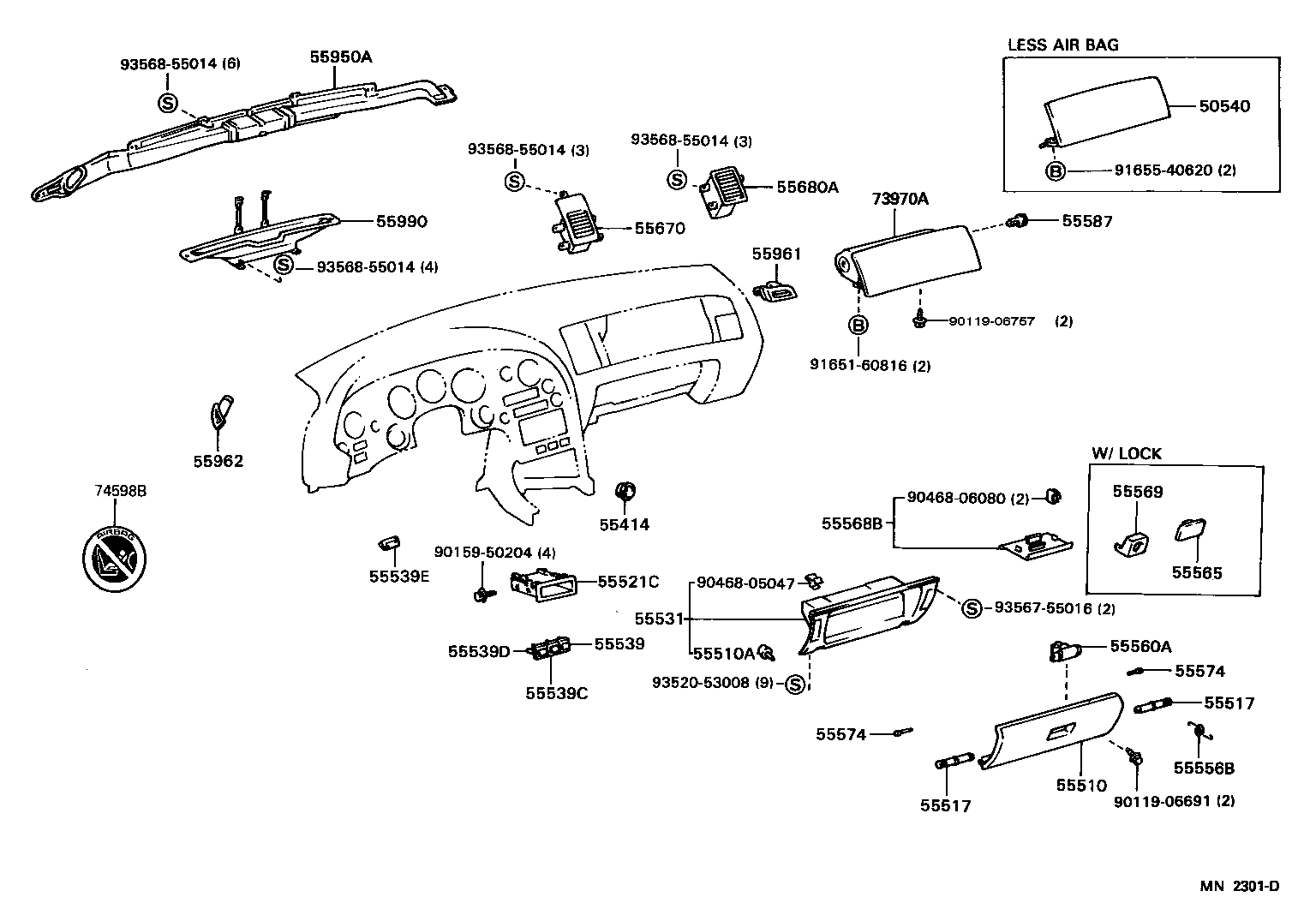

ILLUST NO. 2 OF 2(9305- )LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-33010 |
JZA80 |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-14180C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-05020 |
JZA80 |
2 | ||
| 55517 - STOPPER, GLOVE COMPARTMENT DOOR ARM | ||||
| 55517-30030 |
JZA80 RH |
1 | ||
| 55517-14030 |
JZA80 LH |
1 | ||
| 55517 - STOPPER, GLOVE COMPARTMENT DOOR ARM | ||||
| 55517-30030 |
JZA80 RH |
1 | ||
| 55517-14030 |
JZA80 LH |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55022-17010 |
JZA80..EUR |
1 | ||
| 55531 - PANEL, GLOVE COMPARTMENT | ||||
| 55531-14120 |
JZA80 |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55537-14030 |
JZA80..LHD |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55538-14020 |
JZA80..LHD..EUR |
1 | ||
| 55538-14020 |
JZA80..LHD..EUR |
1 | ||
| 55538-14020 |
JZA80..LHD..EUR |
1 | ||
| 55539E - COVER, SPARE SWITCH HOLE | ||||
| 55539-14060 |
JZA80..LHD..EUR |
1 | ||
| 55556B - SPRING, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55556-14100 |
JZA80 |
1 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-22020C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 55568B - PLATE, GLOVE COMPARTMENT DOOR FINISH | ||||
| 55568-14010 |
JZA80 |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-22030C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
JZA80 |
2 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
JZA80 |
2 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-14100C0 |
JZA80..LHD BLACK,TRIM0#,2# |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-14050C0 |
JZA80..LHD BLACK,TRIM0#,2# |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-14140 |
JZA80..LHD |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55962-14070C0 |
JZA80..LHD BLACK,TRIM0#,2# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55961-14090C0 |
JZA80..LHD BLACK,TRIM0#,2# |
1 | ||
| 55990 - NOZZLE ASSY, CENTER DEFROSTER | ||||
| 55990-14010 |
JZA80 |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-14010C0 |
JZA80..LHD..EUR BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 90119-06691 | ||||
| 90119-06757 | ||||
| 90159-50204 | ||||
| 90468-05047 | ||||
| 90468-06080 | ||||
| 91651-60816 | ||||
| 91655-40620 | ||||
| 93520-53008 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||

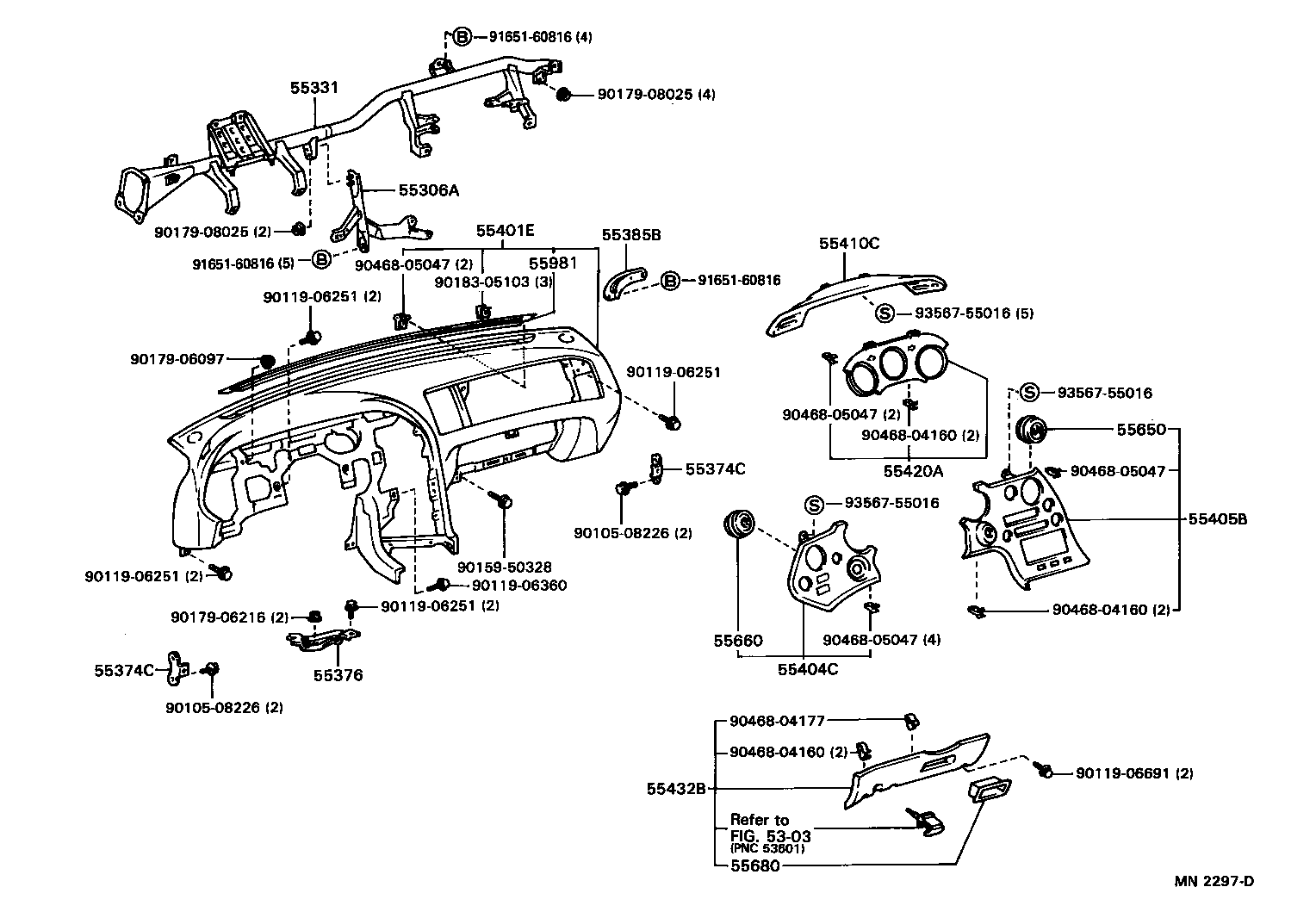

ILLUST NO. 1 OF 2(9305- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08226 | ||||
| 90119-06236 | ||||
| 90119-06251 | ||||
| 90119-06360 | ||||
| 90119-06691 | ||||
| 90159-50328 | ||||
| 90179-06097 | ||||
| 90179-06216 | ||||
| 90179-08025 | ||||
| 90183-05103 | ||||
| 90468-04160 | ||||
| 90468-04177 | ||||
| 90468-05047 | ||||
| 91626-40825 | ||||
| 91651-60816 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 5303 | ||||

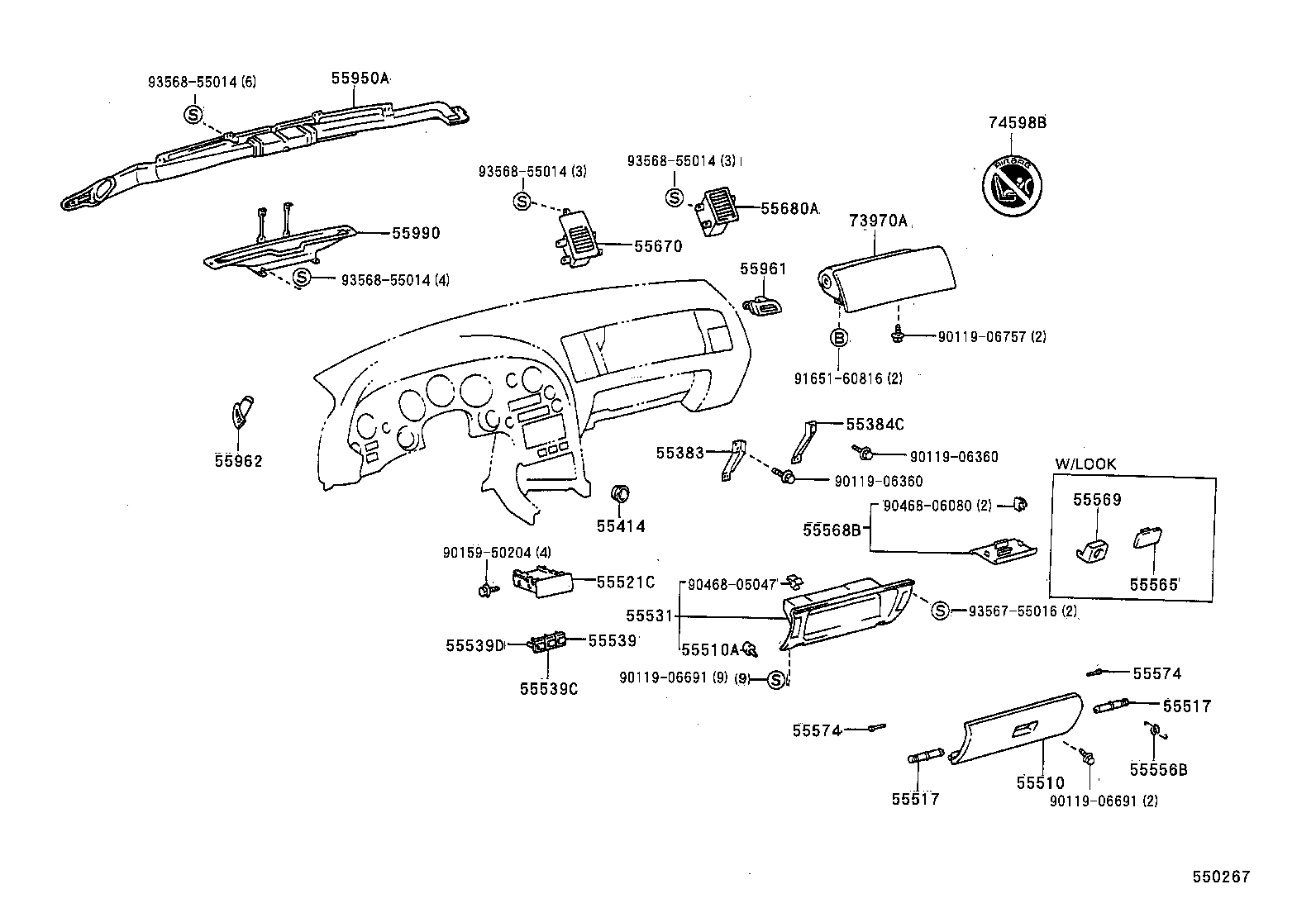

ILLUST NO. 2 OF 2(9305- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06360 | ||||
| 90119-06691 | ||||
| 90119-06757 | ||||
| 90159-50204 | ||||
| 90468-05047 | ||||
| 90468-06080 | ||||
| 91651-60816 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||
