JZA80L-ALFVZA (1993)

Toyota Supra

Production May 1993 - Aug 1998
Engine 2JZGTE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9305- )

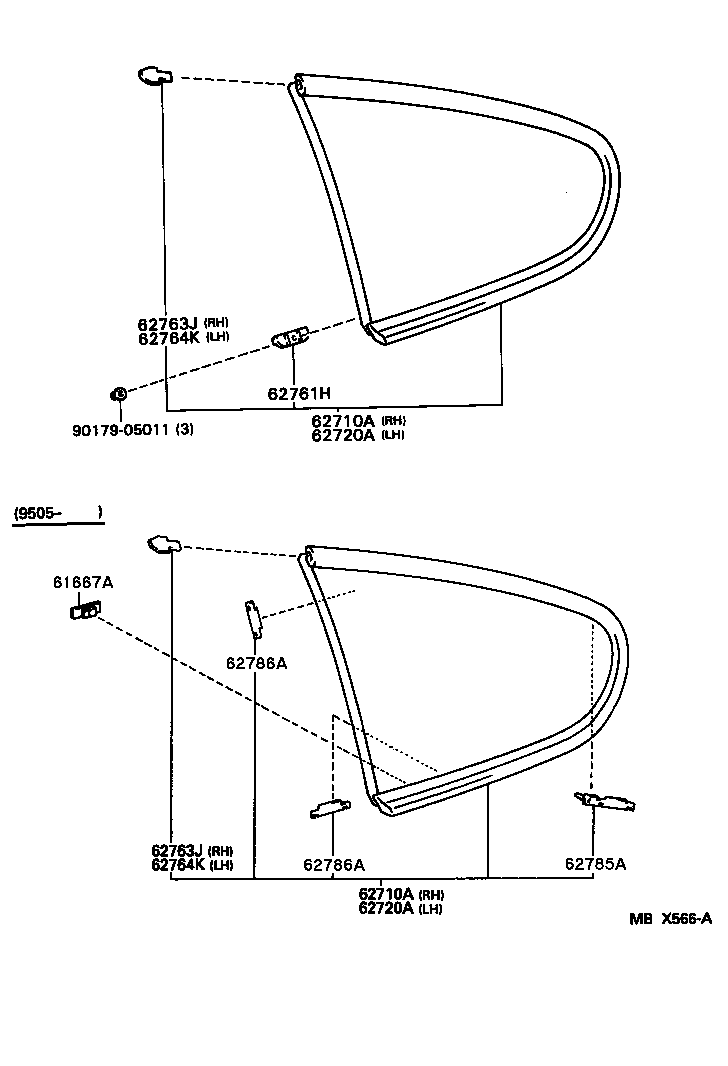

Click highlighted areas on diagram

diagram 61667A 62710A 62710A 62720A 62720A 62761H 62763J 62763J 62764K 62764K 62785A 62786A 62786A 9017905011
Part # Description Qty Price
Common parts
90179-05011

(9305-9505)

Click highlighted areas on diagram

diagram 62710A 62720A 62761H 62763J 62764K 9017905011
Part # Description Qty Price
62710A - WINDOW ASSY, QUARTER, RH
62710-14261

JZA80..LB

*TT,T=3.1,BLUE

 1
62710-14260

JZA80..LB

*TT,T=3.1,BLUE

 1
62710-14280

JZA80..LB

*TT,T=3.1,GREEN

 1
62720A - WINDOW ASSY, QUARTER, LH
62720-14261

JZA80..LB

*TT,T=3.1,BLUE

 1
62720-14260

JZA80..LB

*TT,T=3.1,BLUE

 1
62720-14280

JZA80..LB

*TT,T=3.1,GREEN

 1
62761H - RETAINER, QUARTER WINDOW GLASS, FRONT
62761-14050

JZA80

 6
62763J - RETAINER, QUARTER WINDOW GLASS, UPPER
62763-14060

JZA80..LB

 1
62764K - RETAINER, QUARTER WINDOW GLASS, UPPER
62763-14060

JZA80..LB

 1
Common parts
90179-05011

(9505- )

Click highlighted areas on diagram

diagram 61667A 62710A 62720A 62763J 62764K 62785A 62786A 62786A
Part # Description Qty Price
61667A - SPACER QUARTER PANEL, NO.1
61667-14030

JZA80

 6
61667-14030

JZA80

 6
62710A - WINDOW ASSY, QUARTER, RH
62710-14261

JZA80..LB

*TT,T=3.1,BLUE

 1
62710-14260

JZA80..LB

*TT,T=3.1,BLUE

 1
62710-14280

JZA80..LB

*TT,T=3.1,GREEN

 1
62720A - WINDOW ASSY, QUARTER, LH
62720-14261

JZA80..LB

*TT,T=3.1,BLUE

 1
62720-14260

JZA80..LB

*TT,T=3.1,BLUE

 1
62720-14280

JZA80..LB

*TT,T=3.1,GREEN

 1
62763J - RETAINER, QUARTER WINDOW GLASS, UPPER
62763-14060

JZA80..LB

 1
62764K - RETAINER, QUARTER WINDOW GLASS, UPPER
62763-14060

JZA80..LB

 1
62785A - SPACER, QUARTER WINDOW GLASS
62785-14020

JZA80

 2
62785-14020

JZA80

 2
62786A - SPACER, QUARTER WINDOW GLASS, NO.2
62786-14020

JZA80

 4
62786-14020

JZA80

 4
62786A - SPACER, QUARTER WINDOW GLASS, NO.2
62786-14020

JZA80

 4
62786-14020

JZA80

 4
