JZA80L-ALFVZA (1993)
Toyota Supra
Production
May 1993
-
Aug 1998
Engine
2JZGTE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )

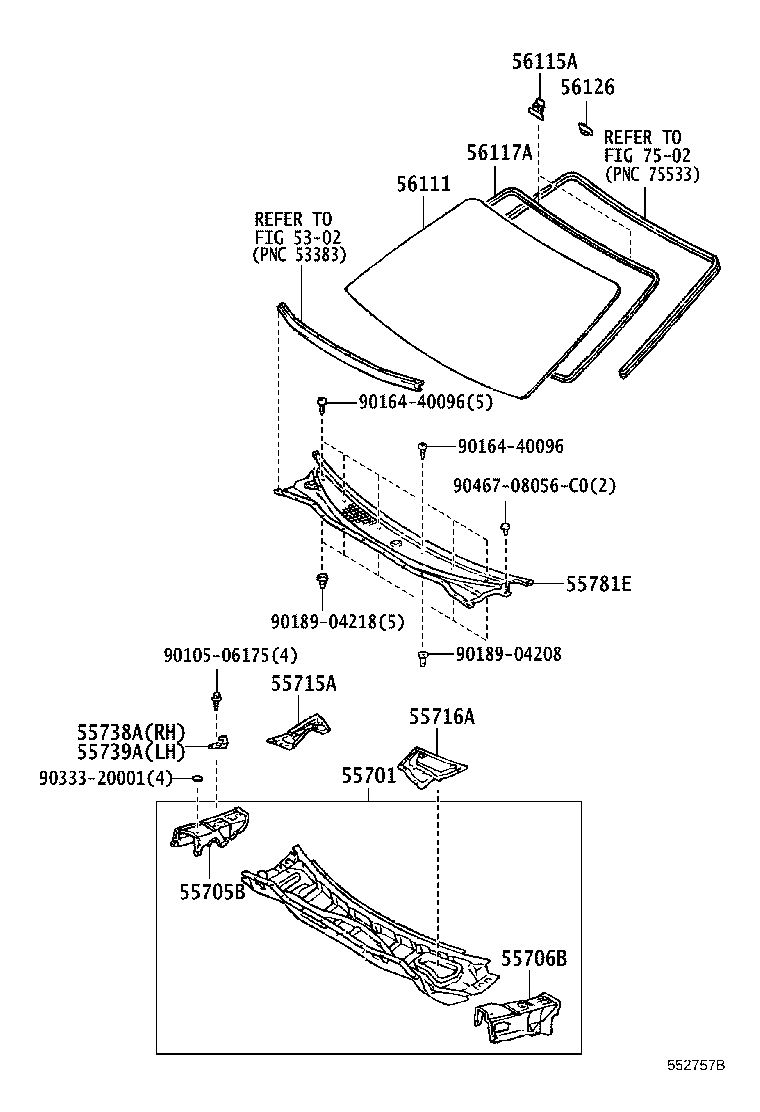

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-06175 | ||||
| 90164-40096 | ||||
| 90189-04208 | ||||
| 90189-04218 | ||||
| 90333-20001 | ||||
| 90467-08056C0 | ||||
| Linked diagrams | ||||
| 5302 | ||||
| 7502 | ||||
(9305- )

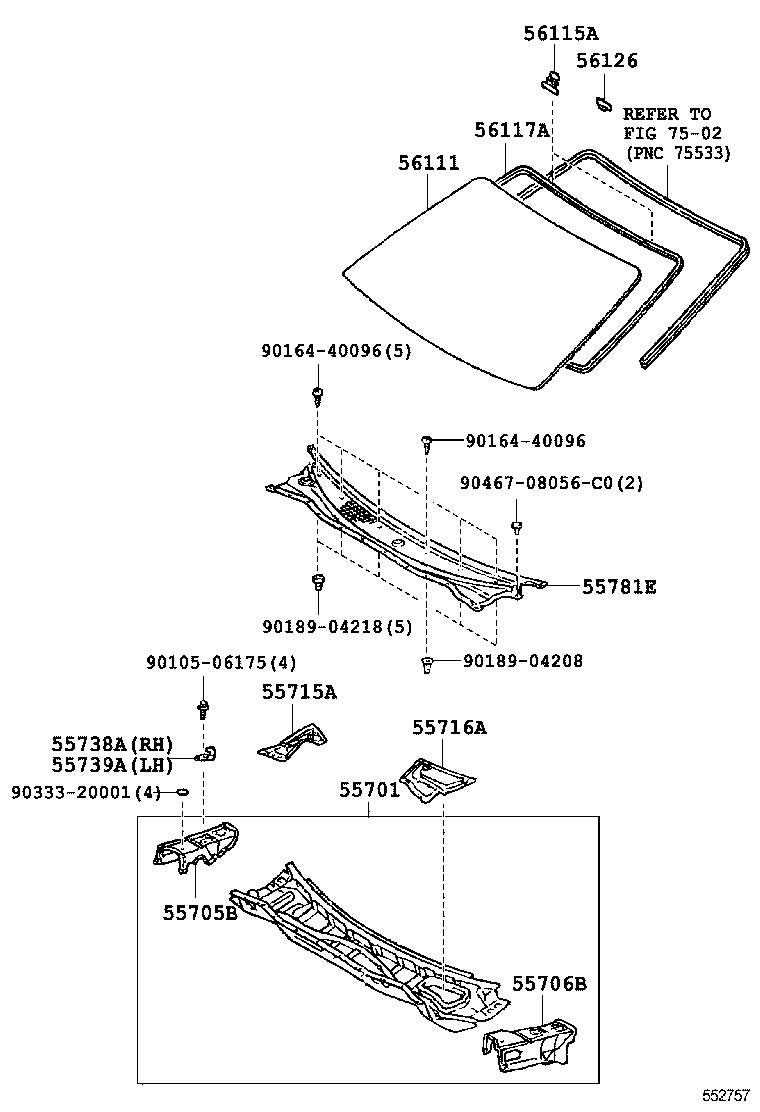

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-14800 |
JZA80 |
1 | ||
| 55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH | ||||
| 55705-14900 |
JZA80 |
1 | ||
| 55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-14900 |
JZA80 |
1 | ||
| 55715A - BRACE, COWL TOP TO APRON, RH | ||||
| 55715-14110 |
JZA80 |
1 | ||
| 55716A - BRACE, COWL TOP TO APRON, LH | ||||
| 55716-14110 |
JZA80 |
1 | ||
| 55738A - STOPPER, HOOD, RH | ||||
| 55738-14020 |
JZA80 |
1 | ||
| 55739A - STOPPER, HOOD, LH | ||||
| 55739-14040 |
JZA80 |
1 | ||
| 55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-14030 |
JZA80 |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-14060 |
JZA80 *TL,T=4.0,GREEN |
1 | ||
| 56101-14040 |
JZA80 *TL,T=4.7,BLUE |
1 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-14030 |
JZA80 |
2 | ||
| 56117A - DAM, WINDOW GLASS ADHESIVE | ||||
| 04562-12010 |
JZA80 |
1 | ||
| 56126 - SPACER, WINDSHIELD GLASS, NO.2 | ||||
| 56126-22030 |
JZA80 |
4 | ||
| Common parts | ||||
| 90105-06175 | ||||
| 90164-40096 | ||||
| 90189-04208 | ||||
| 90189-04218 | ||||
| 90333-20001 | ||||
| 90467-08056C0 | ||||
| Linked diagrams | ||||
| 7502 | ||||
