JZA80L-ALFVZA (1993)
Toyota Supra
Production
May 1993
-
Aug 1998
Engine
2JZGTE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

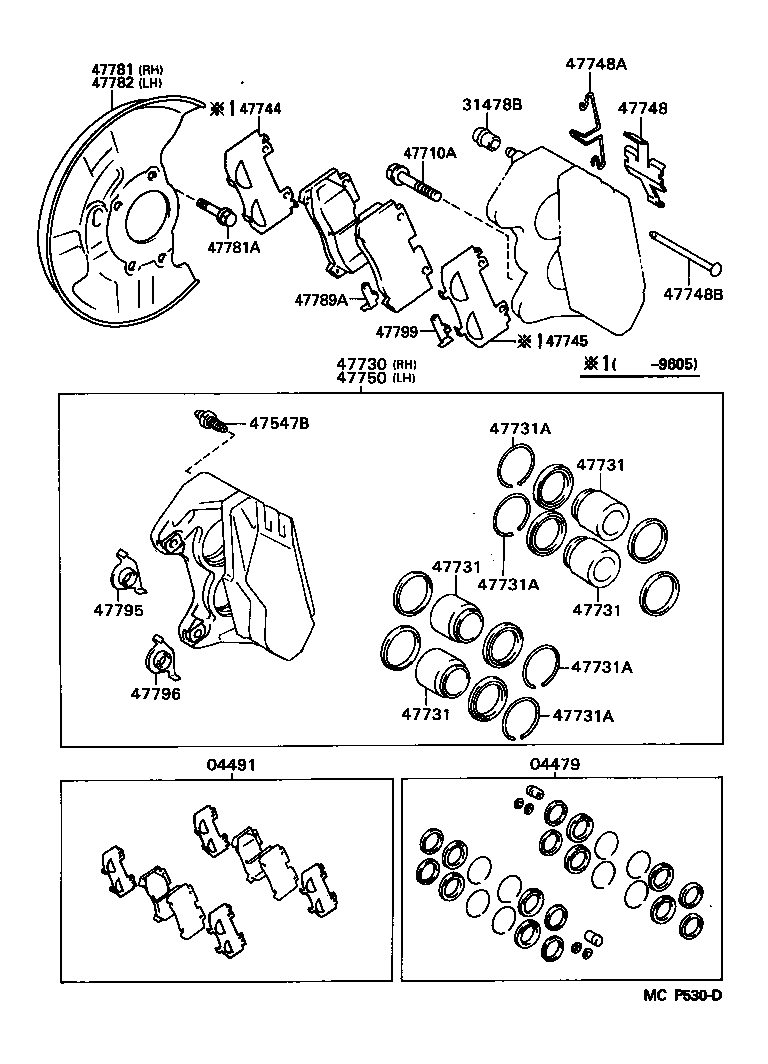

ILLUST NO. 1 OF 2(9305- )4FC,6F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-14140 |
JZA80..TWT |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-14331 |
JZA80..TWT |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-14010 |
JZA80..TWT |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20030 |
JZA80..TWT |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90105-12175 |
JZA80 *12-1.25PX35-27 |
4 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-14260 |
JZA80..TWT |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-14110 |
JZA80..TWT |
8 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-14110 |
JZA80..TWT |
8 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-14110 |
JZA80..TWT |
8 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-14110 |
JZA80..TWT |
8 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-48044 |
JZA80..TWT |
8 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-48044 |
JZA80..TWT |
8 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-48044 |
JZA80..TWT |
8 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-48044 |
JZA80..TWT |
8 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47745-14100 |
JZA80..TWT RH |
1 | ||
| 47745-14110 |
JZA80..TWT LH |
1 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47745-14110 |
JZA80..TWT RH |
1 | ||
| 47745-14100 |
JZA80..TWT LH |
1 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-14080 |
JZA80..TWT |
2 | ||
| 47748A - CLIP(FOR FRONT DISC BRAKE ANTI-RATTLE) | ||||
| 90468-12021 |
JZA80..TWT |
2 | ||
| 47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE) | ||||
| 90240-06019 |
JZA80..TWT |
4 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-14270 |
JZA80..TWT |
1 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-14160 |
JZA80..TWT |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90119-06227 |
JZA80 |
8 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-14160 |
JZA80..TWT |
1 | ||
| 47789A - SPACER, FRONT DISC BRAKE PAD, NO.1 | ||||
| 47789-14010 |
JZA80..TWT |
2 | ||
| 47795 - PLATE, FRONT DISC BRAKE CALIPER, NO.1 | ||||
| 47795-14010 |
JZA80..TWT |
2 | ||
| 47796 - PLATE, FRONT DISC BRAKE CALIPER, NO.2 | ||||
| 47796-14010 |
JZA80..TWT |
2 | ||
| 47799 - SPACER, DISC BRAKE PAD, NO.2 | ||||
| 47799-14010 |
JZA80..TWT |
2 | ||
ILLUST NO. 2 OF 2(9305- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(9305- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-14150 |
JZA80..TWT |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-14110 |
JZA80..TWT |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-14010 |
JZA80..TWT |
1 | ||
ILLUST NO. 1 OF 2(9305- )TWT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-14140 |
JZA80..TWT |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-14331 |
JZA80..TWT |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-14010 |
JZA80..TWT |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20030 |
JZA80..TWT |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90105-12175 |
JZA80 *12-1.25PX35-27 |
4 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-14260 |
JZA80..TWT |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-14110 |
JZA80..TWT |
8 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-14110 |
JZA80..TWT |
8 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-14110 |
JZA80..TWT |
8 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-14110 |
JZA80..TWT |
8 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-48044 |
JZA80..TWT |
8 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-48044 |
JZA80..TWT |
8 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-48044 |
JZA80..TWT |
8 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-48044 |
JZA80..TWT |
8 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47745-14100 |
JZA80..TWT RH |
1 | ||
| 47745-14110 |
JZA80..TWT LH |
1 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47745-14110 |
JZA80..TWT RH |
1 | ||
| 47745-14100 |
JZA80..TWT LH |
1 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-14080 |
JZA80..TWT |
2 | ||
| 47748A - CLIP(FOR FRONT DISC BRAKE ANTI-RATTLE) | ||||
| 90468-12021 |
JZA80..TWT |
2 | ||
| 47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE) | ||||
| 90240-06019 |
JZA80..TWT |
4 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-14270 |
JZA80..TWT |
1 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-14160 |
JZA80..TWT |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90119-06227 |
JZA80 |
8 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-14160 |
JZA80..TWT |
1 | ||
| 47789A - SPACER, FRONT DISC BRAKE PAD, NO.1 | ||||
| 47789-14010 |
JZA80..TWT |
2 | ||
| 47795 - PLATE, FRONT DISC BRAKE CALIPER, NO.1 | ||||
| 47795-14010 |
JZA80..TWT |
2 | ||
| 47796 - PLATE, FRONT DISC BRAKE CALIPER, NO.2 | ||||
| 47796-14010 |
JZA80..TWT |
2 | ||
| 47799 - SPACER, DISC BRAKE PAD, NO.2 | ||||
| 47799-14010 |
JZA80..TWT |
2 | ||
