JZA80L-ALFVZA (1993)
Toyota Supra
Production
May 1993
-
Aug 1998
Engine
2JZGTE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

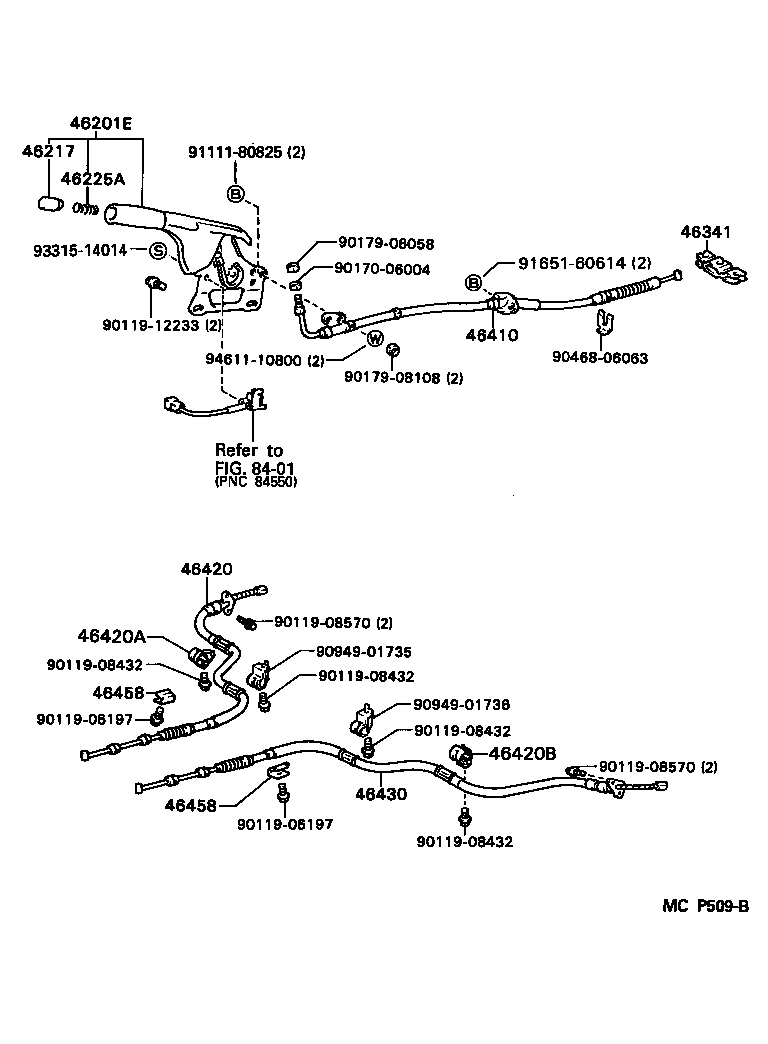

ILLUST NO. 1 OF 2(9305- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06197 | ||||
| 90119-08432 | ||||
| 90119-08570 | ||||
| 90119-12233 | ||||
| 90170-06004 | ||||
| 90179-06058 | ||||
| 90179-08108 | ||||
| 90468-06063 | ||||
| 90949-01735 | ||||
| 90949-01736 | ||||
| 91111-80825 | ||||
| 91651-60614 | ||||
| 93315-14014 | ||||
| 94611-10800 | ||||
| Linked diagrams | ||||
| 8401 | ||||

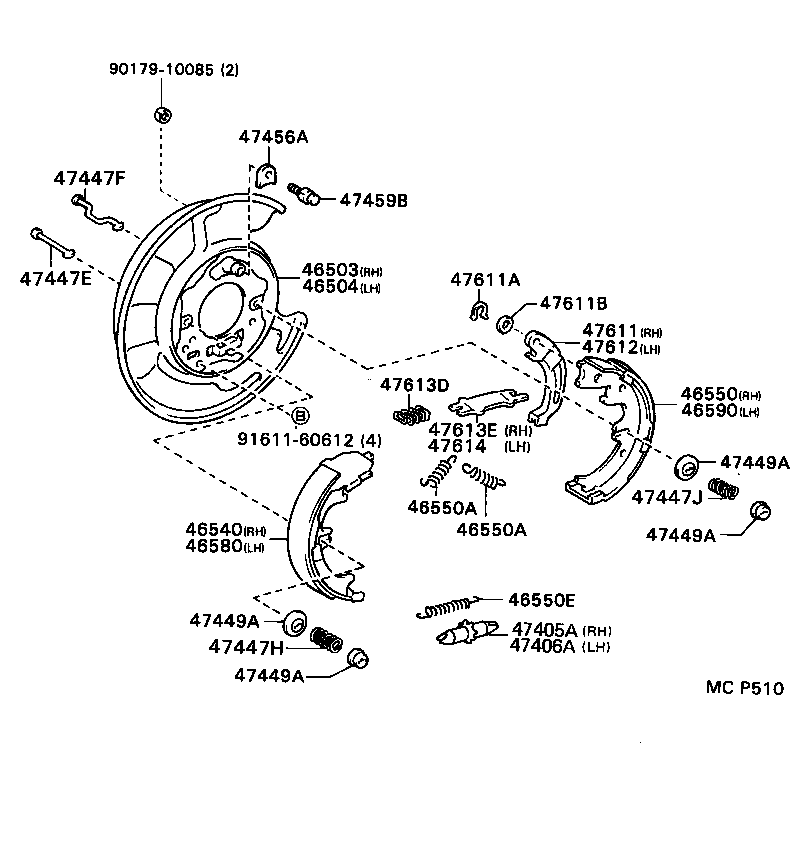

ILLUST NO. 2 OF 2(9305- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-10085 | ||||
| 91611-60612 | ||||

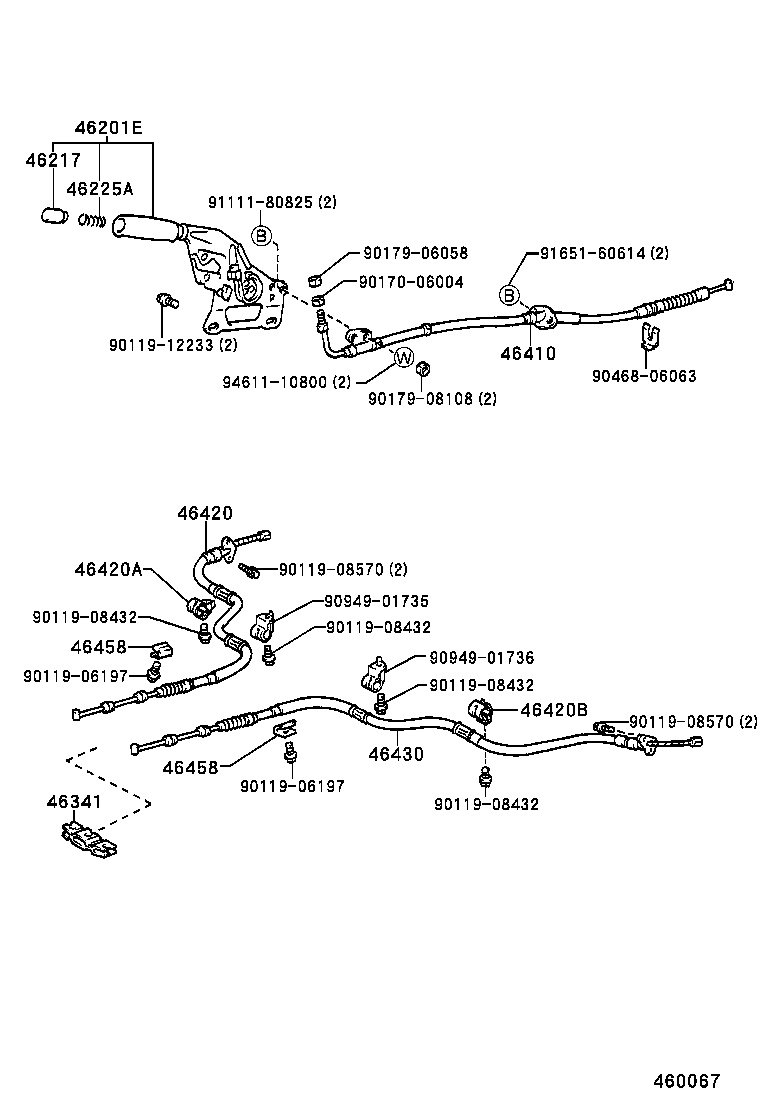

ILLUST NO. 1 OF 2(9305- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-14270C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 46201-14290C1 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-24010C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10180 |
JZA80 |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-24010 |
JZA80 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-14140 |
JZA80 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-14260 |
JZA80 |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01914 |
JZA80 |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01915 |
JZA80 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-14320 |
JZA80 |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-50010 |
JZA80 |
2 | ||
| 46458-28010 |
JZA80 |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-50010 |
JZA80 |
2 | ||
| 46458-28010 |
JZA80 |
2 | ||
| Common parts | ||||
| 90119-06197 | ||||
| 90119-08432 | ||||
| 90119-08570 | ||||
| 90119-12233 | ||||
| 90170-06004 | ||||
| 90179-06058 | ||||
| 90179-08108 | ||||
| 90468-06063 | ||||
| 90949-01735 | ||||
| 90949-01736 | ||||
| 91111-80825 | ||||
| 91651-60614 | ||||
| 94611-10800 | ||||

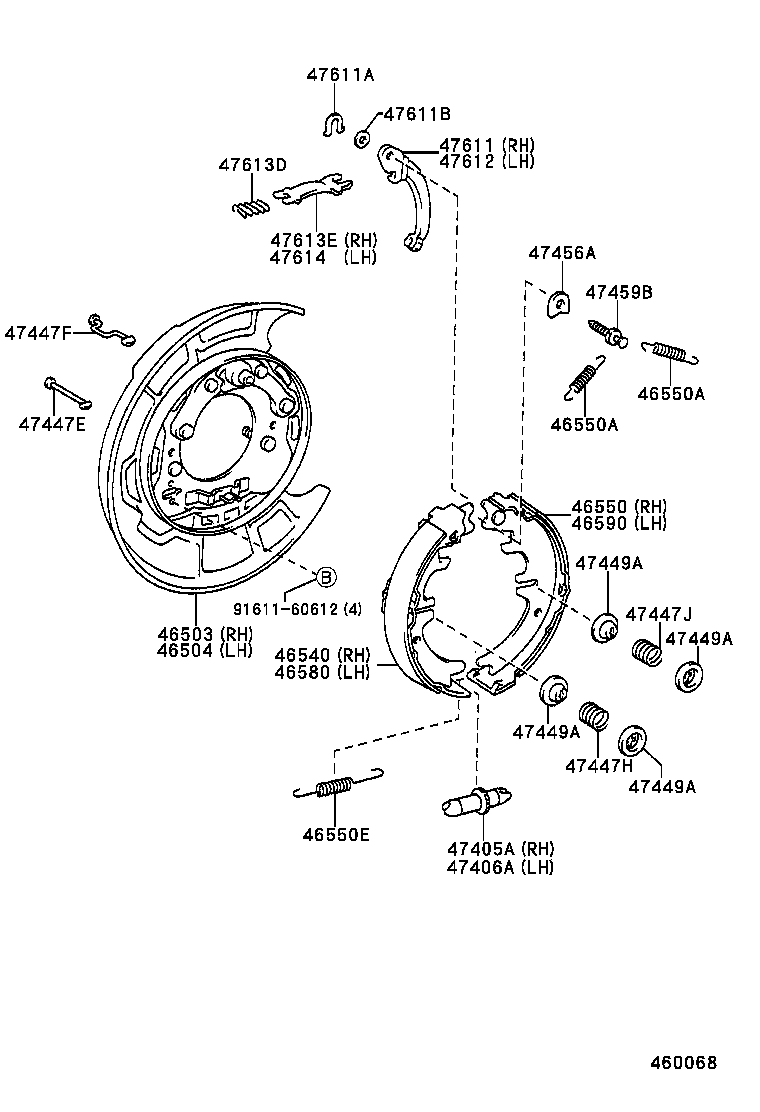

ILLUST NO. 2 OF 2(9305- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-14020 |
JZA80..TWT |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-14020 |
JZA80..TWT |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-50010 |
JZA80..TWT |
1 | ||
| 46540-50010 |
JZA80 |
1 | ||
| 46540-28010 |
JZA80 |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-50010 |
JZA80 |
1 | ||
| 46550-28010 |
JZA80 |
1 | ||
| 46550-50010 |
JZA80..TWT |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-20016 |
JZA80 |
4 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-20016 |
JZA80 |
4 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12051 |
JZA80 |
2 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-50010 |
JZA80 |
1 | ||
| 46540-50010 |
JZA80..TWT |
1 | ||
| 46540-28010 |
JZA80 |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46590-50010 |
JZA80 |
1 | ||
| 46590-50010 |
JZA80..TWT |
1 | ||
| 46590-28010 |
JZA80 |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-30040 |
JZA80 |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-30040 |
JZA80 |
1 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47447-30020 |
JZA80 |
2 | ||
| 47447F - PIN, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47447-50010 |
JZA80 |
2 | ||
| 47447H - SPRING, COMPRESSION, NO.1(FOR PARKING BRAKE SHOE HOLD D | ||||
| 90501-16053 |
JZA80 |
2 | ||
| 47447J - SPRING, COMPRESSION, NO.2(FOR PARKING BRAKE SHOE HOLD D | ||||
| 90501-16118 |
JZA80 |
2 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
JZA80 OUTER |
4 | ||
| 47449-40010 |
JZA80 INNER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
JZA80 OUTER |
4 | ||
| 47449-40010 |
JZA80 INNER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
JZA80 OUTER |
4 | ||
| 47449-40010 |
JZA80 INNER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
JZA80 OUTER |
4 | ||
| 47449-40010 |
JZA80 INNER |
4 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-20030 |
JZA80 |
2 | ||
| 47456-33010 |
JZA80 |
2 | ||
| 47456-33010 |
JZA80 |
2 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
JZA80 |
2 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-50010 |
JZA80 |
1 | ||
| 47611A - WASHER, TYPE C(FOR PARKING BRAKE SHOE LEVER) | ||||
| 90213-07018 |
JZA80 |
2 | ||
| 47611B - SHIM(FOR PARKING BRAKE SHOE LEVER) | ||||
| 90564-09184 |
JZA80 T=0.3 |
1 | ||
| 90564-09186 |
JZA80 T=0.9 |
1 | ||
| 90564-09185 |
JZA80 T=0.6 |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-50010 |
JZA80 |
1 | ||
| 47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-14002 |
JZA80 |
2 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 47613-28010 |
JZA80 |
1 | ||
| 47613-28010 |
JZA80 |
1 | ||
| 47613-50010 |
JZA80 |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 47614-28010 |
JZA80 |
1 | ||
| 47614-28010 |
JZA80 |
1 | ||
| 47614-50010 |
JZA80 |
1 | ||
| Common parts | ||||
| 91611-60612 | ||||
