JZA80L-AJPVZW (1993)
Toyota Supra
Production
May 1993
-
Jan 1996
Engine
2JZGTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

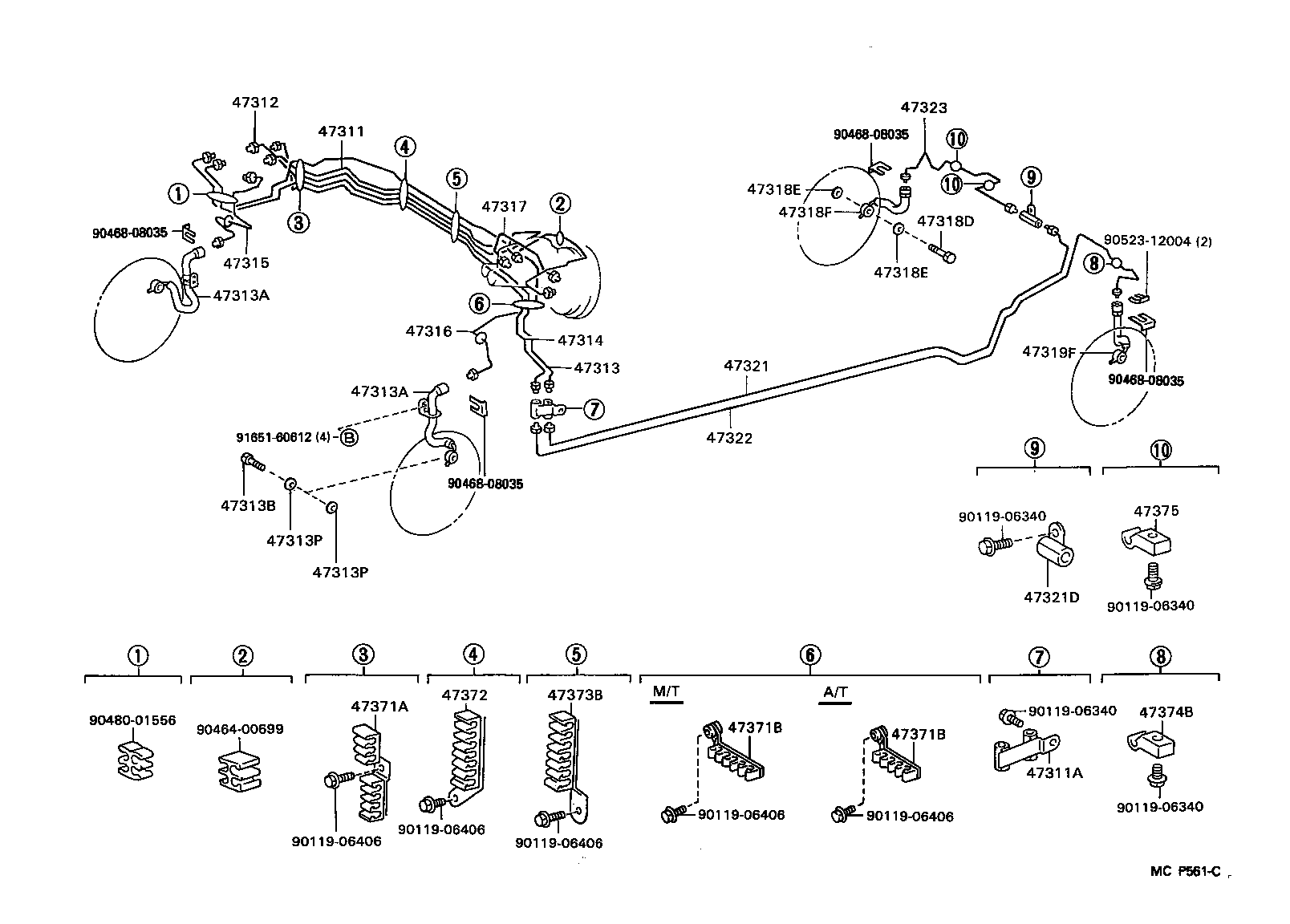

ILLUST NO. 1 OF 2(9305- )LHD..EUR
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-14430 |
JZA80..LHD..EUR |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10220 |
JZA80..EUR,GCC |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47324-14150 |
JZA80..LHD..EUR |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47322-14340 |
JZA80..LHD..EUR |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 47330-14010 |
JZA80 RH |
1 | ||
| 47340-14010 |
JZA80 LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 47330-14010 |
JZA80 RH |
1 | ||
| 47340-14010 |
JZA80 LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10042 |
JZA80 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-24010 |
JZA80 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-24010 |
JZA80 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47323-14130 |
JZA80..LHD |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47312-14270 |
JZA80..LHD |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47313-14290 |
JZA80..LHD |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47321-14270 |
JZA80..LHD..EUR |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10042 |
JZA80 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-24010 |
JZA80 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-24010 |
JZA80 |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02745 |
JZA80 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02745 |
JZA80 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47326-14040 |
JZA80 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10213 |
JZA80..EUR,GCC |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47327-14030 |
JZA80 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47328-14030 |
JZA80 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-14130 |
JZA80..LHD..EUR |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47371-14170 |
JZA80..LHD..4FC |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47371-14170 |
JZA80..LHD..4FC |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-14140 |
JZA80..LHD..EUR |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-14150 |
JZA80..LHD..EUR |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-30180 |
JZA80..EUR,GCC |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-30180 |
JZA80 |
2 | ||
| Common parts | ||||
| 90119-06340 | ||||
| 90119-06406 | ||||
| 90464-00699 | ||||
| 90468-08035 | ||||
| 90480-01556 | ||||
| 90523-12004 | ||||
| 91651-60612 | ||||

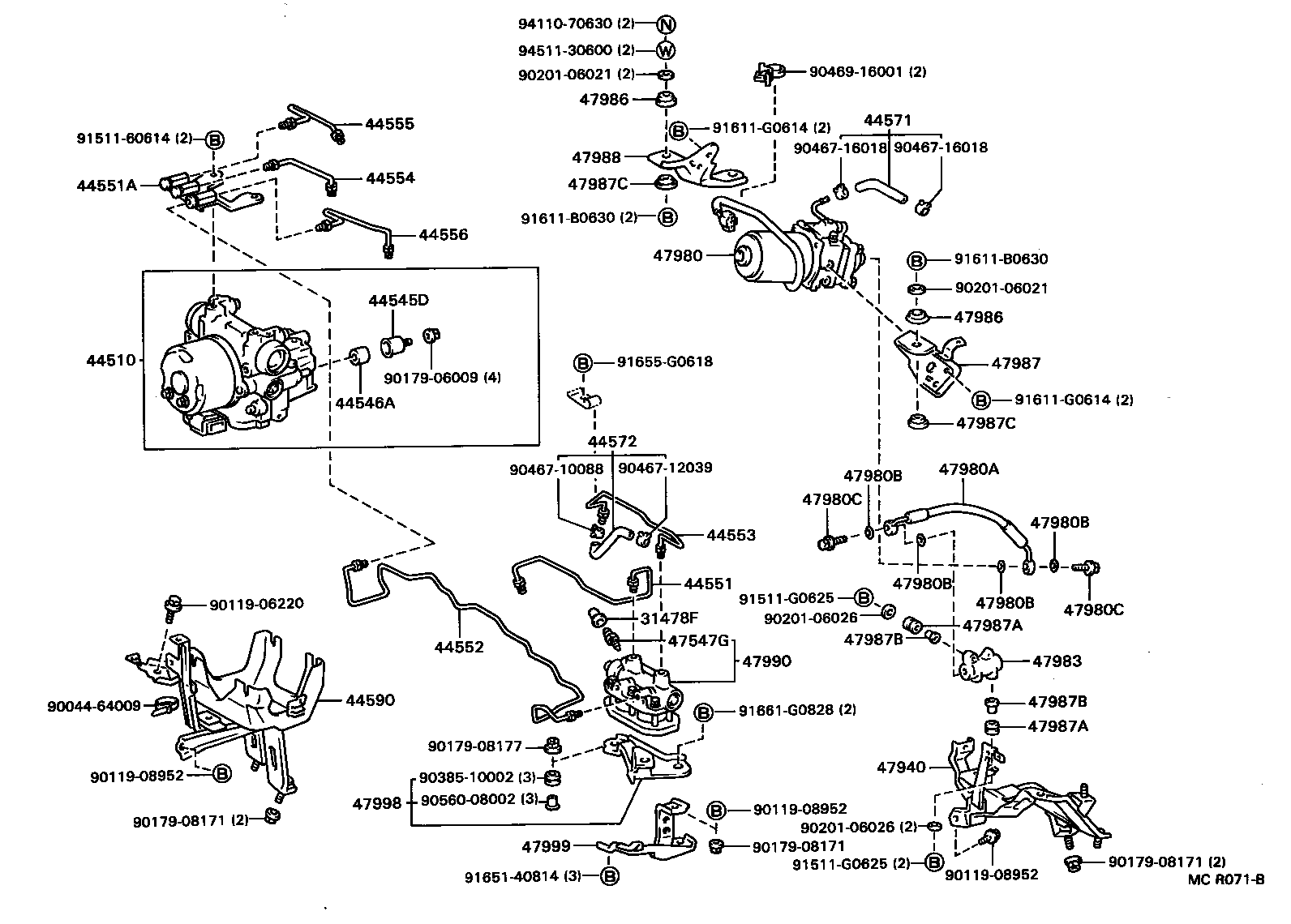

ILLUST NO. 2 OF 2(9305- )LHD..4FC,6F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31478F - CAP, BLEEDER PLUG(FOR BRAKE TRACTION ACTUATOR) | ||||
| 31478-30010 |
JZA80..EUR |
1 | ||
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-14080 |
JZA80..EUR |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
JZA80 |
4 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
JZA80 |
4 | ||
| 44551 - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-14020 |
JZA80..LHD..EUR |
1 | ||
| 44551A - WAY, NO.1(FOR BRAKE ACTUATOR) | ||||
| 44589-14030 |
JZA80..LHD..EUR |
1 | ||
| 44552 - TUBE, BRAKE ACTUATOR, NO.2 | ||||
| 44552-14020 |
JZA80..LHD..EUR |
1 | ||
| 44552-14021 |
JZA80..LHD..EUR |
1 | ||
| 44553 - TUBE, BRAKE ACTUATOR, NO.3 | ||||
| 44553-14020 |
JZA80..LHD..EUR |
1 | ||
| 44554 - TUBE, BRAKE ACTUATOR, NO.4 | ||||
| 44554-14010 |
JZA80 |
1 | ||
| 44555 - TUBE, BRAKE ACTUATOR, NO.5 | ||||
| 44555-14020 |
JZA80..LHD |
1 | ||
| 44556 - TUBE, BRAKE ACTUATOR, NO.6 | ||||
| 44556-14040 |
JZA80..LHD..EUR |
1 | ||
| 44571 - HOSE, BRAKE ACTUATOR | ||||
| 44571-14020 |
JZA80..LHD..EUR |
1 | ||
| 44572 - HOSE, BRAKE ACTUATOR, NO.2 | ||||
| 44572-14020 |
JZA80..LHD..EUR |
1 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-14030 |
JZA80..LHD |
1 | ||
| 47547G - PLUG, BLEEDER(FOR BRAKE TRACTION ACTUATOR) | ||||
| 47547-10050 |
JZA80..EUR |
1 | ||
| 47940 - BRACKET ASSY, BRAKE TRACTION | ||||
| 47940-14020 |
JZA80..LHD..EUR |
1 | ||
| 47980 - PUMP ASSY, BRAKE TRACTION | ||||
| 47980-14020 |
JZA80..LHD..EUR |
1 | ||
| 47980A - HOSE, PRESSURE(FOR BRAKE TRACTION PUMP) | ||||
| 90947-06011 |
JZA80..LHD..EUR |
1 | ||
| 47980B - RING, O(FOR BRAKE TRACTION PUMP PRESSURE HOSE) | ||||
| 90301-13011 |
JZA80..EUR |
4 | ||
| 47980B - RING, O(FOR BRAKE TRACTION PUMP PRESSURE HOSE) | ||||
| 90301-13011 |
JZA80..EUR |
4 | ||
| 47980B - RING, O(FOR BRAKE TRACTION PUMP PRESSURE HOSE) | ||||
| 90301-13011 |
JZA80..EUR |
4 | ||
| 47980B - RING, O(FOR BRAKE TRACTION PUMP PRESSURE HOSE) | ||||
| 90301-13011 |
JZA80..EUR |
4 | ||
| 47980C - BOLT, UNION(FOR BRAKE TRACTION PUMP PRESSURE HOSE) | ||||
| 90401-10039 |
JZA80..EUR |
2 | ||
| 47980C - BOLT, UNION(FOR BRAKE TRACTION PUMP PRESSURE HOSE) | ||||
| 90401-10039 |
JZA80..EUR |
2 | ||
| 47983 - DAMPER, BRAKE TRACTION | ||||
| 47983-22010 |
JZA80..EUR |
1 | ||
| 47986 - COVER, BRAKE TRACTION PUMP, NO.2 | ||||
| 47986-50010 |
JZA80..EUR |
3 | ||
| 47986 - COVER, BRAKE TRACTION PUMP, NO.2 | ||||
| 47986-50010 |
JZA80..EUR |
3 | ||
| 47987 - BRACKET, BRAKE TRACTION PUMP, NO.1 | ||||
| 47987-14020 |
JZA80..LHD..EUR |
1 | ||
| 47987A - BUSH, NO.1(FOR BRAKE TRACTION PUMP BRACKET) | ||||
| 90385-08010 |
JZA80..EUR |
2 | ||
| 47987A - BUSH, NO.1(FOR BRAKE TRACTION PUMP BRACKET) | ||||
| 90385-08010 |
JZA80..EUR |
2 | ||
| 47987B - SPACER(FOR BRAKE TRACTION PUMP BRACKET) | ||||
| 90561-06015 |
JZA80..EUR |
2 | ||
| 47987B - SPACER(FOR BRAKE TRACTION PUMP BRACKET) | ||||
| 90561-06015 |
JZA80..EUR |
2 | ||
| 47987C - BUSH, NO.2(FOR BRAKE TRACTION PUMP BRACKET) | ||||
| 90389-06034 |
JZA80..EUR |
3 | ||
| 47987C - BUSH, NO.2(FOR BRAKE TRACTION PUMP BRACKET) | ||||
| 90389-06034 |
JZA80..EUR |
3 | ||
| 47988 - BRACKET, BRAKE TRACTION PUMP, NO.2 | ||||
| 47988-14020 |
JZA80..LHD..EUR |
1 | ||
| 47990 - ACTUATOR ASSY, BRAKE TRACTION | ||||
| 47990-14010 |
JZA80..EUR |
1 | ||
| 47998 - BRACKET, BRAKE TRACTION ACTUATOR, NO.1 | ||||
| 47998-14010 |
JZA80..EUR |
1 | ||
| 47999 - BRACKET, BRAKE TRACTION ACTUATOR, NO.2 | ||||
| 47999-14010 |
JZA80..EUR |
1 | ||
| Common parts | ||||
| 90044-64009 | ||||
| 90119-06220 | ||||
| 90119-08952 | ||||
| 90179-06009 | ||||
| 90179-08171 | ||||
| 90179-08177 | ||||
| 90201-06021 | ||||
| 90201-06026 | ||||
| 90385-10002 | ||||
| 90467-10088 | ||||
| 90467-12039 | ||||
| 90467-16018 | ||||
| 90469-16001 | ||||
| 90560-08002 | ||||
| 91511-60614 | ||||
| 91511-G0625 | ||||
| 91611-B0630 | ||||
| 91611-G0614 | ||||
| 91651-40814 | ||||
| 91655-G0618 | ||||
| 91661-G0828 | ||||
| 94110-70630 | ||||
| 94511-30600 | ||||

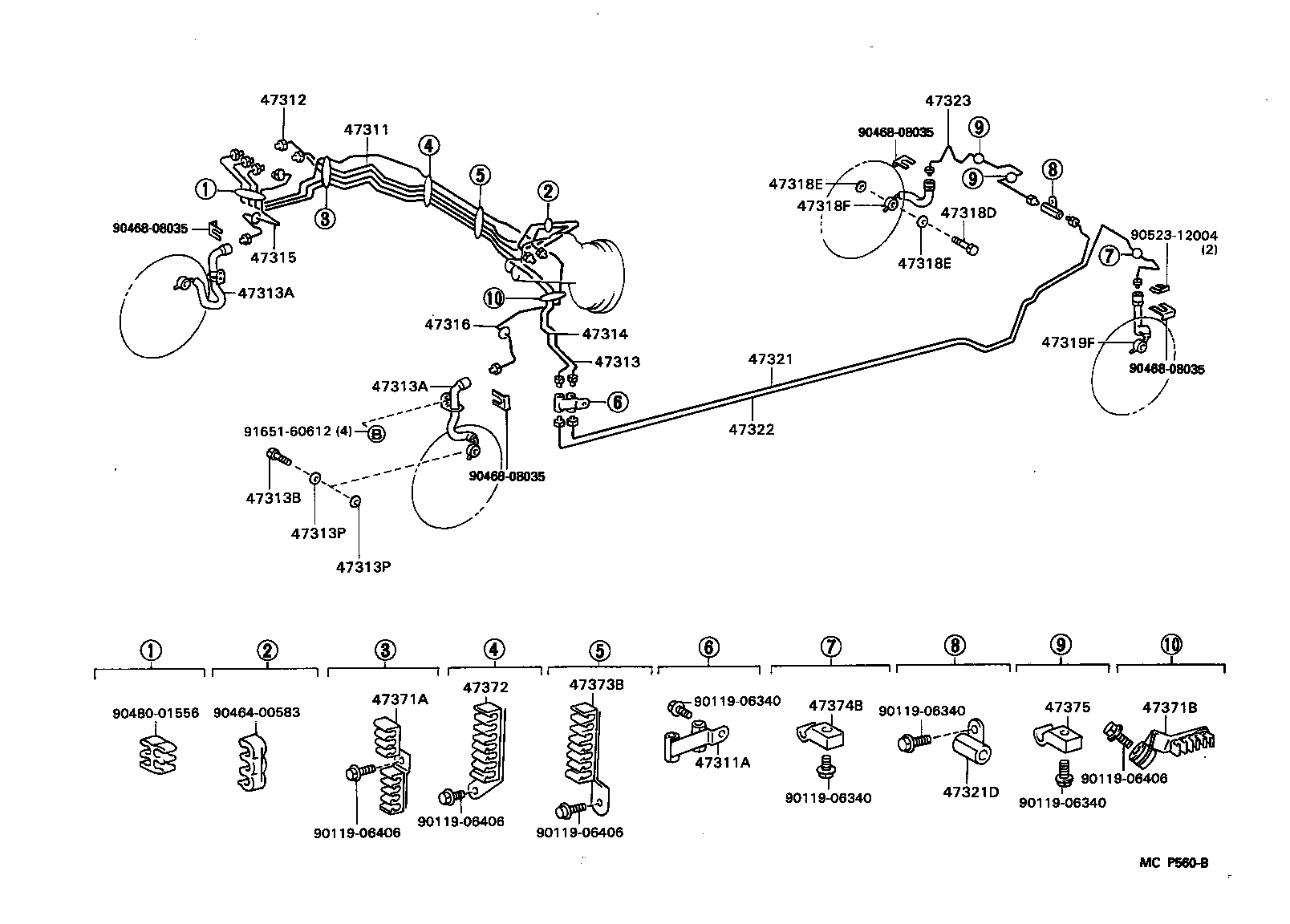

ILLUST NO. 1 OF 2(9305-9601)TWC ; (9601-9607)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-14430 |
JZA80..LHD..EUR |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10220 |
JZA80..EUR,GCC |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47324-14150 |
JZA80..LHD..EUR |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47322-14340 |
JZA80..LHD..EUR |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 47330-14010 |
JZA80 RH |
1 | ||
| 47340-14010 |
JZA80 LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 47330-14010 |
JZA80 RH |
1 | ||
| 47340-14010 |
JZA80 LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10042 |
JZA80 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-24010 |
JZA80 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-24010 |
JZA80 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47323-14130 |
JZA80..LHD |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47312-14270 |
JZA80..LHD |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47313-14290 |
JZA80..LHD |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10042 |
JZA80 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-24010 |
JZA80 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-24010 |
JZA80 |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02745 |
JZA80 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02745 |
JZA80 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47326-14040 |
JZA80 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10213 |
JZA80..EUR,GCC |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47327-14030 |
JZA80 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47328-14030 |
JZA80 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-14130 |
JZA80..LHD..EUR |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47371-14170 |
JZA80..LHD..4FC |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-14140 |
JZA80..LHD..EUR |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-14150 |
JZA80..LHD..EUR |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-30180 |
JZA80..EUR,GCC |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-30180 |
JZA80 |
2 | ||
| Common parts | ||||
| 90119-06340 | ||||
| 90119-06406 | ||||
| 90464-00583 | ||||
| 90468-08035 | ||||
| 90480-01556 | ||||
| 90523-12004 | ||||
| 91651-60612 | ||||

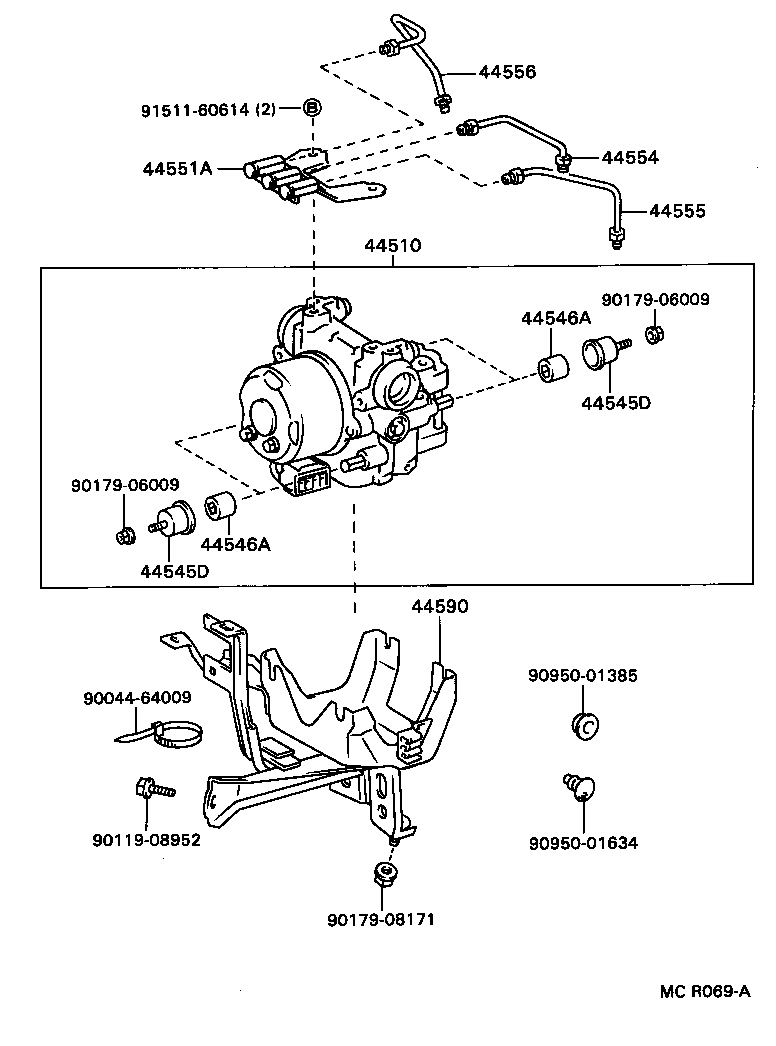

ILLUST NO. 2 OF 2(9305-9601)TWC ; (9601-9607)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90044-64009 | ||||
| 90119-08952 | ||||
| 90179-06009 | ||||
| 90179-08171 | ||||
| 90950-01385 | ||||
| 90950-01634 | ||||
| 91511-60614 | ||||
