JZA80L-AJPVZK (1993)
Toyota Supra
Production
Aug 1993
-
Sep 1997
Engine
2JZGTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9607- )

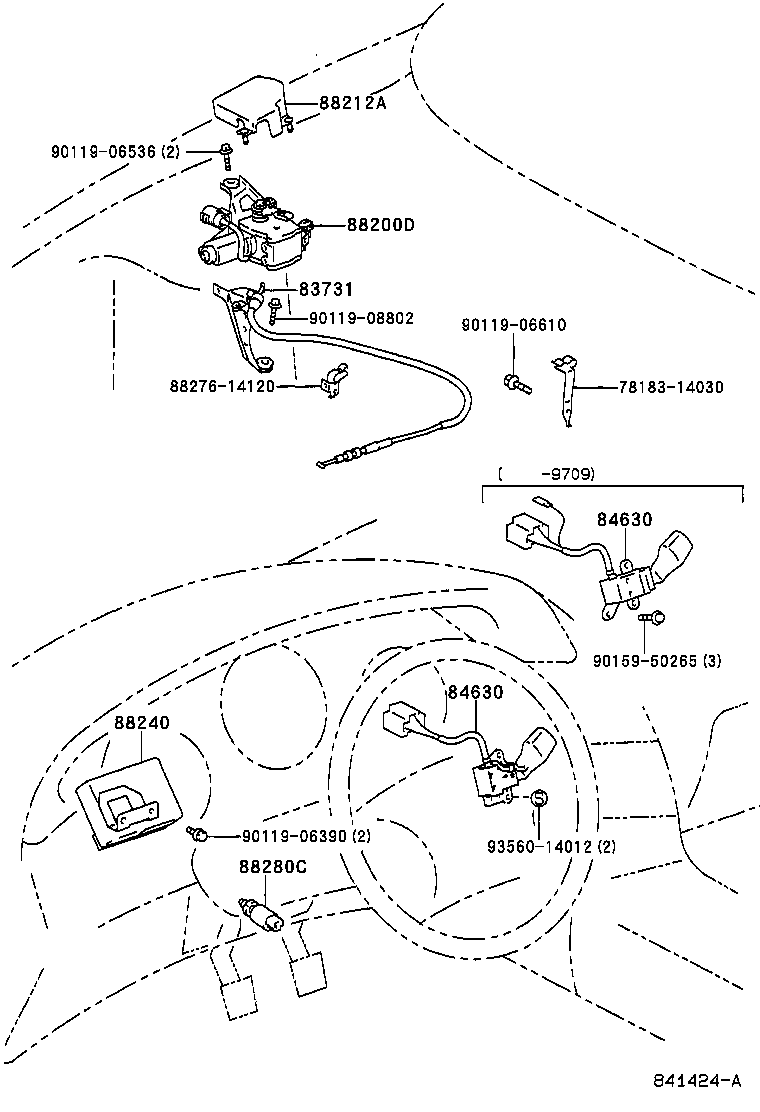

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83731 - CABLE, CRUISE CONTROL | ||||
| 83731-14040 |
JZA80..TWT |
1 | ||
| 84630 - SWITCH ASSY, CRUISE CONTROL MAIN | ||||
| 84630-33020 |
JZA80 |
1 | ||
| 84630-33020 |
JZA80 |
1 | ||
| 84630 - SWITCH ASSY, CRUISE CONTROL MAIN | ||||
| 84630-33020 |
JZA80 |
1 | ||
| 84630-33020 |
JZA80 |
1 | ||
| 88200D - ACTUATOR ASSY, CRUISE CONTROL | ||||
| 88002-14030 |
JZA80..TWT |
1 | ||
| 88200-14200 |
JZA80 |
1 | ||
| 88212A - COVER, CRUISE CONTROL ACTUATOR | ||||
| 88212-14110 |
JZA80 |
1 | ||
| 88212-14120 |
JZA80 |
1 | ||
| 88240 - COMPUTER ASSY, CRUISE CONTROL | ||||
| 88240-14280 |
JZA80 |
1 | ||
| 88240-14260 |
JZA80 |
1 | ||
| Common parts | ||||
| 78183-14030 | ||||
| 88276-14120 | ||||
| 90119-06390 | ||||
| 90119-06536 | ||||
| 90119-06610 | ||||
| 90119-08802 | ||||
| 90159-50265 | ||||
| 93560-14012 | ||||
(9305-9607)TWT

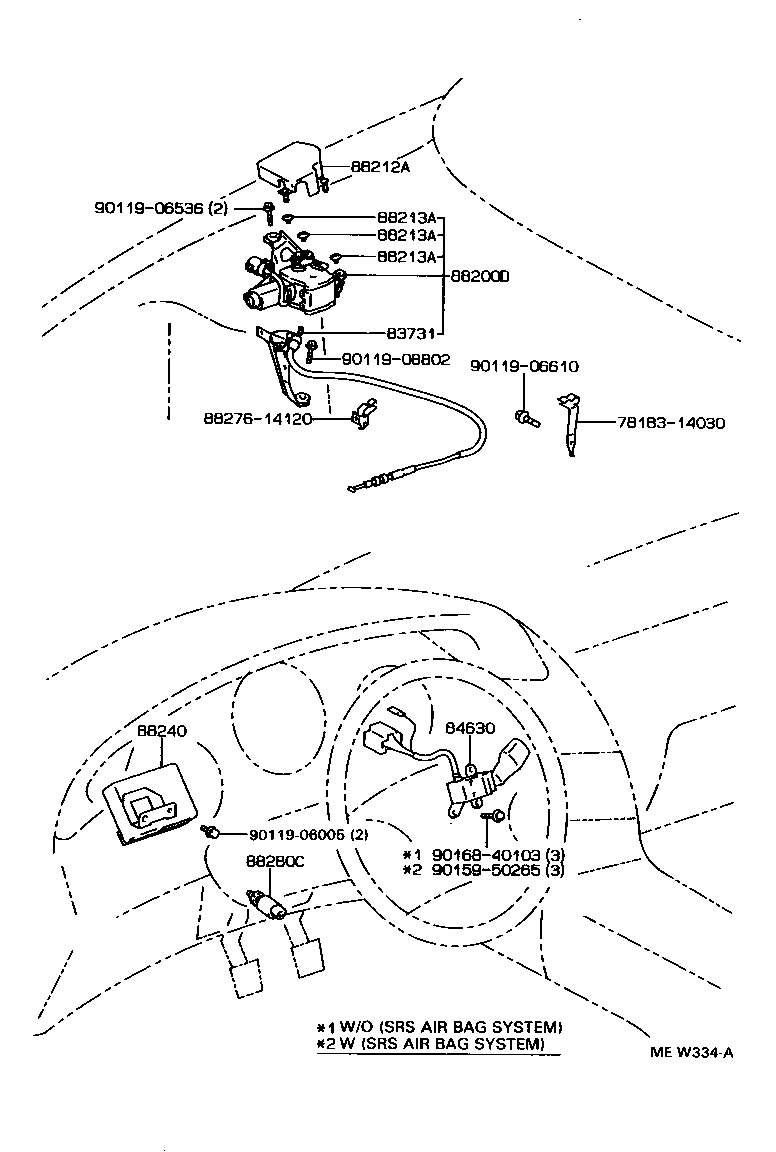

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83731 - CABLE, CRUISE CONTROL | ||||
| 83731-14040 |
JZA80..TWT |
1 | ||
| 84630 - SWITCH ASSY, CRUISE CONTROL MAIN | ||||
| 84630-33020 |
JZA80 |
1 | ||
| 84630-33020 |
JZA80 |
1 | ||
| 88200D - ACTUATOR ASSY, CRUISE CONTROL | ||||
| 88002-14030 |
JZA80..TWT |
1 | ||
| 88200-14200 |
JZA80 |
1 | ||
| 88212A - COVER, CRUISE CONTROL ACTUATOR | ||||
| 88212-14110 |
JZA80 |
1 | ||
| 88212-14120 |
JZA80 |
1 | ||
| 88213A - GROMMET, CRUISE CONTROL ACTUATOR COVER | ||||
| 88213-22150 |
JZA80 |
3 | ||
| 88213A - GROMMET, CRUISE CONTROL ACTUATOR COVER | ||||
| 88213-22150 |
JZA80 |
3 | ||
| 88213A - GROMMET, CRUISE CONTROL ACTUATOR COVER | ||||
| 88213-22150 |
JZA80 |
3 | ||
| 88240 - COMPUTER ASSY, CRUISE CONTROL | ||||
| 88240-14280 |
JZA80 |
1 | ||
| 88240-14260 |
JZA80 |
1 | ||
| Common parts | ||||
| 78183-14030 | ||||
| 88276-14120 | ||||
| 90109-50265 | ||||
| 90119-06005 | ||||
| 90119-06536 | ||||
| 90119-06610 | ||||
| 90119-08802 | ||||
| 90168-40103 | ||||
