JZA80L-AJPVFA (1993)

Toyota Supra

Production May 1993 - Aug 1998
Engine 2JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

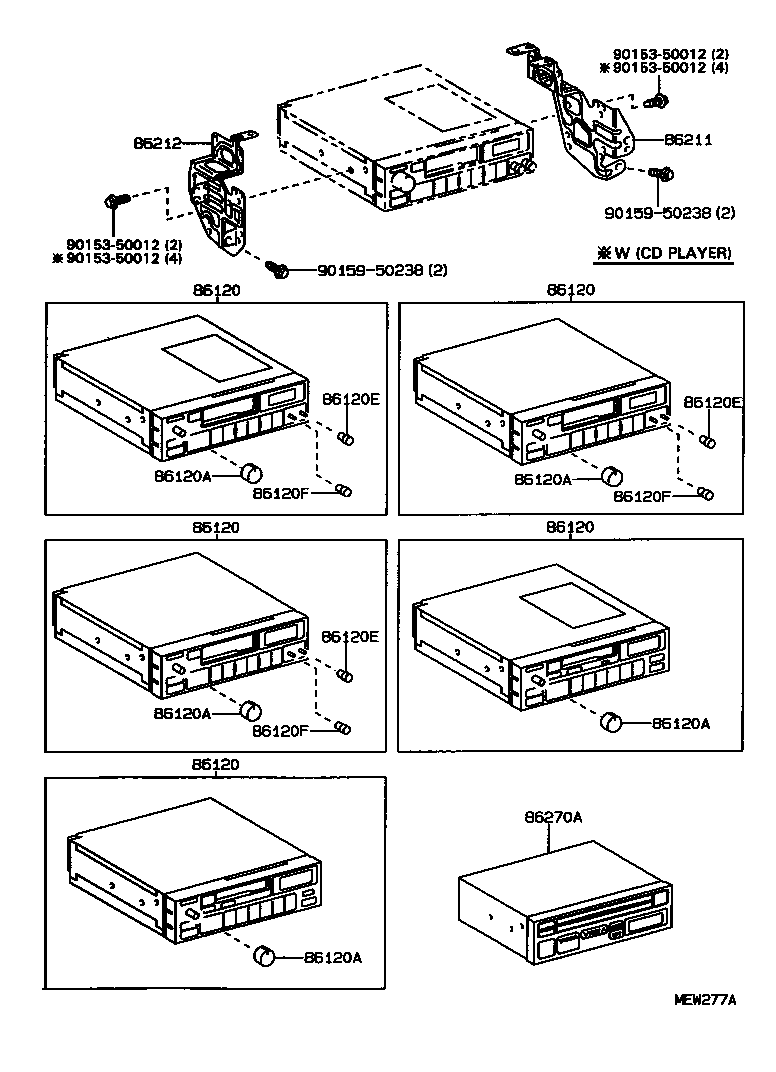

ILLUST NO. 1 OF 2(9305- )

Click highlighted areas on diagram

diagram 86120 86120 86120 86120 86120 86120A 86120A 86120A 86120A 86120A 86120E 86120E 86120E 86120F 86120F 86120F 86211 86212 86270A 9015350012 9015350012 9015350012 9015350012 9015950238 9015950238
Part # Description Qty Price
Common parts
90153-50012
90159-50238

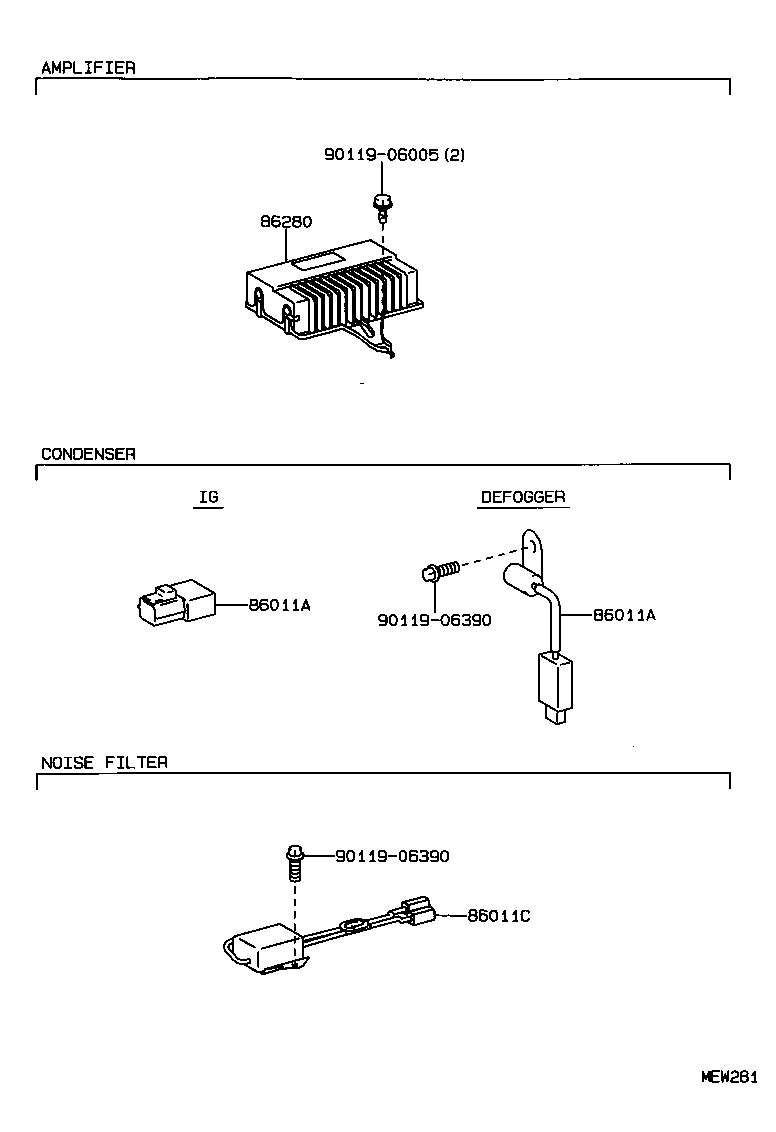

ILLUST NO. 2 OF 2(9305- )

Click highlighted areas on diagram

diagram 86011A 86011A 86011C 86280 9011906005 9011906390 9011906390
Part # Description Qty Price
Common parts
90119-06005
90119-06390

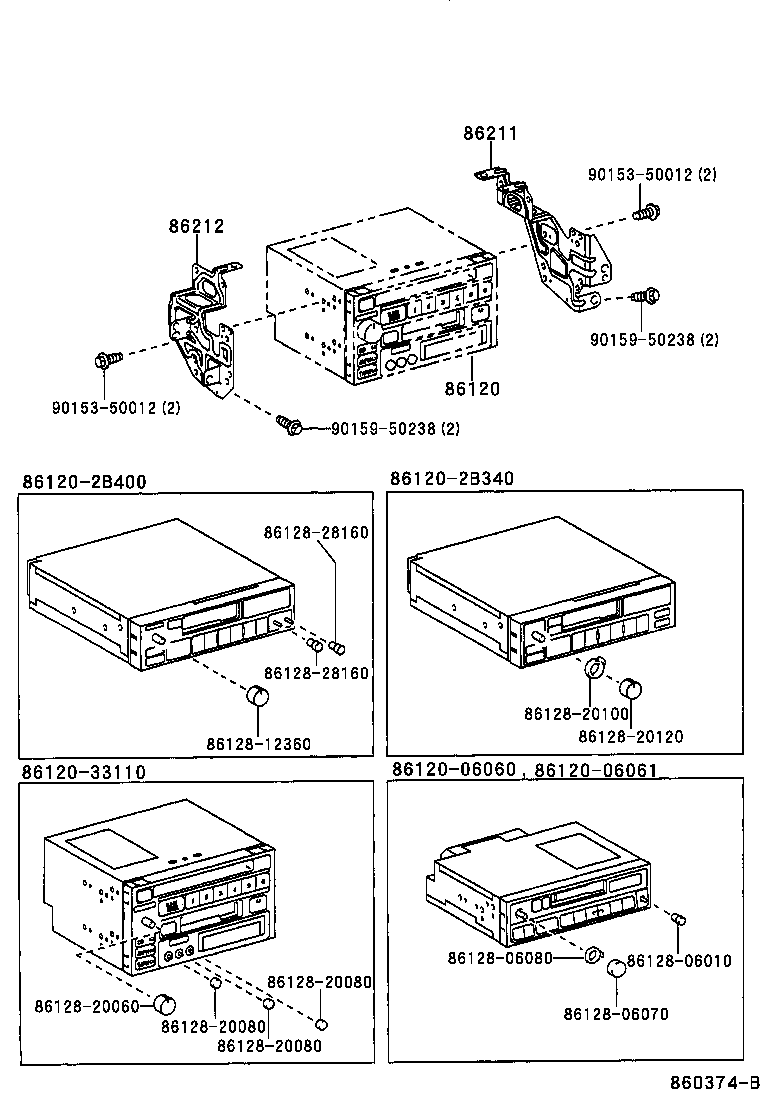

ILLUST NO. 1 OF 2(9305- )

Click highlighted areas on diagram

diagram 86120 8612806010 8612806070 8612806080 8612812360 8612820060 8612820080 8612820080 8612820080 8612820100 8612820120 8612828160 8612828160 86211 86212 9015350012 9015350012 9015950238 9015950238
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-33050

JZA80

FUJITSU TEN,AM/FM CASSETTE & CD

 1
86120-06060

JZA80..USA

FUJITSU,ID=A16406

 1
86120-2B340

JZA80

FUJITSU TEN,AM/FM ETR CASSETTE (AM=10KHZ STEP)

 1
86120-2B510

JZA80

FUJITSU TEN,AM/FM ETR CASSETTE (AM=10KHZ STEP)

 1
86120-33110

JZA80

FUJITSU TEN,AM/FM CASSETTE & CD

 1
86120-2B400

JZA80..USA

FUJITSU TEN,AM/FM ETR CASSETTE (AM=9KHZ STEP)

 1
86120-08040

JZA80

FUJITSU TEN,ID=11802,AM/FM CASSETTE & CD

 1
86120-33050

JZA80..AET;JZA80..LB..TWT

FUJITSU TEN,AM/FM CASSETTE & CD

 1
86120-2B510

JZA80..USA

FUJITSU TEN,W(DIVERSITY ANTENNA)

 1
86120-2B511

JZA80..USA

FUJITSU TEN,W(DIVERSITY ANTENNA)

 1
86120-06061

JZA80..USA

FUJITSU,ID=A16406,AM/FM CASSETTE

 1
86120-14880

JZA80

FUJITSU TEN,AM/FM CD

 1
86120-33051

JZA80..AET;JZA80..LB..TWT

FUJITSU TEN,AM/FM CASSETTE & CD

 1
86211 - BRACKET, RADIO, NO.1
86211-14240

JZA80

 1
86212 - BRACKET, RADIO, NO.2
86212-14200

JZA80

 1
Common parts
86128-06010
86128-06070
86128-06080
86128-12360
86128-20060
86128-20080
86128-20100
86128-20120
86128-28160
90153-50012
90159-50238

ILLUST NO. 1 OF 2(9305- )

Click highlighted areas on diagram

diagram 8612820180 8612820200 8612820220 8612828160 8612828160 9001023001 9001123001 9001123001 9001123002
Part # Description Qty Price
Common parts
86128-20180
86128-20200
86128-20220
86128-28160
90010-23001
90011-23001
90011-23002

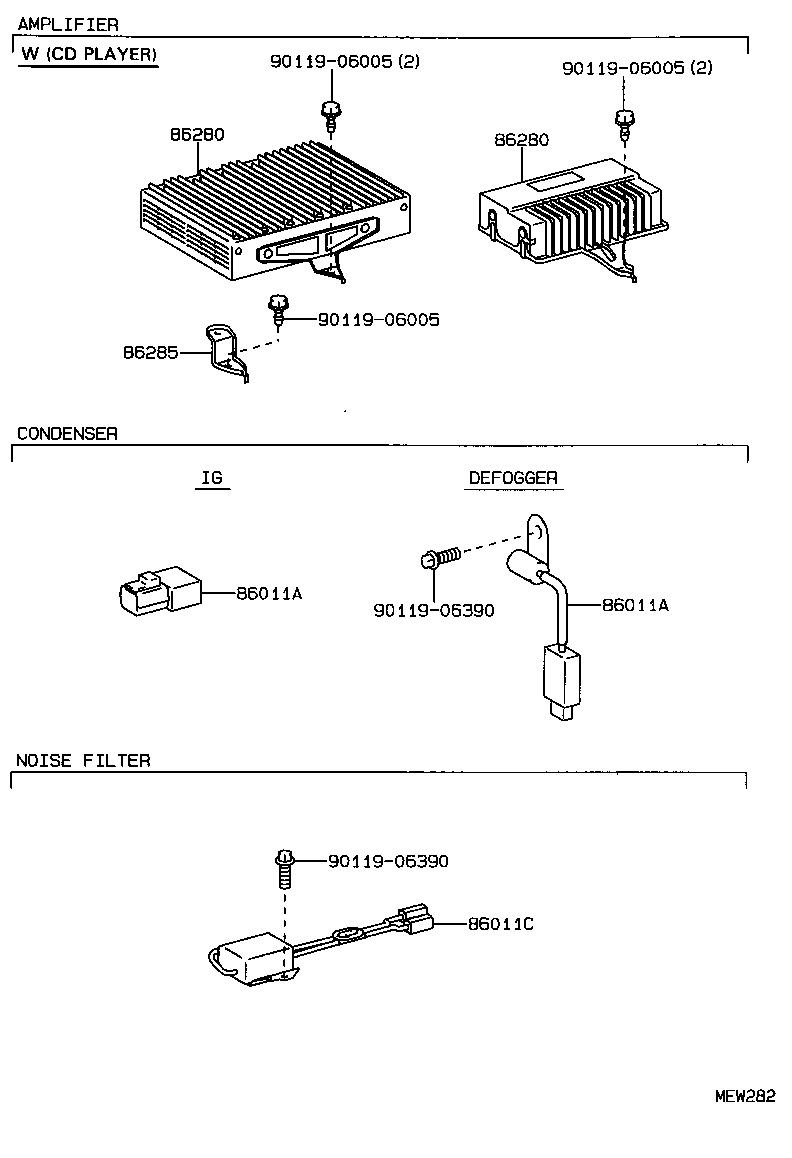

ILLUST NO. 2 OF 2(9305- )

Click highlighted areas on diagram

diagram 86011A 86011A 86011C 86280 86280 86285 9011906005 9011906005 9011906005 9011906390 9011906390
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04124

JZA80

DEFOGGER

 1
90980-04083

JZA80

IGNITION

 1
90980-04083

JZA80

IG

 1
86011A - CONDENSER, RADIO SETTING
90980-04124

JZA80

DEFOGGER

 1
90980-04083

JZA80

IGNITION

 1
90980-04083

JZA80

IG

 1
86011C - FILTER, NOISE
90980-05274

JZA80

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-14270

JZA80

 1
86280-14271

JZA80

 1
86280-14291

JZA80..AET;JZA80..LB..TWT

W(CD PLAYER)

 1
86280-14272

JZA80

 1
86280-14292

JZA80..AET;JZA80..LB..TWT

W(CD PLAYER)

 1
86280-14290

JZA80

W(CD PLAYER)

 1
86280-14292

JZA80

W(CD PLAYER)

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-14270

JZA80

 1
86280-14271

JZA80

 1
86280-14291

JZA80..AET;JZA80..LB..TWT

W(CD PLAYER)

 1
86280-14272

JZA80

 1
86280-14292

JZA80..AET;JZA80..LB..TWT

W(CD PLAYER)

 1
86280-14290

JZA80

W(CD PLAYER)

 1
86280-14292

JZA80

W(CD PLAYER)

 1
86285 - BRACKET, AMPLIFIER, NO.1
86285-14010

JZA80

 1
86285-14010

JZA80..AET;JZA80..LB..TWT

 1
86285-14010

JZA80

 1
Common parts
90119-06005
90119-06390
