JZA80L-AJPVFA (1993)
Toyota Supra
Production
May 1993
-
Aug 1998
Engine
2JZGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )

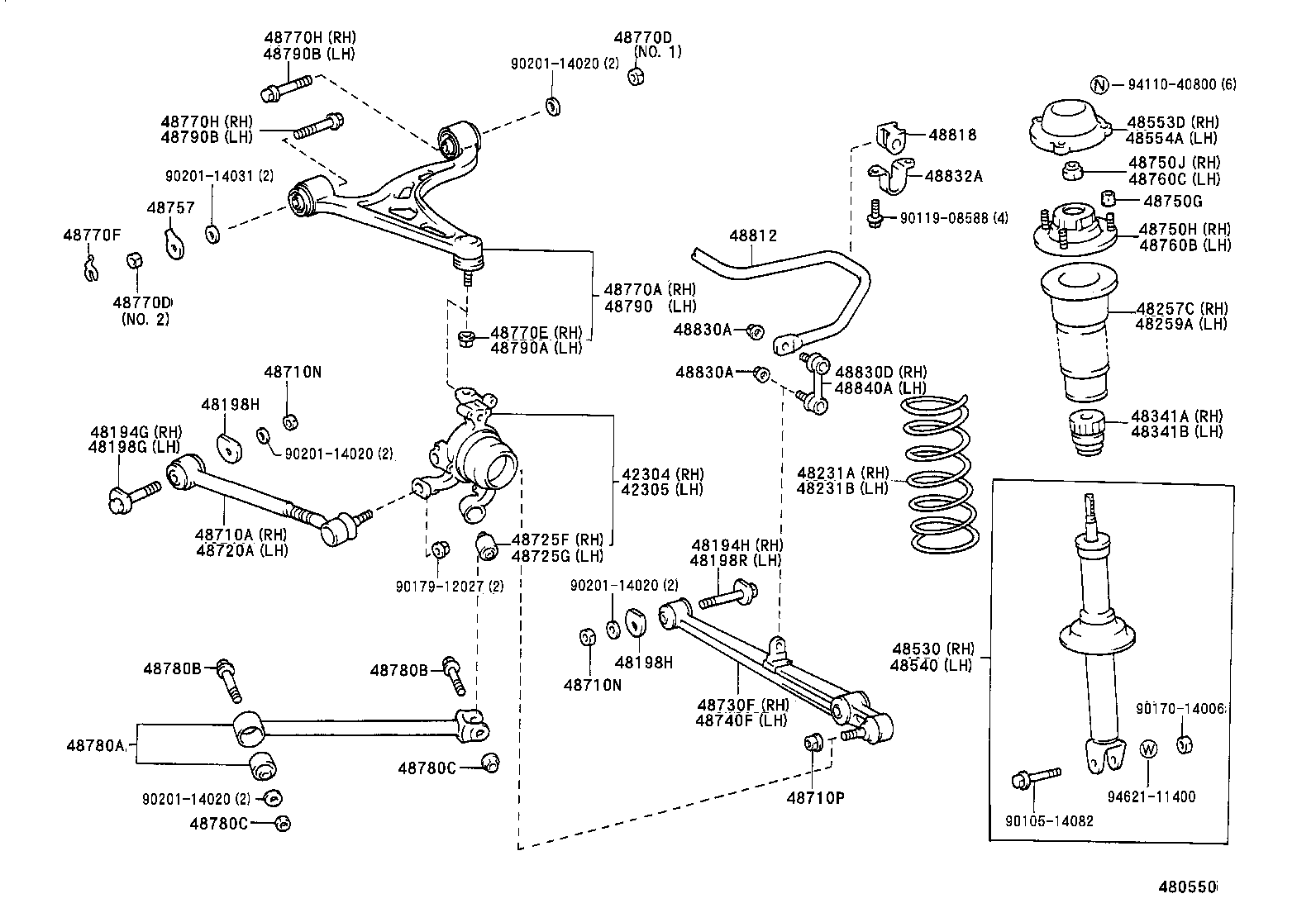

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-14082 | ||||
| 90119-08588 | ||||
| 90170-14006 | ||||
| 90179-12027 | ||||
| 90201-14020 | ||||
| 90201-14031 | ||||
| 94110-40800 | ||||
| 94621-11400 | ||||
(9305- )

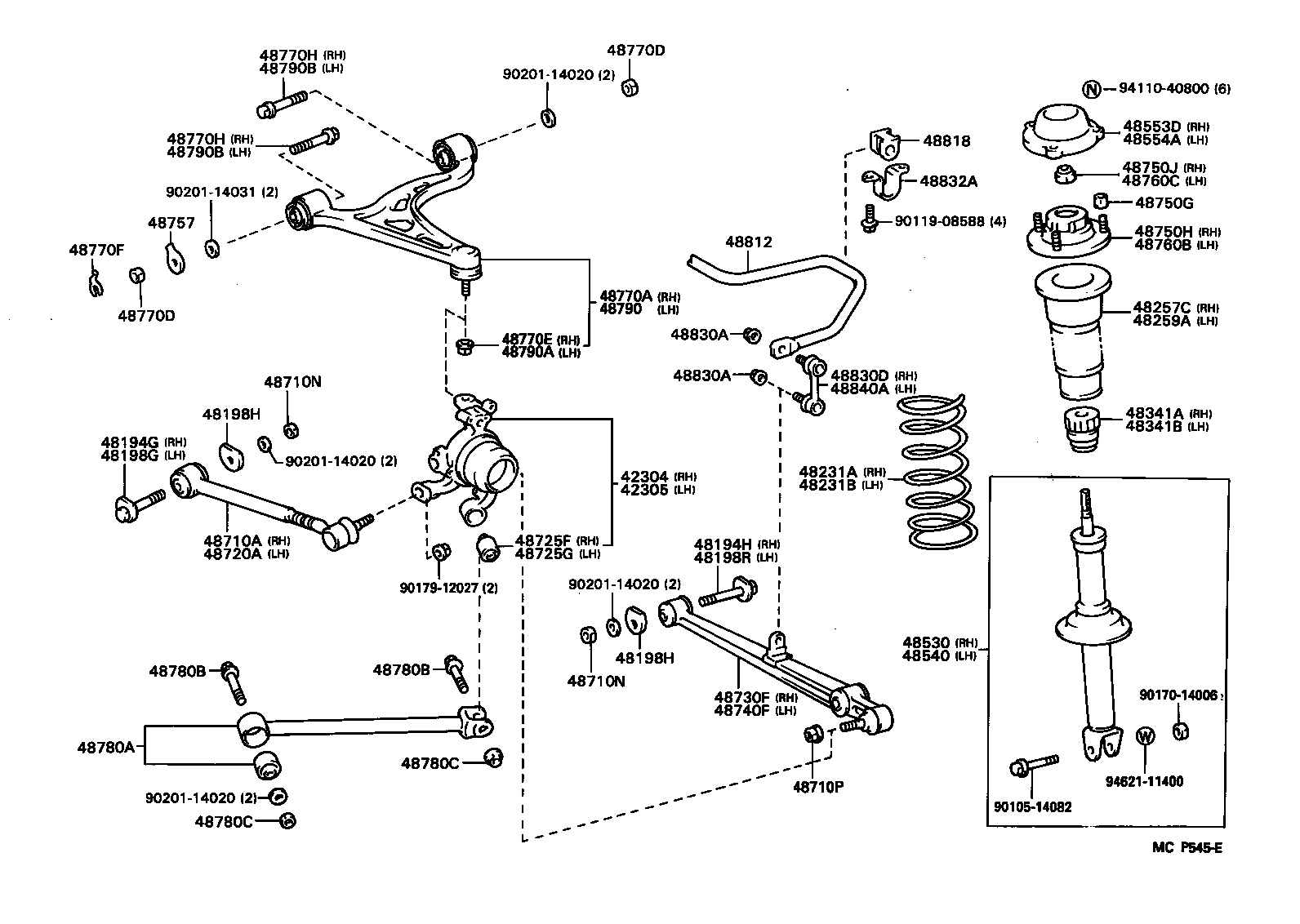

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-14020 |
JZA80 |
1 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-14020 |
JZA80 |
1 | ||
| 48194G - CAM, REAR SUSPENSION CAMBER ADJUST, NO.1 RH | ||||
| 48190-22021 |
JZA80 |
1 | ||
| 48194H - CAM, REAR SUSPENSION CAMBER ADJUST, NO.2 RH | ||||
| 48190-24030 |
JZA80 |
1 | ||
| 48198G - CAM, REAR SUSPENSION CAMBER ADJUST, NO.1 LH | ||||
| 48190-22021 |
JZA80 |
1 | ||
| 48198H - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-14010 |
JZA80 |
4 | ||
| 48198H - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-14010 |
JZA80 |
4 | ||
| 48198R - CAM, REAR SUSPENSION CAMBER ADJUST, NO.2 | ||||
| 48190-24030 |
JZA80 |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-1B121 |
JZA80..TWC |
1 | ||
| 48231-1B180 |
JZA80..TWC |
1 | ||
| 48231-1B130 |
JZA80..TWC |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-1B180 |
JZA80..TWC |
1 | ||
| 48231-1B130 |
JZA80..TWC |
1 | ||
| 48231-1B121 |
JZA80..TWC |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-24010 |
JZA80 |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-24010 |
JZA80 |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-24040 |
JZA80 |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-24040 |
JZA80 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-19495 |
JZA80..TWC |
1 | ||
| 48530-19815 |
JZA80..TWC |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-19815 |
JZA80..TWC |
1 | ||
| 48530-19495 |
JZA80..TWC |
1 | ||
| 48553D - CAP, REAR SHOCK ABSORBER, RH | ||||
| 48553-14050 |
JZA80 |
1 | ||
| 48554A - CAP, REAR SHOCK ABSORBER, LH | ||||
| 48553-14050 |
JZA80 |
1 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-14110 |
JZA80 |
1 | ||
| 48710N - NUT, NO.1(FOR REAR LOWER CONTROL ARM) | ||||
| 90170-14012 |
JZA80 |
4 | ||
| 48710N - NUT, NO.1(FOR REAR LOWER CONTROL ARM) | ||||
| 90170-14012 |
JZA80 |
4 | ||
| 48710P - NUT, NO.2(FOR REAR LOWER CONTROL ARM) | ||||
| 90179-14012 |
JZA80 |
2 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-14110 |
JZA80 |
1 | ||
| 48725F - BUSH, REAR AXLE CARRIER, RH | ||||
| 48725-14070 |
JZA80 |
1 | ||
| 48725G - BUSH, REAR AXLE CARRIER, LH | ||||
| 48725-14070 |
JZA80 |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-14040 |
JZA80 |
1 | ||
| 48730-14030 |
JZA80 |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48740-14060 |
JZA80 |
1 | ||
| 48740-14070 |
JZA80 |
1 | ||
| 48750G - NUT(FOR REAR SUSPENSION SUPPORT) | ||||
| 90179-08235 |
JZA80 |
6 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-14041 |
JZA80 |
1 | ||
| 48750-14050 |
JZA80 |
1 | ||
| 48750-14040 |
JZA80 |
1 | ||
| 48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 94187-11200 |
JZA80 |
1 | ||
| 48757 - ATTACHMENT, REAR SUSPENSION ARM | ||||
| 48757-24010 |
JZA80 |
2 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48750-14050 |
JZA80 |
1 | ||
| 48750-14041 |
JZA80 |
1 | ||
| 48750-14040 |
JZA80 |
1 | ||
| 48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 94187-11200 |
JZA80 |
1 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48770-19025 |
JZA80 |
1 | ||
| 48770-19025 |
JZA80 |
1 | ||
| 48770-19035 |
JZA80..TWC |
1 | ||
| 48770D - NUT(FOR REAR UPPER CONTROL ARM) | ||||
| 90170-14012 |
JZA80 NO.1 |
2 | ||
| 90179-14054 |
JZA80 NO.2 |
2 | ||
| 48770D - NUT(FOR REAR UPPER CONTROL ARM) | ||||
| 90170-14012 |
JZA80 NO.1 |
2 | ||
| 90179-14054 |
JZA80 NO.2 |
2 | ||
| 48770E - NUT, NO.1(FOR REAR UPPER CONTROL ARM RH) | ||||
| 90179-14015 |
JZA80 |
1 | ||
| 48770F - RING, E(FOR REAR UPPER CONTROL ARM) | ||||
| 90523-16001 |
JZA80 |
2 | ||
| 48770H - BOLT(FOR REAR UPPER CONTROL ARM RH) | ||||
| 90119-14040 |
JZA80 |
2 | ||
| 48770H - BOLT(FOR REAR UPPER CONTROL ARM RH) | ||||
| 90119-14040 |
JZA80 |
2 | ||
| 48780A - ROD ASSY, STRUT, REAR | ||||
| 48780-14030 |
JZA80 |
2 | ||
| 48780B - BOLT(FOR STRUT ROD) | ||||
| 90119-14042 |
JZA80 CARRIER SIDE |
2 | ||
| 90105-14065 |
JZA80 BODY SIDE |
2 | ||
| 48780B - BOLT(FOR STRUT ROD) | ||||
| 90119-14042 |
JZA80 CARRIER SIDE |
2 | ||
| 90105-14065 |
JZA80 BODY SIDE |
2 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90170-14012 |
JZA80 BODY SIDE |
2 | ||
| 90179-14045 |
JZA80 CARRIER SIDE |
2 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90170-14012 |
JZA80 BODY SIDE |
2 | ||
| 90179-14045 |
JZA80 CARRIER SIDE |
2 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48790-19025 |
JZA80 |
1 | ||
| 48790-19035 |
JZA80..TWC |
1 | ||
| 48790-19025 |
JZA80 |
1 | ||
| 48790A - NUT, NO.1(FOR REAR UPPER CONTROL ARM LH) | ||||
| 90179-14015 |
JZA80 |
1 | ||
| 48790B - BOLT(FOR REAR UPPER CONTROL ARM LH) | ||||
| 90119-14040 |
JZA80 |
2 | ||
| 48790B - BOLT(FOR REAR UPPER CONTROL ARM LH) | ||||
| 90119-14040 |
JZA80 |
2 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-14260 |
JZA80 |
1 | ||
| 48812-14240 |
JZA80..TWC |
1 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-14070 |
JZA80..TWC |
2 | ||
| 48818-14090 |
JZA80 |
2 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-10054 |
JZA80 |
4 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-10054 |
JZA80 |
4 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-14050 |
JZA80 |
1 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-14050 |
JZA80 |
2 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48840-14030 |
JZA80 |
1 | ||
| Common parts | ||||
| 90105-14082 | ||||
| 90119-08588 | ||||
| 90170-14006 | ||||
| 90179-12027 | ||||
| 90201-14020 | ||||
| 90201-14031 | ||||
| 94110-40800 | ||||
| 94621-11400 | ||||
