JZA80L-AJMVFA (1993)
Toyota Supra
Production
May 1993
-
Sep 1997
Engine
2JZGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )

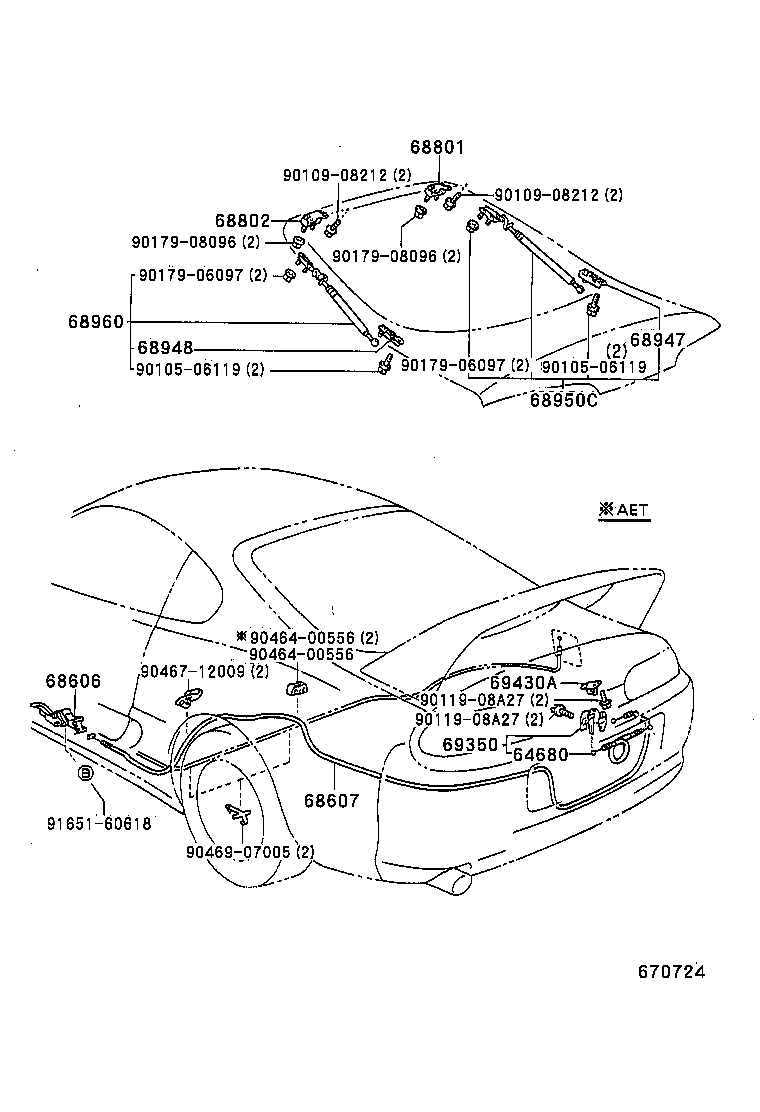

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64680 - CABLE ASSY, BACK DOOR LOCK CONTROL | ||||
| 64680-14110 |
JZA80 |
1 | ||
| 68606 - LEVER SUB-ASSY, BACK DOOR LOCK OPEN | ||||
| 64606-20091 |
JZA80 |
1 | ||
| 64606-20090 |
JZA80 |
1 | ||
| 68607 - CABLE SUB-ASSY, BACK DOOR LOCK CONTROL | ||||
| 64607-14360 |
JZA80 |
1 | ||
| 68801 - HINGE SUB-ASSY, BACK DOOR, UPPER RH | ||||
| 68801-14050 |
JZA80 |
1 | ||
| 68802 - HINGE SUB-ASSY, BACK DOOR, UPPER LH | ||||
| 68801-14050 |
JZA80 |
1 | ||
| 68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH | ||||
| 68947-14010 |
JZA80 |
1 | ||
| 68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH | ||||
| 68948-14010 |
JZA80 |
1 | ||
| 68950C - STAY ASSY, BACK DOOR, RH | ||||
| 68950-19885 |
JZA80 |
1 | ||
| 68950-19895 |
JZA80 W(REAR SPOILER) |
1 | ||
| 68960 - STAY ASSY, BACK DOOR, LH | ||||
| 68960-19575 |
JZA80 |
1 | ||
| 68960-19585 |
JZA80 W(REAR SPOILER) |
1 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| 69350-14140 |
JZA80 |
1 | ||
| 69350-14140 |
JZA80 |
1 | ||
| 69430A - STRIKER ASSY, BACK DOOR LOWER LOCK | ||||
| 69430-14100 |
JZA80 |
1 | ||
| 69430-14100 |
JZA80 |
1 | ||
| Common parts | ||||
| 90105-06119 | ||||
| 90109-08212 | ||||
| 90119-08A27 | ||||
| 90179-06097 | ||||
| 90179-08096 | ||||
| 90464-00556 | ||||
| 90467-12009 | ||||
| 90469-07005 | ||||
| 91651-60618 | ||||
