JZA80L-AJMVFA (1993)
Toyota Supra
Production
May 1993
-
Sep 1997
Engine
2JZGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )

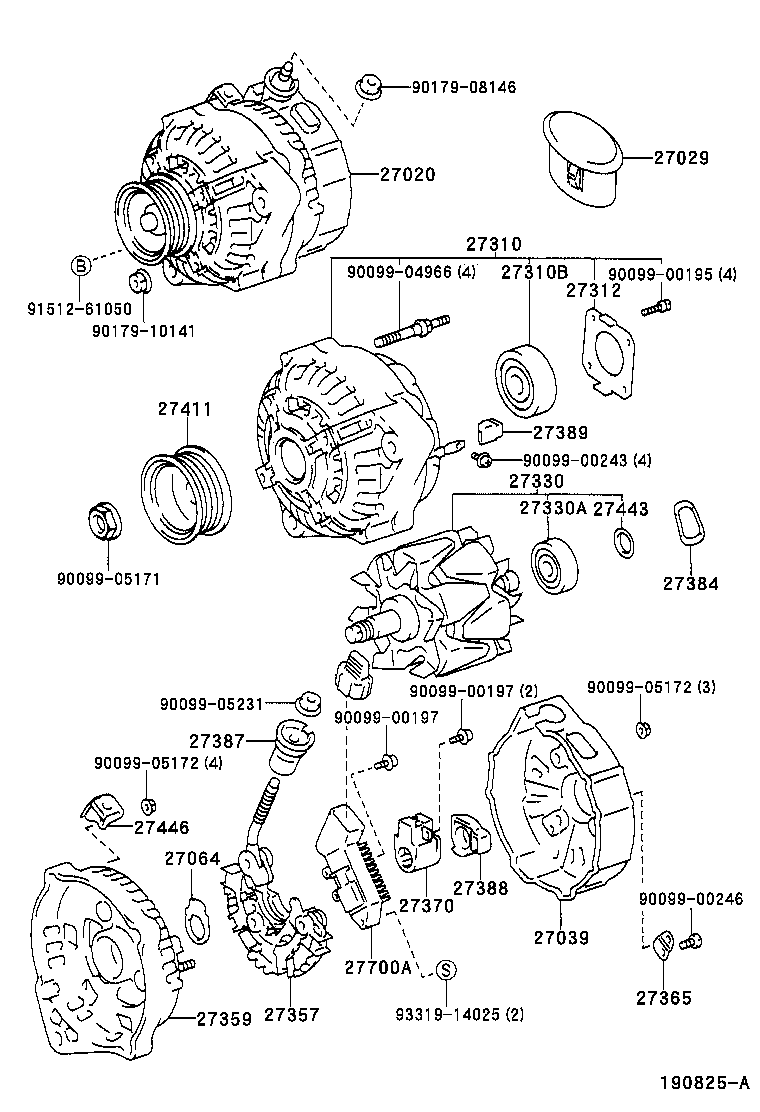

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05231 | ||||
| 90179-08146 | ||||
| 90179-10141 | ||||
| 91512-61050 | ||||
| 93319-14025 | ||||
(9305- )

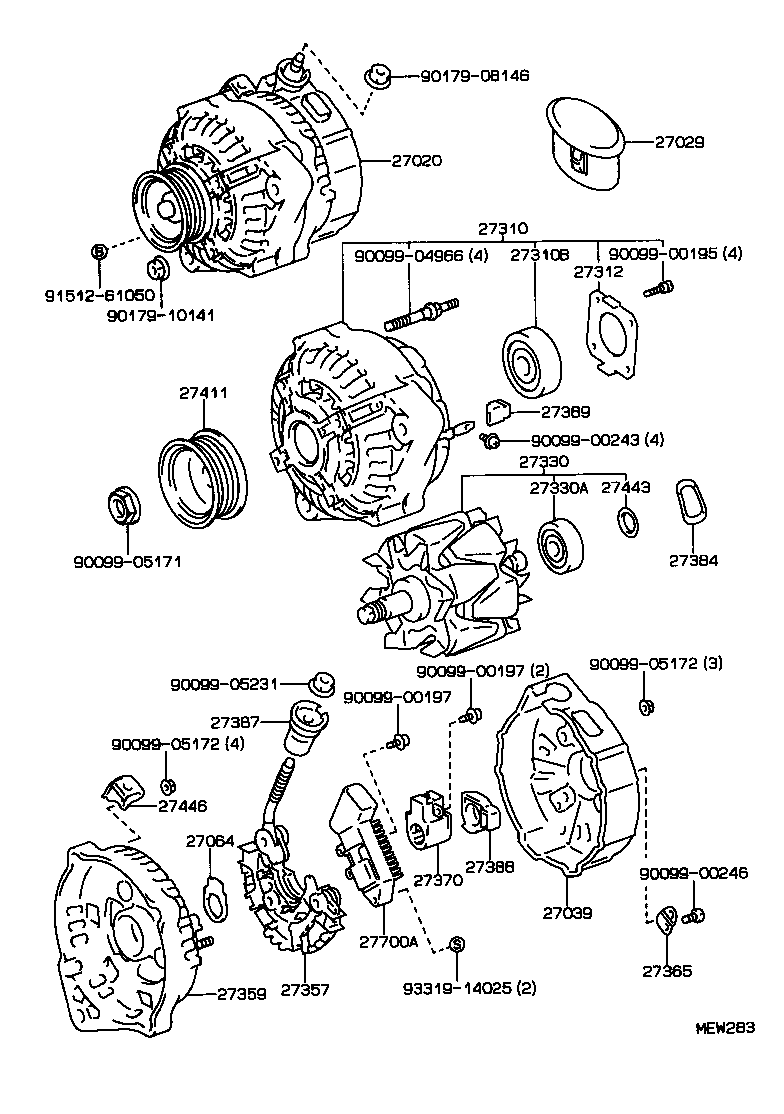

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-46190 |
2JZGE..JZA80 12V 90A |
1 | ||
| 27029 - COVER, ALTERNATOR | ||||
| 27029-46020 |
2JZ#..JZA80 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-46190 |
2JZGE..JZA80 |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
2JZ#..JZA80 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-46140 |
2JZGE..JZA80;2JZGTE..JZA80..6F |
1 | ||
| 27310-46230 |
2JZGE..JZA80;2JZGTE..JZA80..6F |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10192 |
2JZ#..JZA80 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
2JZ#..JZA80 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-46080 |
2JZGE..JZA80;2JZGTE..JZA80..6F |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10194 |
2JZ#..JZA80 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-46130 |
2JZGE..JZA80;2JZGTE..JZA80..6F |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-46080 |
2JZGE..JZA80;2JZGTE..JZA80..6F |
1 | ||
| 27359-46290 |
2JZGE..JZA80;2JZGTE..JZA80..6F |
1 | ||
| 27365 - PLATE, TERMINAL | ||||
| 27365-55080 |
2JZ#..JZA80 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
2JZ#..JZA80 |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
2JZ#..JZA80 |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42040 |
2JZ#..JZA80 |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-46220 |
2JZ#..JZA80 |
1 | ||
| 27388-42010 |
2JZ#..JZA80 |
1 | ||
| 27389 - INSULATOR, TERMINAL | ||||
| 27389-42010 |
2JZ#..JZA80 |
4 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-46080 |
2JZGE..JZA80;2JZGTE..JZA80..6F |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
2JZ#..JZA80 |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-46230 |
2JZGE..JZA80;2JZGTE..JZA80..6F |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-46060 |
2JZ#..JZA80..4FC,5F |
1 | ||
| Common parts | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05231 | ||||
| 90179-08146 | ||||
| 90179-10141 | ||||
| 91512-61050 | ||||
| 93319-14025 | ||||
