JZA80L-AJFVZW (1993)
Toyota Supra
Production
May 1993
-
Jan 1996
Engine
2JZGTE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )6F

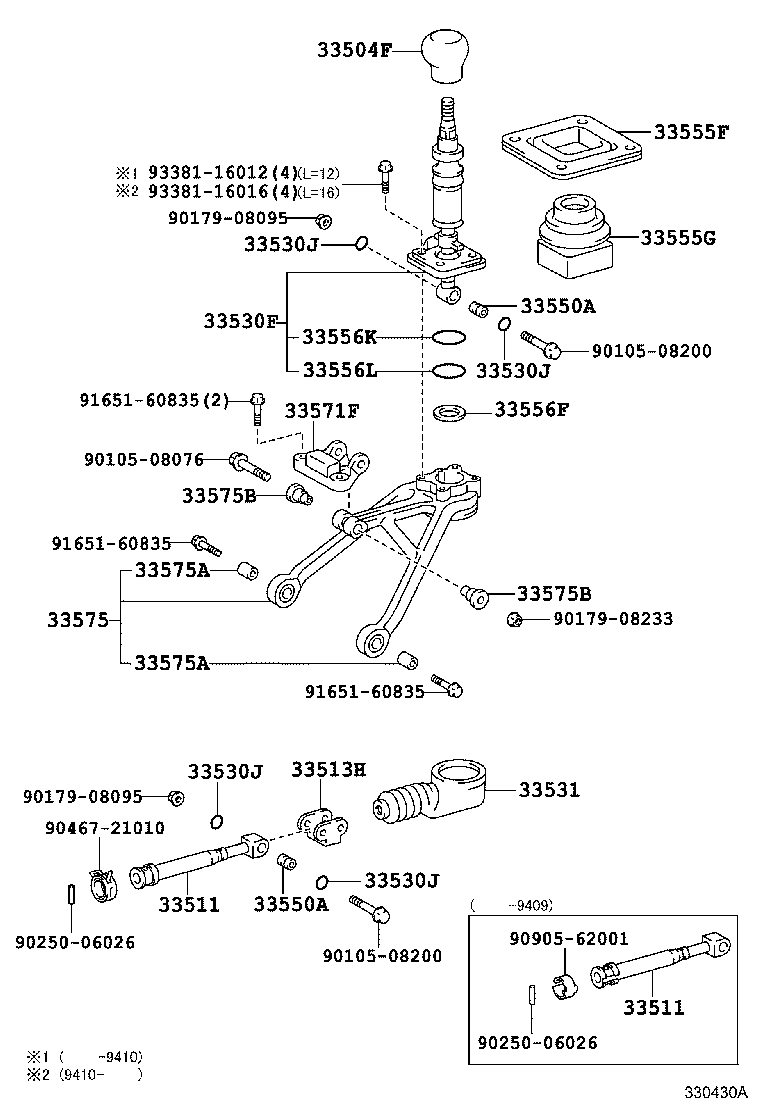

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-14130C0 |
JZA80..6F BLACK,TRIM0#,2# |
1 | ||
| 33504-14130C0 |
JZA80..LHD..6F BLACK,TRIM2# |
1 | ||
| 33504-14130C0 |
JZA80..6F BLACK,TRIM2# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-14031 |
JZA80..6F |
1 | ||
| 33511-14030 |
JZA80..6F |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-14031 |
JZA80..6F |
1 | ||
| 33511-14030 |
JZA80..6F |
1 | ||
| 33513H - YOKE, CONTROL SHAFT, NO.1 | ||||
| 33513-22030 |
JZA80..MTM |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-14442 |
JZA80..6F |
1 | ||
| 33530-14443 |
JZA80..6F |
1 | ||
| 33530-14441 |
JZA80..6F |
1 | ||
| 33530J - RING, O (FOR SHIFT LEVER) | ||||
| 90301-11015 |
JZA80..6F |
4 | ||
| 33530J - RING, O (FOR SHIFT LEVER) | ||||
| 90301-11015 |
JZA80..6F |
4 | ||
| 33530J - RING, O (FOR SHIFT LEVER) | ||||
| 90301-11015 |
JZA80..6F |
4 | ||
| 33530J - RING, O (FOR SHIFT LEVER) | ||||
| 90301-11015 |
JZA80..6F |
4 | ||
| 33531 - BOOT, DUST (FOR CONTROL SHIFT LEVER) | ||||
| 33531-14010 |
JZA80..6F |
1 | ||
| 33550A - COLLAR FOR FLOOR SHIFT) | ||||
| 90387-08134 |
JZA80..6F |
2 | ||
| 33550A - COLLAR FOR FLOOR SHIFT) | ||||
| 90387-08134 |
JZA80..6F |
2 | ||
| 33555F - BOOT, SHIFT & SELECT LEVER, NO.2 | ||||
| 33555-14110 |
JZA80..6F |
1 | ||
| 33555G - BOOT, SHIFT & SELECT LEVER, NO.3 | ||||
| 33555-14100 |
JZA80..6F |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-14050 |
JZA80..MTM |
1 | ||
| 33556K - RING, O, N0.1 (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 96711-19033 |
JZA80..6F |
1 | ||
| 33556L - RING, O, N0.2 (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 96711-19033 |
JZA80..6F |
1 | ||
| 33571F - BRACKET, CONTROL SHAFT, LOWER NO.2 | ||||
| 33057-14010 |
JZA80..6F |
1 | ||
| 33575 - RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33570-14070 |
JZA80..6F |
1 | ||
| 33575A - BUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 33546-22010 |
JZA80..MTM |
2 | ||
| 33575A - BUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 33546-22010 |
JZA80..MTM |
2 | ||
| 33575B - BUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 33546-22020 |
JZA80..MTM |
2 | ||
| 33575B - BUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 33546-22020 |
JZA80..MTM |
2 | ||
| Common parts | ||||
| 90105-08076 | ||||
| 90105-08200 | ||||
| 90179-08095 | ||||
| 90179-08233 | ||||
| 90250-06026 | ||||
| 90467-21010 | ||||
| 90905-62001 | ||||
| 91651-60835 | ||||
| 93381-16012 | ||||
| 93381-16014 | ||||
| 93381-16016 | ||||
(9305- )6F

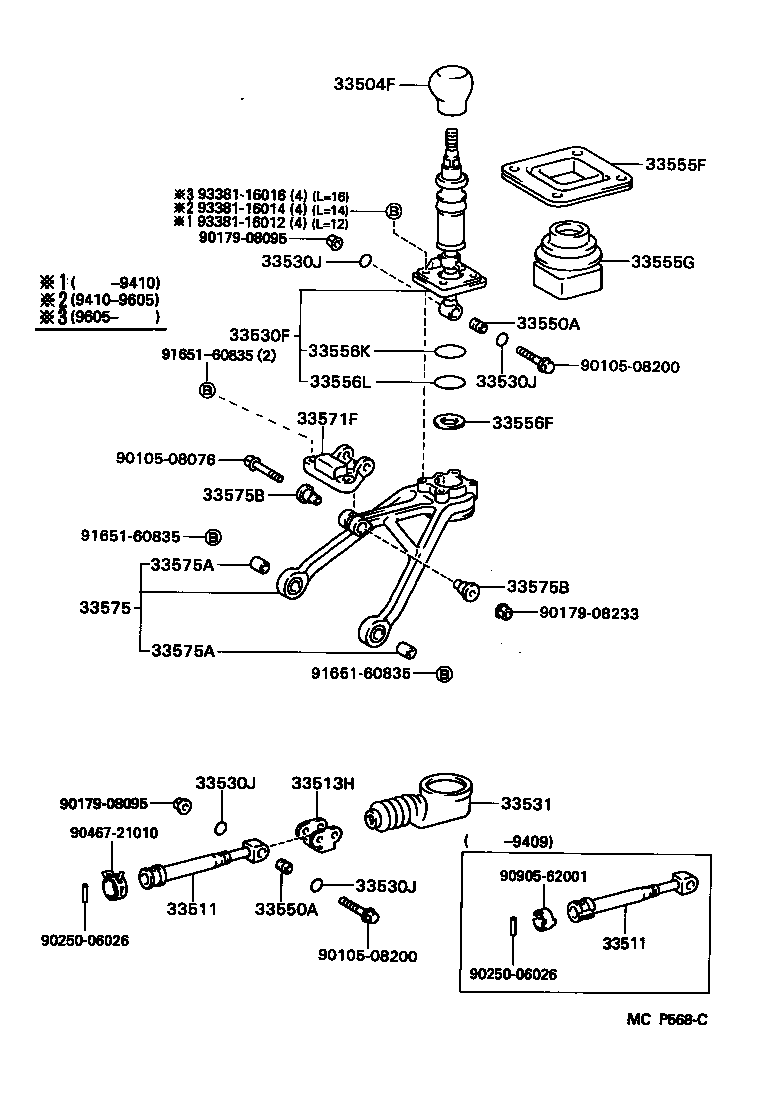

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08076 | ||||
| 90105-08200 | ||||
| 90179-08095 | ||||
| 90179-08233 | ||||
| 90250-06026 | ||||
| 90467-21010 | ||||
| 90905-62001 | ||||
| 91651-60835 | ||||
| 93381-16012 | ||||
| 93381-16016 | ||||
