JZA80L-AJFVZW (1993)
Toyota Supra
Production
May 1993
-
Jan 1996
Engine
2JZGTE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

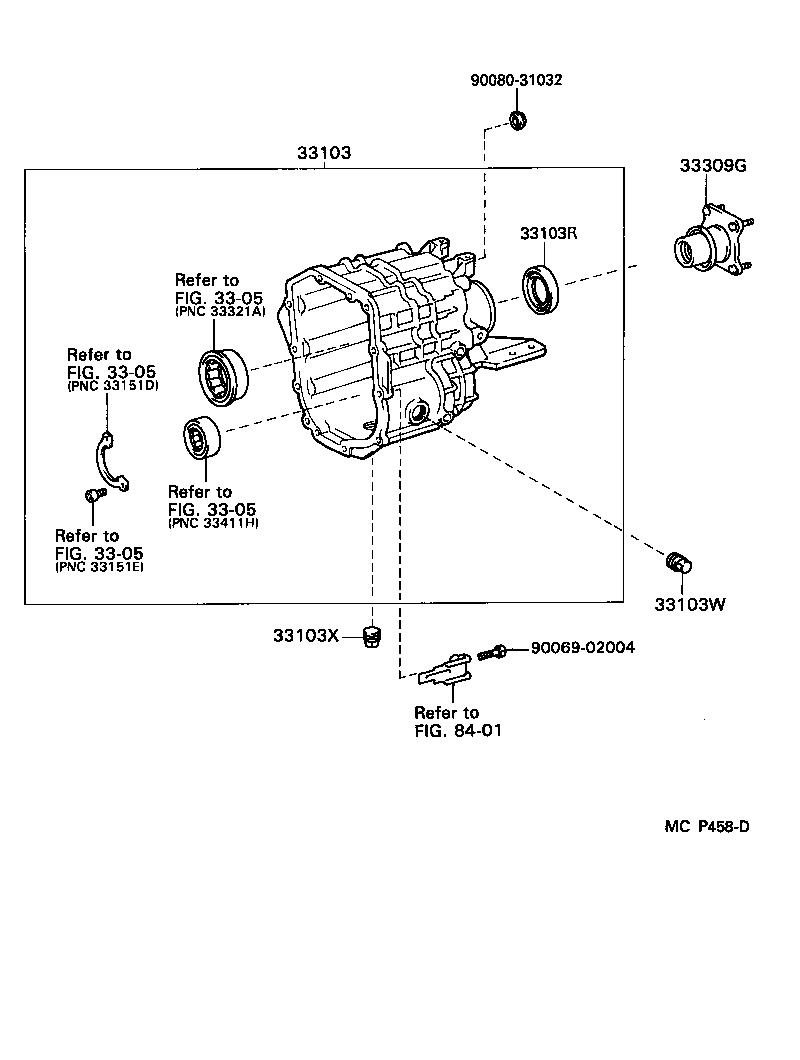

(9305-9601)6F
Click highlighted areas on diagram
V160
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33103 - HOUSING SUB-ASSY, EXTENSION(MTM) | ||||
| 33103-0W040 |
JZA80..6F |
1 | ||
| 33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90080-31029 |
JZA80..6F |
1 | ||
| 33103W - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90080-34012 |
JZA80..6F |
1 | ||
| 33103X - PLUG(FOR MANUAL TRANSMISSION DRAIN) | ||||
| 90080-34012 |
JZA80..6F |
1 | ||
| 33309G - FLANGE, MANUAL TRANSMISSION OUTPUT SHAFT COMPANION | ||||
| 33309-0W010 |
JZA80..6F |
1 | ||
| Common parts | ||||
| 90069-02004 | ||||
| 90080-31032 | ||||
| Linked diagrams | ||||
| 3305 | ||||
| 8401 | ||||

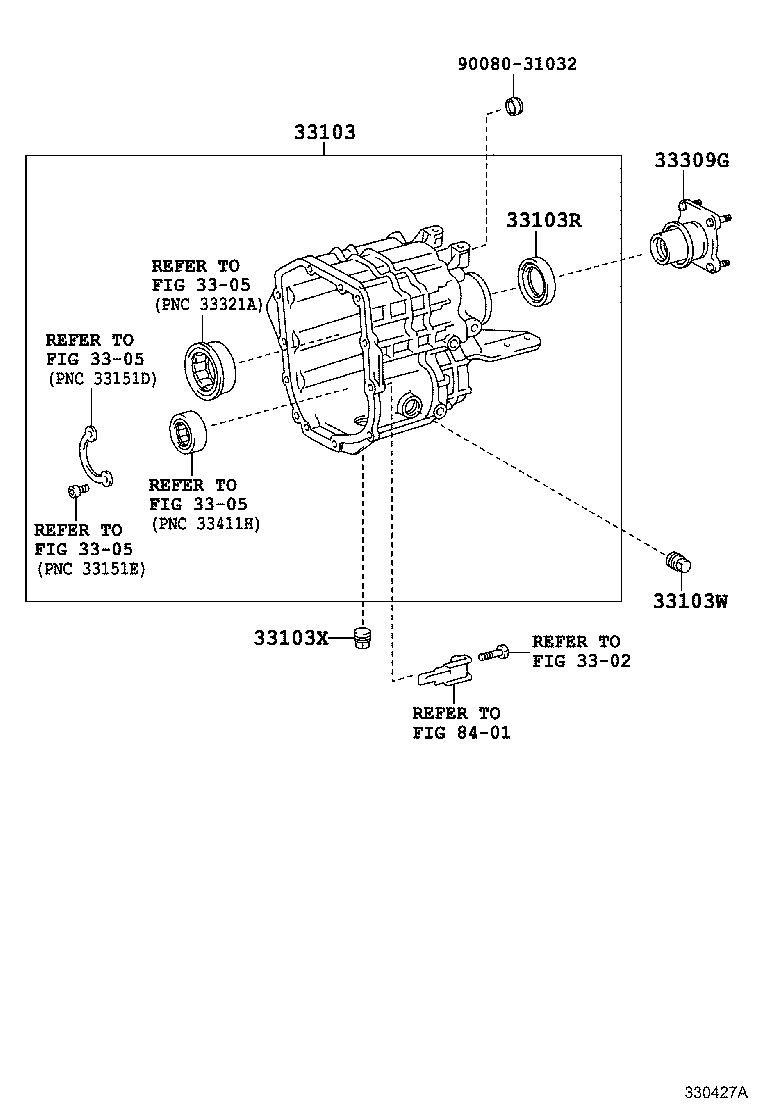

(9305- )6F
Click highlighted areas on diagram
V160
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90080-31032 | ||||
| Linked diagrams | ||||
| 3302 | ||||
| 3305 | ||||
| 8401 | ||||
